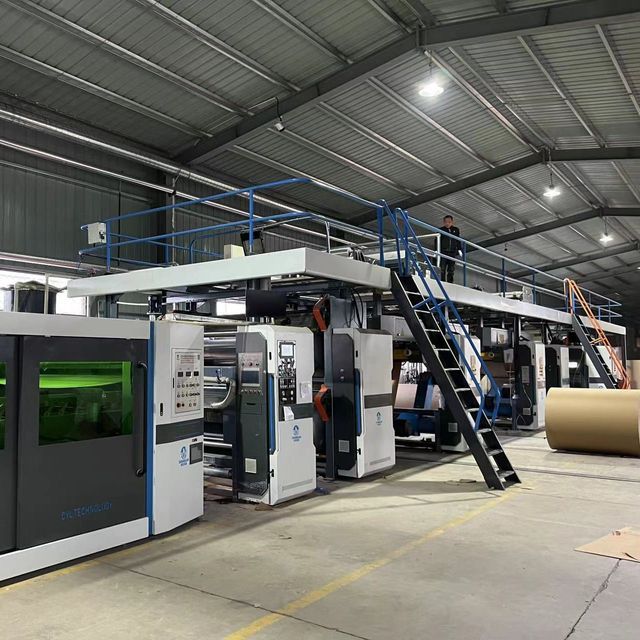

New high-speed 3/5-ply corrugated board production line for paperboard manufacturing

Supplier: Wuxi Chuanglian Packaging Machinery Manufacturing Co., Ltd.
Region: Jiangsu, China
Contact: Mr Darren Shi
Price: $800000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	380V	Automatic level:	automatic
Function:	Making corrugated cardboard	Materials used for packaging:	metal, plastic, film
weight:	150000 kg	Dimensions (LWH):	95x10x5
Supply capacity:	3 sets per quarter	Package preview:
Key machines:	Cartoning machines, gluing machines, paper holders, single-sided machines, double-sided machines and cutters	brand:	union
Packaging Details:	LCL Single Equipment Wooden Box FCL Whole Line Film Wrapping	port:	Shanghai
feature:	extremely high cost performance	support:	7x24 hours online support
After-sales service provided:	Provide overseas services	Applicable cardboard:	75~250gsm/m2
payment terms:	L/C, T/T	strength:	50 Hz
Type of machine:	Cardboard production line	Health status:	new
Year:	update order date	Machine capacity:	50 tons/day
Advantage:	new design, high speed	model:	WX-300
Normal working speed:	200m/min	maximum. Speed of work:	300m/min
Origin:	Jiangsu, China

New design high speed 3/5 layer corrugated cardboard production line

Model: WX200 series five-layer corrugated cardboard production line

1	maximum. working width		1800-2500mm	2		design speed	250m/min
3	Three layers of working speed		180-200m/min	4		5 layers of working speed	150-170m/min
5	7 layers of working speed		------	6		maximum. Change order speed	100m/min
7	Length Cutting Accuracy		±1mm	8		Cross cutting accuracy	±1mm
notes	The above speed must be based on the following indicators: character width 2100mm and meet the following paper standards. At the same time, ensure that the surface heating temperature of the equipment is above 175°C.
	surface paper	100g/m²--180g/square meter²Ring pressure index (Nm/g) ≥ 8 (water content: 8-10%)
	core paper	80g/m3²--160g/square meter²Ring pressure index (Nm/g) ≥ 5.5 (water content: 8-10%)
	inner paper	90g/m3²--160g/square meter²Ring pressure index (Nm/g) ≥ 6 (water content: 8-10%)
9	Introduction to flute	A, C, B, E or according to customer requirements
10	steam demand	Maximum pressure 16kg/cm2			Atmospheric pressure 10-12kg/cm2			Consumption: 4000kg/hour
11	electricity demand	AC380V 50Hz three-phase			Installed capacity≈220KW			Normal power ≈ 150KW
12	compressed air	Maximum pressure 9kg/cm2			Atmospheric pressure 4-8kg/cm2			Consumption: 1 cubic meter / minute
13	Floor area	≈L95mW10mH5m (Min) (actual subject to buyer's drawing)
Parts prepared by the customer
1. Steam heating system: 4000kg/Hr steam boiler and 1.5MPa steam pipeline are recommended.
2. Air compressor, air duct, glue pipeline
3. Power supply, console wiring and pipelines
4. Water source, water pipe, bucket.
5. Basic engineering of water, electricity and gas installation.
6. Detect base paper, corn starch,			Industrial caustic soda, borax.
7. Engine oil, lubricating oil, hydraulic oil and grease for equipment.
8. Provide food, accommodation, air tickets and wages for installation and commissioning technicians. and work with Technicians complete the installation.
