Water Bath Continuous Canning Jam Tunnel Pasteurization Machine Bottled Beverage Jam Pasteurization Machine

Supplier: Henan Kruger Rango Machinery Equipment Co.,Ltd
Region: Henan, China
Contact: Mr Jack Lee
Price: $4000.00 / 1 - 9 sets
$3500.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

payment terms:	L/C, Western Union, T/T, MoneyGram	Packaging Details:	Wooden packing.
Core component warranty:	2 years	After warranty service:	spare parts
Video shipment inspection:	if	Applicable industries:	Food and Beverage Factory, Restaurant, Retail, Food Store, Food and Beverage Store
Core components:	PLC, engine, bearing, gearbox, motor, gear	Heating source:	Gas Kerosene Electricity Biomass
Marketing Type:	New product	Origin:	China
Main selling points:	Pasteurizer	Advantage:	Low consumption and high efficiency
Local service location:	U.S.	port:	Guangzhou/Shanghai/Ningbo/Qingdao/Tianjin
Mechanical test report:	if	Package preview:
Warranty:	2 years	Showroom location:	Italy, Peru, Russia
Material:	304 stainless steel	weight:	450 kg
warranty period:	2 years

Dear customer: welcome to consult "KRUGER RANGO" brand

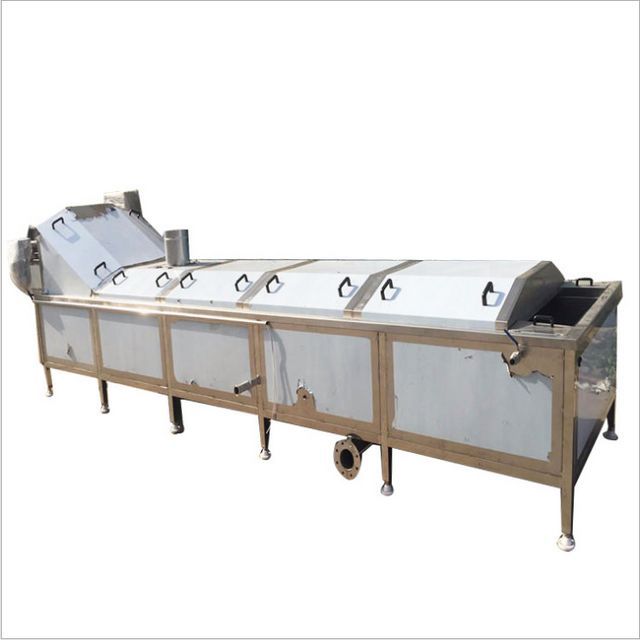

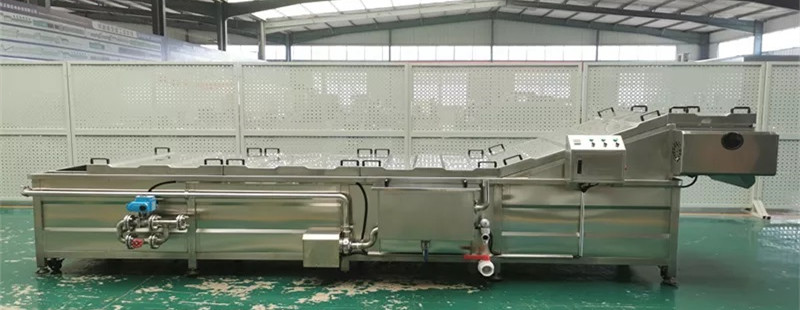

Tunnel Pasteurizer

> 20 years experience; delivery time < 7 days

KRUGER RANGO pasteurizer main features:

1. The whole machine is made ofSUS304 stainless steel; 2. The heat source is generally selected: electric heating; users can also choose steam heating or other heating methods (Users only need to tell us your favorite heating method in advance); 3. The power consumption of the whole machine is extremely small: the lowest power consumption can reach2.2Kw; 4. Our lead time is very short: the shortest delivery time7 days; Normal delivery time is 14 days; 5. Our warranty service lasts for a long time: up to3 years; If any accessories are damaged within three years, we will express new accessories to you immediately; 6. If you are interested in this equipment, please feel free to consult us; our service staff will answer your questionsOnline 7*25h;

Product parameters

project	detail
product name	Continuous Tunnel Pasteurizer
application	Low-temperature and efficient sterilization of various beverages, cans, milk, sauces, condiments, meat products and other plastic bottles, glass bottles, and iron pipe products;
Machine size (lengthwidthheight)	2500x1000x1450mm
Speed motor	1.5 kW
Circulation pump power	0.75 kW
Sterilization time	30-120 minutes (adjustable)
belt width	800mm
conveyor belt material	SUS304 stainless steel mesh chain
heating method	Electric/steam heating method
voltage	380V50Hz3P (can be customized)
Equipment material	SUS304 stainless steel
weight	about 600kg

Product Description

pasteurizer"Klugrange brand"The general design temperature is 80-95°C; different products have different requirements for sterilization time and temperature; Kruger rango low-temperature pasteurizer is mainly used for deep processing of food and sterilization after vacuum packaging; its characteristic is that it can effectively kill bacteria and keep The taste of the nutrients in the food does not change.Widely used in the sterilization of canned food, kombucha, pickles, meat products, beverages, sauces and other packaged foods.

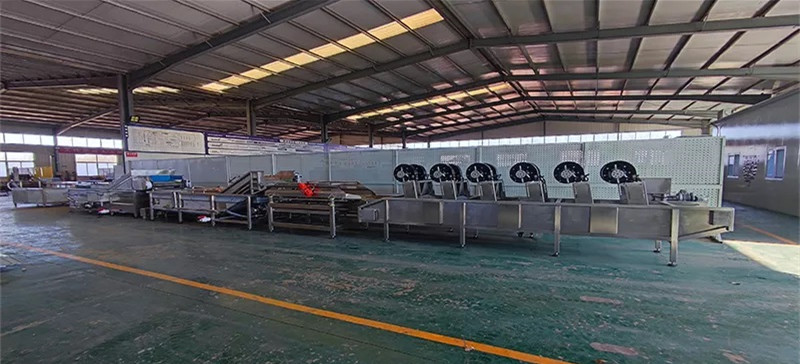

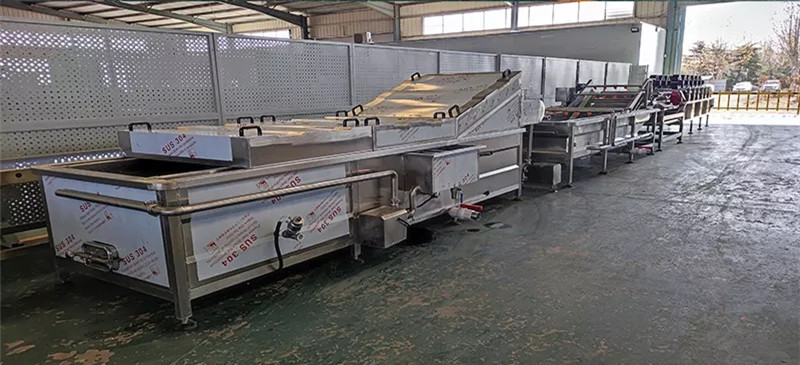

The pasteurization process line is:

①Pasteurization machine----cooler----air dryer; combined into a pasteurization line. ② After being treated by this method, pathogenic bacteria and most non-pathogenic bacteria can be killed;

③Sudden cooling of food after heating can also promote the death of bacteria.

The advantages of Kruger Rango Barand pasteurizer are: 1) The whole machine is made of food-grade stainless steel, which is easy to clean and meets the relevant food hygiene regulations; 2) In order to ensure that the temperature error is small, an electronic temperature sensor is used to realize automatic temperature sensing and temperature control; 3) The tank body is made of 2mm stainless steel; the force-bearing part 3mm stainless steel is used; the frame body is made of 50×50×2mm stainless steel square tube; the outer insulation is made of 1mm stainless steel; the upper cover is made of 1.2mm stainless steel; 5) In order to ensure the supply of steam, a steam regulating valve is used; it is also equipped with a manual valve, which can realize automatic and manual control. 6) In order to better drain the equipment and completely remove impurities, the bottom of the equipment adopts a low-slope design to reduce the dead angle of sanitary cleaning and facilitate cleaning. 7) This machine can also be equipped with sound and light alarm function. After the set work is completed, the production personnel can be automatically reminded to proceed to the next step.

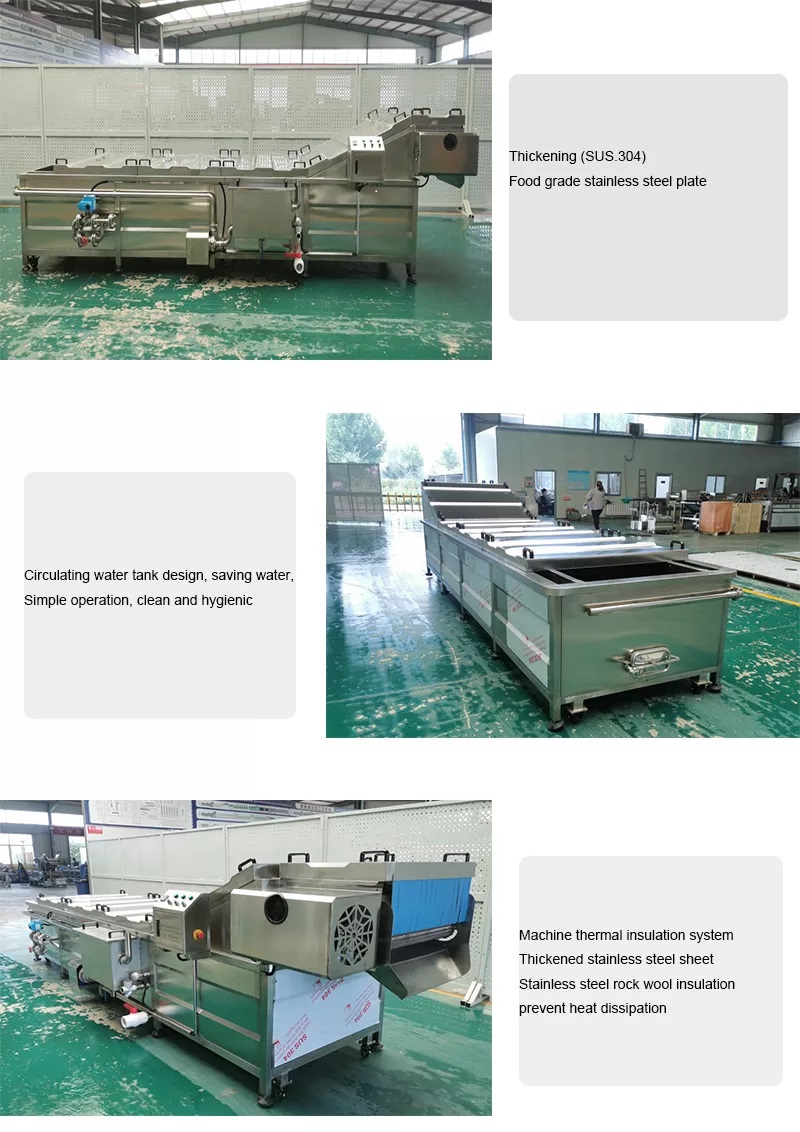

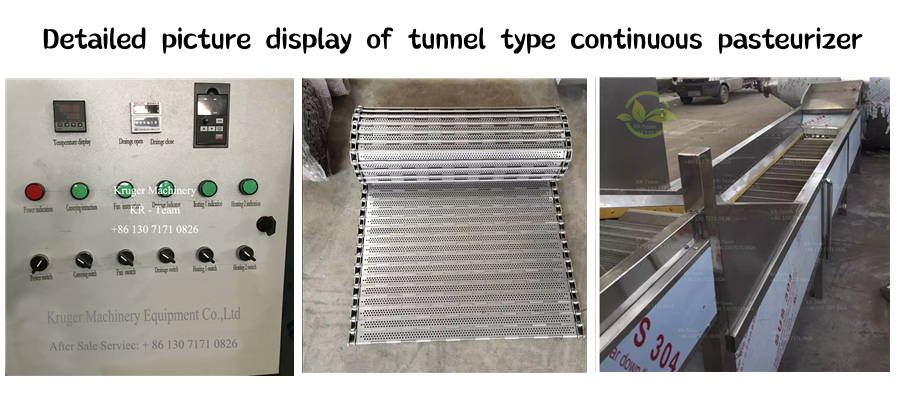

detailed drawing

heating method

The heating system is mainly composed of automatic temperature control valve, stop valve, manual fine-tuning valve, temperature sensor, display screen and so on. The equipment is heated by steam, and the water temperature quickly reaches the predetermined temperature, which is conducive to saving energy and reducing noise, and the service life is relatively long.

The temperature display instrument can adjust the size of the steam, so as to ensure that the temperature difference of the water in the tank is small and the sterilization effect is good.

kruger brand

1. Intelligent electrical control cabinet produced by Kruger rago;

2. Kruger rago produces high-end stainless steel strips;
3. The whole machine is made of food-grade stainless steel SUS304;

4.Kruger Rango Brand PasteurizerWidely used in the sterilization of canned food, kombucha, pickles, meat products, beverages, sauces and other packaged foods.
