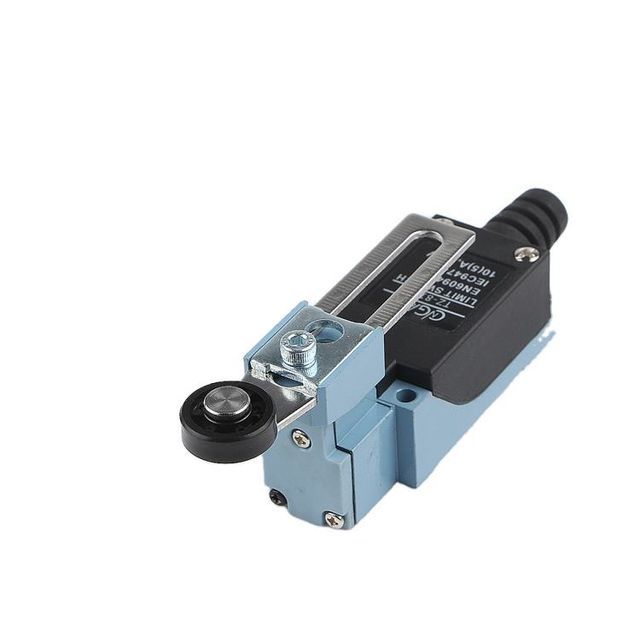

CNGAD TZ-8108 border switch

Supplier: Wenzhou Gad Technological Electricity Co., Ltd.
Region: Zhejiang, China
Contact: Ms Meg Lin
Price: $0.75 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Operating temperature:	-5 to +65°C	maximum. current:	24A
model:	TZ-8108	payment terms:	L/C, T/T
Running speed:	0.5mm-50cm/sec	maximum. Voltage:	500V
Protection class:	IP65	humidity:	above 95
Insulation resistance:	Below 100MΩ (at 500VDC)	Supply capacity:	100000 pieces per month
Origin:	Zhejiang, China	Packaging Details:	GA6-16AF-22D CNGAD 16mm Rectangular Stay Illuminated Pushbutton Switch Standard Export Package
brand:	CNAD	weight:	about 130 to 190 grams
vibration:	10-55Hz, 1.5mm pair swing	port:	Ningbo/Shanghai
Ambient temperature:	-25℃~+55℃	Ambient temperature:	-5°C to +65°C
Protection structure:	IEC standard: IP65

Product Description

1. The products we export arehigh qualityandcompetitive price.
2. We provide professionalOEM service.
3. Payment methodwire transfer,letter of credit,PaypalandWestern UnionBoth are acceptable to us.
4.Certificate of Origin,Embassy certificationandany problemYou encounter import our products, we willActively cooperate with you to solve.

feature:

*Bidirectional switch
* Sturdy construction made of zinc metal alloy and plastic
*Small size, waterproof and oil-proof
* Double spring inner switch, longer machine life
* Greater OT action
*Easy contact line
* A variety of tractors, easy to use

Rated quantity:

Rated voltage	Non-electric portable				electric portable
	resistance carry		light bulb carry		resistance carry		light bulb carry
	CNC	No	CNC	No	CNC	No	CNC	No
125VC 250VC 500VC	5 5		5 5	0.7 0.5	3 3	3 3	2 1.5	1 0.8
8V DC 14VDC 30VDC 125VDC 250VDC	5 5 5 0.4 0.25		5 5 5 0.4 0.2	3 3 3	3 3 3	4 4 4	3 3 3	3 3 3
current	NC:at 24A NO:at 12A

Remarks: 1. Electric load: power: less than 0.4 (AC). Time constant is less than 7msec (DC).
2. The current load of the bulb is 10 times that of the steady state. The current motor load is 6 times that of the steady state.

feature:

calculating speed	0.5mm-50cm/sec
Action frequency	Mechanical type: 120 times/min Electric type: 30 times/min
Contact resistance	25mΩ(mm)(initial)
Insulation resistance	Below 100MΩ (at 500VDC)
bearing voltage	Non-contact terminal: 1,000VAC, 50/60Hz for one minute Current part and non-current part: 1,500VAC, 50/60Hz for one minute
vibration	10-55Hz, 1.5mm pair swing
beat	Machine: 1,000 m/s²(about 100G) Movement: 300 m/s²(about 30G)
ambient temperature	-5 to +65°C
humidity	above 95
service life	Mechanical: more than 10 million times Electrical: more than 500,000 times
weight	about 130 to 190 grams
protective structure	IEC standard: IP65

Action Features:

model	JDTZ-8104	JDTZ-8108	JDTZ-8107	JDTZ-8111	JDTZ-8112/8122	JDTZ-8166/8167/8168/8169
maximum value	750 grams	750 grams	750 grams	900 grams	900 grams	150 grams
RF min	100 g	100 g	100 g	150 grams	150 grams	-
PT max	20⁰	20⁰	20⁰	1.5mm	1.5mm	30mm
minimum overtime	50⁰	50⁰	50⁰	4mm	4mm	-
Medical PhD	12⁰	12⁰	12⁰	1 mm	1 mm	-
OP	-	-	-	26±0.8mm	37±0.8mm	-
