usage: | metal welding | After-sales service provided: | online support |
Marketing Type: | New Products 2020 | Health status: | new |
Supply capacity: | 100 packs per day | Pulse frequency: | 50/60 Hz |
Function: | Arc DC welding machine | Core components: | PLC, motor |
Motor type: | DC | Voltage: | 220V |
port: | Qingdao Port | strength: | kVA |
payment terms: | L/C, T/T | Mechanical test report: | if |
Showroom location: | not any | Nominal Duty Cycle: | 20% |
aspect: | 390*240*390mm | Video shipment inspection: | if |
Origin: | China | Main selling points: | competitive price |
Local service location: | not any | type: | MIG welding machine |
Warranty: | 1 year | Applicable industries: | home use |
Arc current: | 20~135A | Weight (kg): | 5.8 kg |
Packaging Details: | wooden packaging | Core component warranty: | 3 years |
Product number: | MIG-135E | |||
Product Description: | Gas shielded welding/manual welding/IGBT module/inverter DC/adjustable current, voltage, inductance three knobs/energy saving/air cooling/constant current/constant voltage | |||
Scope of application: | Sheet metal processing, aluminum alloy processing, handicraft processing, door-to-door installation, processing, shipbuilding, Petrochemical, construction machinery | |||
Rated input voltage: | 220V | |||
Rated input capacity: | 5.6KVA | |||
frequency: | 50-60 Hz | |||
No-load voltage: | 56V | |||
duty cycle: | 20% | |||
Wire: | 0.8mm | |||
Insulation class: | Class F | |||
Protection class: | IP21S | |||
Output current: | MiG: | 20-135A | ||
MMA: | 20-135A | |||
Dimensions and Weight: | Product Size: | 315*135*240mm | ||
product weight: | 4.4 kg | |||
Package Size: | 390*240*390mm | |||
Package weight: | 5.8 kg | |||

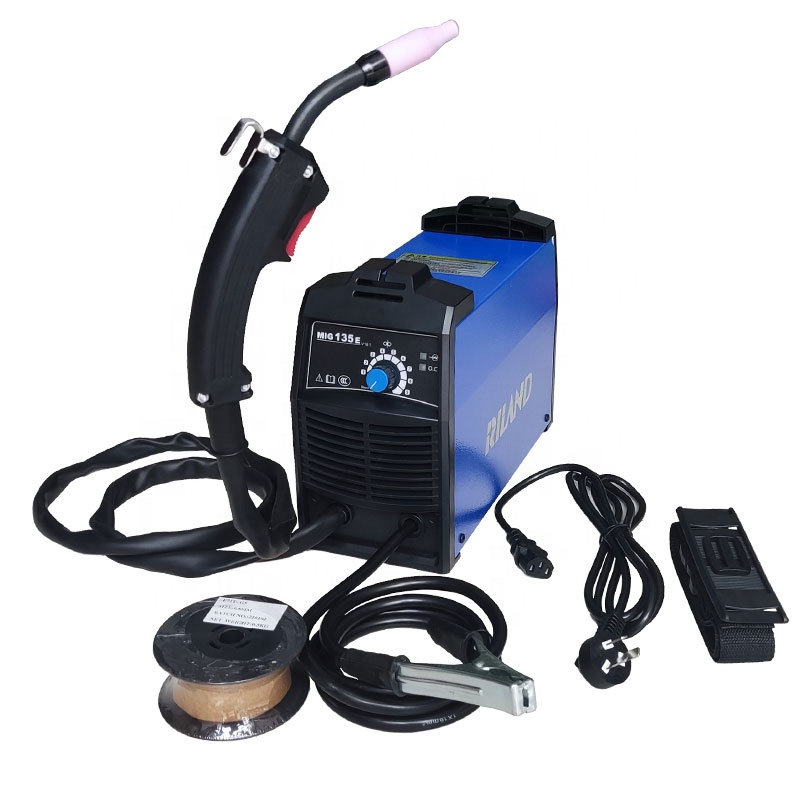

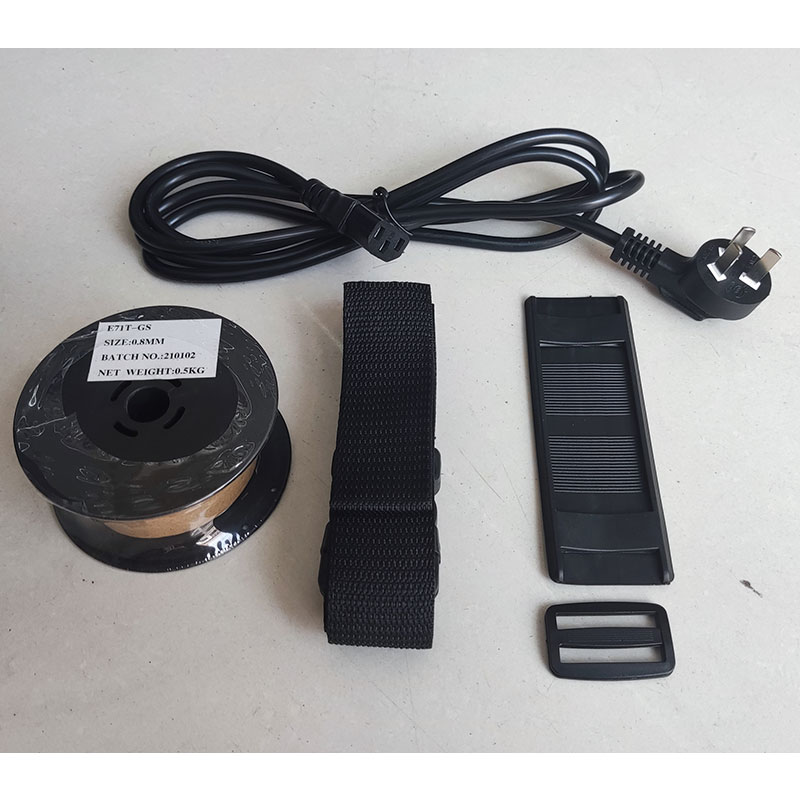

Accessories: | Standard accessories: | 1 supporting welding torch 1 ground wire 1 roll of flux cored wire (1kg) 1 power cord | ||
Optional accessories: | protective equipment Welder accessories | |||
pay attention: Optional accessories cost extra, if you need them please ask the factory before placing an order |
