Zigbee/5G/WIFI/Mobile/Bluetooth low-cost test shielding box

Supplier: Shenzhen Osbay Technology Co., Ltd.
Region: Guangdong, China
Price: $1250.00 / 1 - 9 units
$1200.00 / >=10 units
Min. Order: 1 unit

Click here to contact

Product details

brand:	osprey	port:	Shenzhen
model:	OMS5050	chipset:	No
application:	Zigbee/5G/WIFI/Mobile Phone/Bluetooth Test	Internal dimensions:	(L) 494x (W) 481x (H) 481mm
type:	Zigbee module	Material:	sheet metal
Package preview:		Packaging Details:	Zigbee/5G/WIFI/Mobile/Bluetooth test shielding box Worden box
model:	OMS5050	isolation:	0.5GHz~6GHz≥70dB
country of origin:	China	Supply capacity:	1000 pieces per month
frequency:	0.5-6GHz	interface:	As a client (SMA, N, AC, DC, USB, RS-232, RJ45, VGA, HDMI, etc)
payment terms:	Western Union, T/T	physical dimension:	(L)588x(W)551x(H)x533mm

Product Description

product name	Manual high isolation rf shielded box up to 80dB in 19" rack mount
Model	OMS5050
Material	Stainless steel
thickness:	10+2mm
frequency	0.5GHz-6GHz

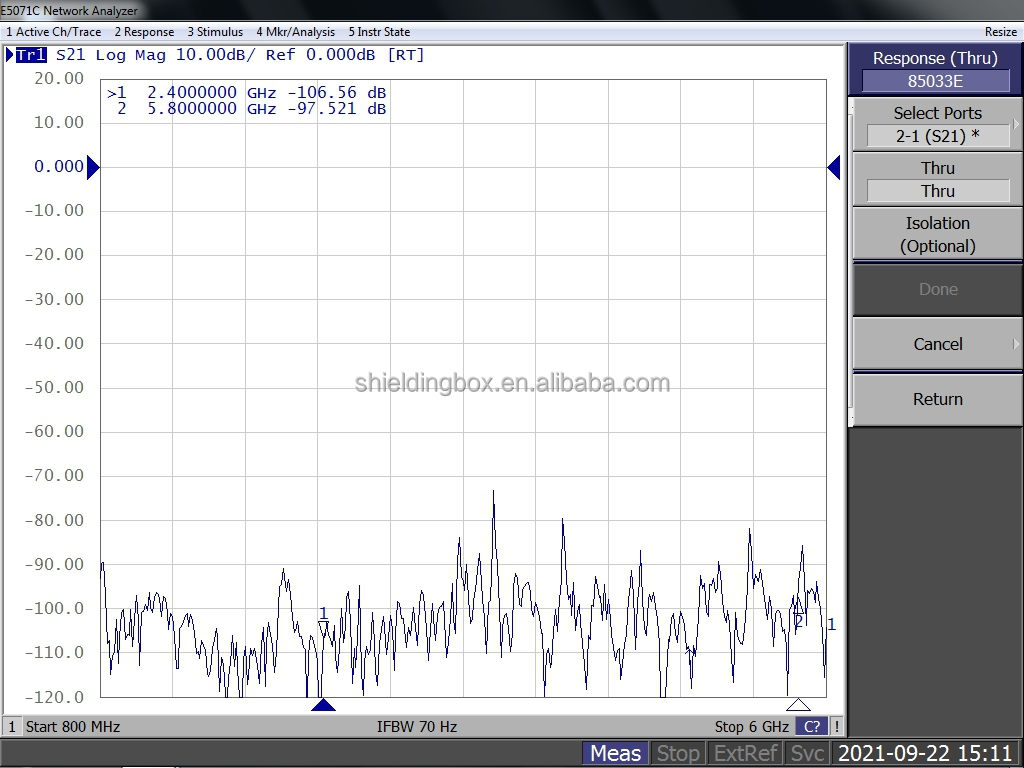

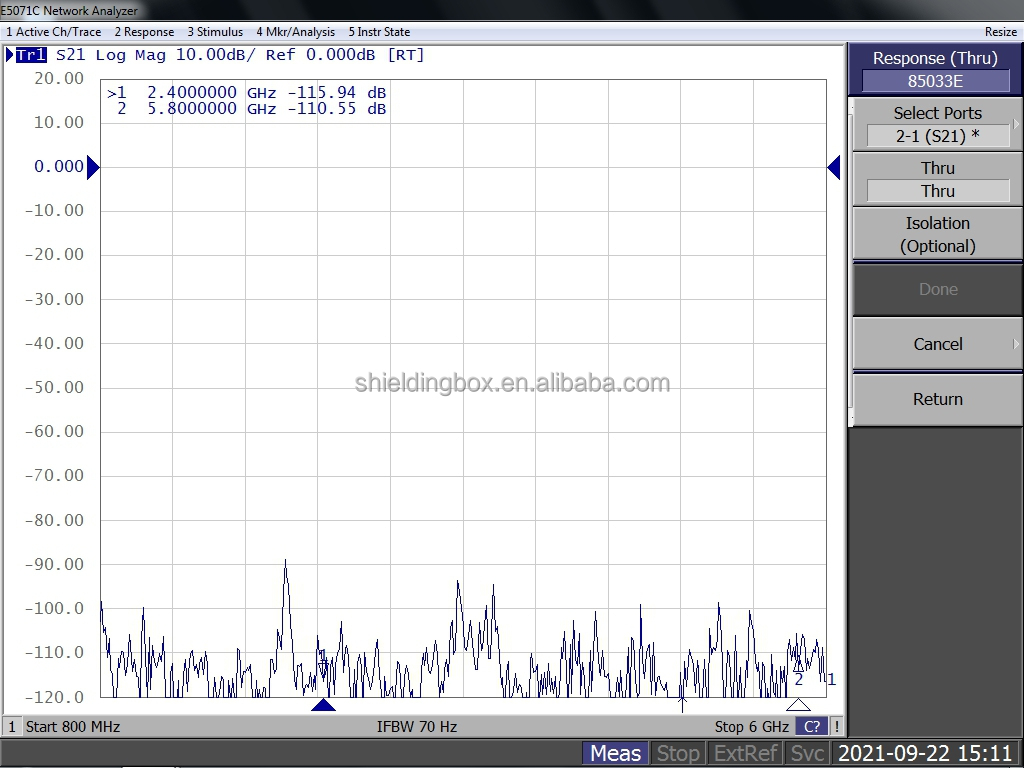

isolation:	0.5GHz-6GHz≥70db

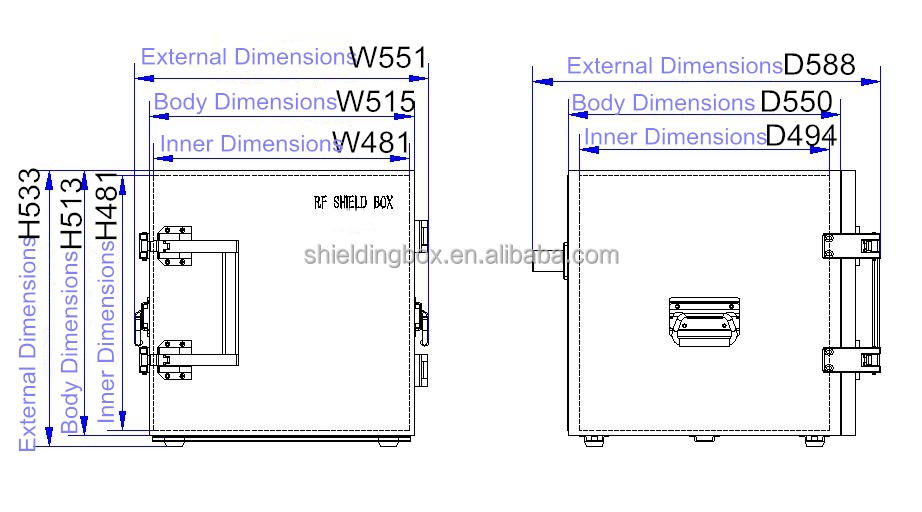

Internal dimensions:	(L) 494x (W) 481x (H) 481mm
Box size:	(L)515x(W)550x(H)513mm
physical dimension:	(L)588x(W)551x(H)x533mm
standard interface	SMA4;DC1;USB2;RS-2321;RJ45*1 or according to customer requirements
color	light brown
net weight	35 kg
pack	Wood Enclosure for High Isolation RF Shield Box up to 80dB in 19" Rack Mount

Product performance description

The OMS5050 is an economical manual shielding box for building block and end-of-test solution platforms.
Smart phones, WI-FI, Bluetooth, smart grid equipment, automotive electronics, drones, smart homes and other fields.
By sheet metal CNC laser cutting, sheet metal forming,
Electroplating, electrostatic painting, assembly and debugging, testing, etc., with many advantages such as high shielding
High efficiency, stable structure and stable performance.

detailed drawing

Manual RF Shielding Box 0.5-6ghz Wireless Test Mobile Phone Signal Test Electronics Pcb Wifi Rf Manual Shielding Boxwith the following details:

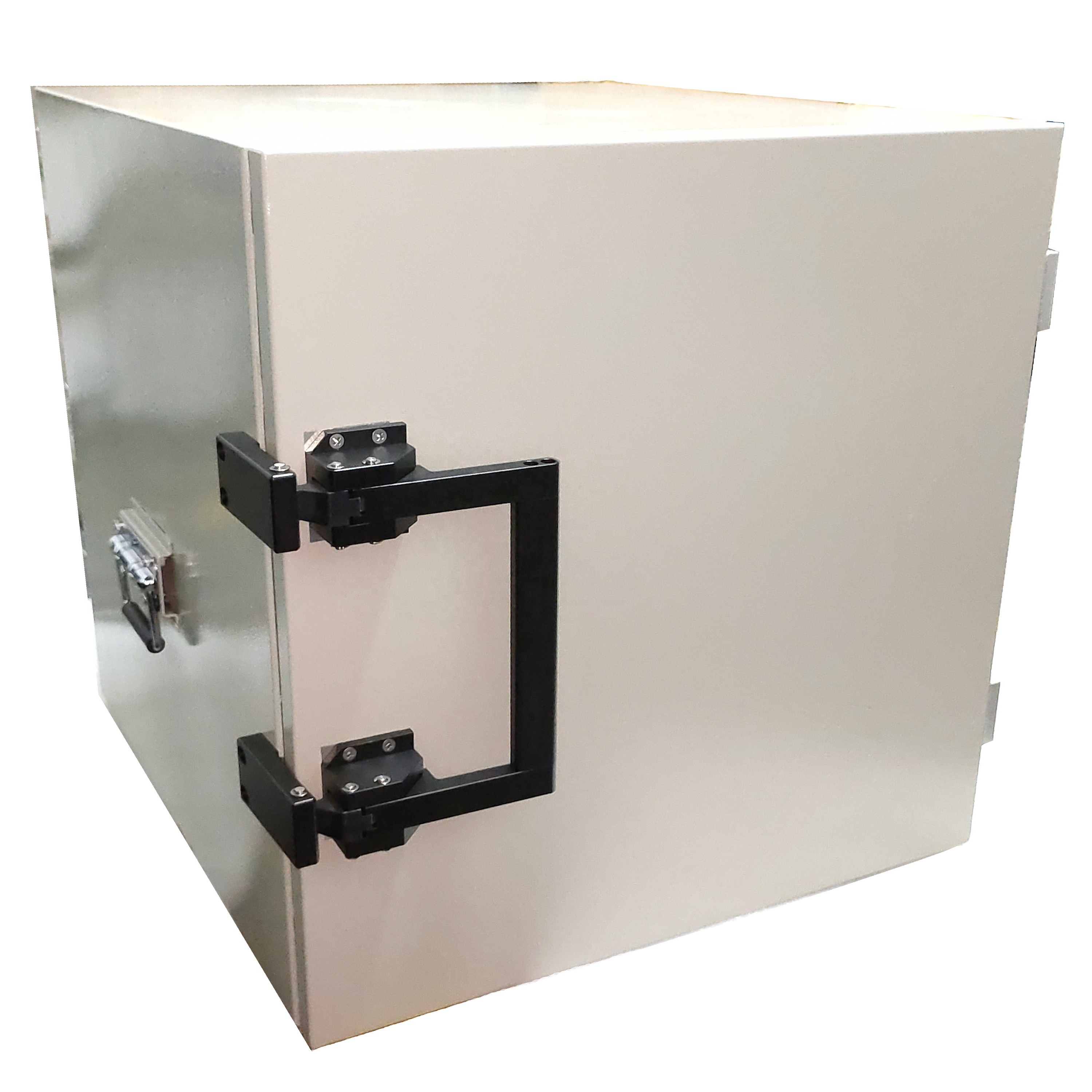

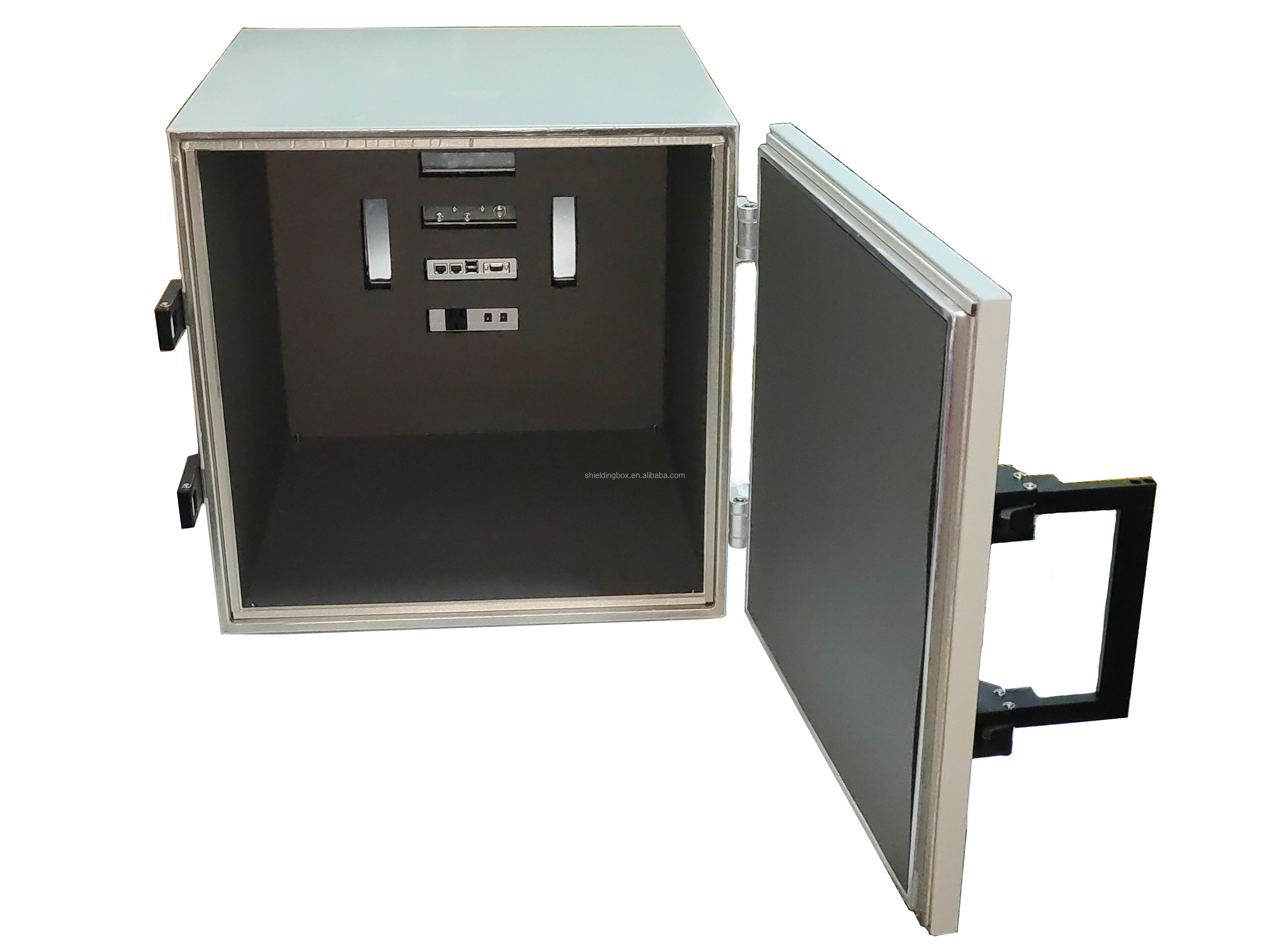

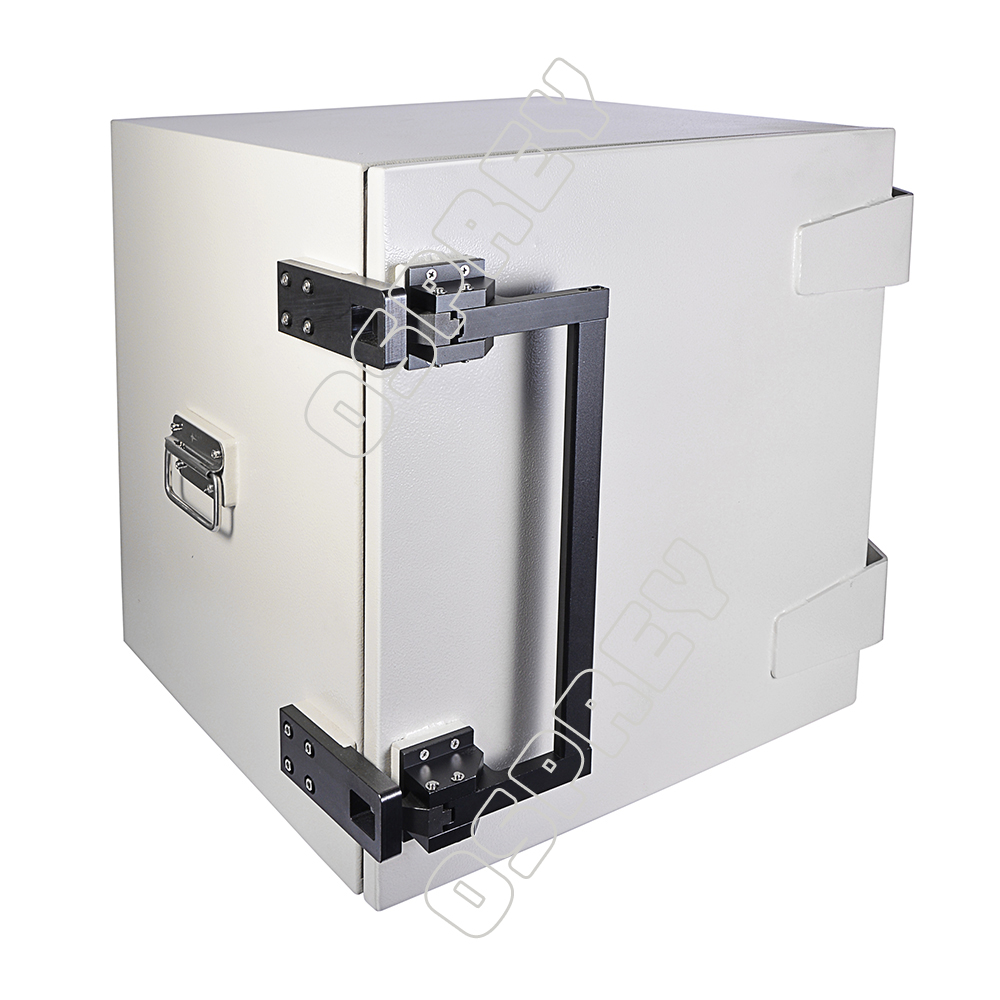

door handleOMS5050The RF shielding box is made of aluminum alloy, lightweight design, durable and long service life.

thisOMS5050The shielding box is stamped with 2MM stainless steel plate, which is firm and reliable, and not easy to rust;;

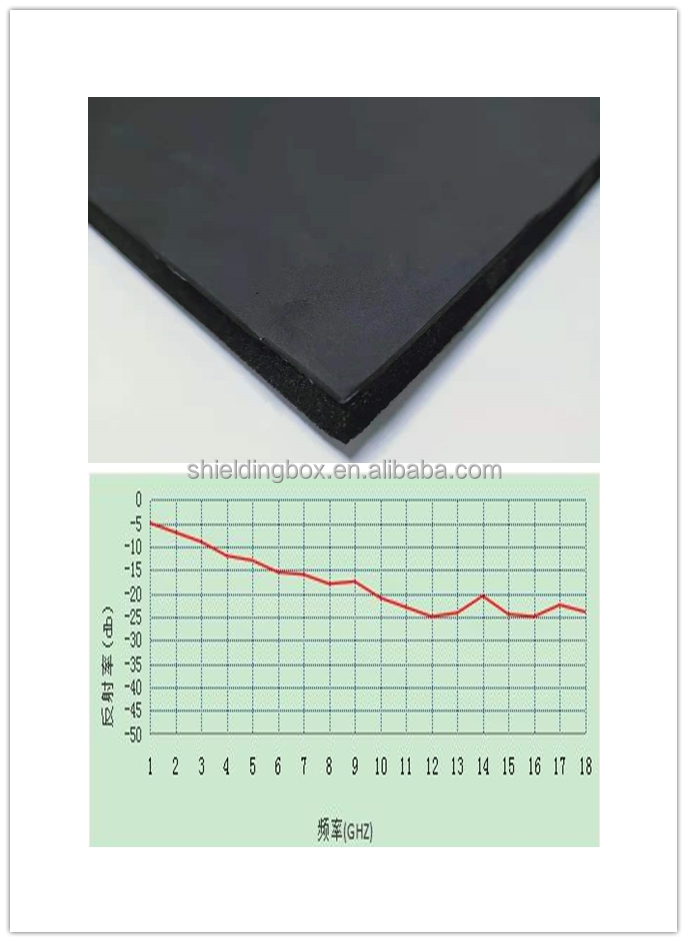

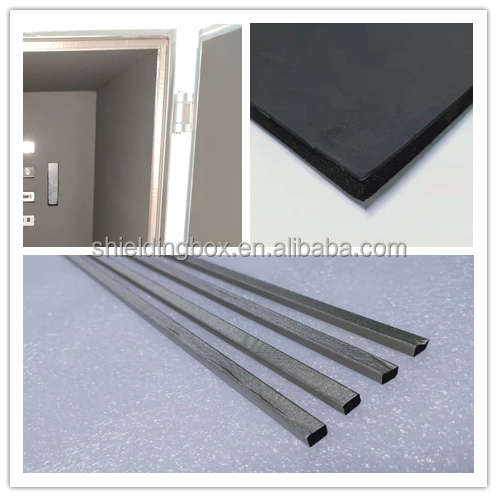

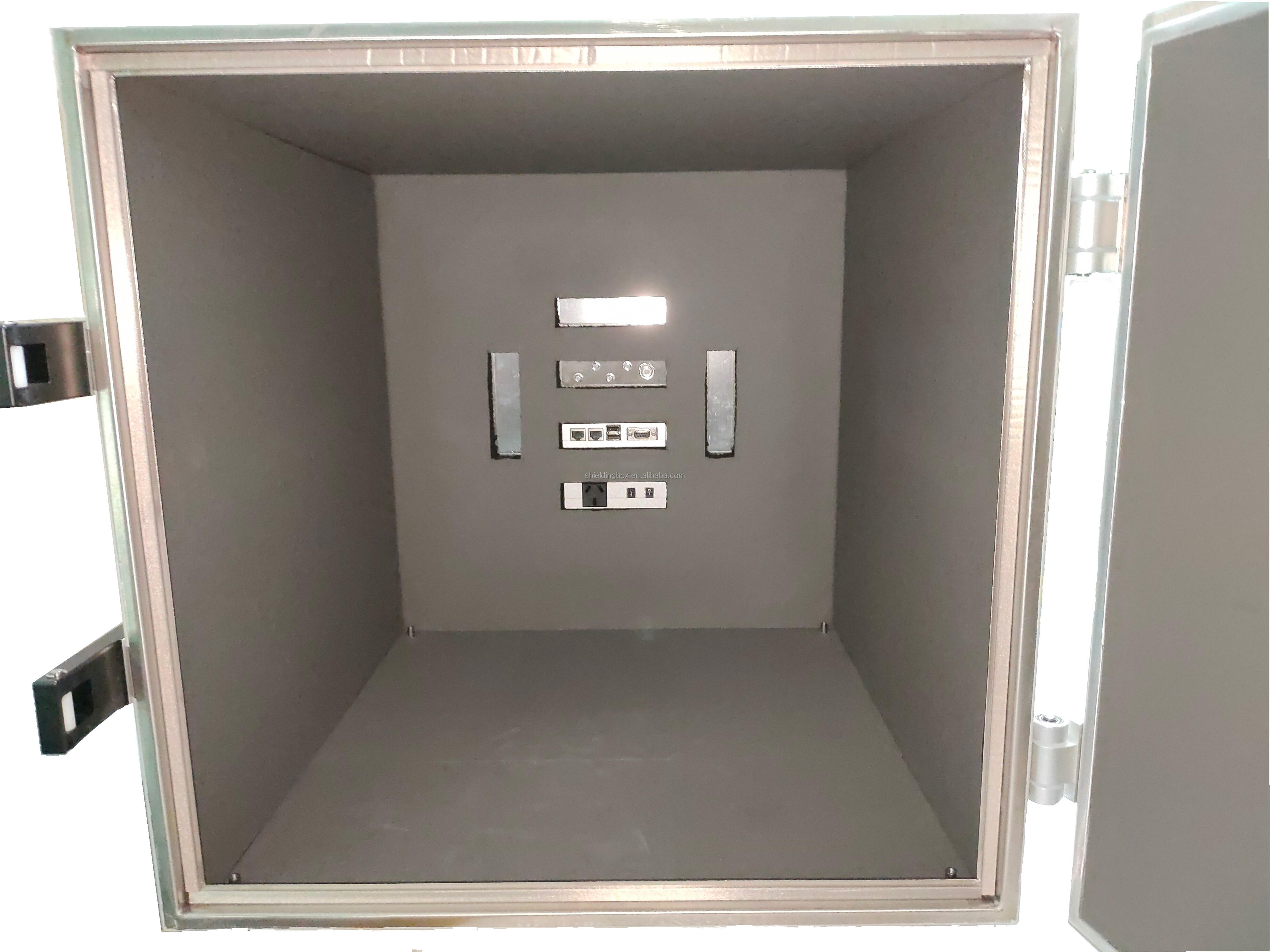

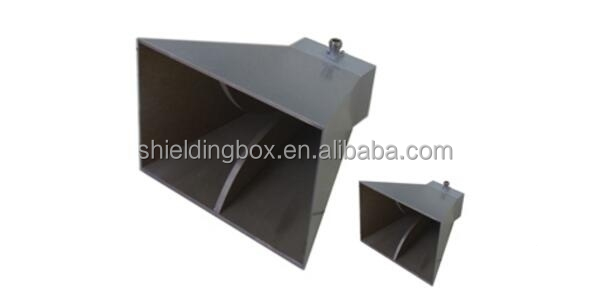

The latest wave-absorbing material is used inside the high-isolation shielding box, which has strong wave-absorbing ability and good blocking ability;

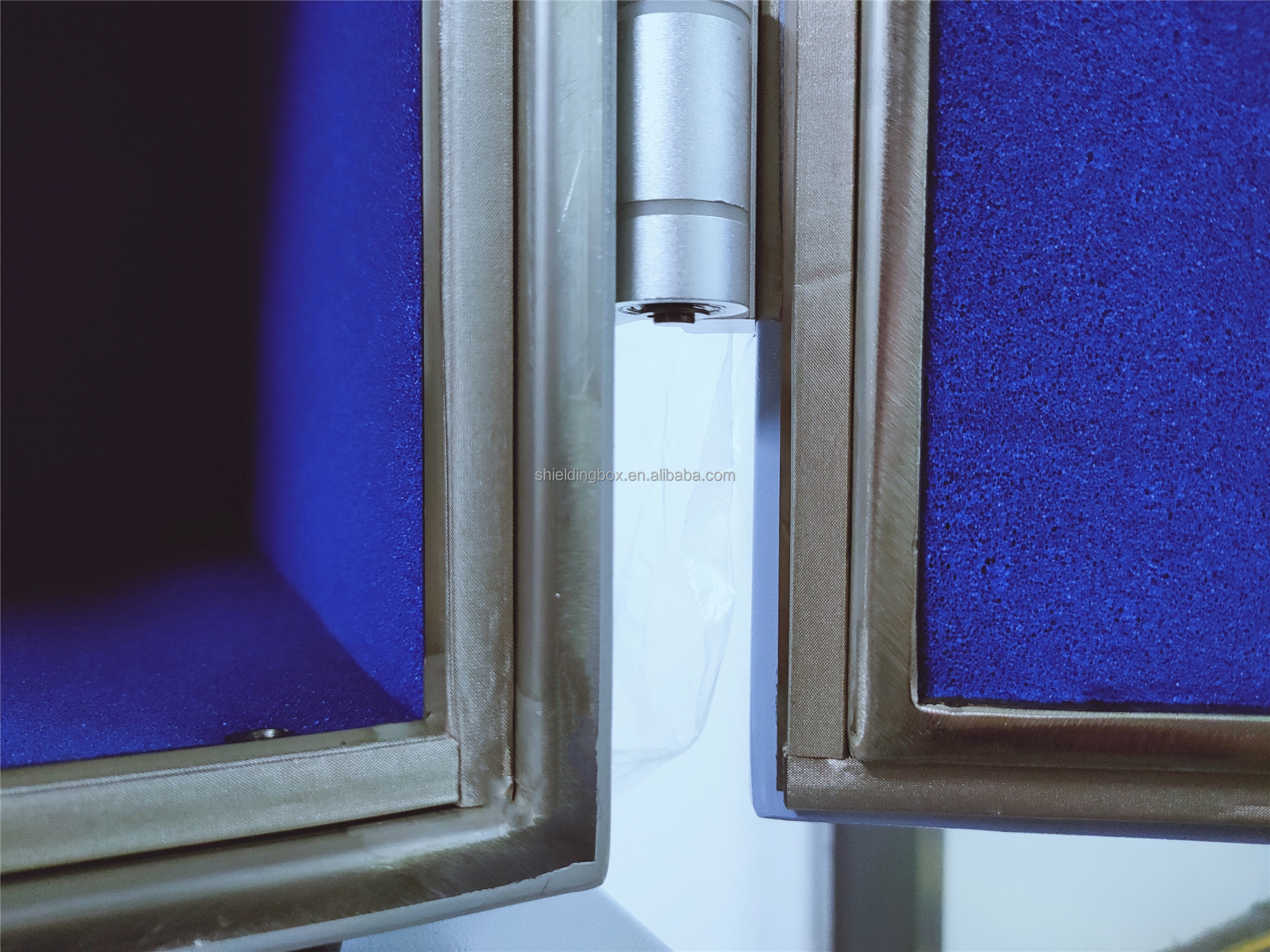

The manual shielding box adopts a squeeze-type sealing design, and the shielding effect is better;

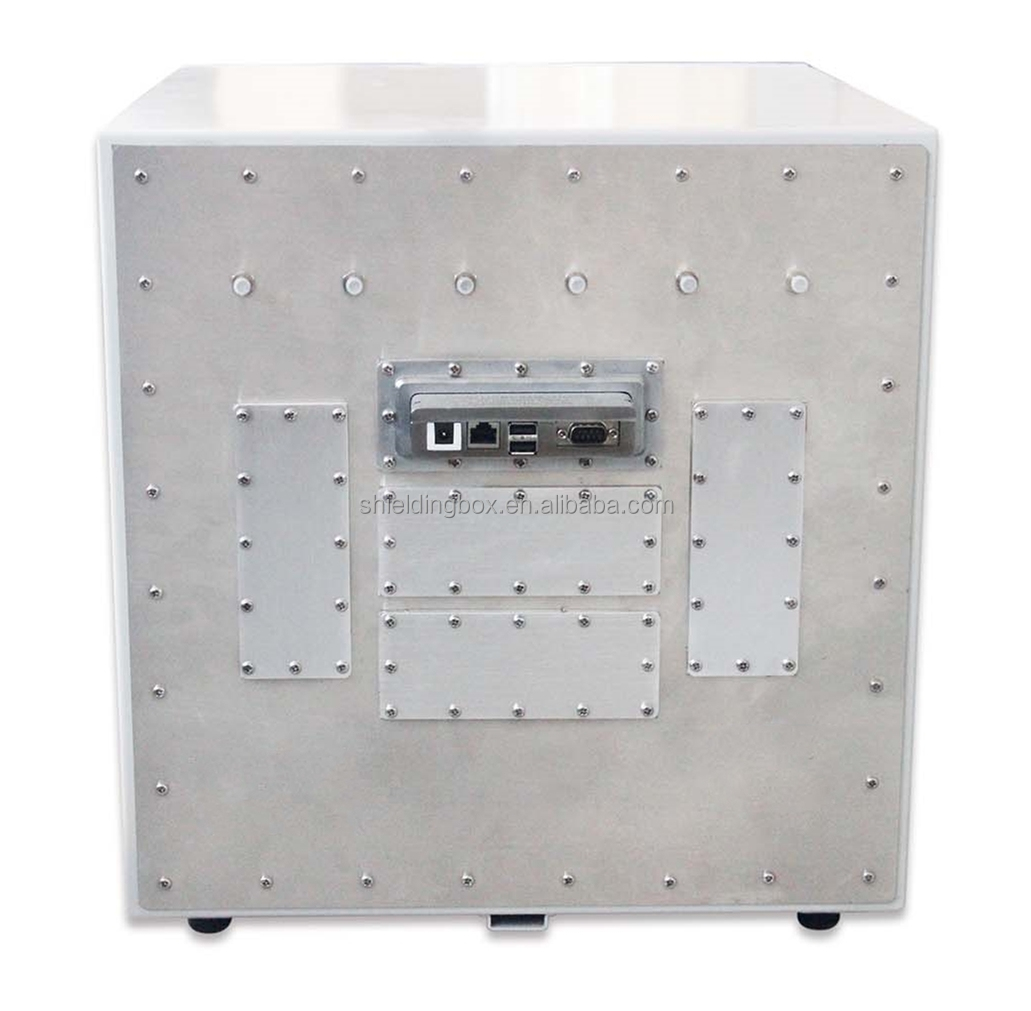

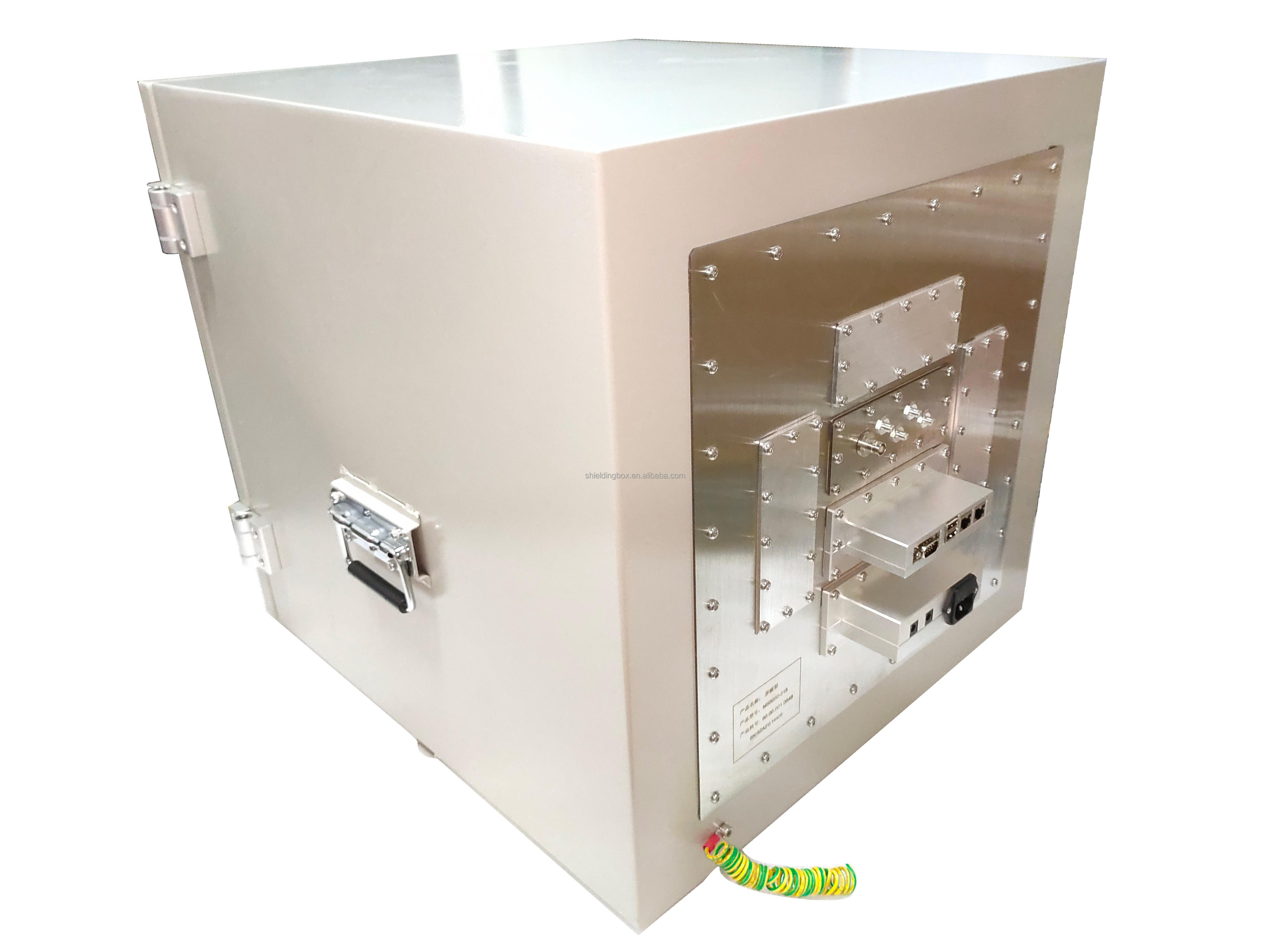

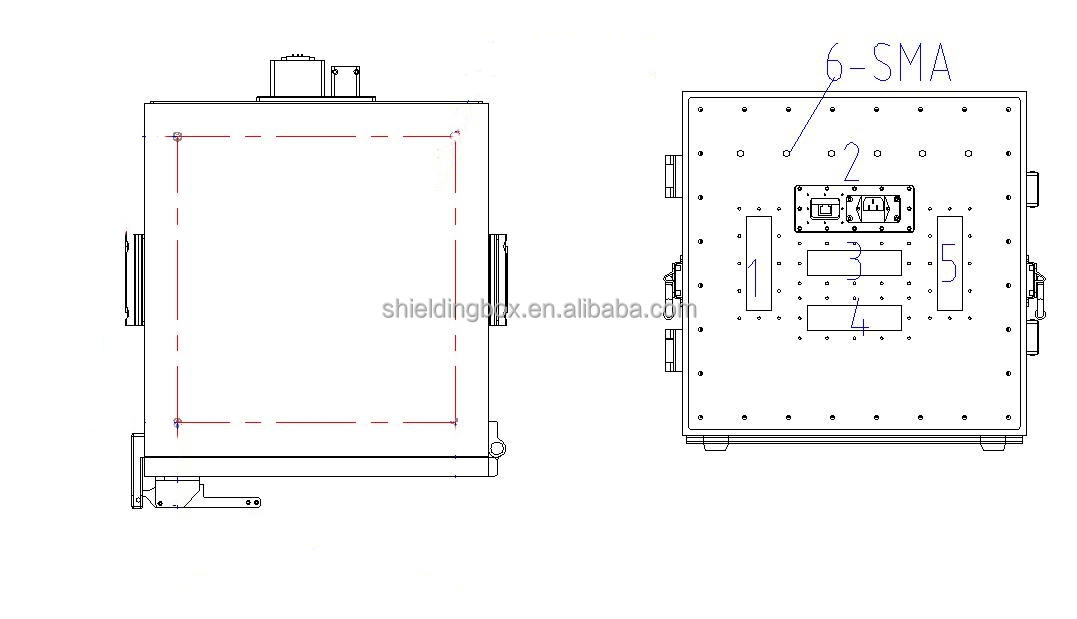

OMS5050The shielding box can be used to test WIFI routers, set-top boxes, 4G/5G mobile phones, drones, Bluetooth, car keys, wireless water meters, etc. Therefore, in addition to the built-in 6 SMA interfaces, customers can choose other interfaces according to testing requirements, such as: RS232 , DB25, DB37, RJ45, AC, DC, USB, HDMI, VGA, etc.
