ABS heavy Duty green 7-Way Truck Trailer Electrical Coiled Cable

Product details
Voltage:DC12V;Selling Units:Single item;
Suitable:European standard trailer;Color:Green;
Material:PVC+copper;Package:PE BAG;
Insulation Material:PVC;Single gross weight:1 KG;
Standard:DIN;Conductor Material:Copper;
Product Name:trailer cable;Brand Name:Brightway;
Package Type:opp bag;Application:Trailer Part Truck Part;
Application:power;Conductor Type:Stranded;
Place of Origin:Zhejiang China (Mainland);Core:7core;
Single package size:40X30X5 cm;Type:Insulated;
Model Number:301157-1;Certificate:CE ROHS;
Product Description

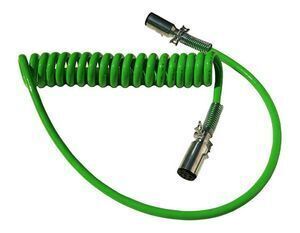

ABS heavy Duty green 7-Way Truck Trailer Electrical Coiled Cable

Function: Connect trucks and power supply for trailer lights display
Working Length: 15' Leads: 1 x 12", 1 x 40" Product Meets: SAE J2394
Exceptional flexibility from -55F to + 160F (-50C to 70C)

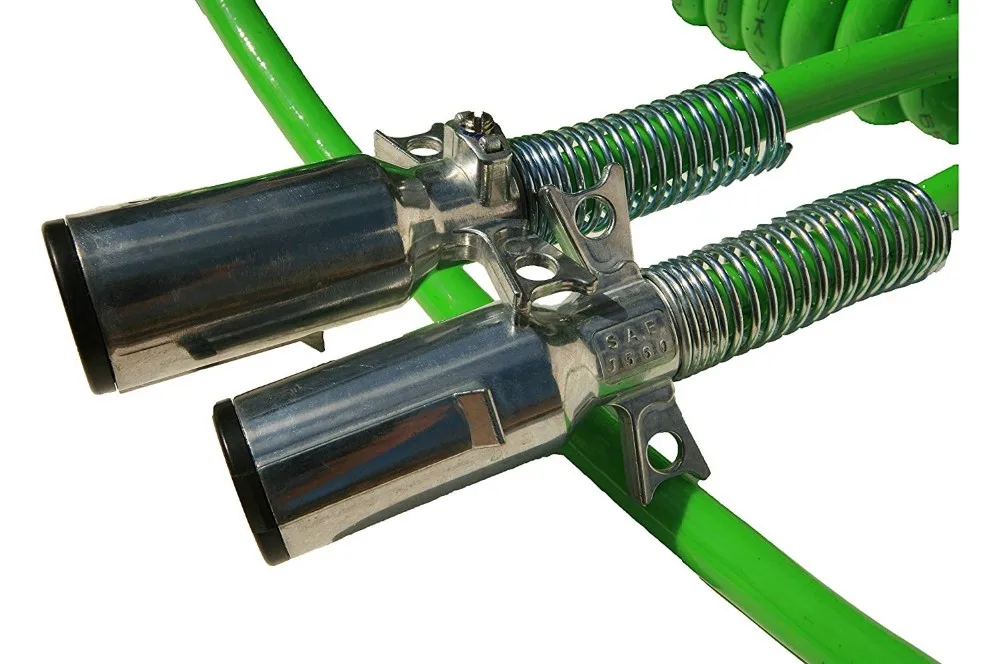

Two standard 7 way zinc die-cast plugs with springs
This ultra heavy duty construction is approved for ABS systemsApplications: commercial vehicle / trailer / Trailer
Category: Plug
Shape: Round
Production process: Injection
Features: Waterproof
Contacts material: copper
Insulator Material: Engineering Plastics
Model: 12N (applies to European car)

Wiring Information Reference:
7 Pin Lighting Connections
PIN 1 - Yellow Wire (Left / Hand Direction Indicator left turn signal display)

PIN 2 - Blue Wire (Rear Fog Lamps Fog Lights display)
PIN 3 - White Wire (Earth Return spot turning lights show)
PIN 4 - Green Wire (Right / H Direction Indicator right turn signal lamp display)
PIN 5 - Brown Wire (Right / H Tail & No. Plate Lamp Right taillight and license light box display)
PIN 6 - Red Wire (Stop Lamp brake light display)
PIN 7 - Black Wire (Left / H Tail & No. Plate Lamp left taillight and license light box display)

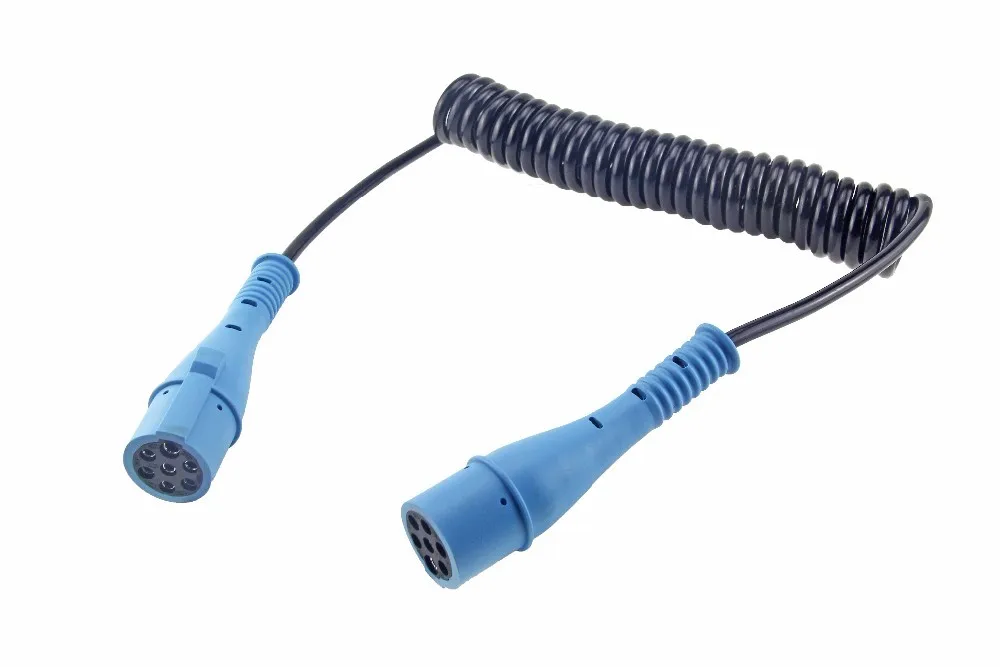

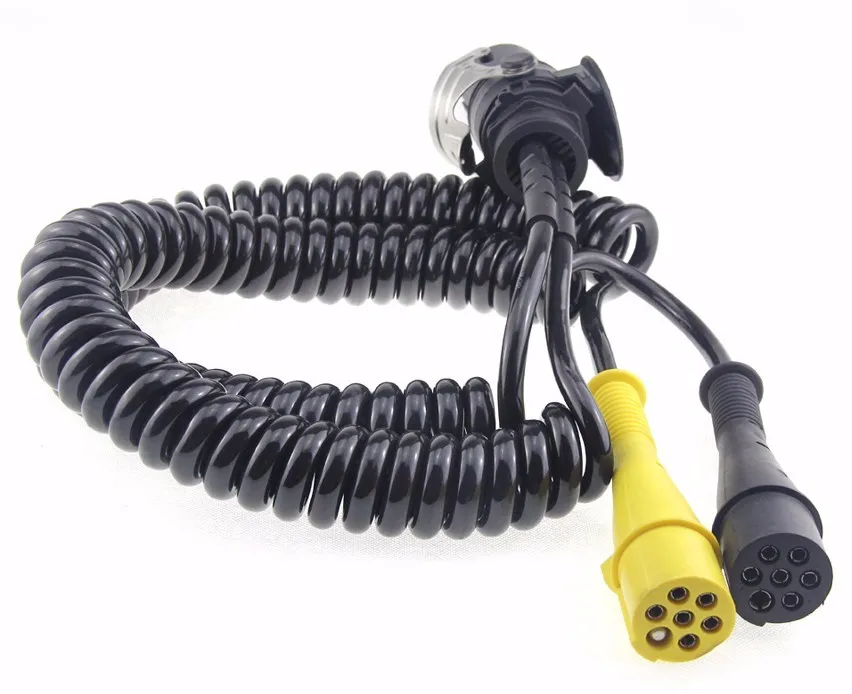

Detailed Image
Packing & Delivery

Packing

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Delivery

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
