Supply capacity: | 10000 pieces per week | model: | EL |
MOQ: | 1 | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
frequency: | 50/60 Hz | Impulse withstand voltage (Kv): | 60-200 |
Low frequency dielectric strength (Kv): | 16-75 years old | brand: | Zhegui Electric |
color: | Red | Package preview: | |
Origin: | Zhejiang, China, Zhejiang, China | Certificate: | ISO CCC International Electrotechnical Commission |
Processing: | supply | Packaging Details: | wooden box |
port: | Ningbo, Shanghai, Yiwu, Guangzhou, others | Related voltage: | 3.6-36kV |

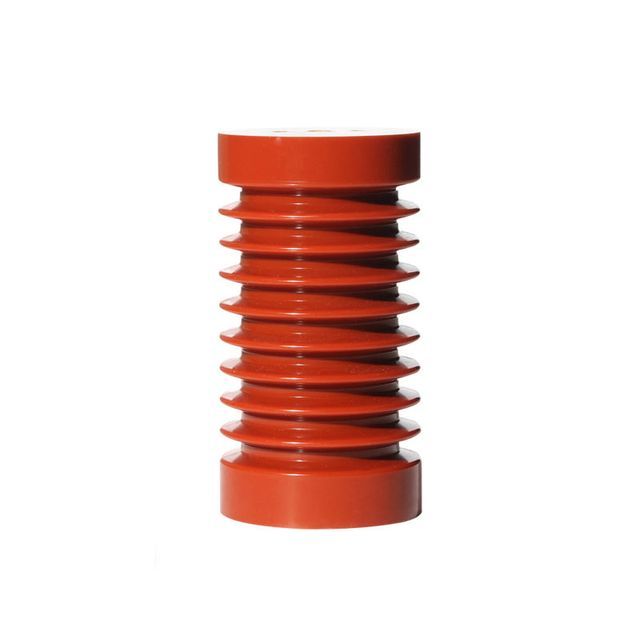

product name: | High voltage post insulator |
describe:
All kinds of high-voltage insulators listed in the sample are formed by epoxy resin vacuum casting technology at one time, and various bushings, contact boxes, insulating cylinders, bell jars, etc. are all formed by APG technology. Some products are molded with SMC and DMC unsaturated alkyd expansion molding compound. All products are suitable for medium and large voltage distribution cabinets of 3.6~40.5KV. If there are special requirements for certain products and specifications, they can be designed and manufactured according to user requirements.
The technical parameters in the table are for reference only.
Customized products can consult online customer service!

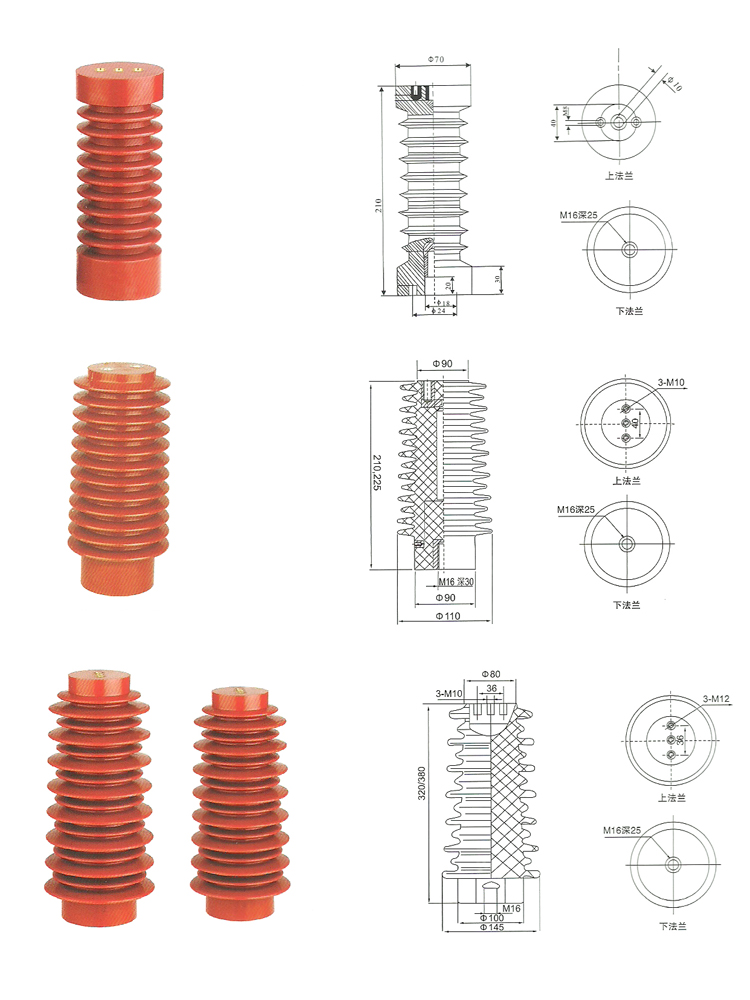

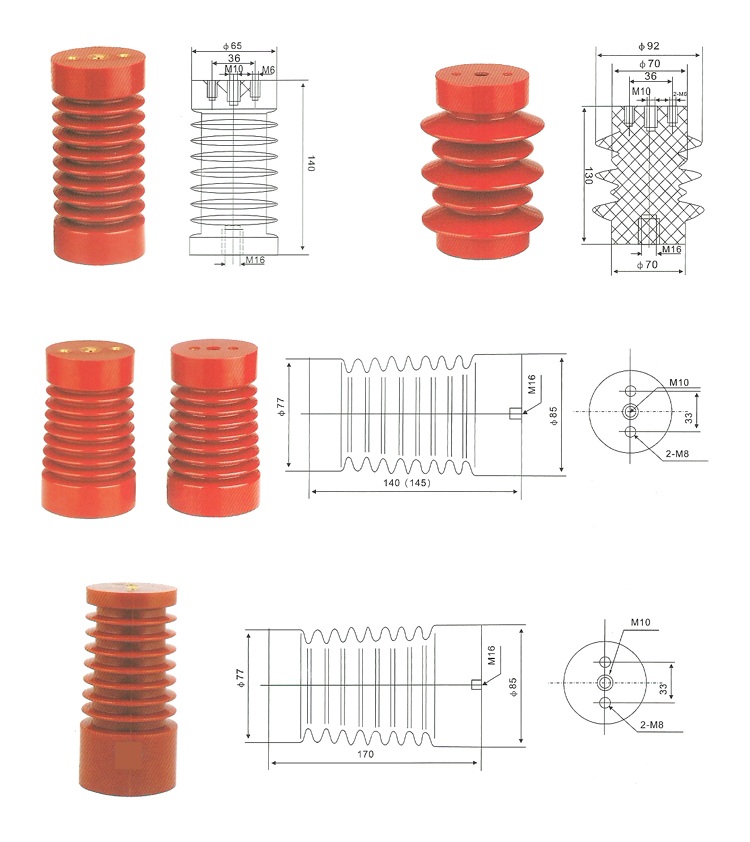

Model | EL-30N | EL-24 | EL-15 | EL-12 | EL-6M | EL-3M | ||
End Diameter (AZB) (mm) | 100 | 70 | 70 | 58 | 70 | 70 | ||
Height (H) (mm) | 310 | 210 | 142 | 130 | Post-90s | 60 | ||
Surface leakage distance (mm) | 630 | 356 | 210 | 172 | 125 | 88 | ||
Rated voltage (KV) | 36 | twenty four | 15 | 12 | 7.2 | 3.6 | ||
Low frequency dielectric strength (KV) | 75 | 60 | 50 | 36 | twenty two | 16 | ||
Impulse withstand voltage (KV) | 200 | 125 | 110 | 95 | 75 | 60 | ||
Continuous begging intensity for 1 minute, (KG) | 500 | 300 | 400 | 300 | 400 | 400 | ||
Tensile strength (kg) | >3000 | >1500 | >1500 | >2000 | >1200 | >1200 | ||
Tensile strength (Kg-m) | 25 | >25 | >25 | >25 | >25 | >25 | ||
series arrange |
top | A1 | M16 | M10/M12 | M8/M10 | M10 | M10 | M10 |
A2 | M8 | - | M8 | M8 | M8 | |||
A3 | - | M6/M8 | M6/M8 | - | - | - | ||
ax | 40 | - | 36 | 40 | 40 | |||
ah | - | 36/40 | 36/40 | - | - | - | ||
bottom | S1 | M16 | M10/M12/M16 | M10/M16 | M10 | M10 | ||
S2 | - | - | - | - | - | - | ||
S3 | M4 | - | - | - | - | - | ||
S31 | - | - | - | - | - | - | ||
SX | - | - | - | - | - | - | ||
Sy | - | - | - | - | - | - | ||
SY1 | 30 | - | - | - | - | - |
