landing gear: | JOST 28 tons | brake: | WABCO |
brand: | Sinotruk Howo | Package preview: | |
axis: | 3 axis | Packaging Details: | According to customer requirements |
fetal: | 12.00R22.5 | Main beam: | 500 mm |
Supply capacity: | 1000 pieces per month | size: | 12500*2500*3800 mm |
usage: | coal transport | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
Origin: | China | Certificate: | CCC COC TUV SASO |

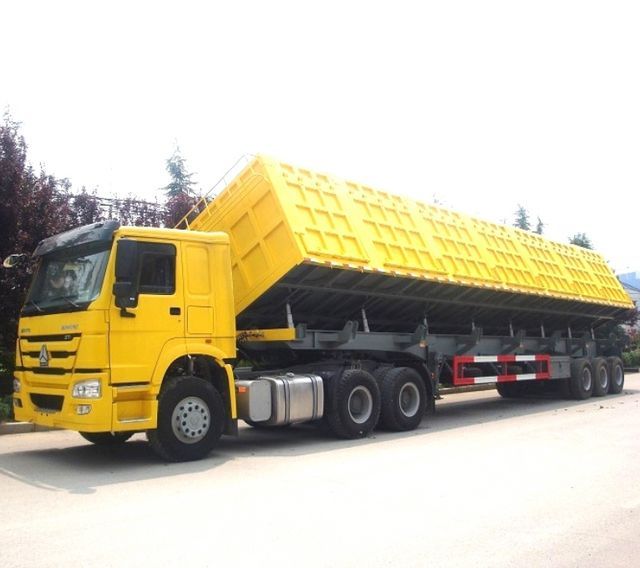

product name: | side dump trailer | Suspension system: | spring |
Axle brand: | Fuwa BPW | Maximum Payload: | 100-150 tons |
port: | any port in China |
manufacturer | Sinotruk side dump trailer | |
type | dump semi-trailer | |
Semi Trailer Dimensions | 12500*2495*3970 mm (outer dimension) 11500*2300*1700 (inner dimension) | |
tare weight | About 10-15T | |
total volume | 37 cubic meters or less than 80 tons | |
Side wall thickness (mm) | 3mm-6mm Q235 steel | |
Bottom thickness (mm) | 5mm-8mm Q235 steel or optional | |
lifting system | Complete set of Hyva (FC214-5-07130) hydraulic lift cylinder | |
chassis | ||
Main beam | Height: 500mm, upper plate 16mm, middle plate 8mm (two-in-one or three-in-one plate), lower plate 18mm; material Q345B steel | |
axis | 13T/16T,FUWA/BPW/Huajing brand | |
spring leaves | 90(w)mm*13(thickness)mm*10 layers or 100mm*12mm*12 | |
OK | Jost brand 2.0 0r 3.5" bolted or welded | |
landing gear | JOST brand C200T or Chinese brand 28Tons (two-speed) | |
pause | Mechanical Suspension/American/German | |
rim | 9.00-22.5/8.00-20/8.5-20 Chinese brands | |
fetal | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Various tire brands are available | |
Pneumatic brake system | WABCO RE 6 Relay Valve; T30/30+T30 Spring Brake Chamber, 45L Reservoir | |
ABS | Elective | |
toolbox | One piece, 1m*0.5m*0.5m (size can be freely selected) (equipped with 1 tire wrench, 1 piston sleeve, 1 crank rod) | |
painting | Complete the chassis sandblasting to remove rust, 1 layer of anti-corrosion primer, 2 layers of top coat | |
shipping terms | Bulk carrier or RORO transport trailer size can be designed according to your special requirements. you can choose 6*4 model truck used with dump semi-trailer |
