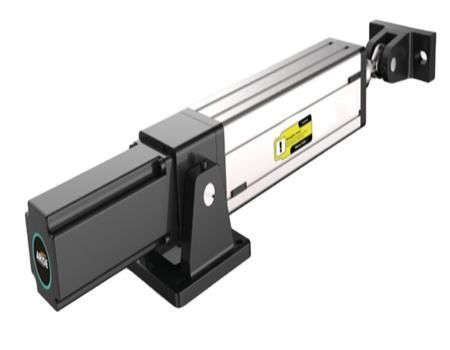

SE Series Arise actuators with various thrusts and shocks

Servo motor: Japan Sanyo

Screw rod: Taiwan TBI

Product Description:

Imported stepping motor, precision grinding ball screw, free maintenance for life. According to different needs, it is equipped with different strokes, installation methods and response speeds. Adjustable externally via left and right limit switches.

Using 1000-line incremental encoder, the precision is greatly improved and the driving speed is faster. Real-time feedback of the screw position without any back switch or limit switch. One key to identify the mechanical stroke.

Advantages of SE-150S/150/300/300S/75S Servo Corrector

1. Using Japan Sanyo Electric as the actuator, without carbon brush

2. Completely reliable, long service life, and truly realize long-term maintenance-free during use

3. It has the characteristics of energy saving and environmental protection,

4. Adopt Taiwan precision ball screw with the smallest clearance

5. Clearance and durability, so that the actuator has no clearance error.

6.75-300mm stroke, 0.5T-10T thrust weight optional

7. There are direct connection and L-type installation methods

Model SE-75S-1T SE-75S-2T SE-150S-1T SE-150S-2T SE-150S-5T SE-200S-2T SE-200S-8T SE-300S-2T

Mechanical stroke 75mm 75mm 150mm 150mm 150mm 200mm 200mm 300mm

Nominal voltage 24V 24V 24V 24V 24V 24V 24V 24V

Rated thrust 1000N 2000N 1000N 2000N 5000N 2000N 8000N 2000N

Rated current 3A 3A 3A 3A 3A 3A 3A 3A

Production grade IP 54 IP 54 IP 54 IP 54 IP 54 IP 54 IP 54 IP 54

Specification
Power supply voltage: DC 24V
Maximum speed: 30mm/s
Maximum stroke: 150mm
Maximum thrust: 200KG.F
Retraction error: less than 0.001mm
Thrust: 2000KG

The active web correction system consists of sensors, actuators and controllers. SE-150S/150/300/75S Servo web guide actuator is used to quickly respond to changes in the position of the web edge. The output of the sensor goes to the controller, which outputs motion commands to the actuator. The actuators that move the guide mechanism can be stepper motors and ball screws for smaller components.
