V760C-5 0.5-inch OLED virtual 90-inch screen wearable large high-definition screen portable display electronic viewfinder

Supplier: Shenzhen V-Focus Electronic Technology R&D Co., Ltd.
Region: Guangdong, China
Contact: Mr Andy Yu
Price: $159.99 / 1 - 4 pieces
$149.99 / 5 - 9 pieces
$146.99 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

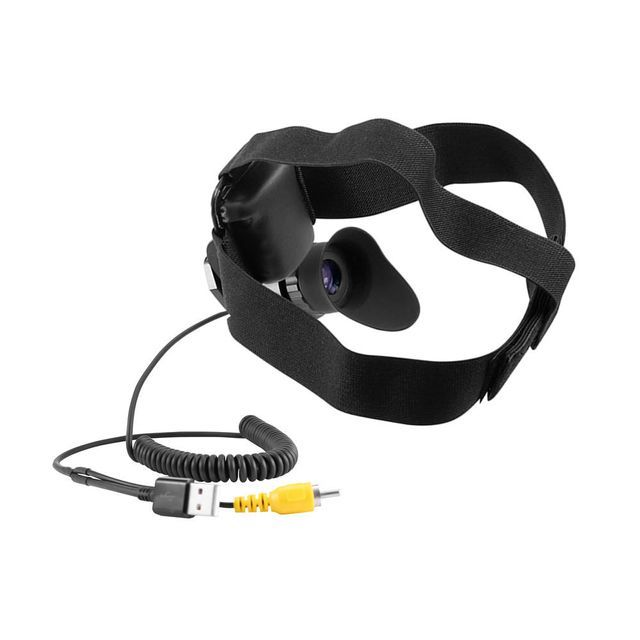

V760C-5 virtual 90-inch monitor wears a large high-definition screen portable monitor

scope	exhibit:	0.5 inch OLED
	solve:	1024*768
	screen ratio:	4:3
	Color Depth:	24 bit input
	Viewing angle:	45° diagonal
	Video input:	Composite audio and video
	Video signal:	NTSC/PAL/SECAM automatic selection
	Operating Voltage	3.7-5V
	Working current	100MA
	energy consumption	0.1W
	display frame rate	120HZ(NTSC),100HZ(PAL)
	Exit pupil distance	20mm
	Exit Pupil Diameter	1-2m
	eyepiece	14x optical
	Dimming	Yes
	Diopter adjustment	Yes
application
	1024×768 active matrix color 0.5 inch OLED panel module adopts monocrystalline silicon transistor
	The display module can be equivalent to a virtual 90-inch screen at a distance of 2 meters,
	VGA pixel micro-display chip, image and light source system, High-performance optical engine, drive control circuit
	FPV aircraft model display, plug and play, convenient for users to carry and operate
	Monocular display kit, night vision, medical, information, infrared detection, Power Monitoring Electronics Kit Viewfinder
	Metal shell, built-in fixed bracket, waterproof, dustproof, shockproof
	Equipped with 18MM eyepiece, customized lens hood,
	The humanized strap is comfortable and convenient, and supports up and down adjustment
Accessories
	display*1
	bind*1
	Instruction manual × 1
Package	Unit size (mm)	Unit gross weight (kg)
Package	1889CM	0.35
