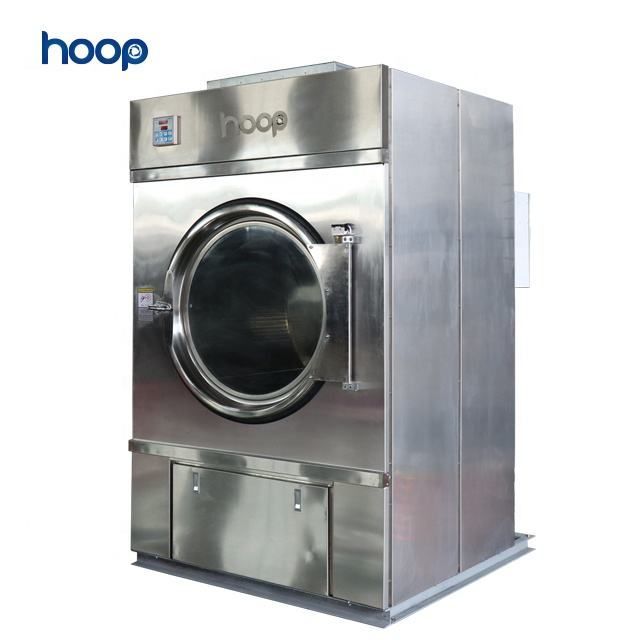

HOOP Washing Machine Industrial Laundry Dryer Laundry Dryer 50kg 30kg

Supplier: Jiangsu Hoop Washing Machinery Manufacturing Co., Ltd.
Region: Shanghai, China
Contact: Ms Doreen Qian
Price: $2500.00 / 1 - 2 sets
$2400.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

brand:	hoop	Steam consumption:	130-140kg/hour
heating power:	58 kW	feature:	quick dry
capacity:	50 kg	Voltage:	220V/380V/400V
Drying time:	40-60 minutes	Warranty:	1 year
Production capacity:	50 kg	Dimensions (LWH):	125160200cm
Supply capacity:	500 boxes per month	Origin:	China Shanghai
strength:	1.1 kW	Package preview:
Fan power:	1.5 kW	Roller size:	1200*1000mm
Marketing Type:	normal product	Health status:	new
aspect:	138170200cm	Packaging Details:	Plastic packing or wooden box packing
application:	Dry clothes, sheets, towels and more.	Core components:	PLC, engine, bearing, motor
payment terms:	Letter of credit, documents against acceptance, telegraphic transfer	Weight (kg):	550
Showroom location:	Turkey, Vietnam, Peru, India, Thailand, Kenya, South Korea	Video outbound inspection:	if
port:	Shanghai Port	Motor Power:	1.5 kW
Gas consumption:	7 cubic meters / hour	Core component warranty:	1 year
steam pressure:	0.4-0.6Mpa	Mechanical test report:	if
Applicable industries:	Hotels, clothing stores, building materials stores, machinery repair shops, farms, restaurants, retail, advertising agencies

ring washing machine

Manufacturer of washing machines and integrated systems

Hupu China, since its development, we have always adhered to the original entrepreneurial tradition and guided the development
A business with aligned values and principles. 27 years of development embodies responsibility, dedication and
Hoop's enthusiasm will also continue to be implanted in Hoop's future development and innovation.

Paint Tumble Dryer

Capacity: 20kg; 30kg; 50kg; 100kg; 120kg; 150kg.

Stainless steel 304 tumble dryer

Capacity: 20kg; 30kg; 50kg; 100kg; 120kg; 150kg.

HG series industrial dryer
*HG series computer controlled dryer, automatically set temperature and running time. Fast and efficient drying, stainless steel inner cylinder, reliable and durable;
*Using secondary V-belt deceleration transmission, low noise, small vibration, long life and easy maintenance;
*The fan adopts large-pitch impeller blades, which are not easy to clog the plush.

Model		HG-20/20D	HG-30/30D	HG-50/50D	HG-70/70D	HG-100/100D
capacity	Kilogram	20	30	50	70	100
Drum size	mm	Ø890X700	Ø980X840	Ø1070X1000	Ø1200X1000	Ø1500X1100
drying time	minute	40-60	40-60	40-60	40-60	40-60
Motor Power	kilowatt	0.75	1.1	1.1	1.5	2.2
fan power	kilowatt	0.55	0.75	1.1	1.5	1.5X2
heating power	kilowatt	18	twenty four	40	58	70
steam pressure	MPa	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
steam consumption	kg/h	40-45	60-70	90-100	130-140	180-200
Air consumption	cubic meter/hour	2.5	3	5	7	10
aspect	rice	11.21.8	1.11.251.87	1.251.62	1.381.72.2	1.6522.43
machine weight	Kilogram	340	385	550	596	1000

electro-thermal:

There is an electric heater on top of the dryer.

Steam heating:

There is a radiator on top of the dryer.

Gas heating:

There is a gas heater on top of the dryer.

The dryer adopts electric heating design, steam heating and gas heating are available;

If you want to know the difference between them, please contact the sales, they will teach you how to choose;

It adopts high-power heat exchanger and stainless steel structure to ensure good anti-corrosion performance and mechanical strength.

20kg; 30kg; 50kg; 70kg tumble dryer
The capacity is from 10kg to 70kg, one main motor and one fan motor.

100kg; 120kg; 150kg tumble dryer
The capacity is from 100kg to 150kg, one main motor and two fan motors.

Insulation

Each metal part of the dryer has been acidified and phosphated to ensure the tightness of the surface paint, which not only ensures the exquisite appearance of the dryer, but also prolongs the service life of the dryer; the jacket of the dryer is completely insulated, and the maximum Maximum heat preservation, and low noise.
During the drying process, the drum will tumble clockwise and counterclockwise, which is conducive to rapid heat exchange and avoids entanglement, thereby improving the drying effect.

1. Door interlock system
When the door is opened during work, the machine will automatically stop. There is also an emergency stop button, with a door interlock system, when the machine is still working and the door is opened, the machine will automatically stop;

2. Computer control, easy to operate
Advanced computer-controlled LCD screen, 5-segment programmable, can operate with different temperature, time and rotation direction according to different linen requirements, with good performance.
* It can be operated manually when drying, which is convenient to operate;
*At the same time as the drying is completed, the cooling system ensures a better drying effect through the pressing time and temperature;

3. Cooling system
After drying, the cooling system turns into cold air, which enters the drum to cool the linen in a short time. Prevent temperature surge;
The air outlet is arc-shaped to prevent backflow of exhaust gas and facilitate the diffusion of hot air.

Regarding the delivery time after the order, we mass-produce the machines to ensure the quality and increase the output more efficiently.
If we have machines in stock, it only takes 2-3 days for testing, and then we will arrange delivery to customers;
If there is no machine in stock, 10 -12 days will be finished.
