Quick Build Prefabricated House Making Machine Concrete Unit Making Machine

Supplier: Hubei Tengcang Building Material Technology Co., Ltd.
Region: Hubei, China
Contact: Mr Sam Xiao
Price: $45300.00 /set
Min. Order: 1 set

Click here to contact

Product details

raw material:	RC	strength:	The whole production line 41KW
Warranty:	1 year	Keyword 2:	Low Cost Precast Concrete Homes
Packaging Details:	standard meal	Showroom location:	not any
Where to apply:	Residential/Hotel/Restaurant/Villa Construction	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Food and Beverage Factories, Farms, Restaurants, Household, Retail, Food Stores, Printing Shops, Construction, Energy and Mining, Food and Beverage Stores, Advertising Agencies
After-sales service:	Provide at least 30 days of installation and training for engineers	Advantage:	Low cost, fast construction, earthquake resistance, heat preservation
Suitable:	Residential houses and public buildings	Weight (kg):	20000

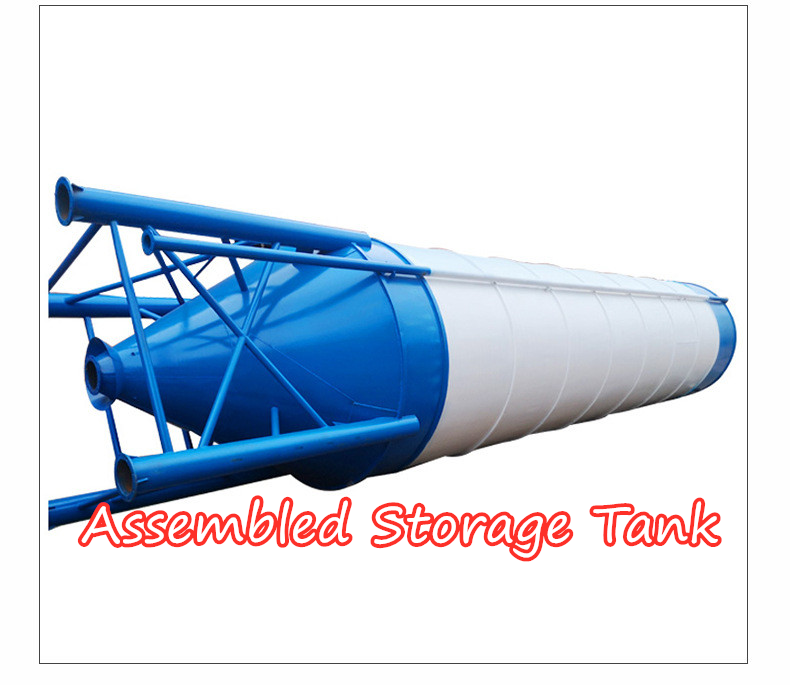

Machine 2 is required:	Concrete mixer, batching machine, fabricated storage tank	Core component warranty:	1 year
Production capacity:	1 concrete unit per day per forming machine	Package preview:
Core components:	engine	Supply capacity:	500 units per month
Voltage:	380V	Required machine 1:	Forming machine, quick-setting machine, CNC steel bar machine
Mechanical test report:	not available	Health status:	new
Keyword 1:	precast concrete house	application:	Residential houses and public buildings
brand:	hobbit	Marketing Type:	normal product
Video outbound inspection:	if	product name:	Precast Concrete Element Manufacturing Machinery
Unique selling point:	short construction time	payment terms:	L/C, Western Union, D/P, D/A, T/T
port:	Wuhan Port, Shanghai Port,	Origin:	Hubei, China
feature:	Durable, easy to operate, fast construction	Dimensions (LWH):	36m, 3.36.6m, 3.6*7.2m

product description

concrete modular house

Concrete modular house, also known as prefabricated concrete house, belongs to concrete assembly building. It is a new construction method with good energy saving effect and low construction cost.

With reinforced concrete structure, the unit modules are prefabricated by special equipment in the factory, and then directly transported to the site for assembly. High level of prefabrication, accurate size, fast construction speed, 500 square meters can be built in one day, which greatly improves the construction speed

Compared with traditional brick-concrete houses, the main advantages of concrete modular houses are low construction cost, good earthquake resistance, long service life, fast construction speed, labor saving, long life, no construction waste left, and can be removed during demolition. In line with the development direction of environmental protection construction advocated by the world

What equipment does the whole production line consist of?

How to produce?

1. Dealing with reinforcers

The steel bars are processed by the CNC steel bar machine, and the steel bars are woven into grids and covered on the inner chassis of the forming machine. (this step takes about 1-2 hours)

2. Pour the concrete into the molding machine

1. Adjust the forming machine: close the four side plates of the forming machine to form a concrete pouring space between the four side plates and the inner chassis. (This step takes less than 5 minutes)

2. Operate the gantry crane and the hopper to lift the concrete and pour it into the molding machine until it is full.

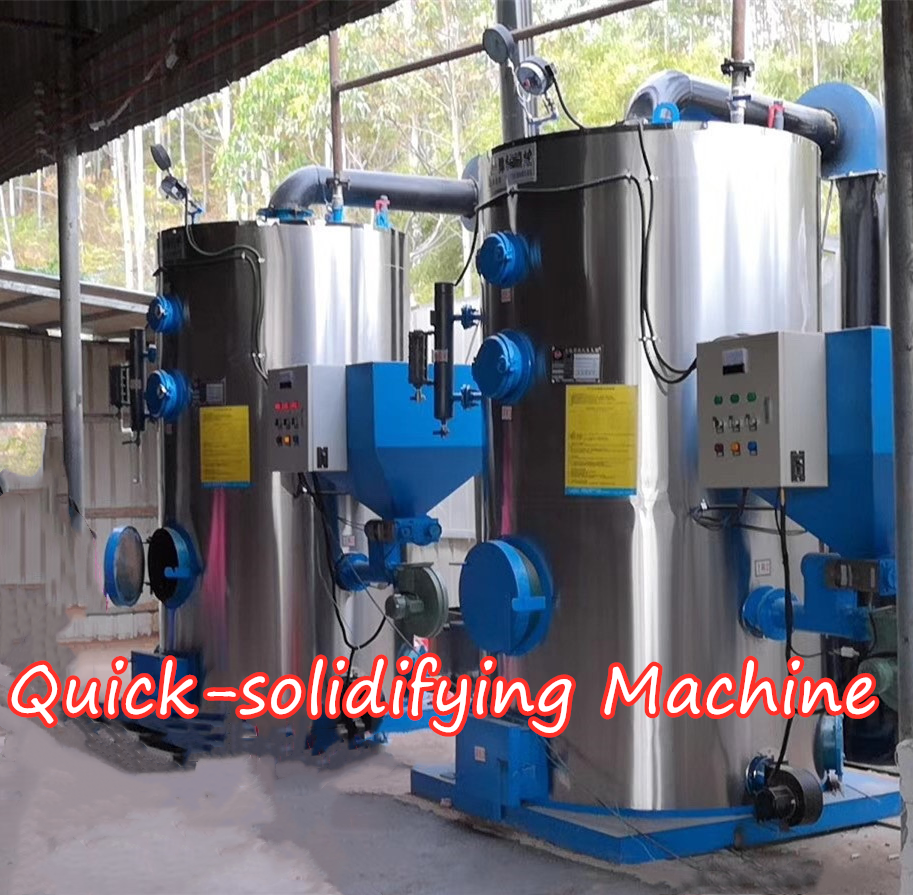

3. Rapid setting concrete unit

After the concrete is poured, cover the whole molding machine with a steam cover, and then turn on the cooking machine to send steam to the cover to make the concrete solidify quickly. (Keep the steamer running for 2-3 hours.

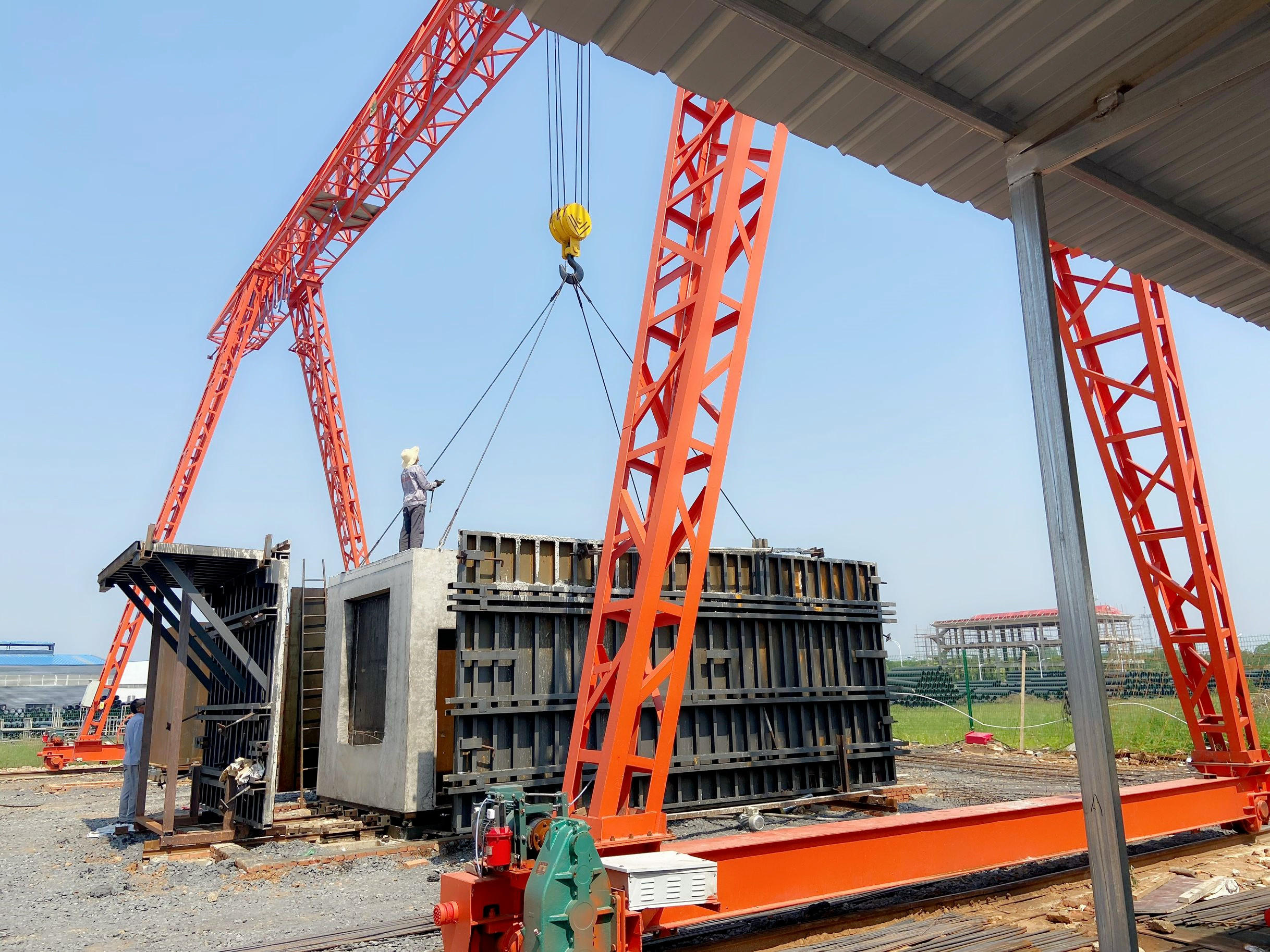

4. Lift the concrete unit from the forming machine

1. After turning off the steamer, keep the cooking lid on the forming machine until the next morning to open and remove the steaming lid.

2. Open the side panel of the molding machine, adjust the shrinkage of the inner chassis, and make the house wall break away. Lift the modules from the forming machine with a gantry crane

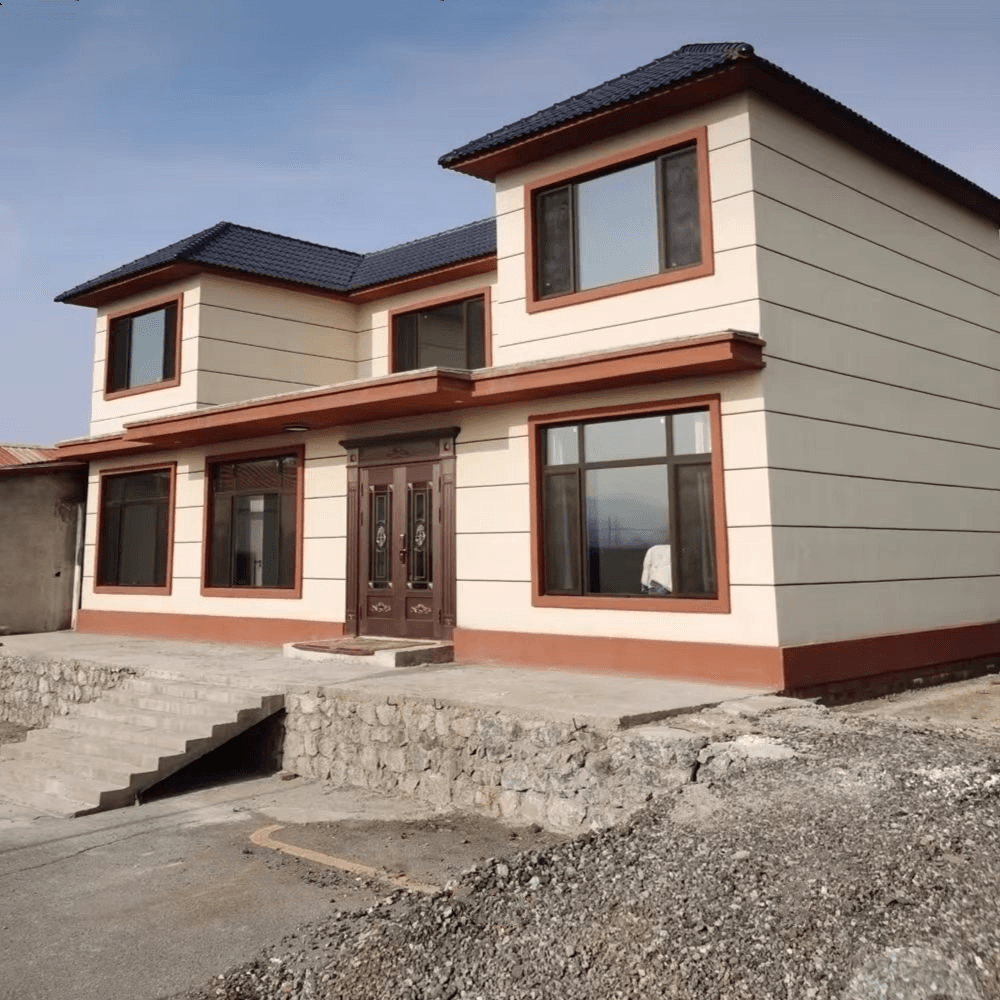

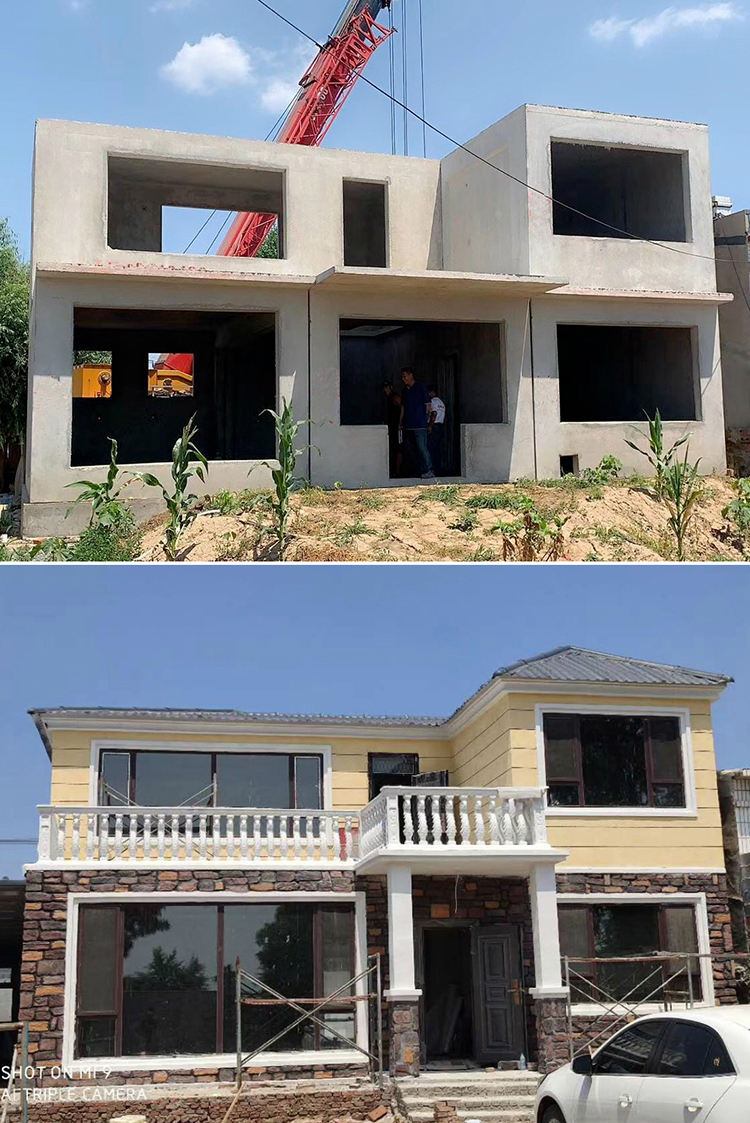

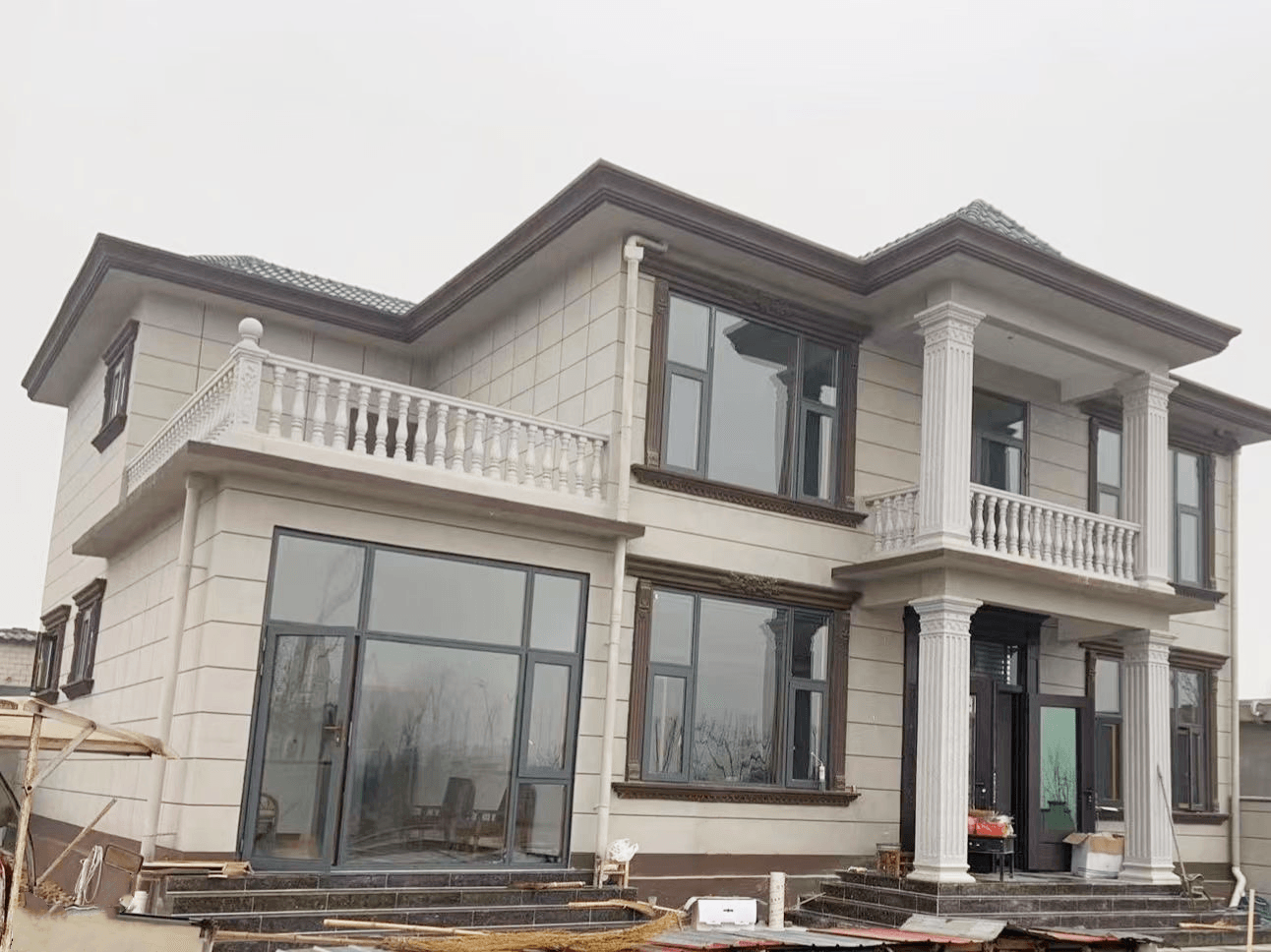

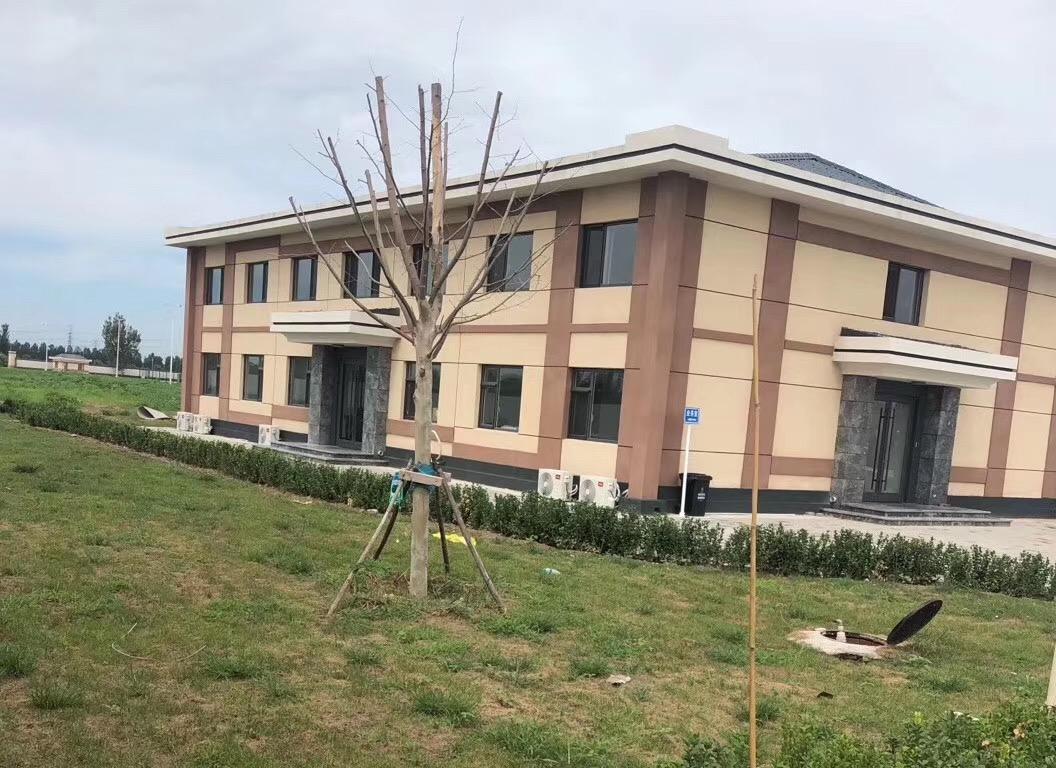

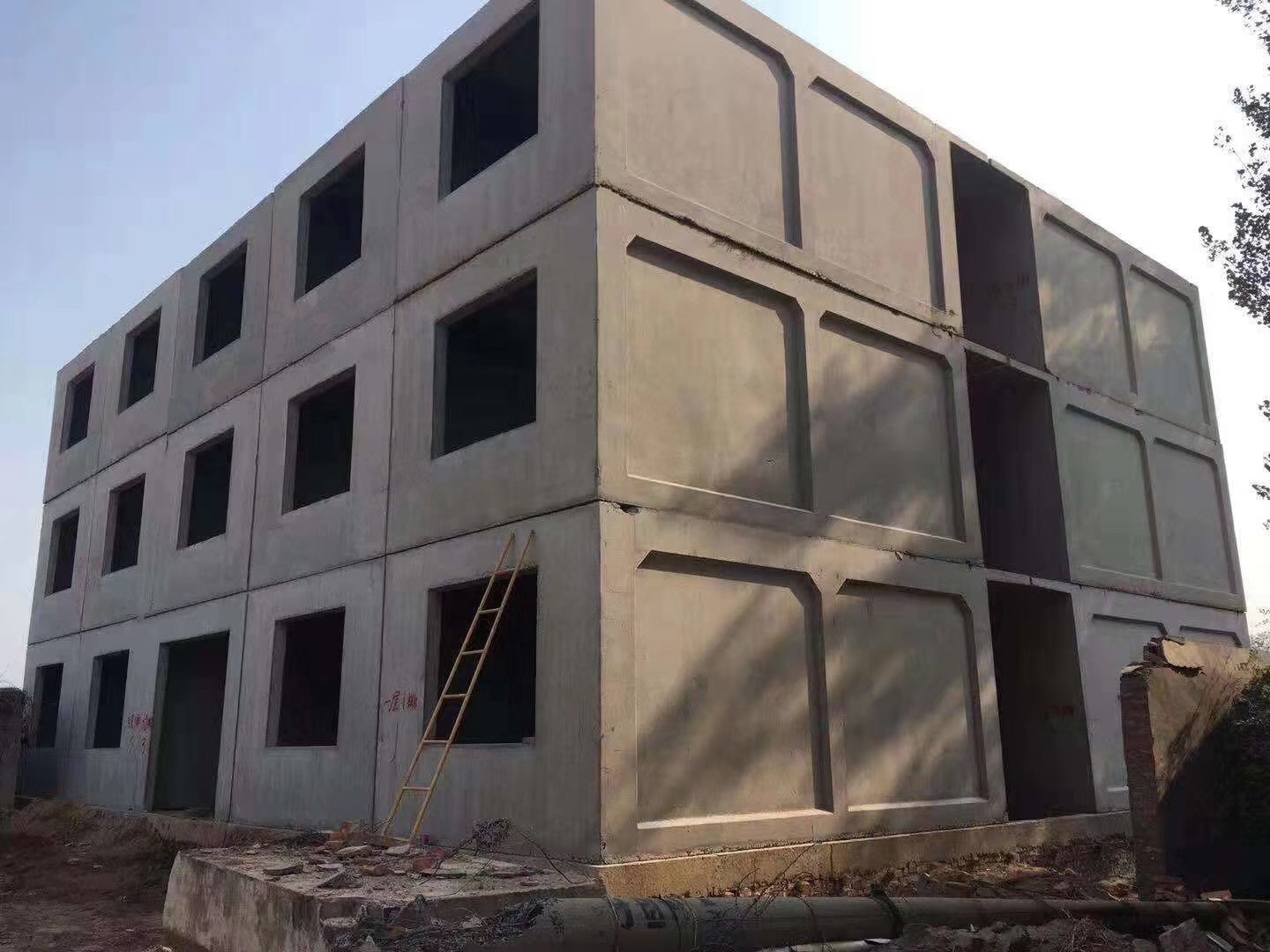

Construction case

Advantages of using this concrete unit

1. Low cost of building houses: the construction cost of this kind of houses is only half of that of traditional brick-concrete houses. 2. The construction speed is extremely fast: the level of prefabrication is high, and the construction speed is fast, 500 square meters per day, which greatly improves the construction speed. 3. Earthquake resistance: It can withstand an earthquake of magnitude 9, and will not collapse as a whole due to local damage during construction. earthquake. 4. Wind resistance: It can withstand a hurricane with a speed of 200 kilometers per hour. Each unit module weighs 20 tons (the weight of 10 cars).
