conductivity controller EC/TDS-600 TDS controller monitor

Product details
Name:Conductivity Controller EC 450custom made:Yes
Operating temperature:Normal: 0--50°C, high temperature. 70-100℃Sales unit:single product
brand:GilesSingle pack size:48X96X110 cm
Gross weight per piece:2.000 kgaspect:Height 48*Width 96*Depth 100mm
model:EC/TDS-600Packaging Details:The conductivity controller is packaged in a sturdy carton for long distance shipments by air or sea.
Control output:High/low limit relay alarmCurrency output:Isolated 4-20mA
accuracy:1.5% (full scale)Measurable voltage range:0-5V DC
type:On-line conductivity/TDSsensor:1.0cm -1lb Black, SS 316L Electrode
range-1:0-20/200/2000 microseconds/cmCertification:CE
Install:Panel Mount (Flush)Origin:Hebei china
Range 2:0-20ms/cm

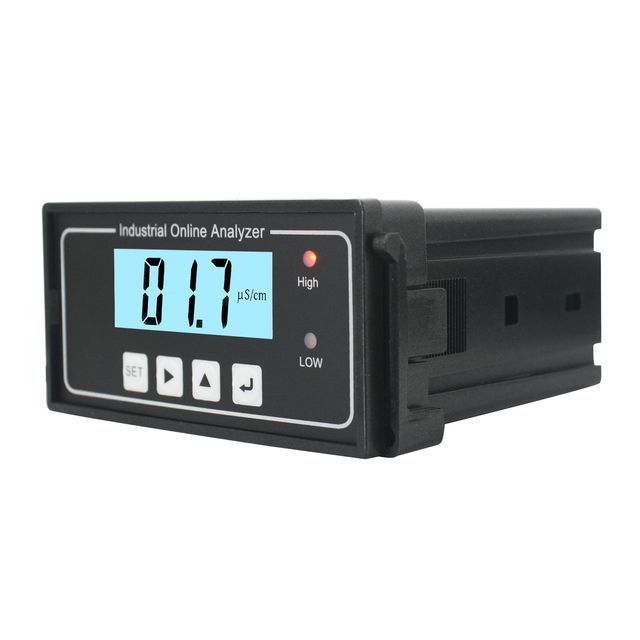

                 Conductivity Controller EC/TDS-600





Online Conductivity Controller,1.0cm conductivity monitor-1electrode

  1. Code: EC/TDS-600
  2. Measuring range:0-20uS, 0-200uS, 0-2000uS, 0-20mS, 0-20/200/2000ppm.
  3. Matching electrodes:1.0 cm-1continuous
  4. Display method:3.5-digit backlit LCD,
  5. Accuracy: 1.5% (full scale),
  6. stability:±2×10-3(full scale)/24 hours,
  7. Working pressure: 0-0.5MPa,
  8. Medium temperature:Room temperature: 0~50℃,high temperature.: 70~100°C
  9. Temperature compensation:   Normal temperature: based on 25°C, automatic temperature compensation High temperature: based on 90°C, automatic temperature compensation
  10. Output Current:: Isolation Current Output 4~20mA(≤300Ω)
  11. Control output: maximum, minimum (normally open, normally closed) contact output
  12. Touch point capacity:7A/AC250V (with resistive load)
  13. Environmental conditions: Temperature: 0-50°C; Humidity: ≤85%RH
  14. power supply: AC 220V±10% 50/60hertz,AC 110V±10% 50/60Hz
  15. Dimensions: 48×96×100mm (height×width×depth)
  16. Hole size:45 x 91mm



















 Conductivity controller EC 411, EC 450



Function

Model

EC 500

EC 600

scope

0~20/200/2000 μS/cm; 0~20/200/2000 ppm; 0~20 mS/cm

accuracy

1.5% (full scale)

temperature. Compare.

Normal temperature: based on 25°C, automatic temperature compensation

High temperature: based on 90°C, automatic temperature compensation

Operating temperature

Room temperature: 0~50℃

High temperature::70~100°C

sensor

1.0cm-1 platinum. Black or SS316 electrodes

exhibit

3½-digit LCD

Current output signal

— — —

4-20mA current signal output

control output signal

ON/OFF upper limit relay alarm

strength

AC 110/220V±10%, 50/60Hz

working environment

ambient temperature. 0~50℃,relative humidity≤85%

Dimensions

48×96×100mm (height×width×depth)

hole size

45 x 92 mm (height x width)

installation method

Panel Mount (Flush)







Conductivity ControllerPacked in a sturdy carton, suitable for long-distance shipping, with colorful labels

Available upon request on the carton.







1.Conductivity ControllerAccording to the request, it can be shipped by express such as DHL, TNT, EMS, etc., which will take 3-5 days.

2. For bulk orders, by air, it takes 5-7 days for different regions,

3. For bulk orders that are not urgent, by sea.









  1. Commercial terms: FOB, C&F, CIF, DDU, DDP are all acceptable.
  2. We accept Western Union, T/T, L/C, PayPal and other payment methods.
