High Quality Heavy Duty Truck Air Dryer Assembly For Renault oem 7421352785

Supplier: Huangshan Benma Group Co., Ltd.
Region: Chongqing, China
Contact: Ms Cindy Cheng
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

color:	Silver Black	Packaging Details:	Sales packaging: three-layer corrugated paper packaging. Color the inner box according to your own design requirements. Outer box packaging: 5 layers of corrugated paper packaging.
Year:	2008-2016,1971-1984	Warranty:	1 year
Material:	aluminum alloy	Supply capacity:	20000 pieces per month
Cut off pressure:	7,9 - 9	Auto Parts:	renault
Package:	Neutral packing	Reflow:	0.7 bar
product name:	air dryer	Certification:	ISO9000, TS16949
hot:	24V	Mounting holes:	1/2''-13 UNC-2B
brand:	high frequency	type:	brake valve
Original equipment number:	7421352785	payment terms:	L/C, T/T, Western Union
Model:	R12, Laguna Three	port:	Ningbo, Shanghai, Qingdao, Tianjin or as your request
car model:	renault	Truck Model:	for renault
Origin:	Chongqing, China

Product Description

High Quality Heavy Duty Truck Air Dryer Factory

renaultOEM 7421352785

Air Dryer Model	System Protector 1200, 12 Volt
Health status	new
ID tag number	7421352785
range of working temperature	-40°F to +175°F (-40°C, 80°C)
Thermostat range	Operating Temperature - 45°F, Shutdown Temperature - 86°F (7°C, 30°C)
Discharge line diameter	Minimum inner diameter 1/2"
Discharge wire length	Sufficient length to keep dryer inlet temperature below 175°F (80°C)
port 1,2	M22x1.5
port 4, 23	M12x1.5
high	11.2 inches (284mm)
width	8.2 inches (208mm)
Mounting hole thread	3xM12x1.5-6H DC 24V without heater
Desiccant dosage	1200cc
Suitable for standard air brake applications on trucks, tractors and buses
Features a regeneration valve to help extend filter life
Spin-on desiccant cartridge
100W/12VDC heating element

The function of the air handling unit is to collect and remove air system contaminants in the form of solids, liquids and vapors before they enter the braking system. It provides clean, dry air to brake system components, extending system life and reducing maintenance costs.

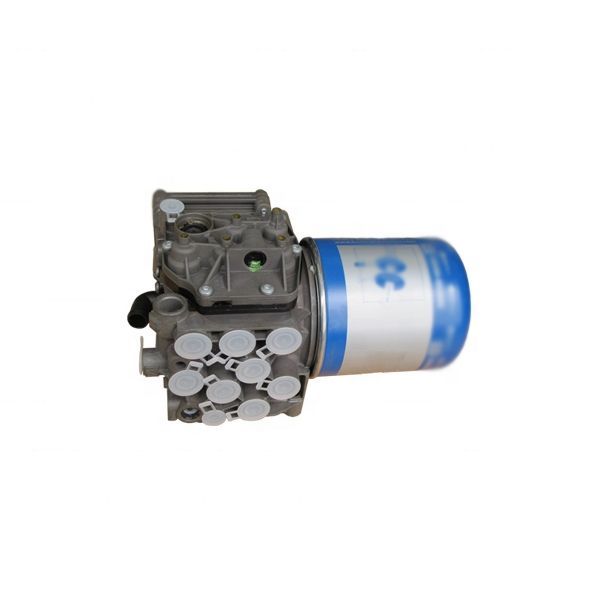

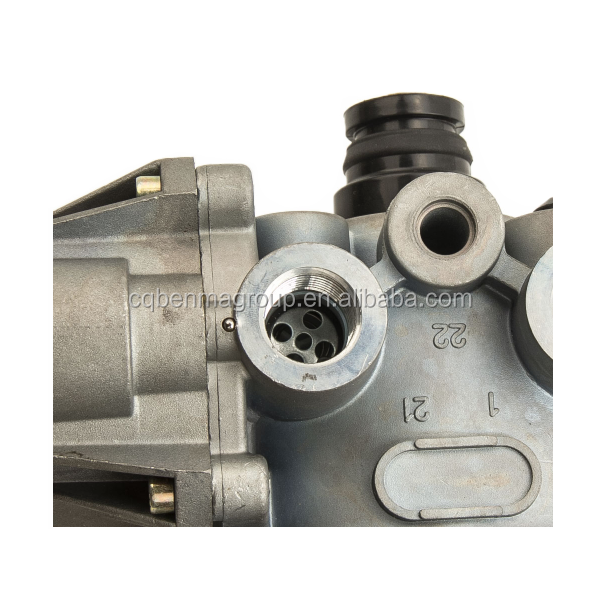

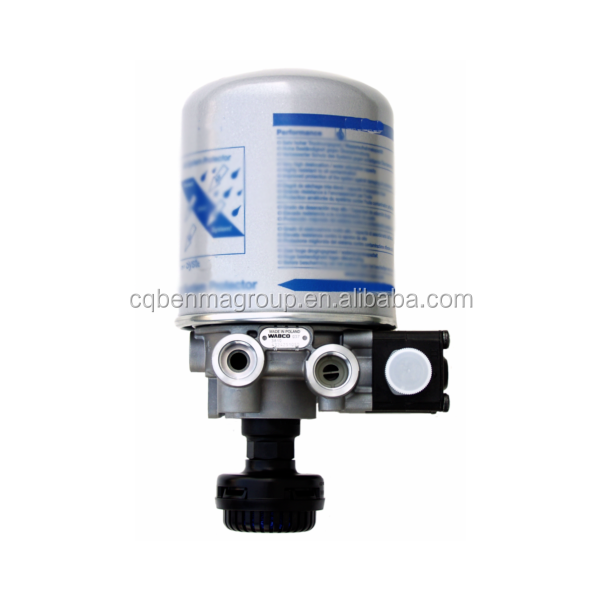

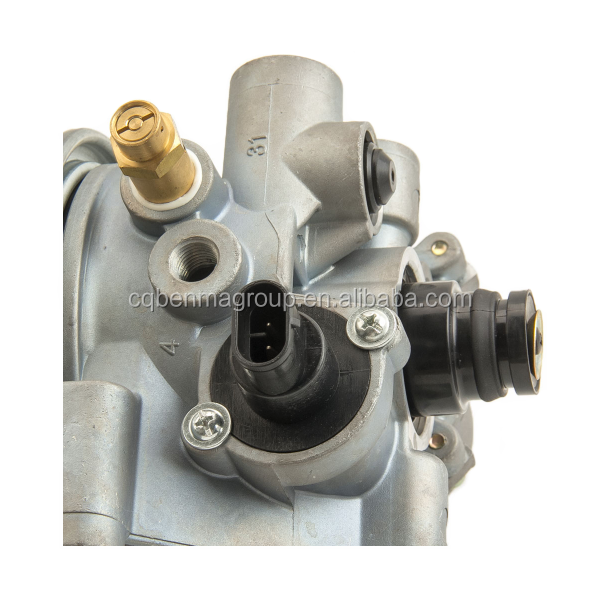

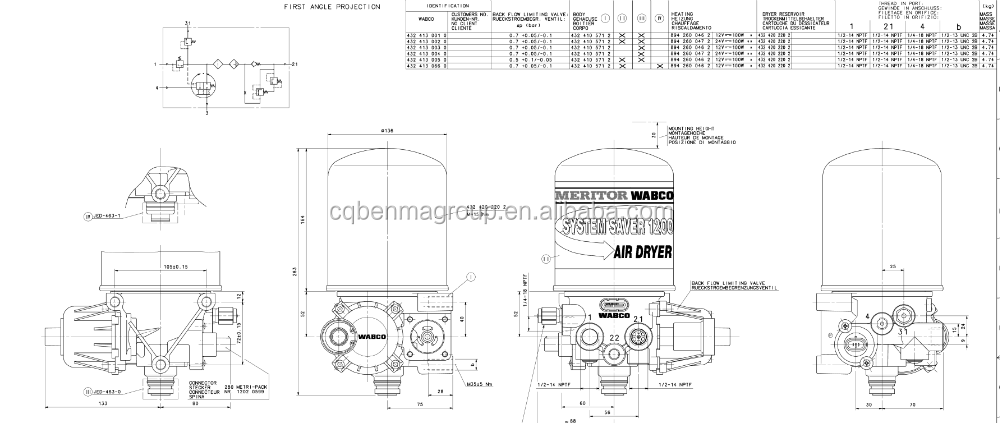

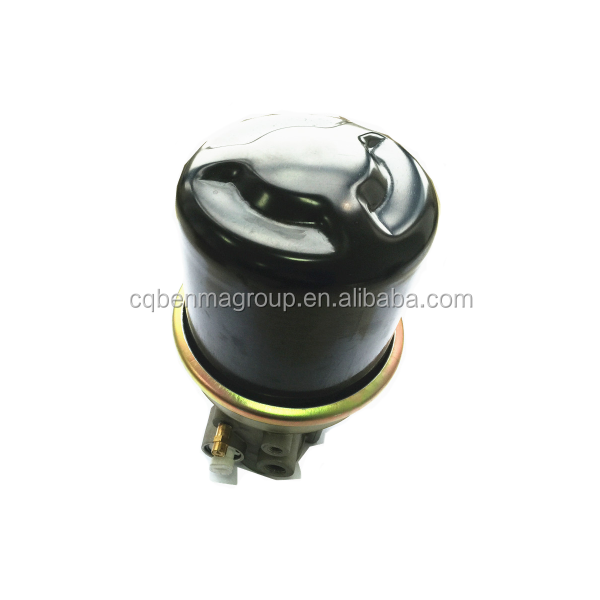

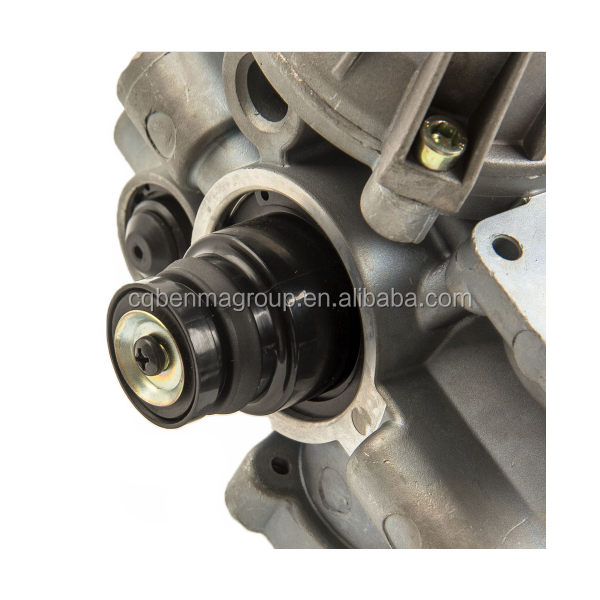

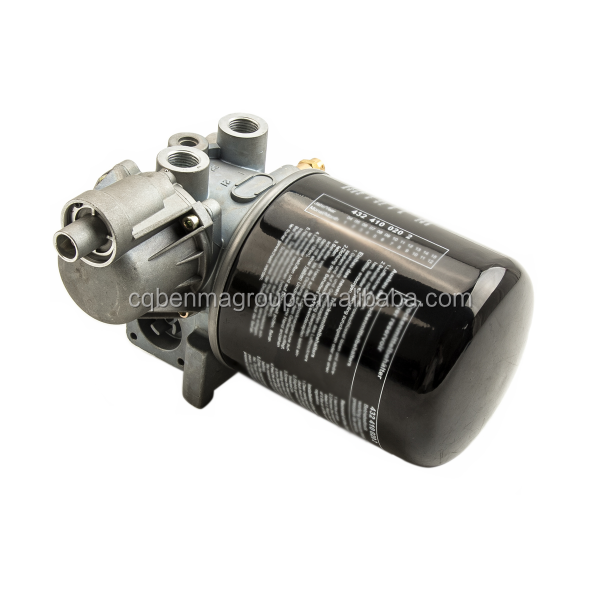

detailed image
