Auto Air Conditioning Digital Manifold Kit Digital Refrigerant Pressure Gauge Pressure and Temperature Test Multifunctional Manifold Kit

Product details

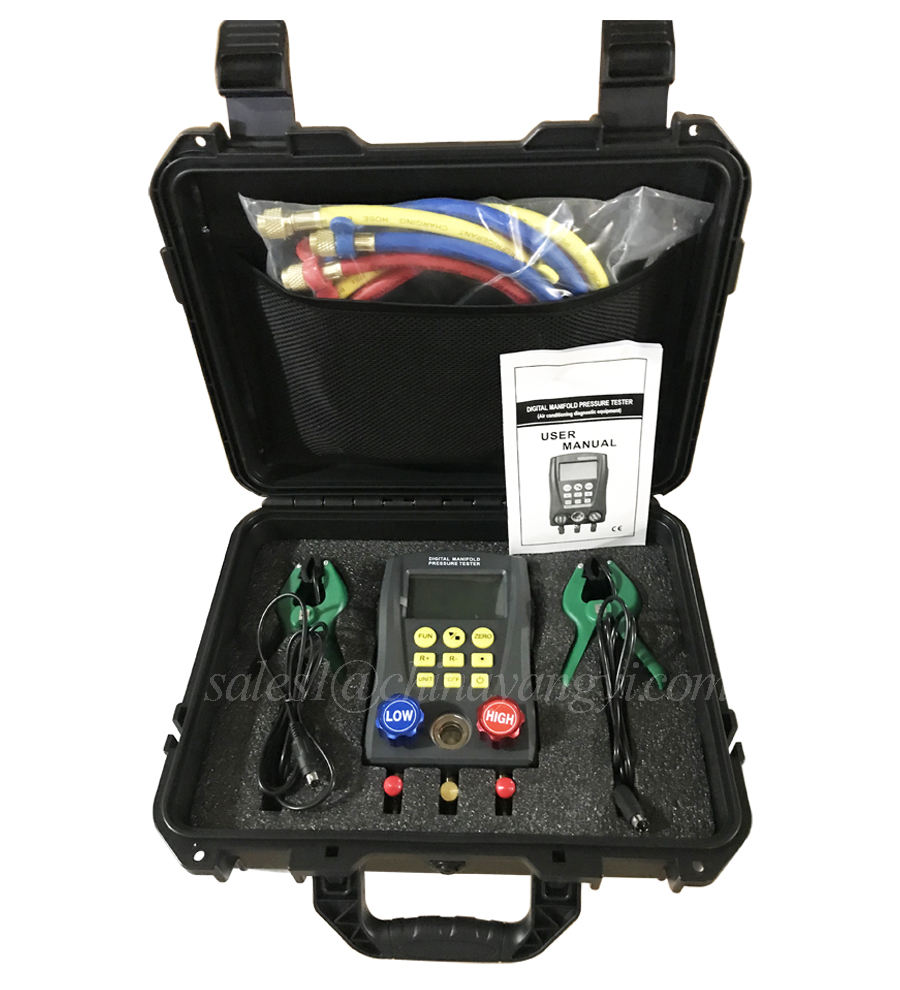

Vacuum test device:Kpa, Mpa, bar, inHg, PSIPackaging Details:1x Refrigeration Digital Manifold Pressure Gauge 1x User Manual (English) 1x Carrying Case 2x Temperature Clamp 3x 1.5m Test Hose
Vacuum test range:-101Kpa~0Kpaproduct name:Digital Manifold Gauge
Pressure overload limit:10000 Kpa (10 Mpa, 100 bar)Supply capacity:15000 pieces per month
quality:high levelport:Ningbo/Shanghai/Guangzhou/Yiwu
Pressure measurement resolution:1 kPabrand:Yangyi
Warranty:1 yearPackage preview:
Customization support:OEM、ODMStress test scope:0Kpa-~6000Kpa
Origin:Zhejiang, Chinamodel:DMG-517,DMG-517A,DMG-517B
Stress Test Unit:Kpa, Mpa, bar, inHg, PSIVacuum test:Relative vacuum
payment terms:L/C, Western Union, T/T, PaypalStress test accuracy:+/- 0.5 %(FS)+ 5dgt
Product Description
Refrigeration Digital Manifold Table
The barometer is specially used for the installation, testing and maintenance of refrigeration equipment such as refrigerators, cold storages and air conditioners.

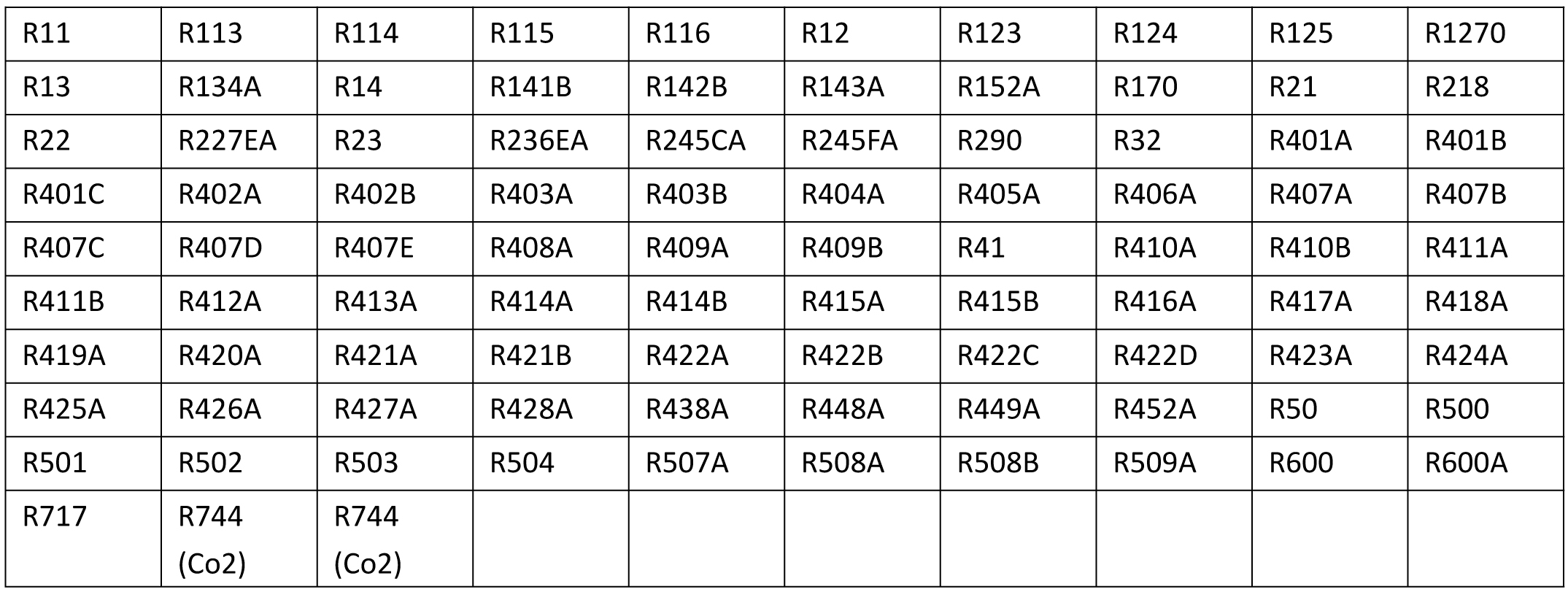

Built-in 92 refrigerant options

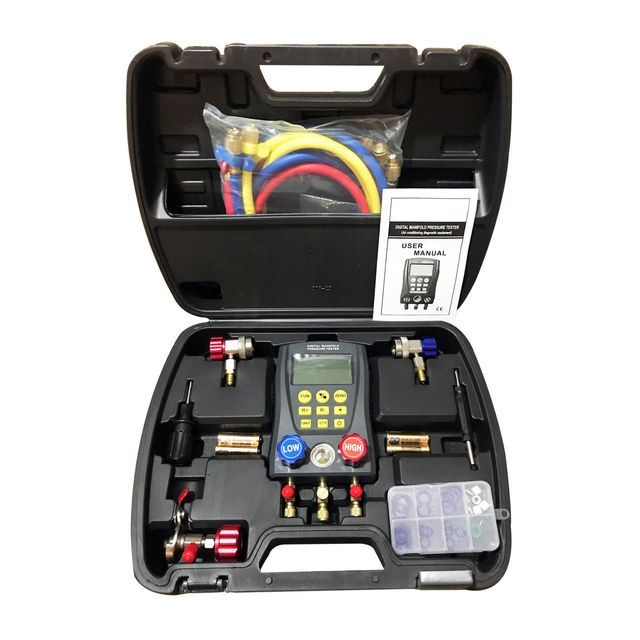

DMG-517 Car Air Conditioning Digital Manifold Gauge

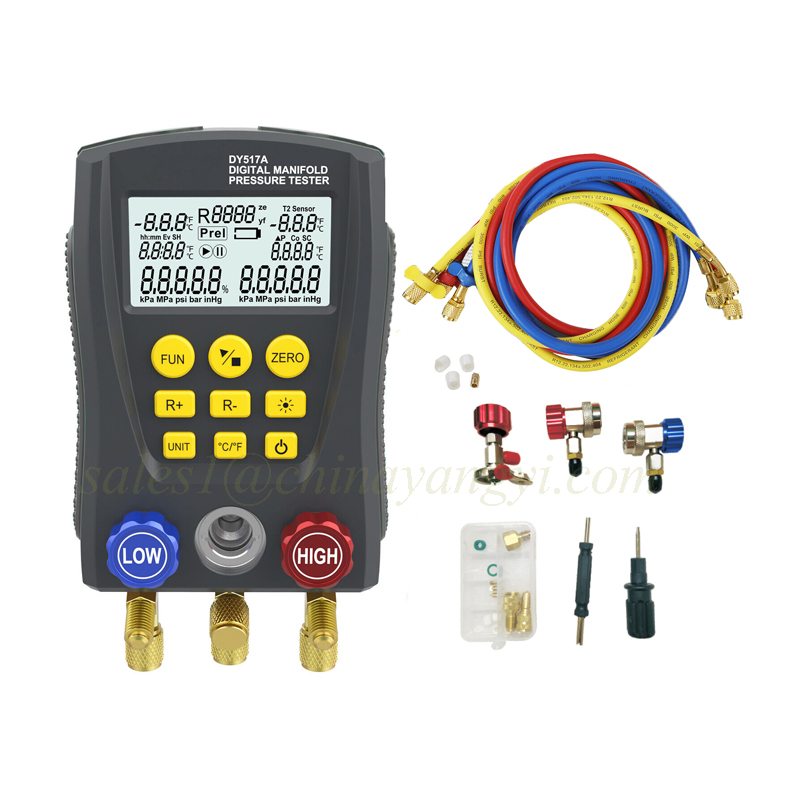

Digital Manifold Pressure Gauge with Low and High Pressure Quick Connects, Screwdriver, Copper Tank Tap, Charging Hose and Adapter

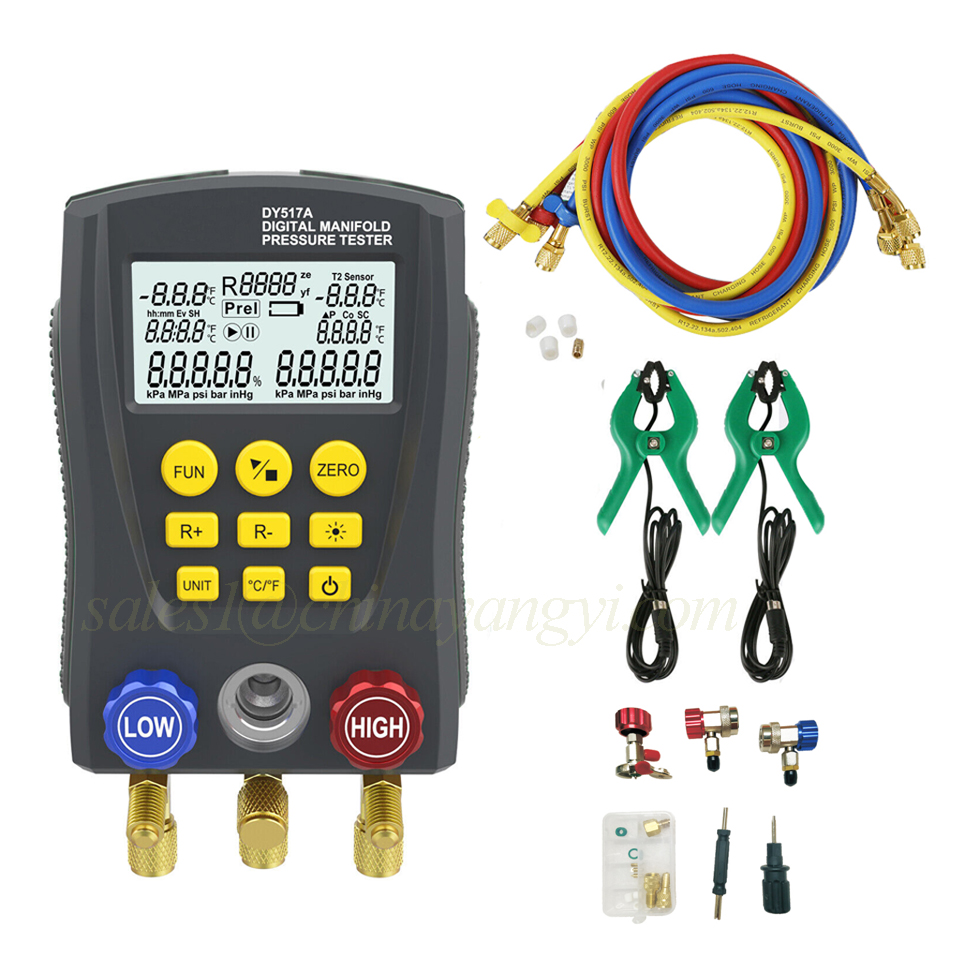

DMG-517A Digital Manifold Meter for Household Air Conditioner

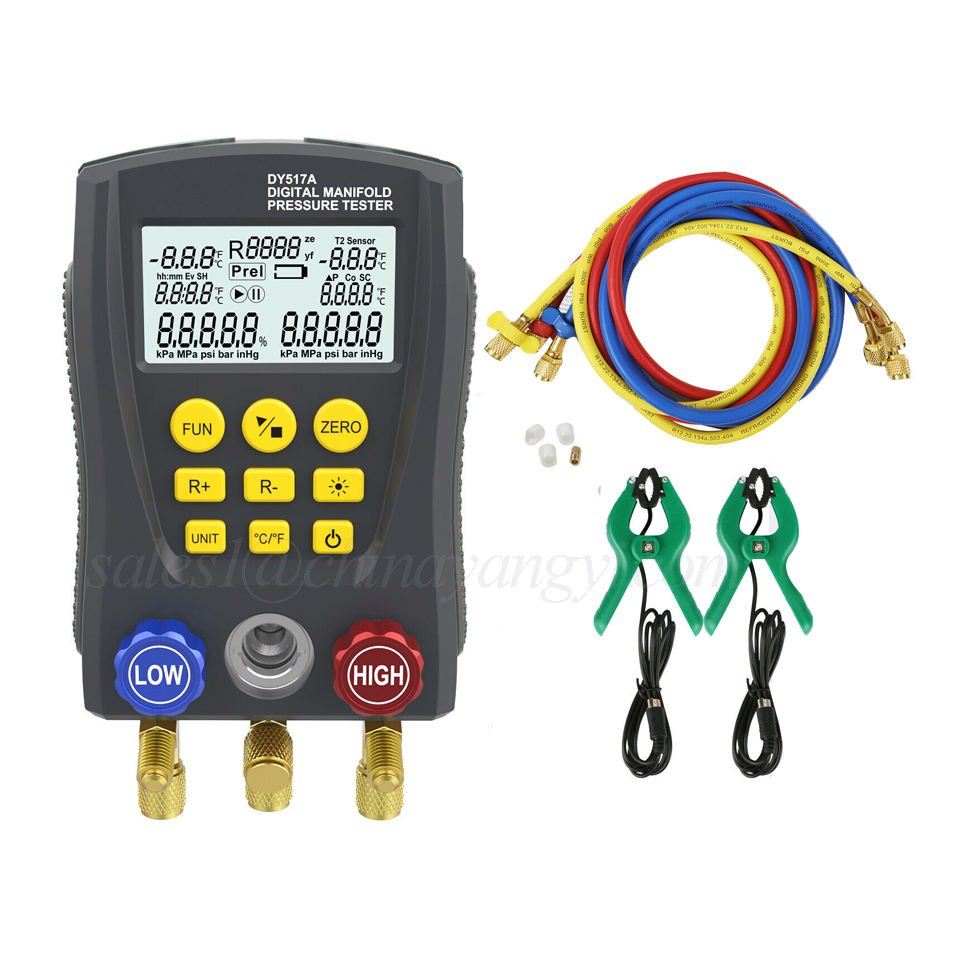

Digital Manifold Gauge with Charge Hose Adapter and Temperature Clamp

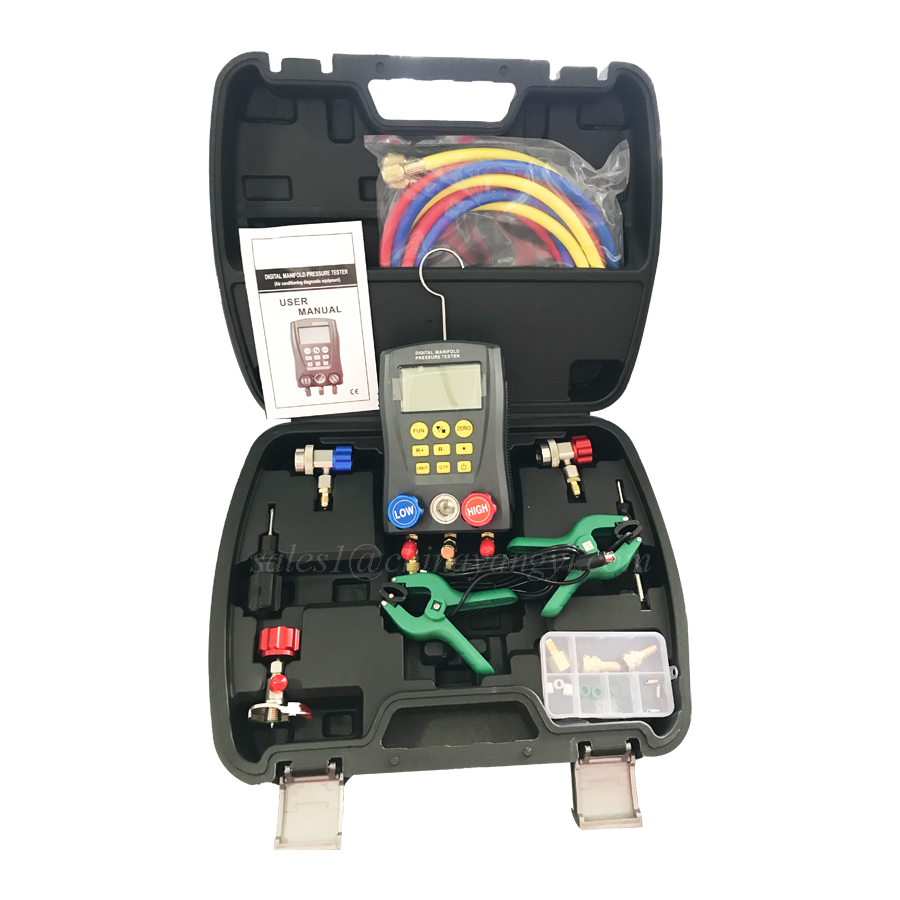

DMG-517B Universal Digital Manifold Gauge for Automotive Air Conditioners and Home Air Conditioners
Digital Manifold Pressure Gauge with Low and High Pressure Quick Connects, Screwdriver, Copper Tank Tap, Charging Hose, Adapter and Temperature Clamp

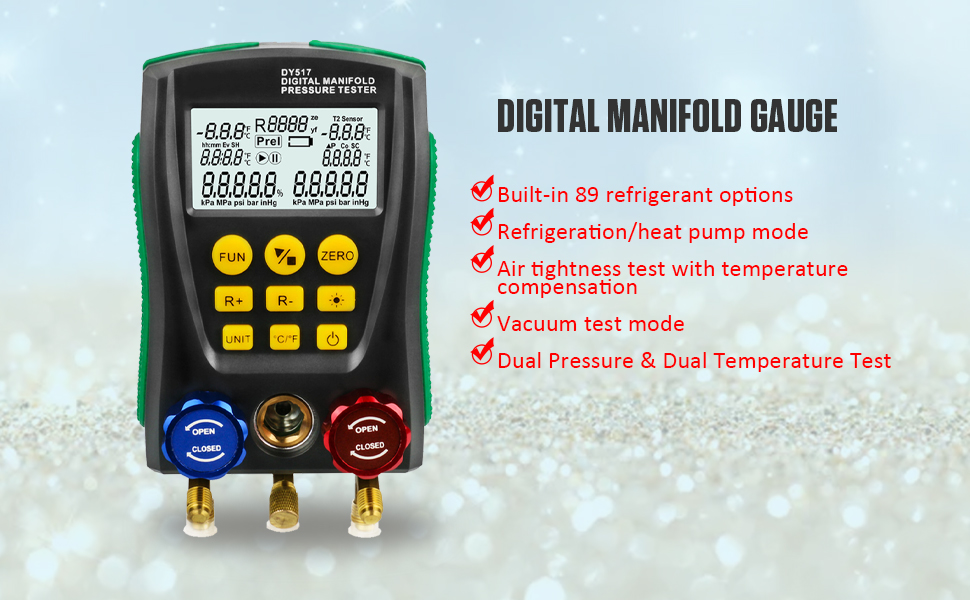

Multifunction

double pressure test
The digital HVAC pressure gauge can test the maximum pressure at which the refrigerant changes from liquid to gas. The lowest temperature at which a liquid changes to a gaseous state. When the evaporation pressure and temperature are lower, the efficiency of the refrigeration cycle is higher and the cooling capacity is greater.
Dual temperature test
Refrigeration gauges can measure the minimum pressure at which a refrigerant changes from gas to liquid, and the maximum temperature at which a gas changes to liquid. When the condensing pressure and temperature are lower, the efficiency of the refrigeration cycle is higher and the refrigerant capacity is larger.
Leakage test
Calculate the pressure difference between the initial test pressure and the second test pressure to determine if there is a refrigerant leak.

High and low pressure temperature test
The temperature of the refrigerant in the high and low pressure pipelines of the air conditioning system.
Specification

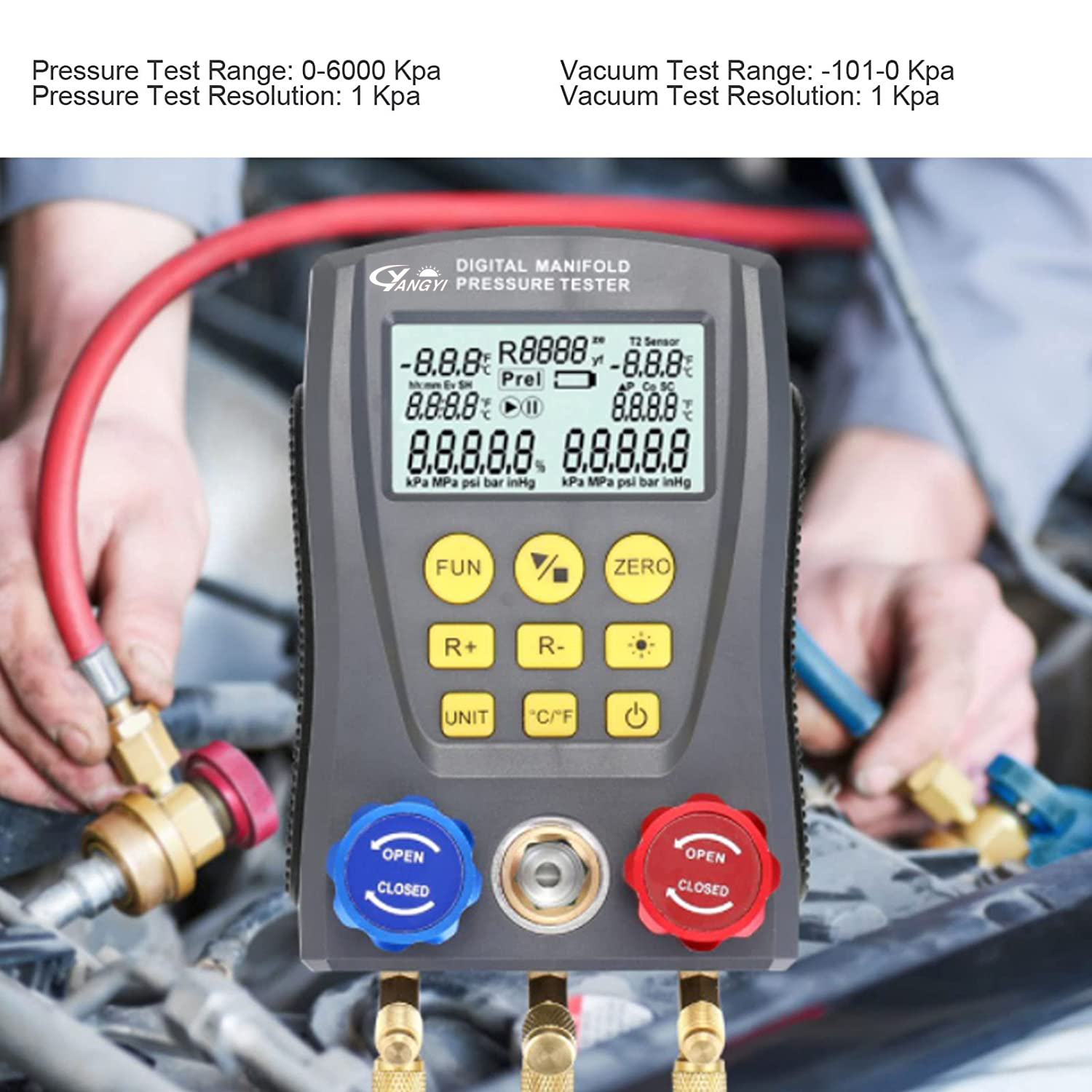

Pressure measurement range
0 kPa – 6000 kPa
pressure test device
kilopascals; megapascals; bar; inches of mercury; PSI.
Pressure measurement resolution
1Kpa
Pressure Test Accuracy
+/- 0.5 %(FS)+ 5dgt
pressure overload limit
10000 Kpa (10 MPa; 100 bar;)
vacuum test
Relative vacuum
Vacuum test device
kilopascals; megapascals; bar; inches of mercury; PSI
Vacuum test range
101 kPa – 0 kPa
Vacuum test resolution
1 kPa
Temperature Test Device
°C (Celsius), °F (Fahrenheit)
Temperature test range
-40°C–150°C (-40°F–302°F)
Temperature Test Resolution
0.1°C (-40°C–99.9°C), 1°C (100°C–150°C), 0.1°F (-40°F–99.9°F), 1°F (100°F–302 °F)
Temperature Test Accuracy
+/- 0.5 °C + 2dgt +/- 0.9 °F + 2dgt
power supply
4 X 1.5V (SIZE.AA / LR6) battery not included
