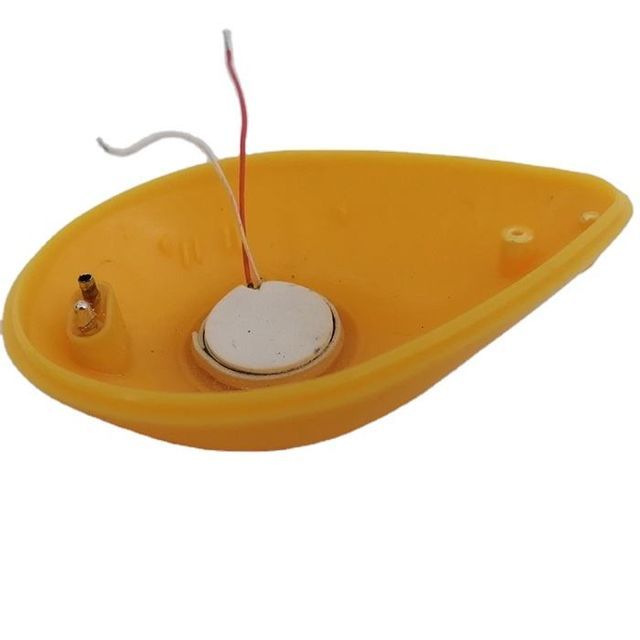

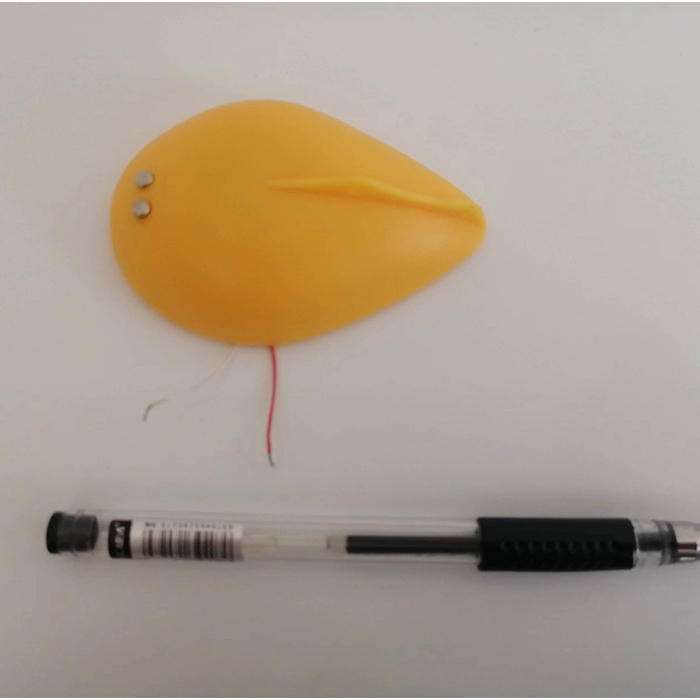

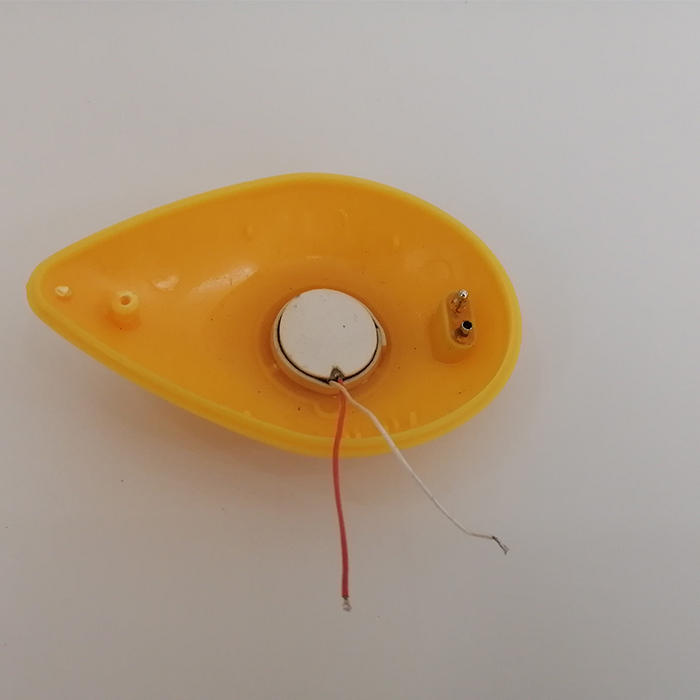

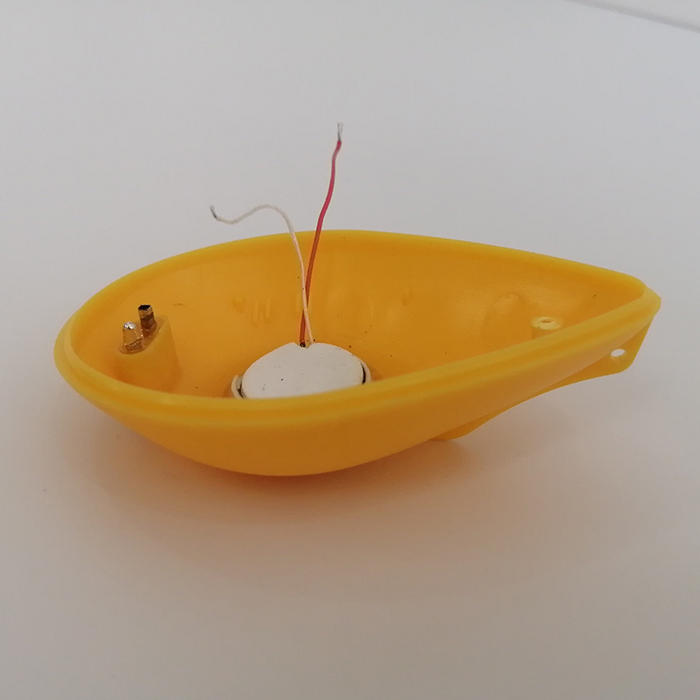

125kHz underwater sounding ultrasonic transducer for fish finder
-
Supplier: Wuxi Lianhui Ultrasonic Electronics Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Ciky Li -
Price: $2.90 /piece -
Min. Order: 1 piece
Product details
| model: | LH-YT125-01 | Ambient temperature: | 0°C - 70°C |
| series: | Shoal detector, Shoal detector | type: | ultrasonic sensor |
| payment terms: | wire transfer | describe: | ultrasonic sensor |
| Beam Angle: | 43° | Origin: | Jiangsu, China |
| Electrostatic capacitance: | 1150PF±20% | Installation type: | easy to install |
| impedance: | 500Ω±30% | port: | Shanghai Yangshan Port |
| Operating Voltage: | <400V | product name: | ultrasonic transducer |
| Sensor frequency: | 125kHz±4% | Complex Sensitivity: | Min -43dB |
| bandwidth: | ±5% | theory: | ultrasound |
| Packaging Details: | Pack into plastic bags first, then into cartons |
Product Description
Specification
Transducer frequency | 125kHz±4% |
bandwidth | ±5% |
complex sensitivities | Min -43dB |
Beam angle | 43° |
Electrostatic capacitance | 1150PF±20% |
impedance | 500Ω±30% |
Operating Voltage: | <400V |
ambient temperature | 0°C - 70°C |
Storage temperature | -30℃-80℃ |
degree of protection | IP68 |
Corrosion resistance | Resistant to weak acid and weak alkali |
Cable Specifications | Right ventricle volume 0.1mm2 Red - Positive, Black - Negative |
signal interface | welding |
Weight / grams) | 14 grams |
notes | The structure and size of the sensor can be customized. |
