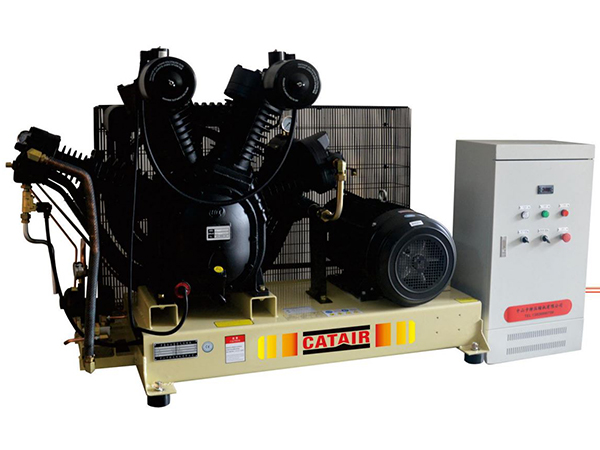

CATAIR piston cutting air compressor

Supplier: Wuhan Xionghao Electronics Technology Co., Ltd.
Region: Hubei, China
Price: $11000.00 / 1 - 8 pieces
$3850.00 / >=9 pieces
Min. Order: 1 piece

Click here to contact

Product details

Core components:	Programmable controller, motor	Core component warranty:	1 year
brand:	cat airlines	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Health status:	new	Weight (kg):	500 kg
Mechanical test report:	not available	Supply capacity:	2000 sets per month
Video outbound inspection:	if	Packaging Details:	sturdy wooden box
Warranty:	2 years	Laser type:	continuous wave laser
Whether CNC:	No	Origin:	Hubei
Applicable material:	Metal	Marketing Type:	normal product
Package preview:		Laser source brand:	Raycus
Showroom location:	not any	Applicable industries:	Mechanical repair shops, energy and mining
port:	Wuhan	Main selling points:	low maintenance cost
Laser head brand:	laser

Product Description

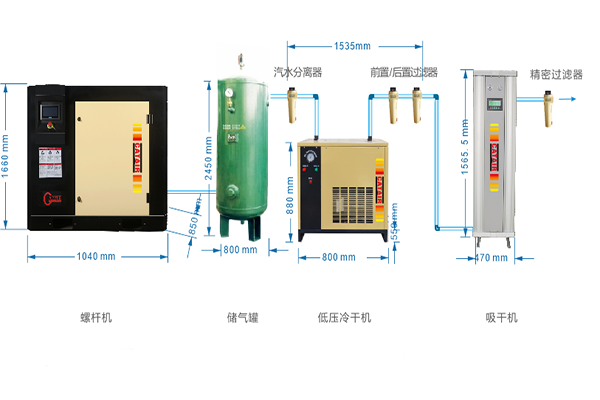

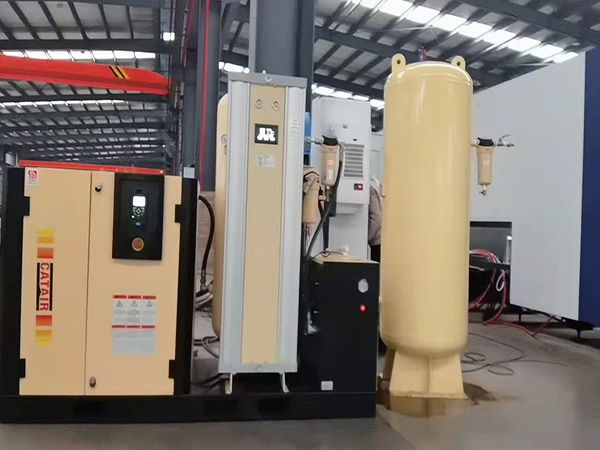

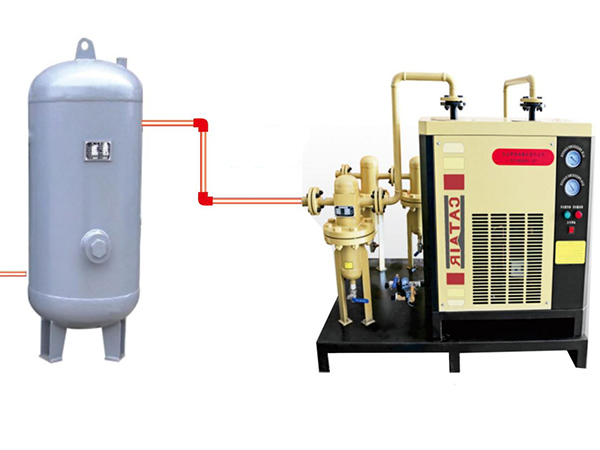

* 1. High-pressure air compressor, exhaust pressure: 3.0Mpa, providing high-pressure compressed air;

*2. High-pressure air storage tank, working pressure: 3.0Mpa, storing high-pressure air;

*3. High-pressure refrigeration dryer, working pressure: 3.0Mpa, to obtain clean compressed air.

1. Post-filter, working pressure: 3.0Mpa, solid particles ≤ 3um, residual oil ≤ 5ppm, preliminary filtration of solid impurities; 2. Precision filter, working pressure: 3.0Mpa, solid particles ≤ 1um, residual oil content ≤ 1ppm , to filter out relatively fine solid impurities; 3. Activated carbon filter, working pressure: 3.0Mpa, solid particles ≤ 0.01um, residual oil ≤ 0.01ppm, basically filter out solid impurities; 4. Oil removal filter, working pressure: 3.0 Mpa, solid particles ≤ 0.01um, residual oil content ≤ 0.003ppm, filter out odors and various gas impurities.

Specification

Model	CA 1.2-30H	WH-2.0/30-SBE	WH-3.0/30-SBE
strength	15 kW	22 kW	30 kW
shift	1.2 cubic meters per minute	2.0 cubic meters per minute	3.0 cubic meters per minute
work pressure	3.0Mpa	3.0Mpa	3.0Mpa
Tank volume	0.55 cubic meters per minute	0.55 cubic meters per minute	1.0 cubic meters per minute
