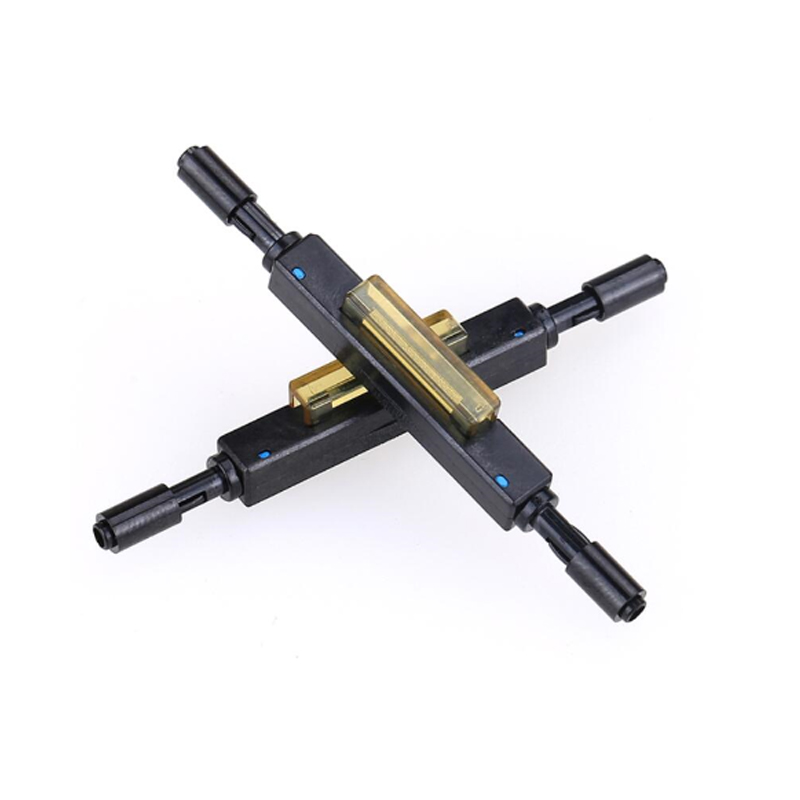

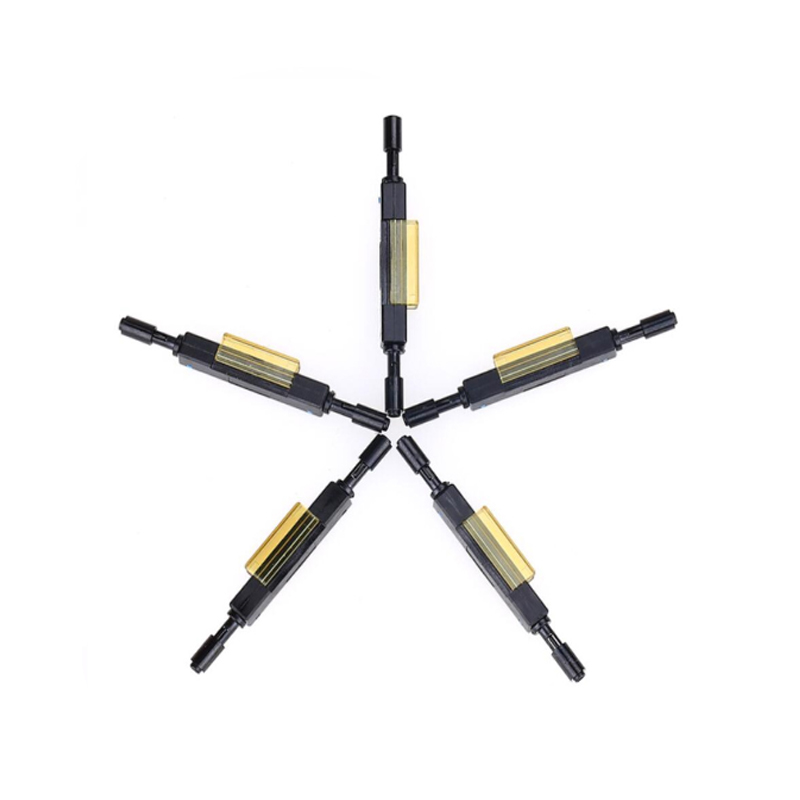

model: | L925b Fiber optic quick connector | Packaging Details: | Sales Unit: Single Piece Single Package Size: 55X56X66 cm Gross Weight per Piece: 0.700 Kg Package Type: Package Details New ftth Field Assembled Quick Connector FAC SC APC UPC Fiber Optic Quick Connector for Optical Fiber Drop Cable in Plastic Bag |
Compact diameter: | 0.25 mm 0.9 mm | Fiber Diameter: | 125 microns |
Origin: | China | Fastening Strength: | >5N |
type: | The optical fiber connector | payment terms: | L/C, T/T, MoneyGram, PayPal |
operating hours: | 10s (without fiber processing) | Operating temperature: | -40~75℃ |
Applicable Model: | single mode or multimode | port: | Shenzhen, Shanghai |
Return Loss: | ≥40dB | Insertion loss: | Less than 0.1dB |
mechanical jointapplication
Singlemode and Multimode Fiber
Both construction and maintenance
Aerial, Buried, Underground, Pedestal
insert building or building exterior
FTTx, Metro and Enterprise Networks
Up to qo gigabit data rate
High Density Alternatives to Connectors
Specification
Fiber diameter | 125 microns |
cost diameter | 250 or 900 microns |
shelf life | 30 years |
average insertion loss | <0.1dB |
Reflectivity | <-35dB at -40°C to 80°C (-40 to 176 OF) |
Typical -40°C to 80°C <-55dB when used with 2650-ACK2 Cleaver Adapter | |
Typical value <-60dB at room temperature | |
tensile strength | Minimum 4.4N (1.0Ib), typical value 13.2N (>3.0Ibs) |
Material | Engineering thermoplastic with aluminum alloy elements, 94, VO grade |
feature
<0.1dB insertion loss | high performance |
30 seconds installation time | increase productivity |
Minimum Tool Requirements | low cost |
No epoxy or electricity required | Easy to install on site |
simple and easy to use | Minimal training, lower installation costs |
Ability to reposition fibers | Improve welding yield |
Single connector for any combination of 250um or 900um fibers | decrease stock |
