Premium Metal Oxide Varistors

Product details
product name:Metal Oxide Varistors (MOV)Maximum discharge current:6kA
type:Metal Oxide Varistors (MOV)MOQ:3 pieces
Packing/Carton:ceramicsmaximum. Continuous working voltage:510VAC
model:MOVSupply capacity:100000000 pieces per month
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramport:Tianjin/Shanghai/Ningbo/Qingdao/Shenzhen
Varistor voltage:738V-902Vbrand:put
Packaging Details:2 PE bags into boxes, then 6 inner boxes into a carton. PE bag 210*200mm Inner box: 245*165*67mm Carton size: 360*255*230mmOrigin:Tianjing, China

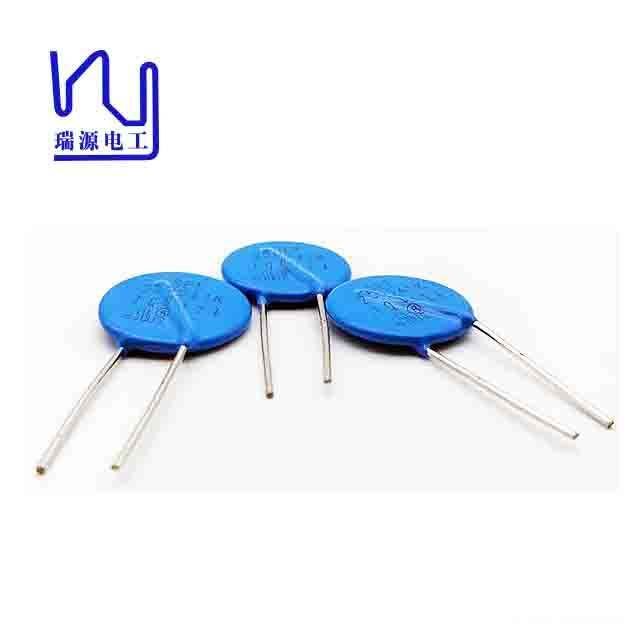

High-quality Metal Oxide Varistors (MOVs).

Metal oxide varistor (MOV) is a non-linear resistance element, its main material is zinc oxide (ZnO), which has high surge capability and large non-linear coefficient. Below the threshold voltage, its resistance is very high, and almost no current flows, but above the threshold voltage, the resistance decreases sharply, and a large current can be released. Due to this characteristic of varistors, varistors, as protective components in electrical and electronic equipment, can absorb abnormal overvoltages and lightning surges.
Ruiyuan varistors have high surge current density, low clamping voltage, and good surge capability. It can also be customized according to needs.

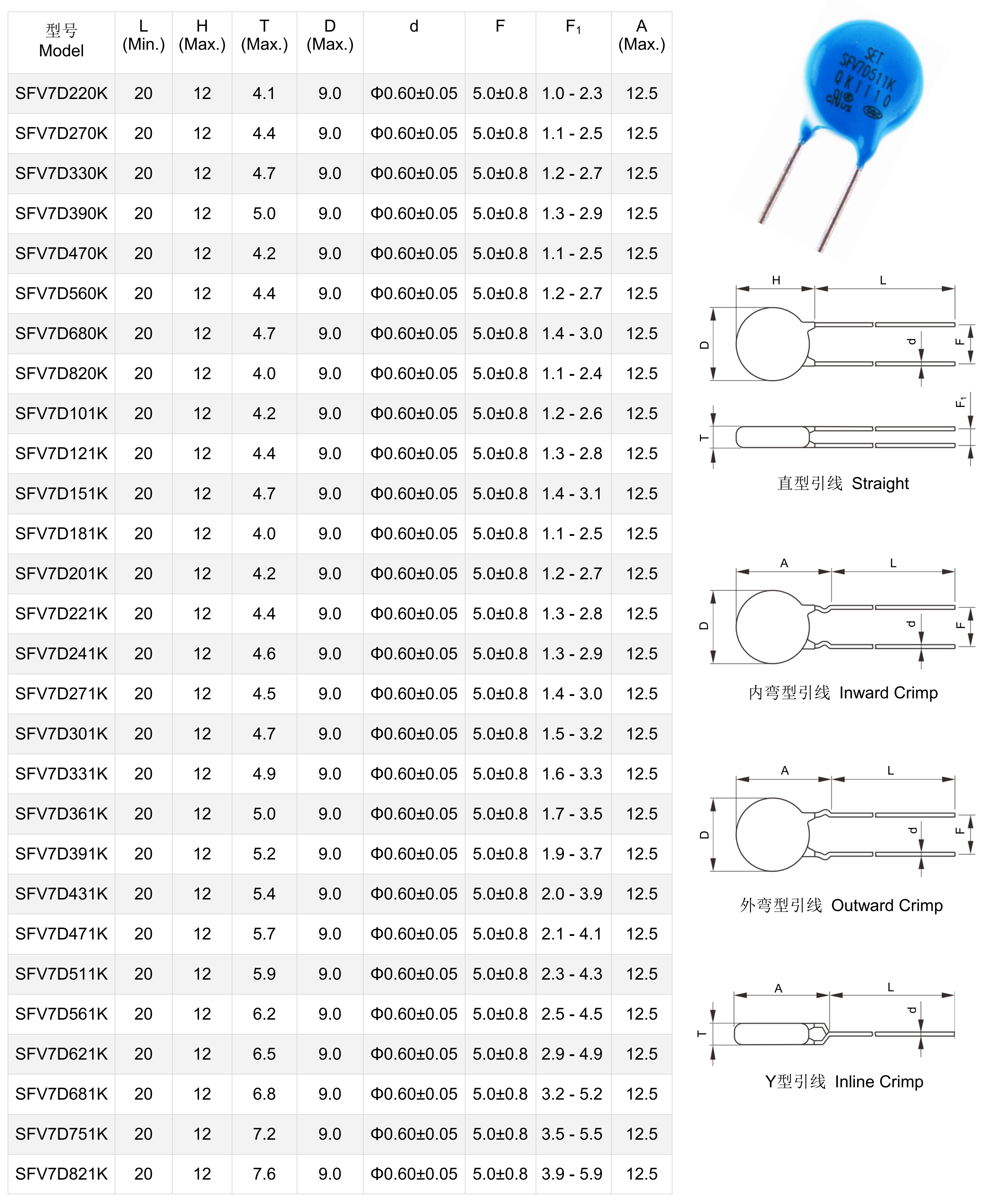

Specification
product display
Features and Benefits
High surge current density: 7000 AMcm²
Voltage clamping ratio can be lower than 1.9
Conforms to IEC 60950-1:2005+A1 Annex Q,
GB 898-2011/GB 4943.1-2011
RoHS and REACH Compliant
maximum. Energy capacity up to 800 J
The operating temperature can be as high as 135°C, complying with
With UL, TUV, COC agency certification
main features
K type

Standard MOVs are used for general overvoltage protection.
● Varistor voltage: (22-1800) V
●Maximum discharge current (8/20 us): (500-20000) A
T-shaped

High-temperature MOV is suitable for high-temperature environments such as LED lighting and switching power supplies.
● Varistor voltage: (22-1800) V
● Max. Discharge current (8/20 us): (500-2000) A
Q type

High-impact MOV, with multiple surge withstand capability, complies with IEC61000-4-5 standard.
●Varistor voltage: (22-1200)V
● Maximum discharge current (8/20 us): (2000-2000) A

H type

High energy MOV with high surge withstand capability for SPD applications, IEC 61643-1 compliant.
● Varistor voltage: (82-820) V
Maximum discharge current (8/20us): (6000-60000)A
Maximum peak current (10/350us): 5000A
application
