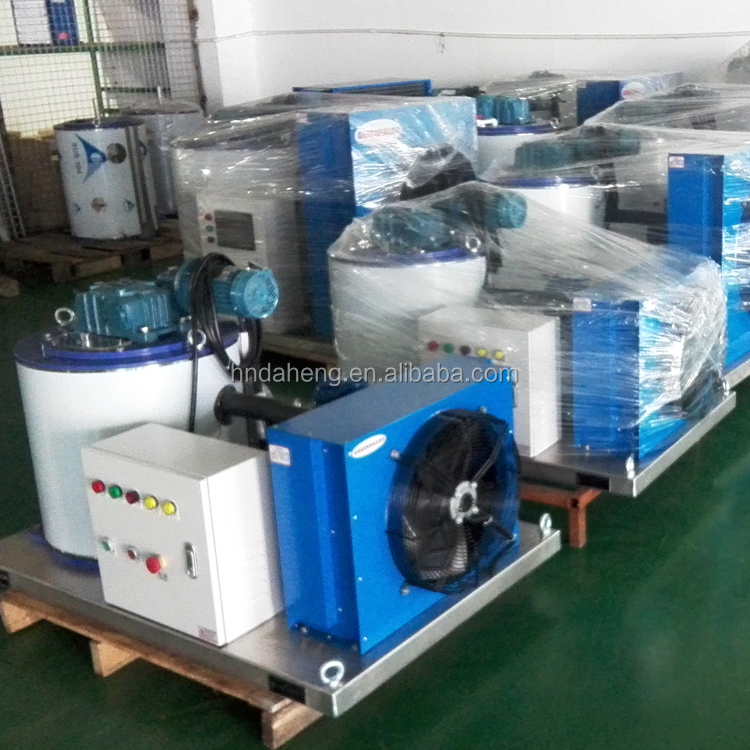

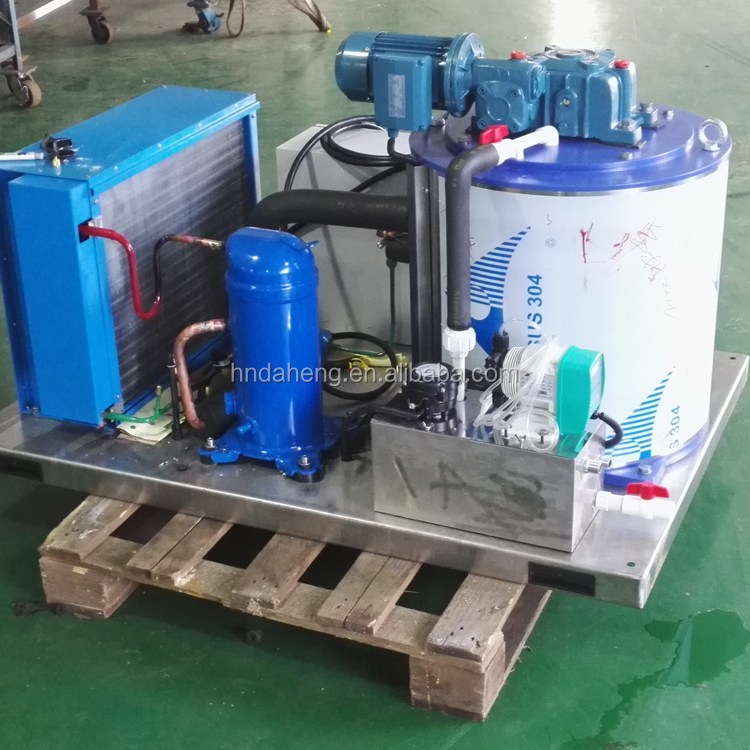

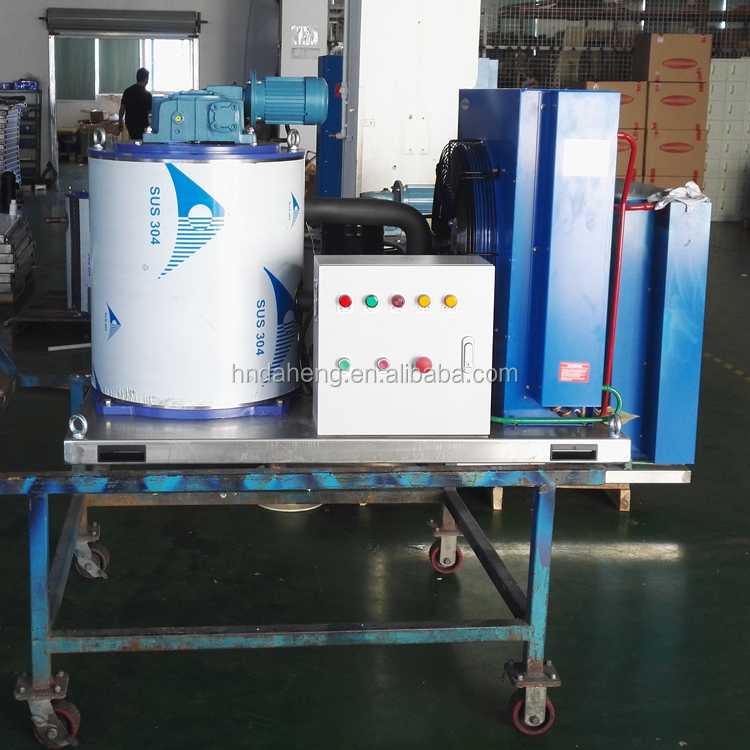

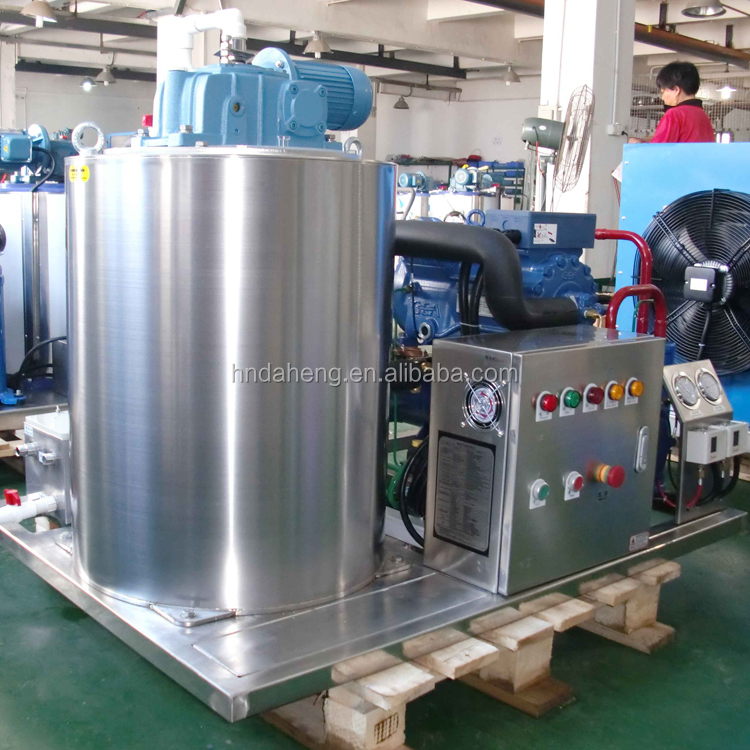

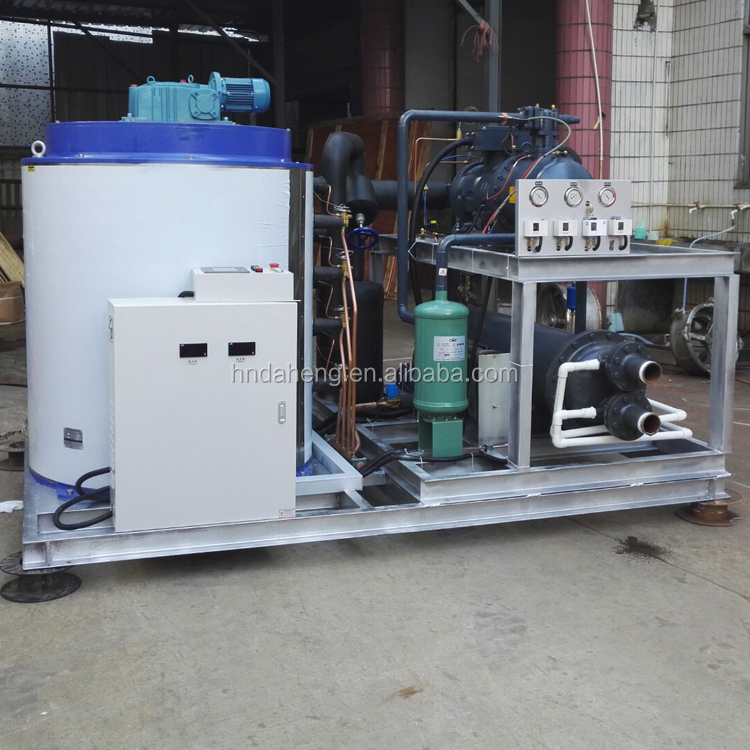

Seawater salt water commercial large capacity industrial 10 tons flake ice machine

Supplier: Henan Daheng Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Anna Daheng
Price: $6800.00 / 1 - 9 sets
$4800.00 / 10 - 49 sets
$2900.00 / >=50 sets
Min. Order: 1 set

Click here to contact

Product details

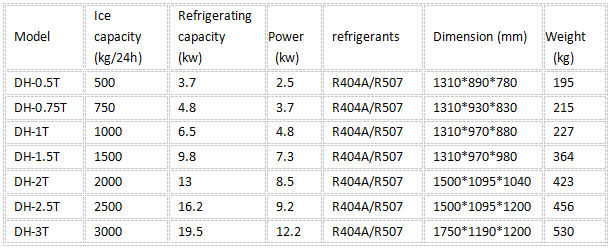

product name:	Ice machine	Origin:	Henan, China
Voltage:	380 volts, 50 Hz	Cooling capacity:	3.7 kW
Core component warranty:	1 year	Ice shape:	flake ice
Dimensions (LWH):	1310890780 mm	Supply capacity:	200 shaving ice machines per month
After Warranty Service:	On-site maintenance and repair services	Video outbound inspection:	if
power supply:	380V/3P/50Hz	Function:	cooling fish
Mechanical test report:	if	weight:	195 kg
Core components:	engine	Package preview:
Local service locations:	not any	strength:	3.7 kW
Refrigerant:	R404A/R507	cooling method:	air cooled
Warranty:	1 year	Ice Type:	flaky
payment terms:	L/C, Western Union, T/T, MoneyGram	Daily output of ice machine:	500kg-30000kg/
port:	Qingdao, Xiamen, Ningbo, Shanghai, Tianjin	Certification:	CE
Health status:	new	Material:	304 stainless steel
After-sales service provided:	On-site installation, commissioning and training	Applicable industries:	manufacturing plant, food and beverage factory, home use, food store, food and beverage store
Showroom location:	not any	Marketing Type:	New Products for 2021
Packaging Details:	Export standard wooden box	brand:	Daheng
Main selling points:	low maintenance cost	Ice storage capacity:	2.5 kg
Key words:	Sea water shaving ice machine

Brief introduction of flake ice machine:

When the flake ice machine is working, the refrigerant absorbs the heat on the inner surface of the evaporator by throttling and evaporating in the refrigeration system, so that the water flowing through the inner wall surface of the evaporator is quickly cooled to below the freezing point, and freezes instantly, and the formed ice is pressed by the ice blade. Certain rules cut into ice cubes and go into the freezer. After the freezer is full until it is shut down, the ice level will automatically open, and ice will be generated again. This cycle ensures that users can use ice normally.

Advantages of flake ice machine:

1. The inner scraping ice blade helps to reduce energy consumption and prevent refrigerant leakage. 2. Adopt stainless steel material, advanced processing equipment and heat treatment to ensure the best heat transfer efficiency. 3. The design of the large water receiving plate can prevent the refrigerant from leaking. the bottom of the drum. 4. The photoelectric switch is directly installed at the bottom of the evaporator. 5. Direct liquid supply, dry evaporation, simple control, safe and reliable. 6. Integrated modular equipment installation, easy maintenance.

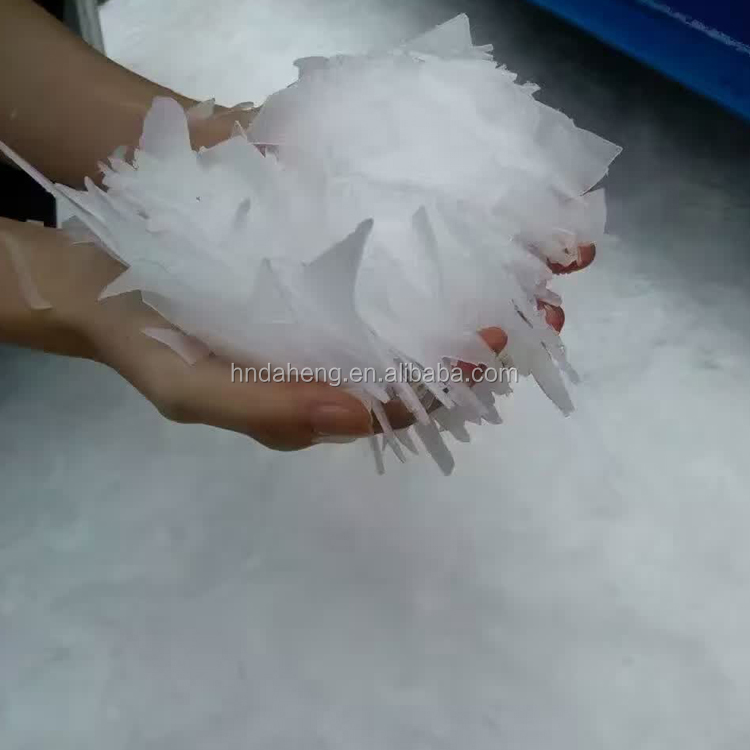

Features of finished flake ice:

Irregular pieces of ice, about 40×40mm in size, about 1.5-2.5mm in thickness. Thin ice can be directly used to stir and mix refrigerated materials; it has no sharp edges and corners and will not damage the surface of the cooled object; it has a large contact area and a fast cooling speed; it is easy to crush and shape.
