productivity: | 1000 liters/hour | Weight (kg): | 400 kg |
Mechanical test report: | if | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
Function: | produce fresh water | Certificate: | ISOCE certification |
Health status: | new | Marketing Type: | New product |
Showroom location: | not any | Warranty: | 1 year |
Applicable industries: | Hotels, manufacturing plants, food and beverage factories, restaurants, food stores, food and beverage outlets | Key words: | filling machine |
Supply capacity: | 60 sets per month | brand: | Greenfall |
After-sales service provided: | online support | Material: | Wooden packing |
Packaging Details: | Export wooden box packaging | Advantage: | Efficient |
Video outbound inspection: | if | feature: | longevity |
Core components: | Gearboxes, pressure vessels, pumps, gears, bearings, engines, motors, PLCs | Core component warranty: | 1 year |
Origin: | Guangdong, China | port: | Jiangmen |
Pure water capacity range (optional) | 60B/H-1000B/H |
Applicable bottle volume | 3 gallon-20L |
bottle shape | round with and without handle
|
Filler | Pure water, mineral water, mountain spring water, etc. |
accuracy | ±0.5% |
control | PLC |
Material | SUS304 |

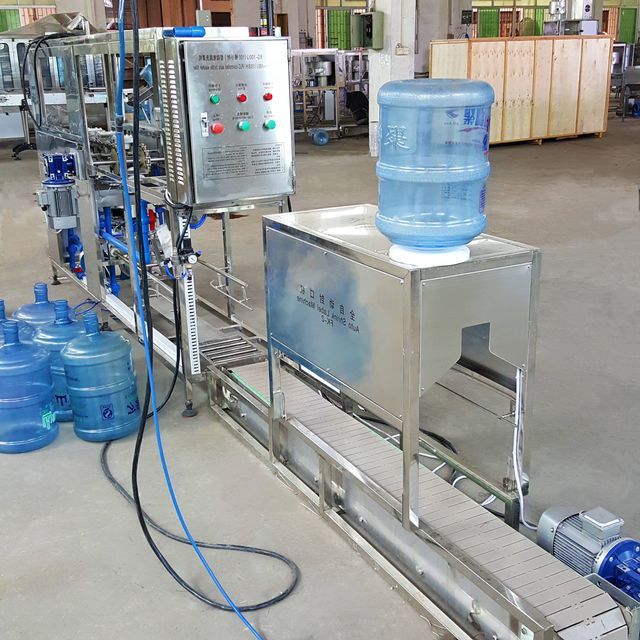

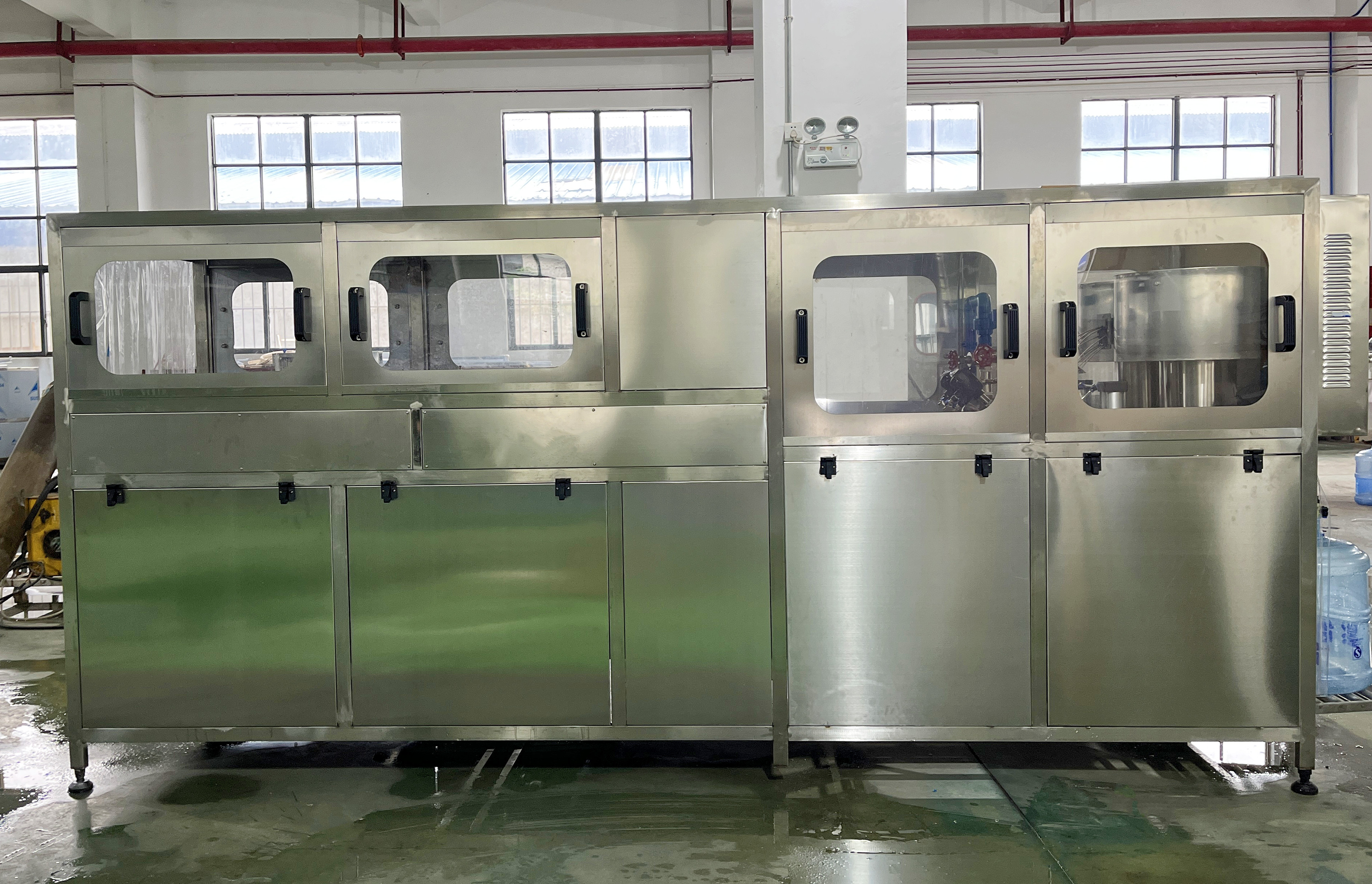

This machine integrates three parts: automatic cleaning, filling and capping, and is specially designed for 3 or 5 people.
Gallon bottles, 19-20 liter bottles are also available. The production capacity is 60B/H, 100B/H, 120B/H, 150B/H. 200B/hour, 300B/hour, 450
B/H, 600 B/H, 900 B/H, 1200 B/H, etc. In order to achieve the purpose of multiple spray washing and sterilization
The bottle washing machine adopts liquid washing and bleaching methods, the lotion can be recycled, and the sealing machine can seal
Automatic bottle caps. The bottle cap unloading production line equipment with water spray device is a new type of production line equipment.

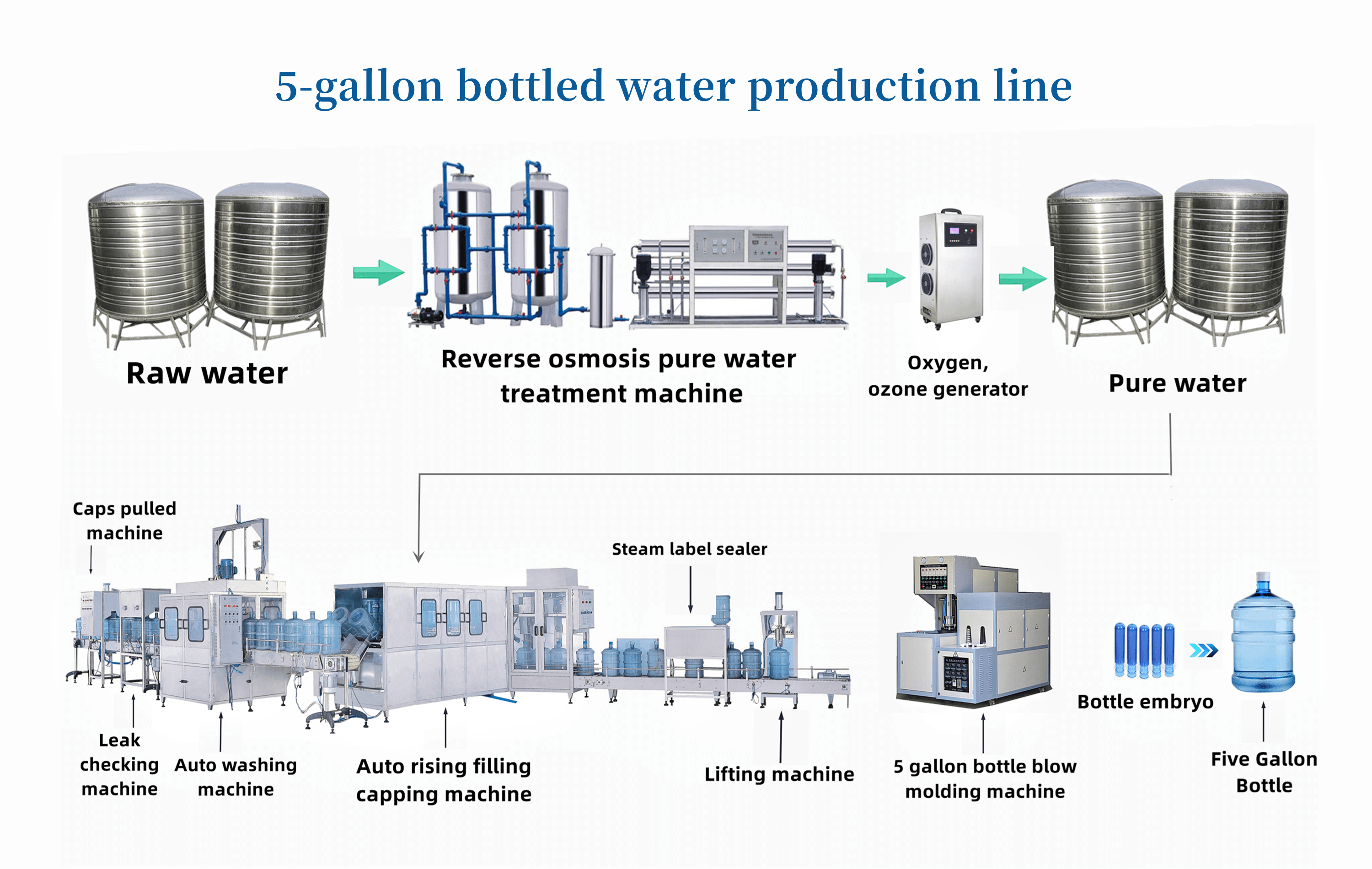

Bottled water automatic production line, set
Mechatronics

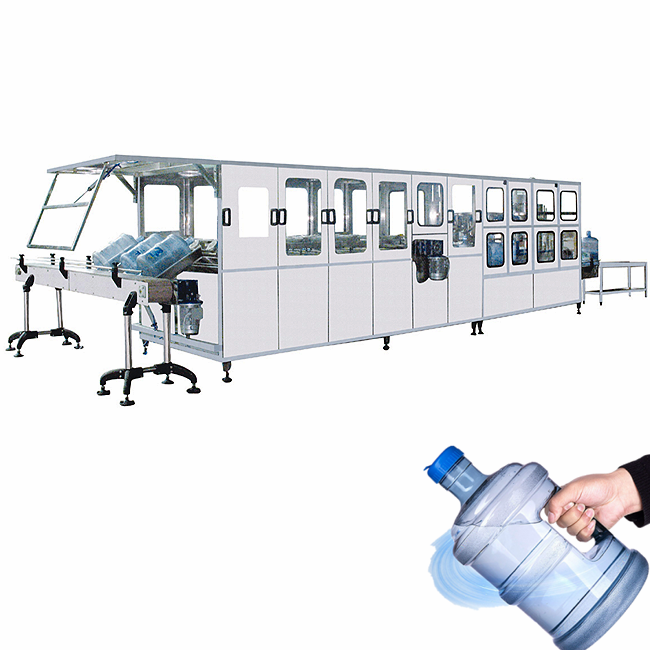

The main equipment of the five-gallon barrel water filling machine consists of a frame, a water tank, a pipeline, a water pump,
Cylinders, transmission devices, electrical appliances, etc., can complete empty barrel rinsing, filling, and capping. pass
Multiple cleaning processes, quantitative filling, automatic capping, all operations of the five-gallon barrel production line
The water filling machine is controlled by computer, the flushing effect is stable, and the filling capacity and density are accurate.
Influence.

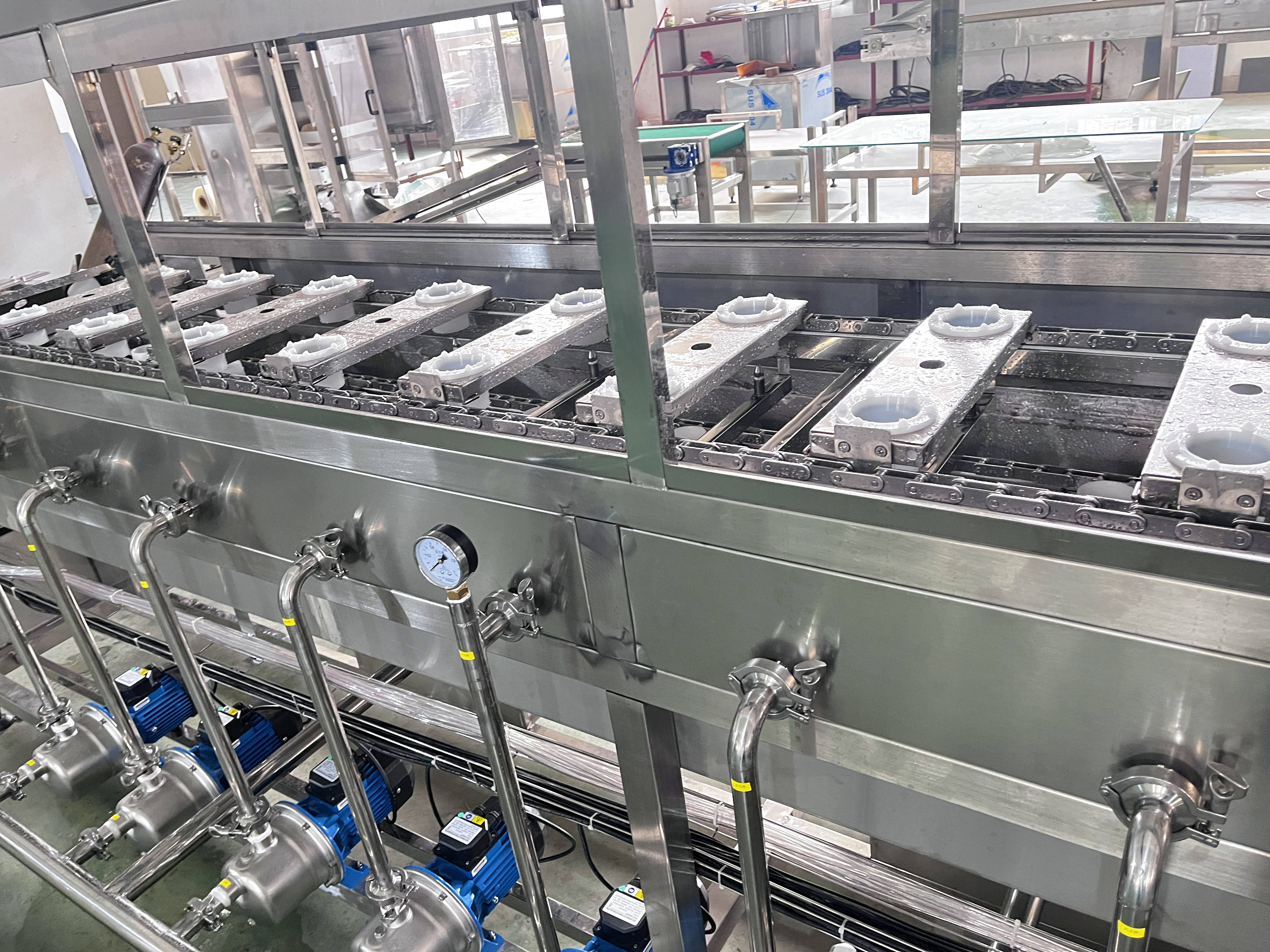

washing part

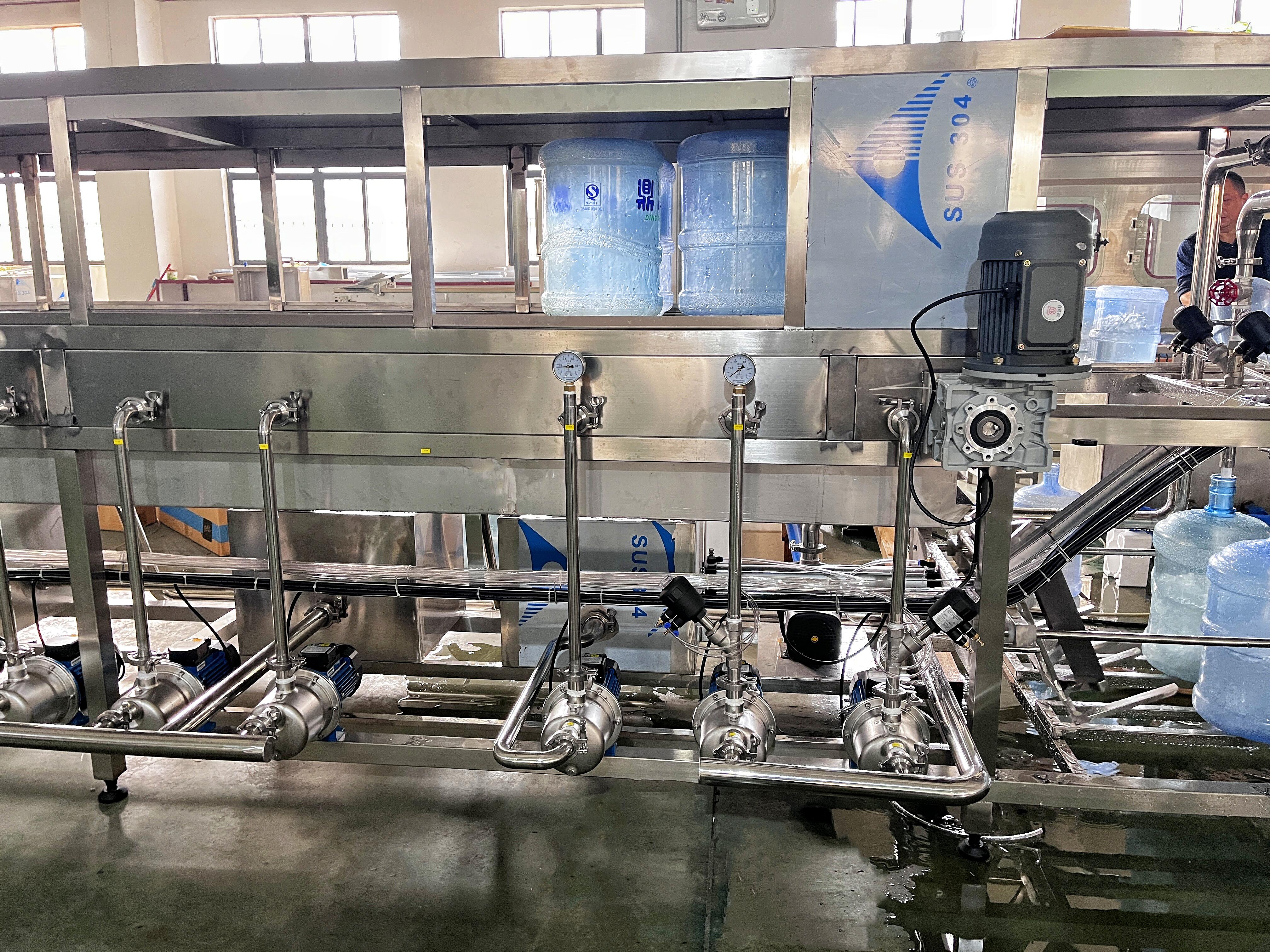

The inner bottle cleaning station is cleaned by detergent, clean water and pure water. Each cleaning station is composed of
Corresponding cleaning pump. Hot alkali washing: Equipped with a temperature controller to effectively save energy. clean water
Cleaning: cleaning residual lye, effectively avoiding cross-infection between caustic soda and chemicals. drug
Washing: kills alkali-resistant bacteria.
Filling part

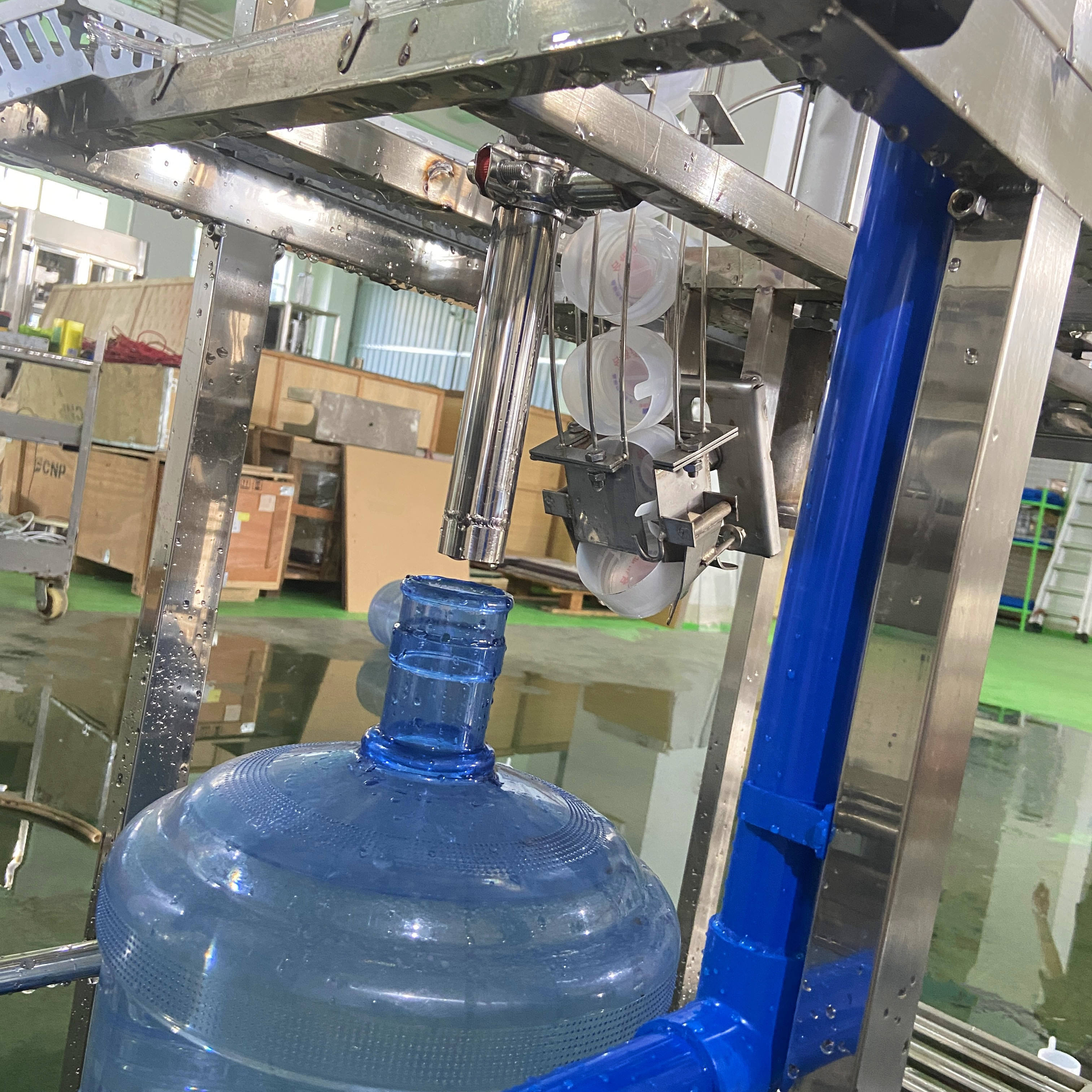

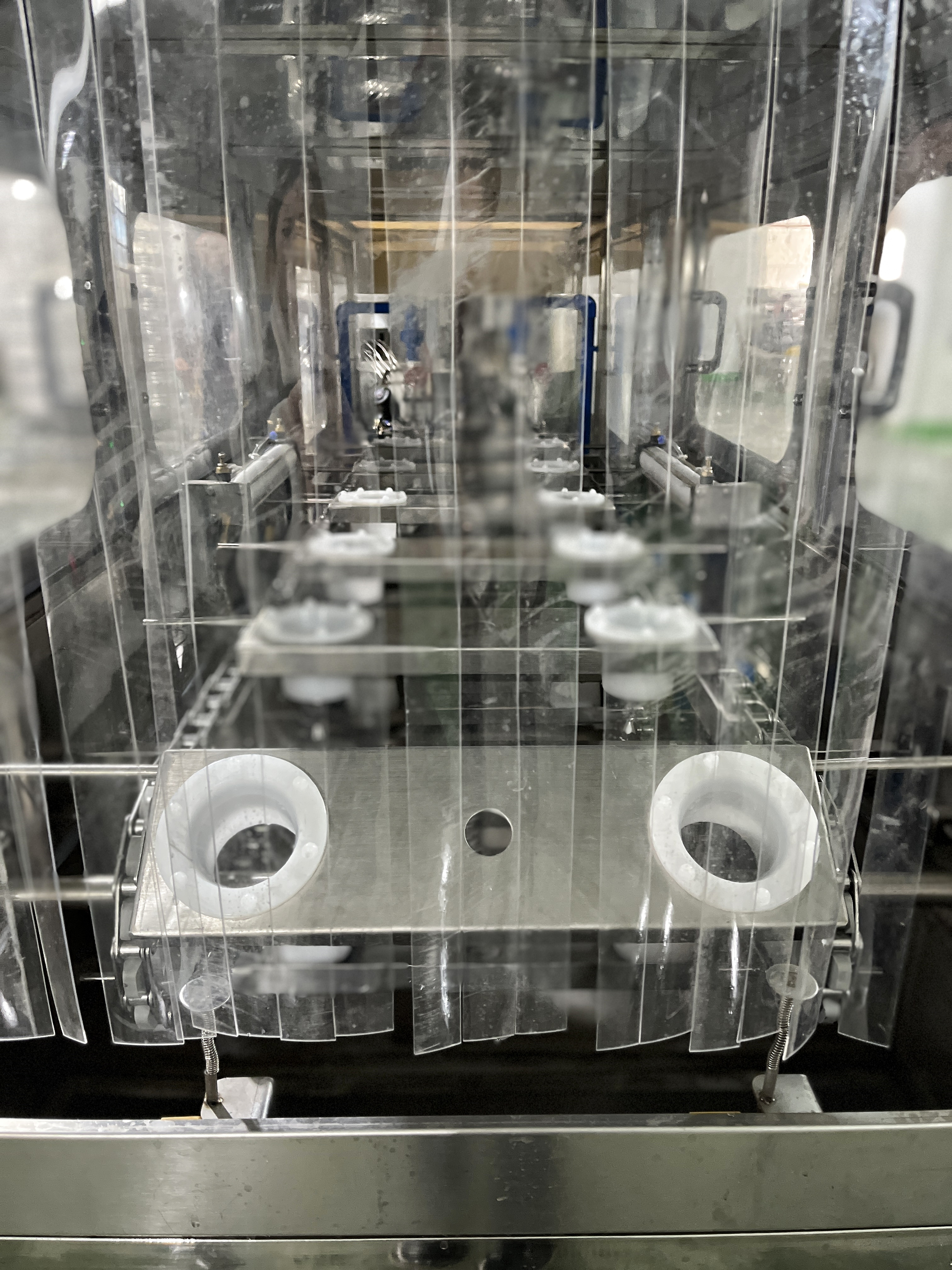

After washing, the bottles are transferred to the filling station. Here, the bottles are precisely filled via the filling valve. this
The filling valve is very accurate and can provide the same filling volume for each bottle.
Cover part

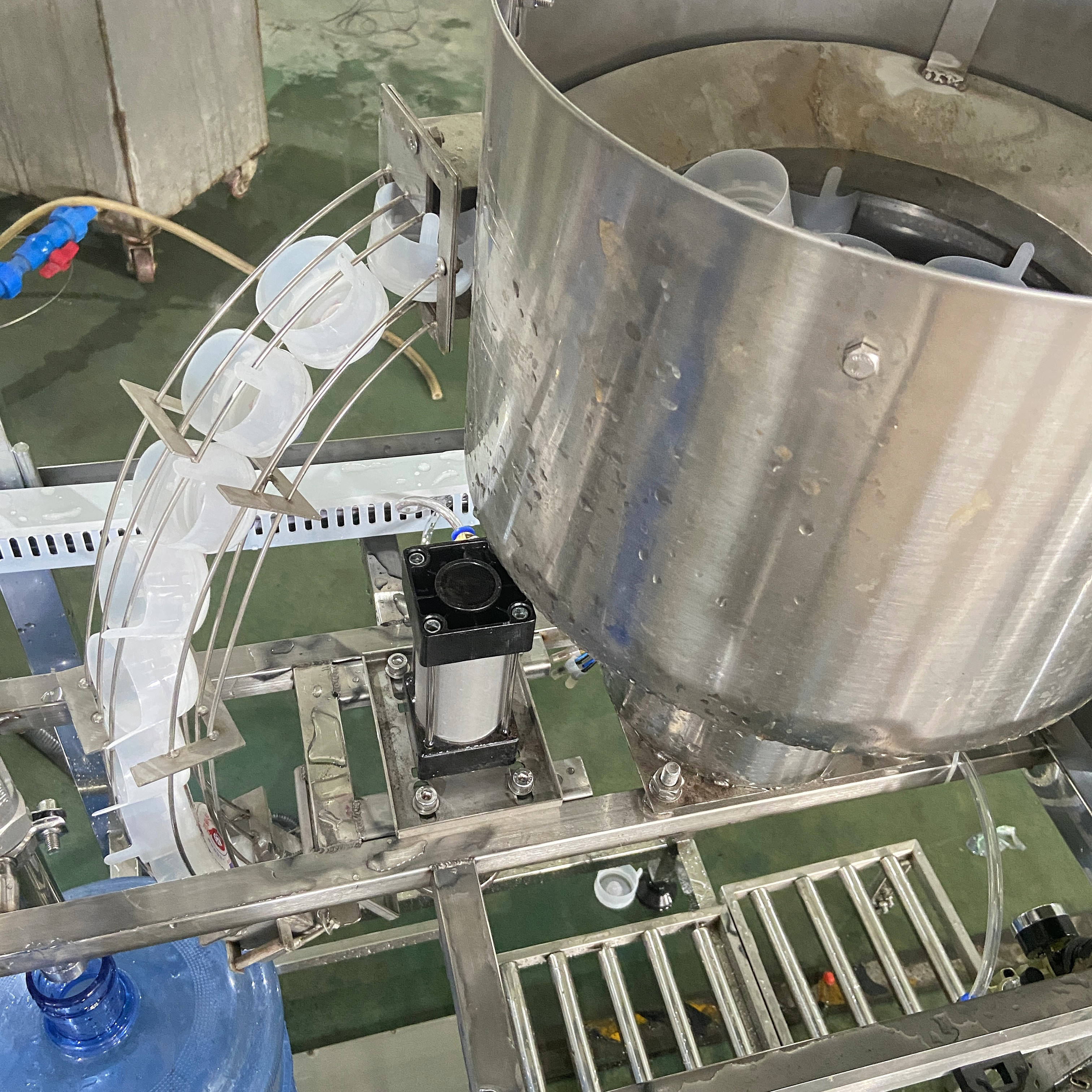

The cap sorting tray adopts centrifugal caps, and double sliding rows arrange bottle caps and sleeve caps. slide adjustable,
Good fit. Using air cylinder, the performance is stable, the sealing is good, and the product quality is guaranteed to be consistent
Product excellence.
wooden box packaging
Jiangmen Lvfu Water Treatment Technology Co., Ltd. The company mainly has 18 years of experience in producing water plant equipment
Manufacture all kinds of RO water treatment equipment, small bottled water production line, 5 gallon water production line, fruit
Juice filling line, carbonated beverage production line and related equipment, etc.
