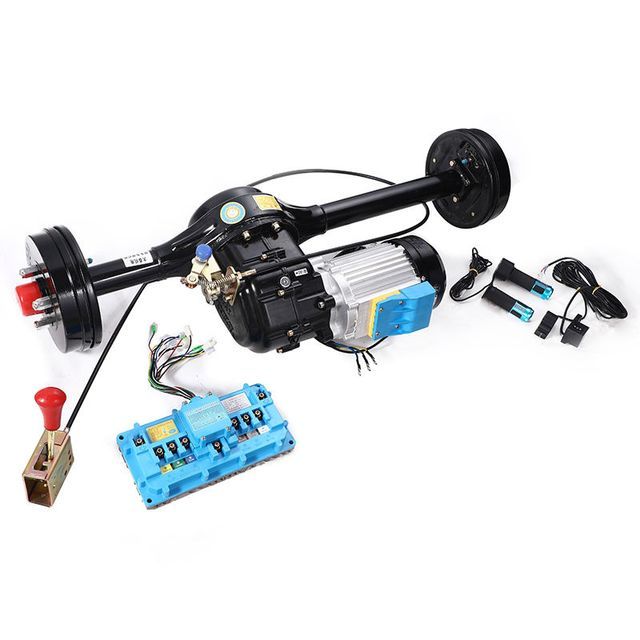

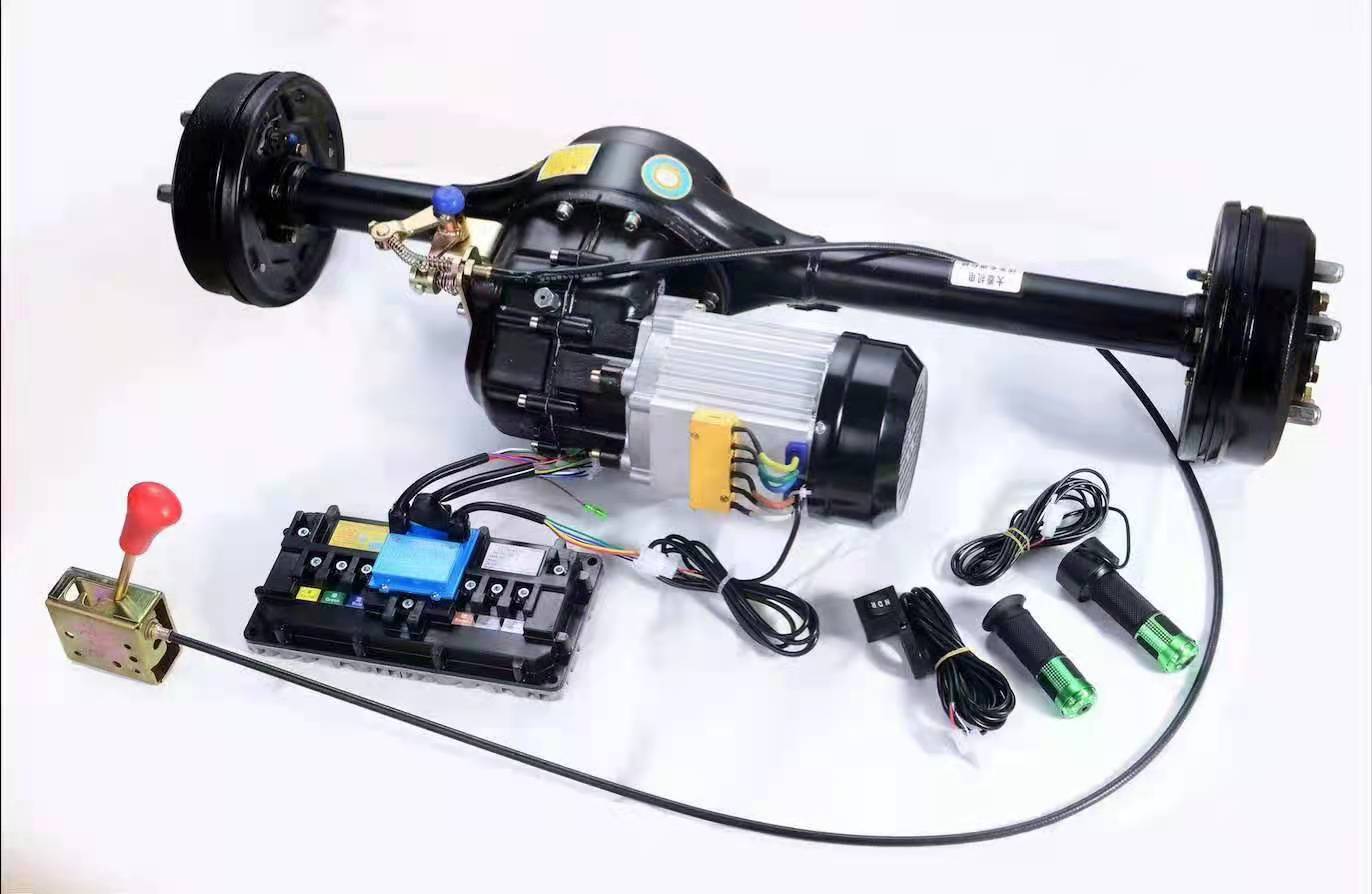

60v 72v 3000w two speed brushless motor conversion kit for electric cargo tricycle, golf cart, tour bus, electric car

Supplier: Zhejiang Datai New Energy Co., Ltd.
Region: Zhejiang, China
Contact: Mr jack wu
Price: $350.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Protection class:	IP66	structure:	Permanent Magnet Synchronous Motor
Torque:	15 nautical miles	product name:	Variable speed motor kit
MOQ:	10	Efficient:	92%, le3
port:	Ningbo	Voltage:	48V/60V/72V
Supply capacity:	800 pieces per day	Origin:	Zhejiang, China
model:	DT60V1500W	Warranty:	1 year
sample:	accepted	payment terms:	wire transfer
brand:	Datai	Packaging Details:	carton/pallet/wooden case
strength:	1500 watts	Rotating speed:	3000-5000 rpm
Certification:	CE

Product Description

Rated Power (Watts)	rated	rated	no load	rated	maximum	highest efficiency	water	round	length
		Voltage	speed	speed	torque		torque		prove	C	L
		(five)	(revolutions per minute)	(revolutions per minute)	(nano)		(near meters)		grade	centimeter	centimeter
1500W	48V/60V/72V	3850	4200	5.44	31 nm	≥97	IP67 level	51	230
2000W	48V/60V/72V	3850	4200	6.54	37 nm	≥97	IP67 level	51	230
2500W	48V/60V/72V	3850	4200	8.95	45m	≥97	IP67 level	51	240
3000W	48V/60V/72V	3850	4200	12.2	55nm	≥97	IP67 level	54 cm	265
4000W	48V/60V/72V	3850	4200	16	65nm	≥97	IP67 level	54 cm	No. 27
5000W	48V/60V/72V	3850	4200	20	80nm	≥97	IP67 level	54 cm	28
8000 watts	48V/60V/72V	3850	4200	28	99.1 nautical miles	≥97	IP67 level	65 cm	30

ratio	Rear axle differential ratio: 11:1 12:1 etc. Two-speed rear axle: 8.1:1/15.7, 11:1/22:1, 13:1/26:1, etc. Heavy-duty rear axle: 16:1/32:1, 16:1/35:1 Independent gearbox: 7.1, 7.4: 1/11.35 Track shaft: 28:1/47:1/125:1
spline	Gearbox input shaft connection 18/20 gear external Datai specification spline (supplied)
brake	Mechanical: ø200, ø220, ø250 Hydraulic: ø220, ø250, ø280

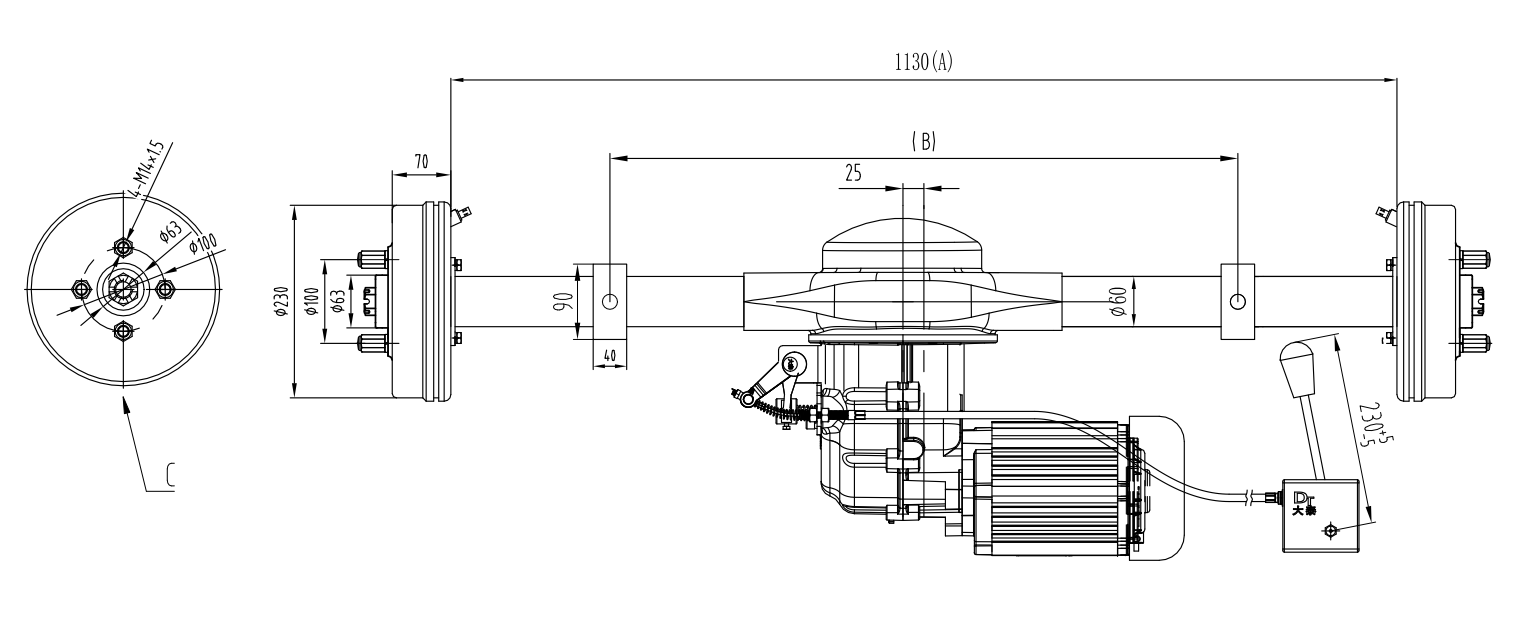

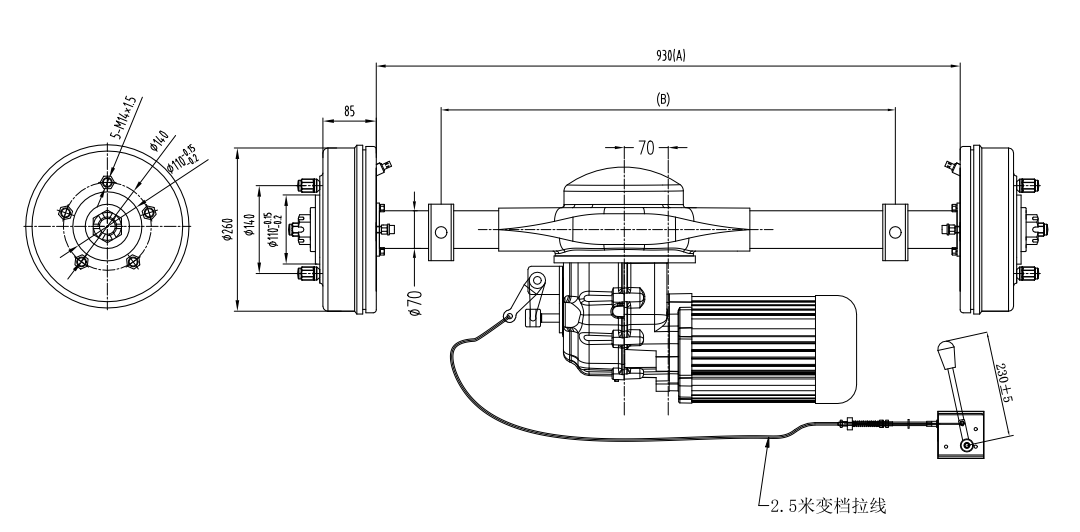

Hub Installation Parameters	Distribution circle	Ø100	ø102	ø114.3	ø140
			ø63	diameter 70	diameter 70	ø110
		Number of holes	*4-M141.5**	*4-M141.5**	*4-M121.25**	*5-M141.5**
Total length of rear axle A	Available size: 830mm/930mm/1030mm/1130mm/1230mm... (42 inches, 46 inches, 48 inches..52 inches...)
Applicable models	electric golf cart, electric loader, electric car, electric touring car, police car, electric golf cart, electric cleaning cart, electric Trucks, minecarts, etc.

Why choose Datai six-phase motor and controller

1. The latest domestic six-phase permanent magnet synchronous motor can be equipped with Hall sensor and encoder sensor (high-precision position sensor) according to your needs. 2. The vehicle speed can reach 40-55km/h. 3. With a load of 1 ton, it can easily climb a mountain road with a slope of 30 degrees. 4. High efficiency, the efficiency reaches 94%, increasing the mileage of the vehicle. 5. Soft start, the torque of the six-phase permanent magnet synchronous motor is 30% higher than that of ordinary motors. 6. The electronic brake assist function can effectively reduce the wear of brake pads and improve the service life 7. Stable start, three-speed speed regulation function, the speed can be increased by 8km/h, making the vehicle more comfortable to drive 8. Anti-skid protection, making the vehicle more comfortable to drive vehicle safety. 9. Constant speed can be controlled when going downhill, making your vehicle overloaded and downhill safer 10. Regenerative braking function, increasing mileage 11. CAN communication protocol, more intelligent

Q: Why choose Datai?A: We are a professional BLDC PMSM motor, controller, rear axle manufacturer. We are the top quality and performance products in the electric tricycle field, and have rich experience in exporting the best products with reasonable prices.Q: Are you trading company or manufacturer?A: We are a manufacturer.Q: How long is your delivery time?A: Depends on the quantity. We have a product capacity of 800 motors, 600 rear axles, and 1,000 controllers every day!Q: How to guarantee the quality of your products?A:1) Strict testing during production. 2) Strict sampling inspection of products before delivery to ensure that the product packaging is intact.
