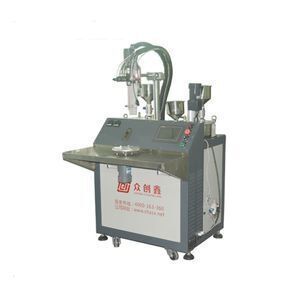

Glue Dispenser ZCX-PJ180 automatic glue dispensing and sealant

Product details
Package Preview:https://sc02.alicdn.com/kf/HTB157dGaxD1gK0jSZFKq6AJrVXaL.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB15q4DaqL7gK0jSZFBq6xZZpXaU.jpg_640x640.jpg;Tank capacity:A:20L B:20L cleaning tank 6L;
B pump:gear pump 1.2cc-12cc;Single gross weight:230 KG;
Package Type:CARTON;weight:220kg;
Diamentions:L85*W101*H150cm;Selling Units:Single item;
Place of Origin:Guangdong China (Mainland);Contral method:PLC touch screen;
Power supply:AC220V 50HZ 900W;Model Number:YEM-PJ180;
Single package size:90X110X160 cm;Matching ratio:100:100-100:20;
Gluing precision:100g+-1%;A pump:screw pump 6cc-12cc;
Glue amount:10-100g/5s Holding a single head;
Product Description

Product Description

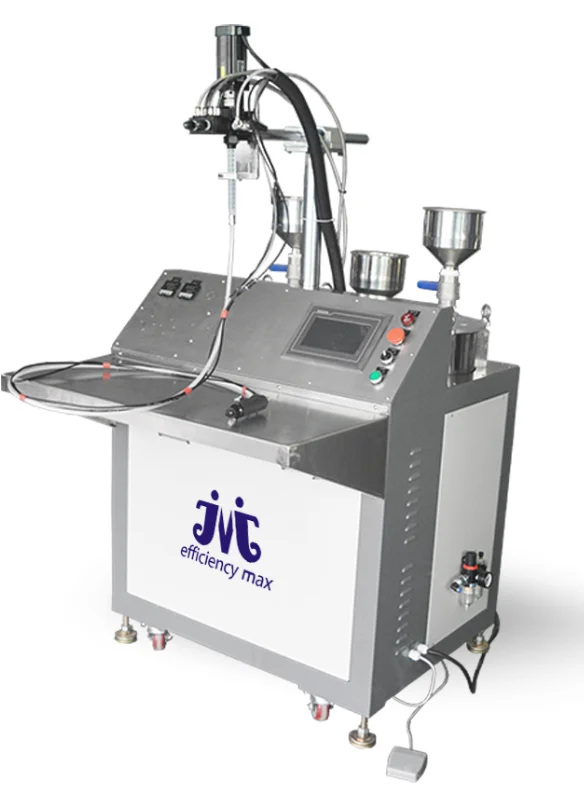

Sparking coil  Glue dispenser  machine   of YEM-PJ-180

Product Application

 Widely used in lighting modules, display screens, soft and hard light strips, fluorescent lamps, wall washers, waterproof power supplies, resistors, capacitors and other products.





 Features:



1. Powerful electronic control system: PLC, control panel, electronic components, wiring, dustproof and anti-static system are designed with CE standards.

2. Equiped with high-precision pump which can make the dispensing process more accurate.

3. Multiple filtration system: from the barrel to the dispensing valve, all equiped with multiple filtration layers to prevent impurities entering into the barrel.

4. Optional heating system, which allows the equipment working at low temperature environment.

5. Glue low amount alarming system: It can prevent the lack of glue in time.

6. Automatic cleaning system: The machine adopts the liquid separation and packing method, which only mixes at the rubber head, and automatically cleans after use, which is quick and convenient to operate.

7. Fully automatic operation, can store up to 10 sets of parameters.

8.Glue head: 1-6 heads (6-12 heads)
9.Tracks: points, lines, circles, arcs, curves, etc.
10.Proportion: 100:100-100:10 (or specify other ratios)
11.Glue: silica gel, epoxy resin, polyurethane, PU glue, AB glue, etc.

12.PLC+LCD

13:No screw pumps,we have other types which have the screw pumps ,you can choose based on your glue. The glue with impurity needs the screw pump.





 Specifications

ITEMSPEC
Glue Proportion1:1-10:1/Customizable
Dispensing Volume10-100g/5s(based on 1:1 glue proportion)
Dispensing PathManual
Dispensing PrecisionGlue Amount±1%, Glue Proportion±1%
Input Pressure Range0.5-0.8MPa
Head Seal PressureMAX≤2.6Mpa
Adhesive Viscosity<10000CPS
Operating ModelAutomatic/Manual
ProgrammingHandheld Programmer
ControlPLC+LCD
Leak-proof FunctionValve with Vacuum Device
Mixing SystemHigh-speed Dynamic Mixing Device
Glue Injection WayHigh Precision Pump
Washing Tank Capacity6L(304 Stainless Steel Material)
Tank A Capacity20L(304 Stainless Steel Material)
Tank B Capacity20L(304 Stainless Steel Material)
Dimension(L*W*H)1050*850*1500mm



Company Information

Shenzhen YiErMai Technology Co., Ltd is a new automatic enterprise ,integrating design, production, sales, installation, commissioning and maintenance. It specializes in R&D and production of dispensing machines, dispensing machines, glue filling machines, coating machines, LEDs. Soft lamp with silicone extrusion line and all kinds of fully automatic online fluid control equipment; all kinds of non-standard automatic machine.
