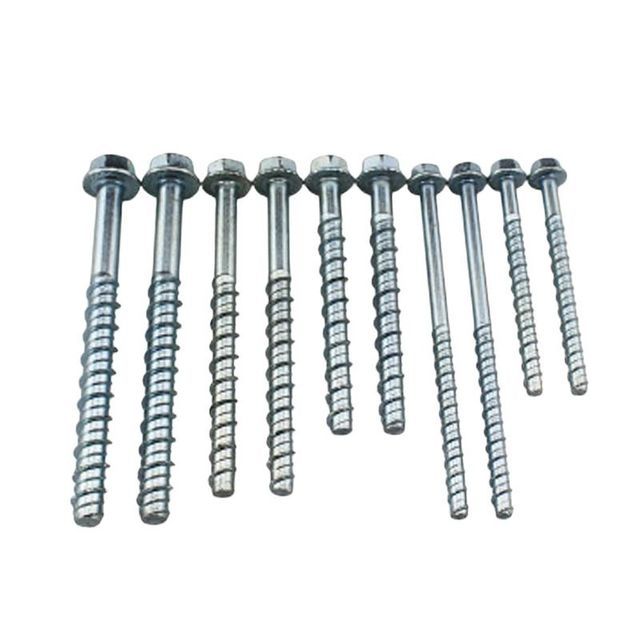

Factory Direct Sales of Custom Hex Flange Head Concrete Thread Self Tapping Anchor Bolts

Supplier: Shanghai Daring Architecture Technology Co., Ltd.
Region: Shanghai, China
Contact: Mr sam pu
Price: $0.50 / 3000 - 9999 sets
$0.40 / 10000 - 29999 sets
$0.30 / >=30000 sets
Min. Order: 3000 sets

Click here to contact

Product details

Warranty:	3 years	Material:	Carbon steel
Advantage:	durable	Anchor type:	Expansion anchors fall into
measuring system:	Metric system	head:	Hex flange head
port:	Shanghai	product name:	Self-tapping anchor bolts
application:	General Industry, Heavy Industry	payment terms:	L/C, D/P, T/T
surface:	galvanized	Customization support:	OEM、ODM
Supply capacity:	30000 pieces per day	aspect:	M12

Product Category	Drilling diameter	Drilling depth	Maximum Anchorage Thickness Under Standard Burial Depth	Mounting torque
M8*80	8	80	10	≤20
M10*100	10	100	15	≤40
M12*120	12	120	20	≤60
M14*140	14	140	25	≤80

product

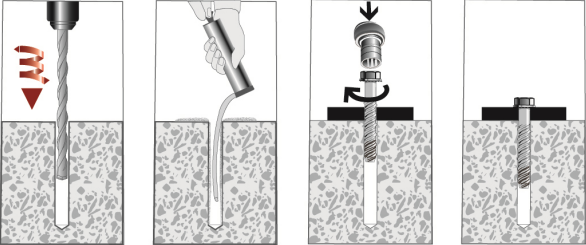

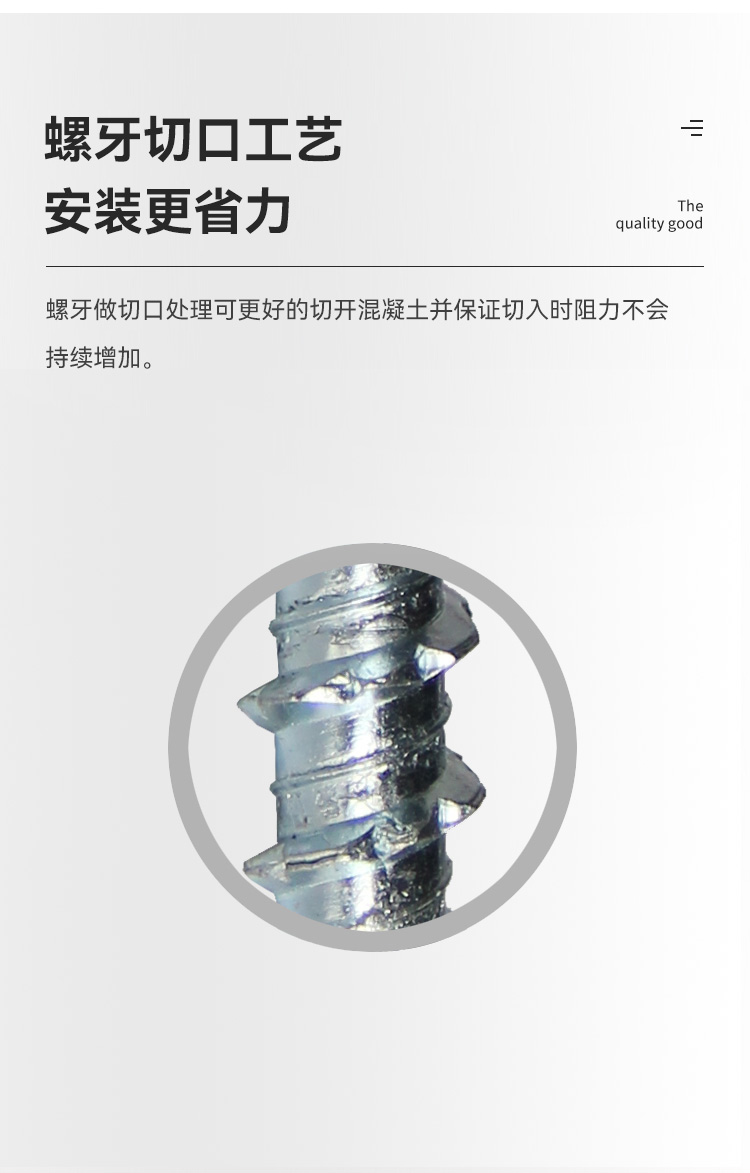

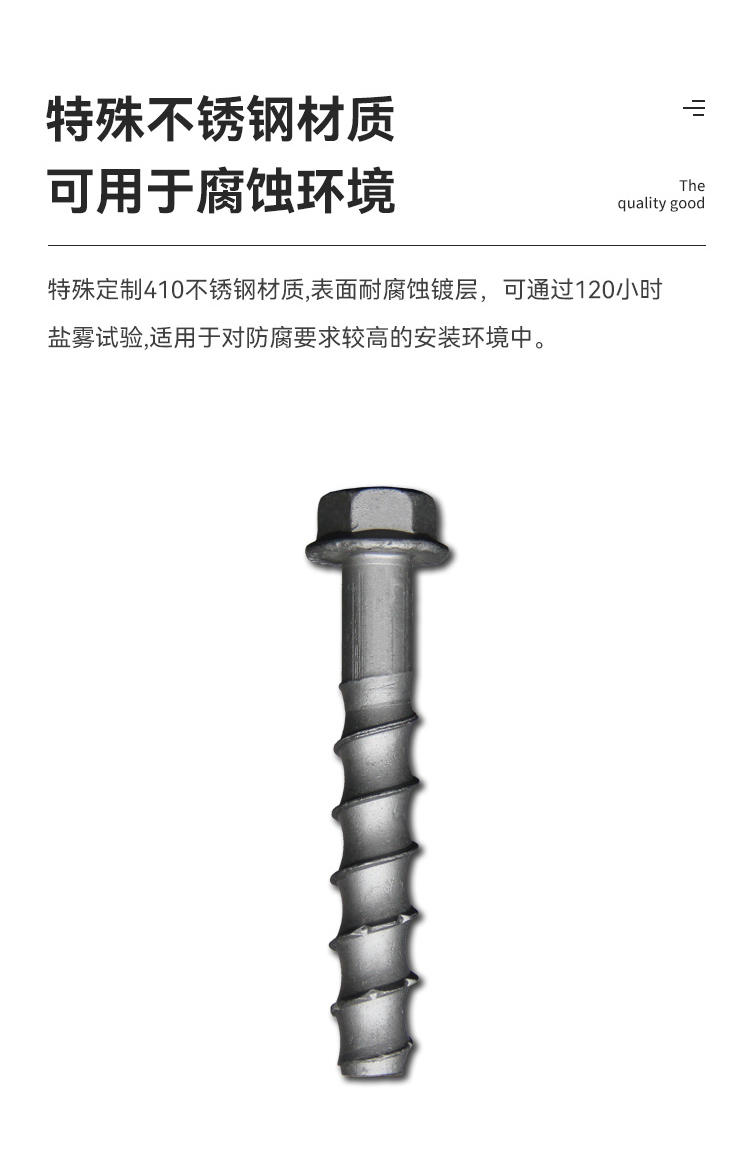

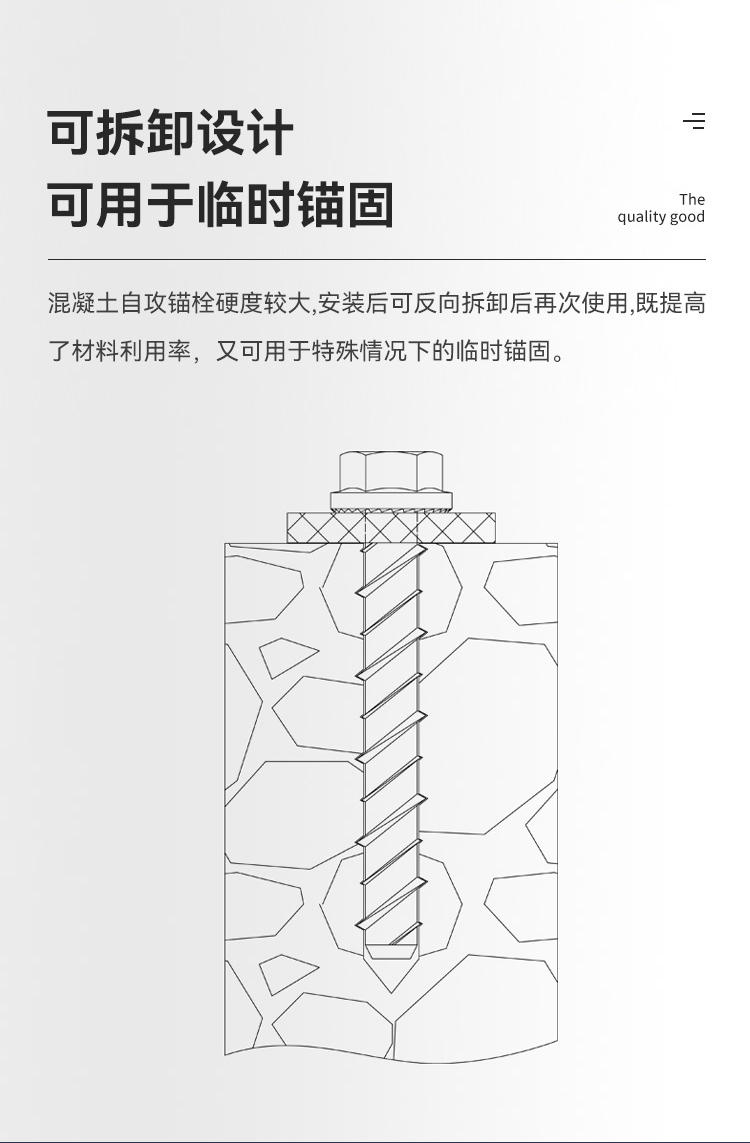

The anchor rod, gasket and hex head of the anchor bolt are integrated, and when the anchor bolt is screwed into the mounting hole, the thread of the anchor bolt cuts into the base material. Optional surface treatment: 1. Electro-galvanized (average zinc layer thickness > 5μm), suitable for ordinary environments; 2. Dacromet "can pass the salt spray test for more than 120h", used in environments with high anti-corrosion requirements.
