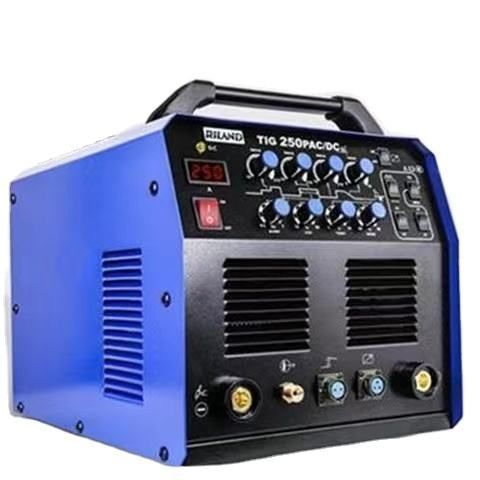

TIG250P Welding Machine Portable industrial stainless steel welding machine

Supplier: Linyi Li Shan Mechanical And Electrical Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr yishan wang
Price: $347.00 / 2 - 9 pieces
$345.00 / 10 - 99 pieces
$340.00 / >=100 pieces
Min. Order: 2 pieces

Click here to contact

Product details

weight:	20	Packaging Details:	wood packaging
brand:	Alexander	efficiency:	78%
port:	Qingdao, Shanhai	Input voltage (v):	AC220±15%
Dimensions LWH (mm):	498328302	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
MOQ:	1	Rated output current:	180A
product name:	Welding machine	Origin:	Shandong Province, China
weight:	20 kg	For material type:	steel
Supply capacity:	3000 pieces per day	type:	Argon arc welding 250P
Maximum Material Thickness:	1/2 inch	Welding process:	Argon arc welding
color:	blue	Package preview:
stage:	not any	model:	Welding machine
Protection class:	IP21	Dimensions (LxWxH):	498328302 mm
brand:	Lishan	Customization support:	Processing
Warranty:	3 years

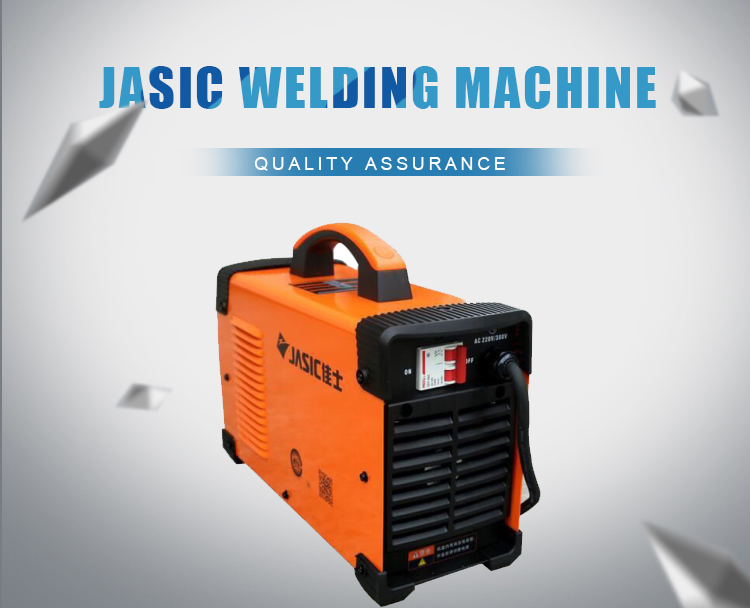

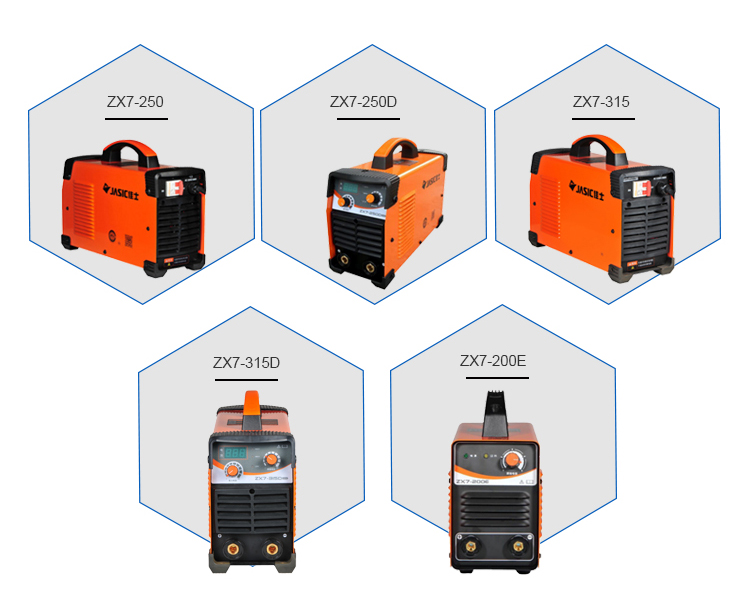

Factory direct sales manual arc welding machine ZX7-200/250/400/630 etc.

Jasic welding machine adopts advanced inverter technology, which is small in size, light in weight and high in efficiency, which significantly improves welding performance and can be widely used in various acid and alkali electrodes.

Product parameters

thing	ZX7-200 (Z269)	ZX7-200(Z104)	ZX7-250 (Z276)	ZX7-250D(Z225)		ZX7-315D (Z226)		ZX7-315 (Z227)
Rated input power	Single-phase AC220V 50HZ			single Phase AC220V 50 Hz	Single-phase AC350V 50HZ	Single-phase AC220V 50HZ	Single-phase AC350V 50HZ	three Phase AC350V 50 Hz
Rated input capacity (KVA)	6	7.1	9.4	7.1	9.4	8.2	11.3	9.5
Rated input power (KW)	5.1	6	8	6	8	7	9.6	8
Rated input current (A)	24.3	26	40.8	39.1	30.1	44.1	36.1	14
Rated output (A/V)	140A 25.6V	170A 26.8V	200A 28V	160A 26.4V	200A 28V	180A 27.2V	230A 29.2V	250A 30V
No-load voltage (V)	67	70	70	62	60	62	60	60
Rated load duration (%)	40	30	40	40		40		40
Insulation class	f	f	f	f		f		f
Enclosure rating	IP21S	IP21S	IP21S	IP21S		IP21S		IP21S
power factor	0.7	0.7	0.7	0.7		0.7		0.7
Comprehensive efficiency (%)	85	85	85	85		85		85
Dimensions (LWH)	312* 143*256	430* 168*312	430* 168*312	430* 168*312		430* 168*312		430* 168*312
Weight (kg)	4.8	5.0	8.0	9.6		9.6		9.6
