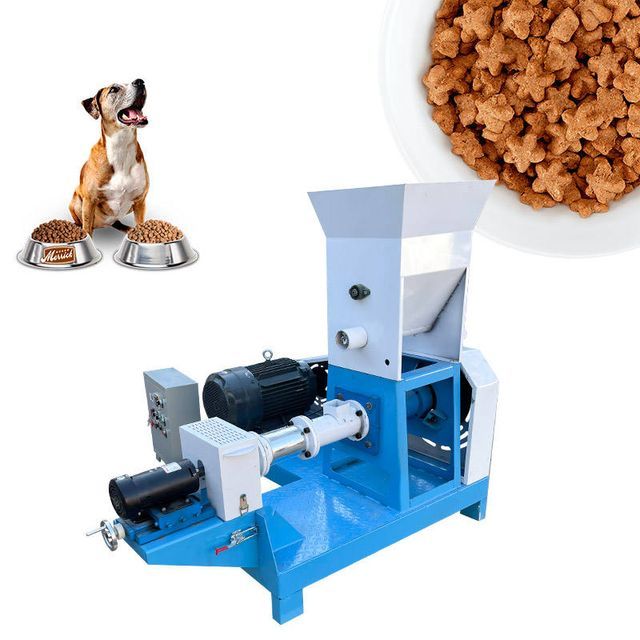

Fully automatic dry cold press dog food machine production extrusion granulator dog cat pet food full line

Supplier: Henan Gondor Equipment Material Co.,Ltd.
Region: Henan, China
Contact: Ms vivian zhang
Price: $1449.00 / 1 - 9 sets
$1249.00 / 10 - 99 sets
$1049.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

Feeding power (kW):	0.4-2.2	Core component warranty:	1 year
Supply capacity:	100 sets per month	Video outbound inspection:	if
feature:	high efficiency	Spiral diameter (mm):	40-60
Voltage:	220V	port:	Qingdao, Shanghai, Shenzhen, Ningbo, Tianjin, etc.
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Health status:	new
Applicable industries:	Manufacturing plants, food and beverage plants	brand:	GD
Marketing Type:	New product	Mechanical test report:	if
Packaging Details:	wooden box	strength:	5.5 kW
Weight (kg):	350-1450	application:	Pet feed facilities, cats, dogs, birds, fish
Showroom location:	not any	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Cutting power (kW):	0.4-2.2	Warranty:	1 year
weight:	350 kg	Material:	stainless steel 304
Host power (kw):	5.5-110	Dimensions (LWH):	13601600850
Model:	40-200	Origin:	Henan, China

Product Description

introduce:

The pet food extruder uses corn, soybean (bean cake), animal waste, etc. as raw materials. It can be directly extruded into the machine to produce different granules. It has novel shape, unique taste, rich nutrition and good structure. It is suitable for the feed of dogs, cats, fish, birds, rabbits, shrimps, cats, minks, foxes and other pets with different tastes. Suitable for professional farmers, small and medium feed mills and laboratories. Under the same feed formula, the cost of self-made extruded feed is 60%-80% lower than the market price; the extruded feed particles produced by this machine are neat and smooth, and the floating water surface does not sink for more than 12 hours, does not pollute the water source, and can be sterilized to reduce fish diseases

application:

1. This machine can be equipped with a variety of molds for the production of aquatic feed, pet feed, livestock and poultry feed, etc.
2. This machine can also expand raw materials, such as corn and soybeans.

feature:

1. The machine has novel design, compact structure and high production efficiency.

2. Reliable, durable, low failure rate, convenient operation and maintenance.

3.The machine is easy to operate, stable in transmission and low in noise.

4.The main components are made of special alloy materials, which are heat-treated and have a long service life.

5.It adopts dry puffing process, self-heating, no steam system, and can better meet the actual needs of users.

6.The screw design has a strong self-cleaning function: the spiral groove of the screw has a self-cleaning function, so when changing the formula and product variety, there is no need to stop cleaning.

7. The machine is equipped with a feeding system and a cutter system, the feeding speed is adjustable, and the operation is more convenient.

Product parameters

parameter:

Model	productivity (ton/hour)	monitor rate (kilowatt)	Feed power (kilowatt)	Spiral diameter (mm)	cutting force (kilowatt)	Package Size (mm)	weight (Kilogram)
GD-40	0.04-0.05	5.5 kW (220V)	0.4	Φ40	0.4	13601600850	350
GD-50	0.08-0.09	11 kW (380V)	0.4	Φ50	0.4	13601600850	350
GD-60	0.12-0.15	15	0.4	Φ60	0.4	13601670850	450
GD-702	0.18-0.20	18.5	0.4	Φ70	0.4	13601670850	Chapter 490
GD-703	0.20-0.25	18.5	0.4	Φ70	0.4	13601670850	Chapter 490
GD-80	0.30-0.35	number 22	0.55	Φ80	0.55	13601950840	600
GD-100	0.4-0.5	37	1.1	Φ90	1.5	180026001150	800
GD-135	0.75-0.80	75	1.1	Φ130	2.2	220028001200	950
GD-120	0.60-0.70	55	1.1	Φ120	2.2	220028001200	950
GD-160	1.00-1.20	90	1.5	Φ160	2.2	230030001200	1200
GD-200	1.80-2.00	110	2.2	Φ160	2.2	240032001400	1450
