Material: | Natural rubber, rubber and polyester | structure: | Belt conveyors |
Layer thickness: | 1.45mm/layer | port: | Ningbo or Shanghai |
Applicable industries: | Building material stores, manufacturing plants, farms, retail, energy and mining | Supply capacity: | 200,000 meters per month |
Marketing Type: | Hot Products of 2022 | Video outbound inspection: | if |
Certification: | ISO9001:2008/TUV | Health status: | new |
Dimensions (L*W*H): | Customer requirements | Strength (N/mm): | 600/900/1200/1500 |
After-sales service provided: | Engineers available to repair machinery overseas, online support | Origin: | Zhejiang, China |
Core component warranty: | 1 year | Fabric Structure Warp: | Polyester |
Showroom location: | USA, Germany, Vietnam, Brazil, India, Thailand, Chile, UAE, South Africa, Nigeria, Malaysia, Australia | Operating temperature: | -30℃----+80℃ |
strength: | 0.4kW - 22kW | Mechanical test report: | if |
Fabric Type: | EP100-EP500 | product name: | Herringbone rubber conveyor belt |
payment terms: | L/C, Western Union, D/P, D/A, T/T | Width or Diameter: | 300-2600 mm |
brand: | comfortable elastic | Core components: | motor, rubber+fabric |
Package preview: | | Material properties: | Abrasion and impact resistance |
describe: | Wear-resistant conveyor belt | Packaging Details: | Factory Price Nylon Canvas Rubber EP Polyester Herringbone Conveyor Belt for Coal Mine -- A 20-inch container can load 4--6 rolls of conveyor belt -- A 40-inch container can load 8--10 rolls of conveyor belt -- Max 300m per roll -- Waterproof PP bag packing -- Custom packing is available |
Voltage: | 220/380V | Weight (kg): | 200 kg |
Warranty: | 1 year | | |

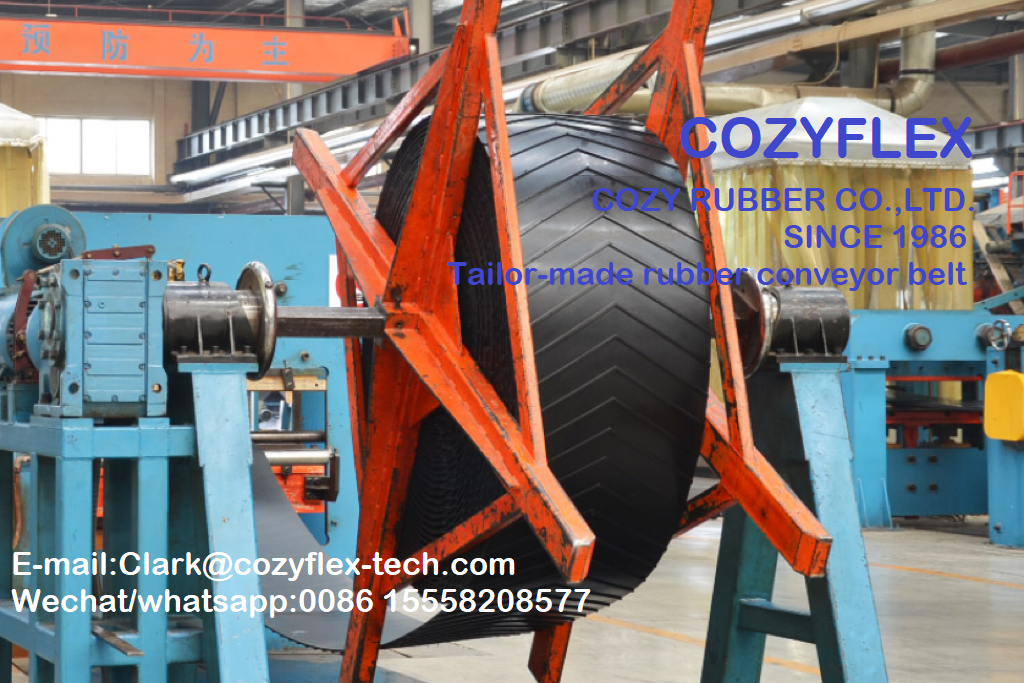

Factory Price Coal Mine Nylon Canvas Rubber EP Polyester Herringbone Conveyor Belt
Herringbone conveyor belt

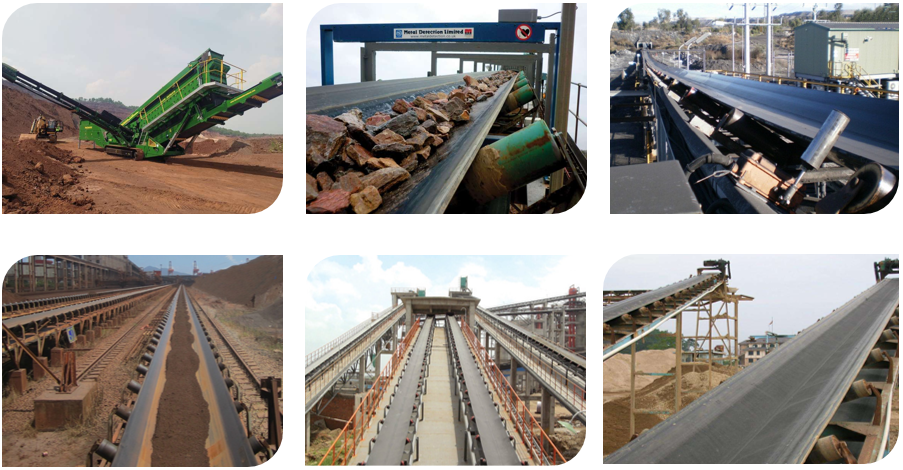

Inclined (Chevron-Cleared) conveyor belts are used to sweep up slopes for coal, ore cores, sand and other powdery, fine coal and granular materials.
product description:

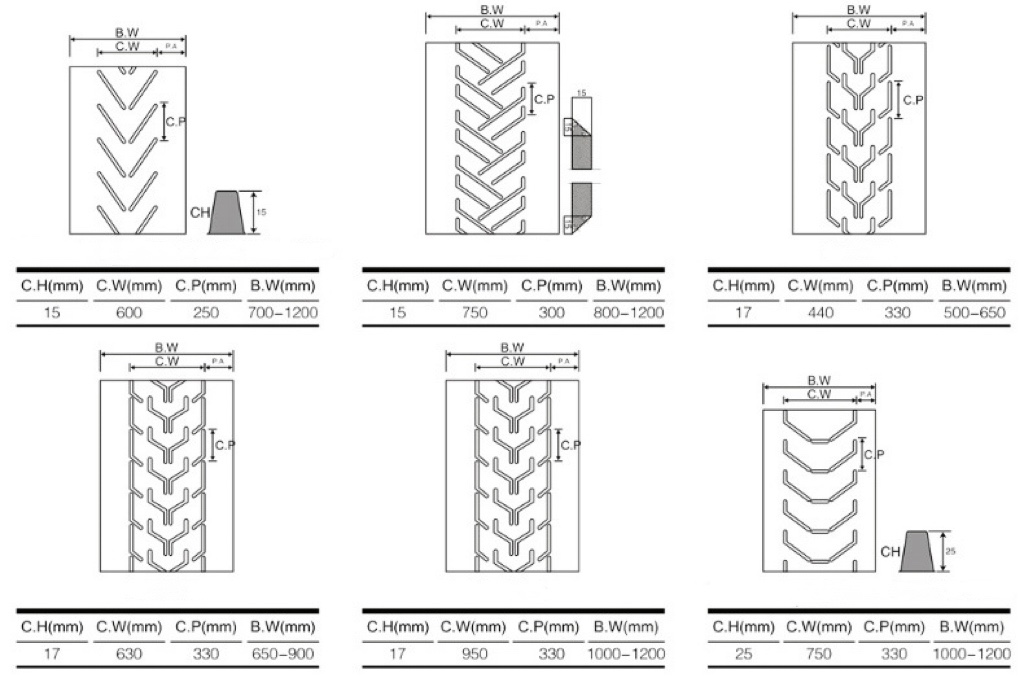

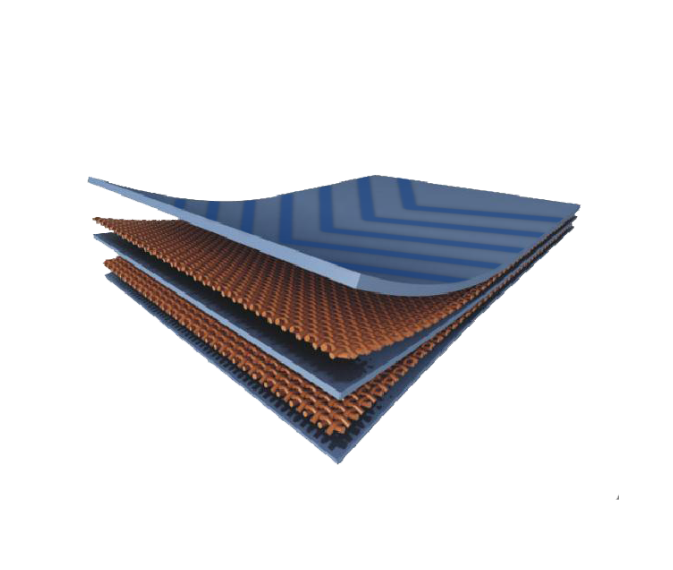

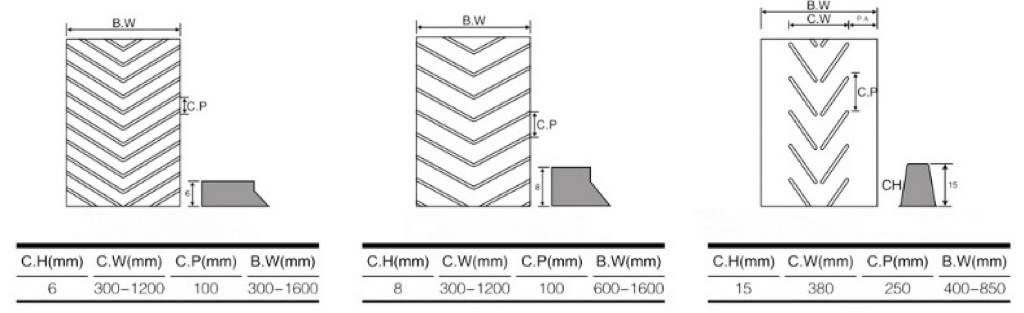

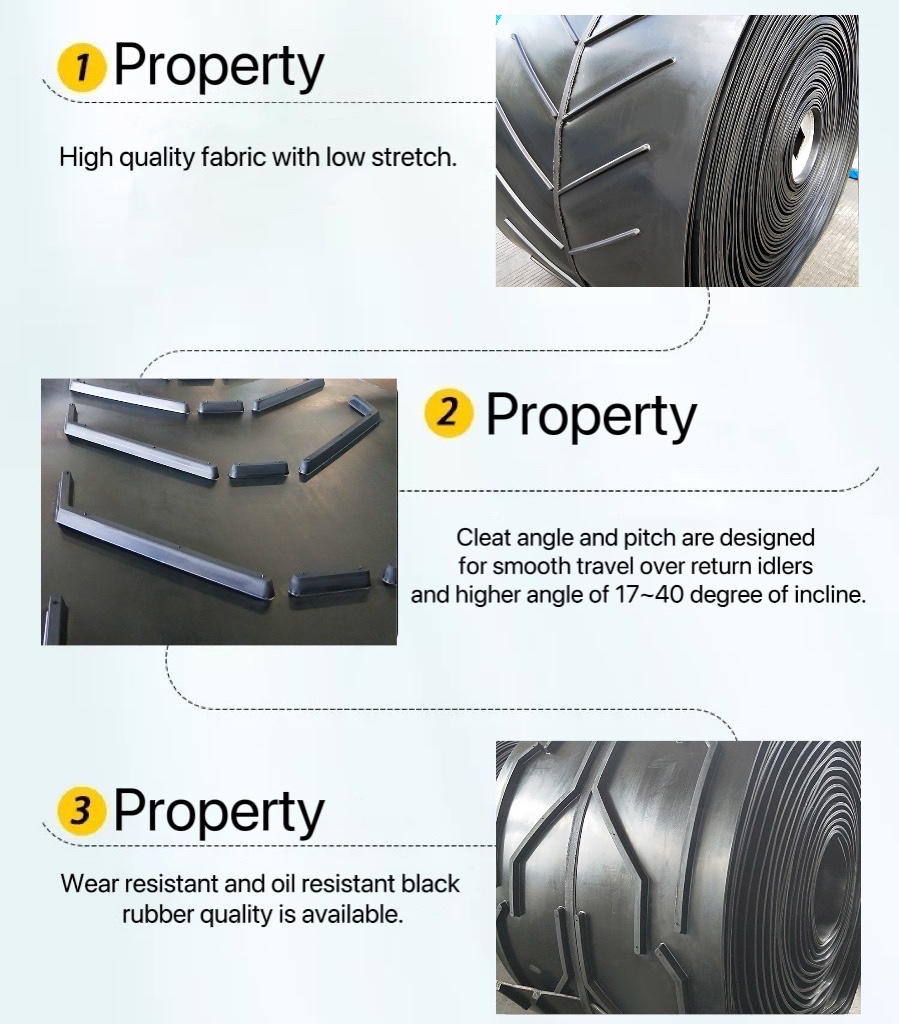

The herringbone conveyor belt is an inclined conveyor belt composed of patterned covering rubber on the surface, flat covering rubber on the working surface and a belt core.
Fabric specification | | | CC-56 | TC-56 |
width(mm) | 300~2000 | | | |

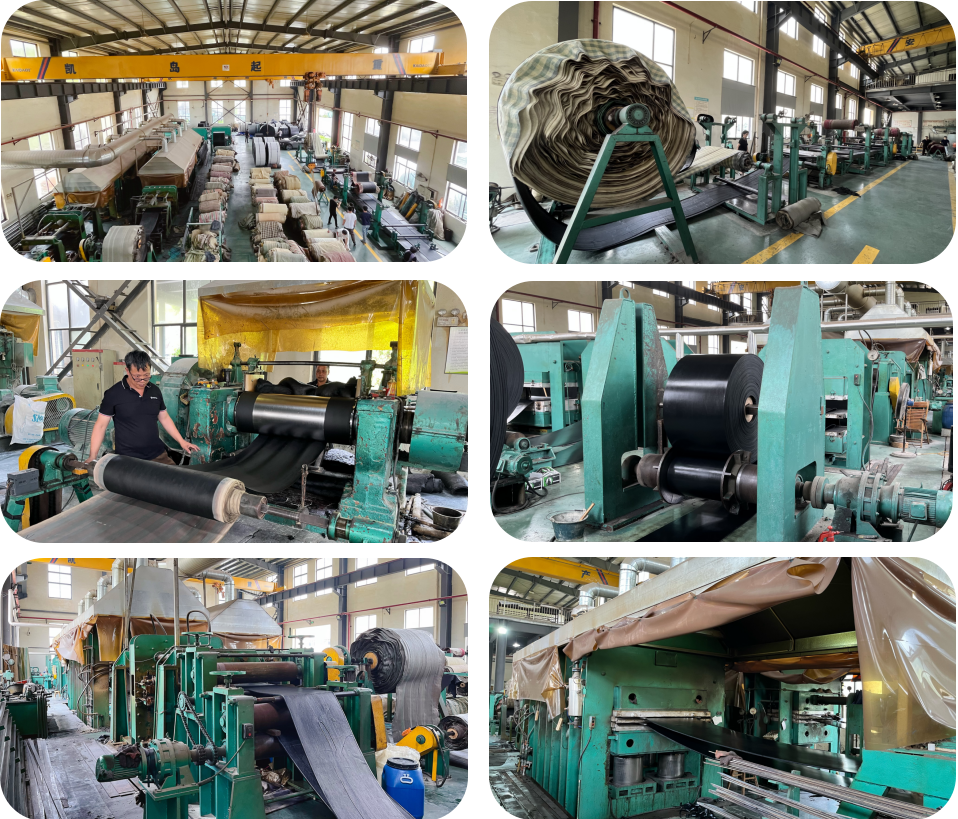

Step 1: Process Management

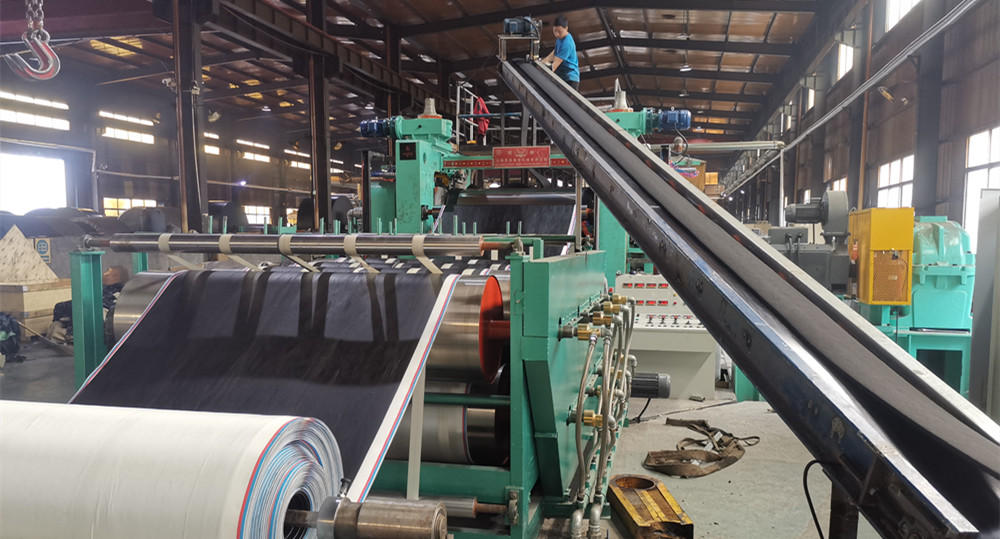

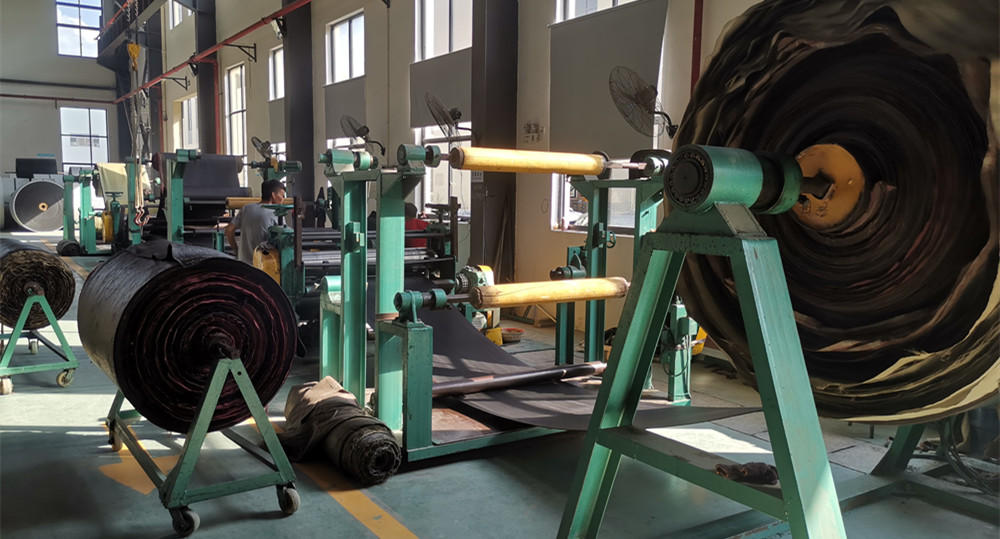

Calendering process
The automatic calender can calender the rubber on both sides of the fabric once, which can reduce the loss of rubber strength.
Molding

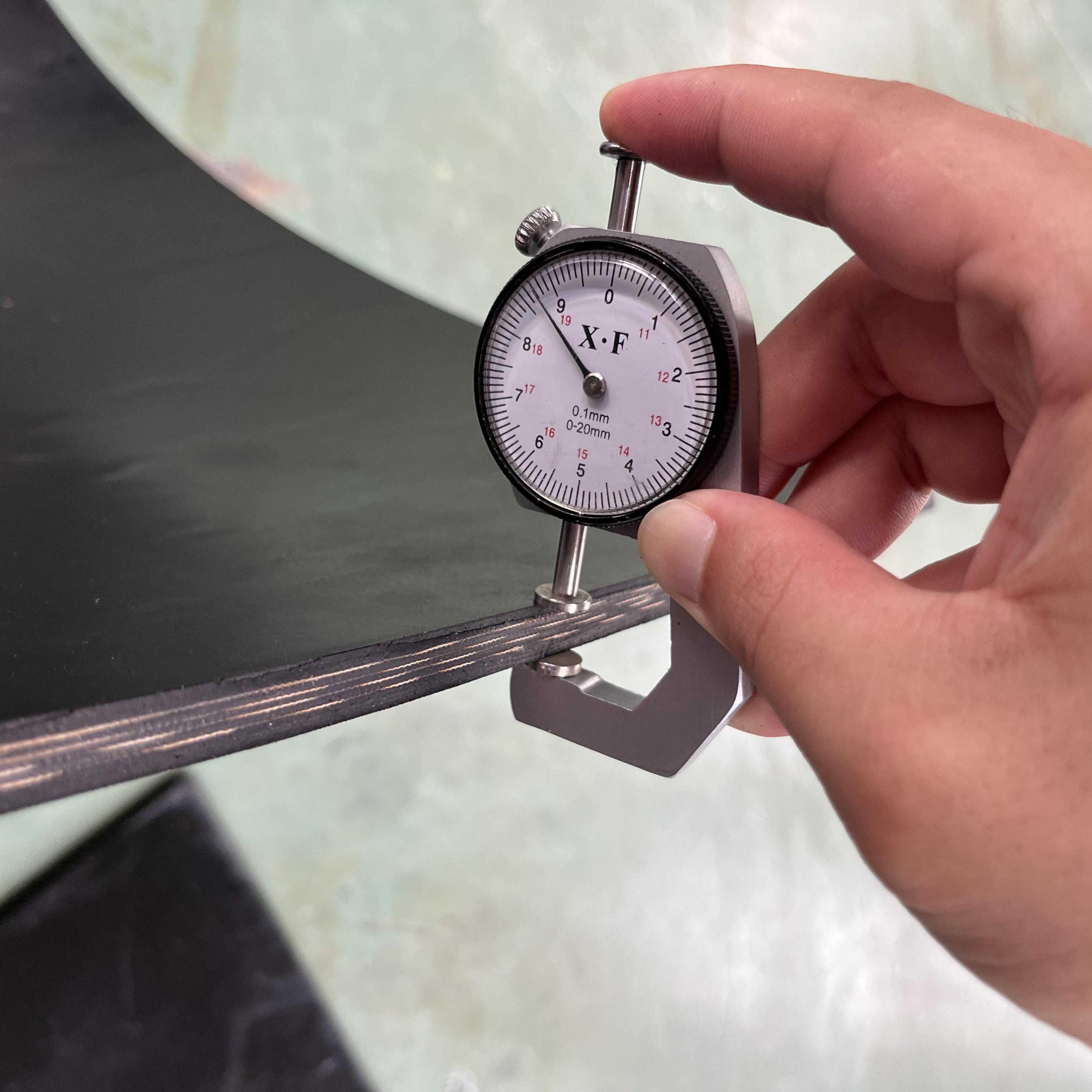

The forming tension between different layers must be uniform, which can avoid fabric wrinkling and also can ensure the thickness of the belt.
The second step: appearance quality inspection
We have a QC team to check the appearance of each conveyor belt roll, if any problem is found, we have to rework the conveyor belt.

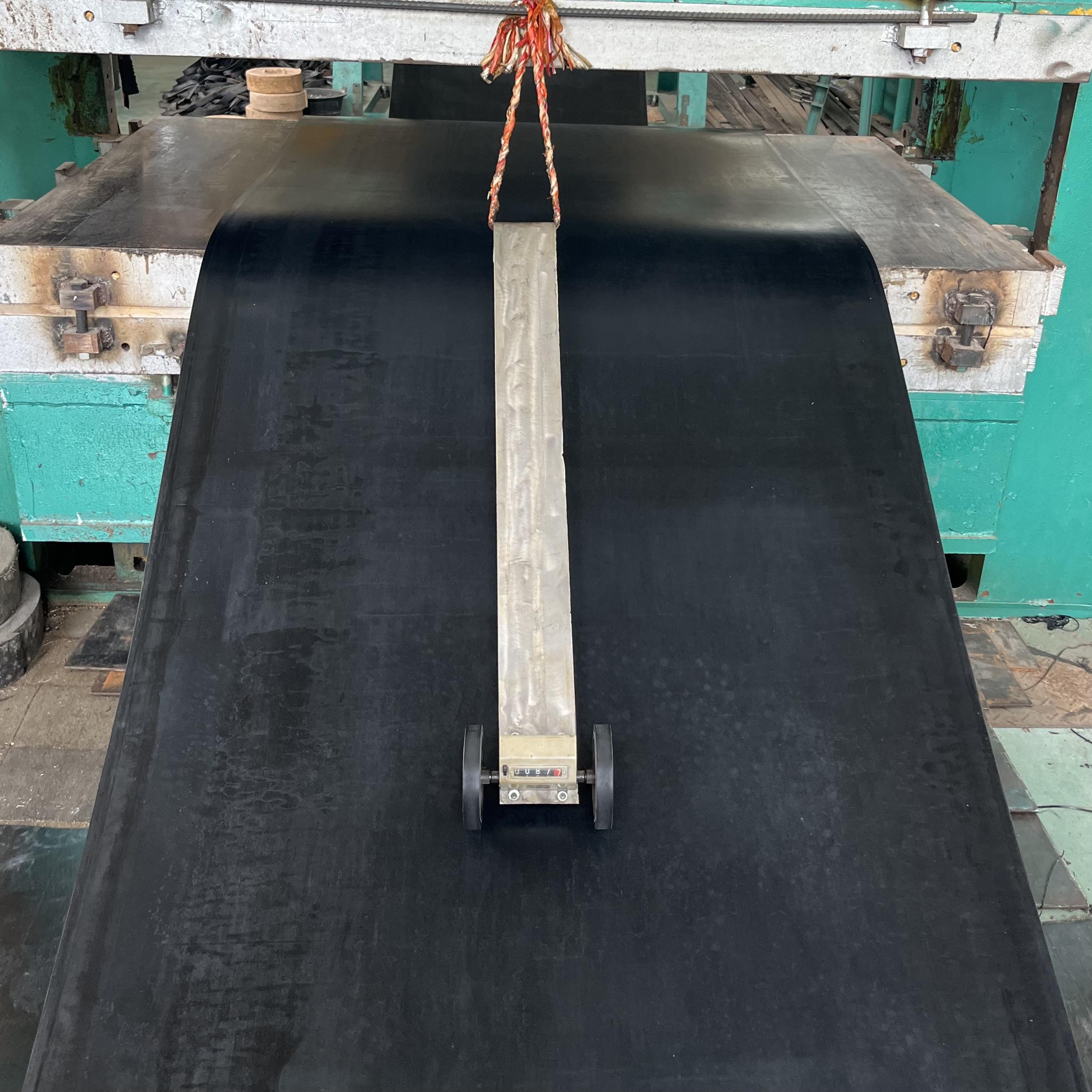

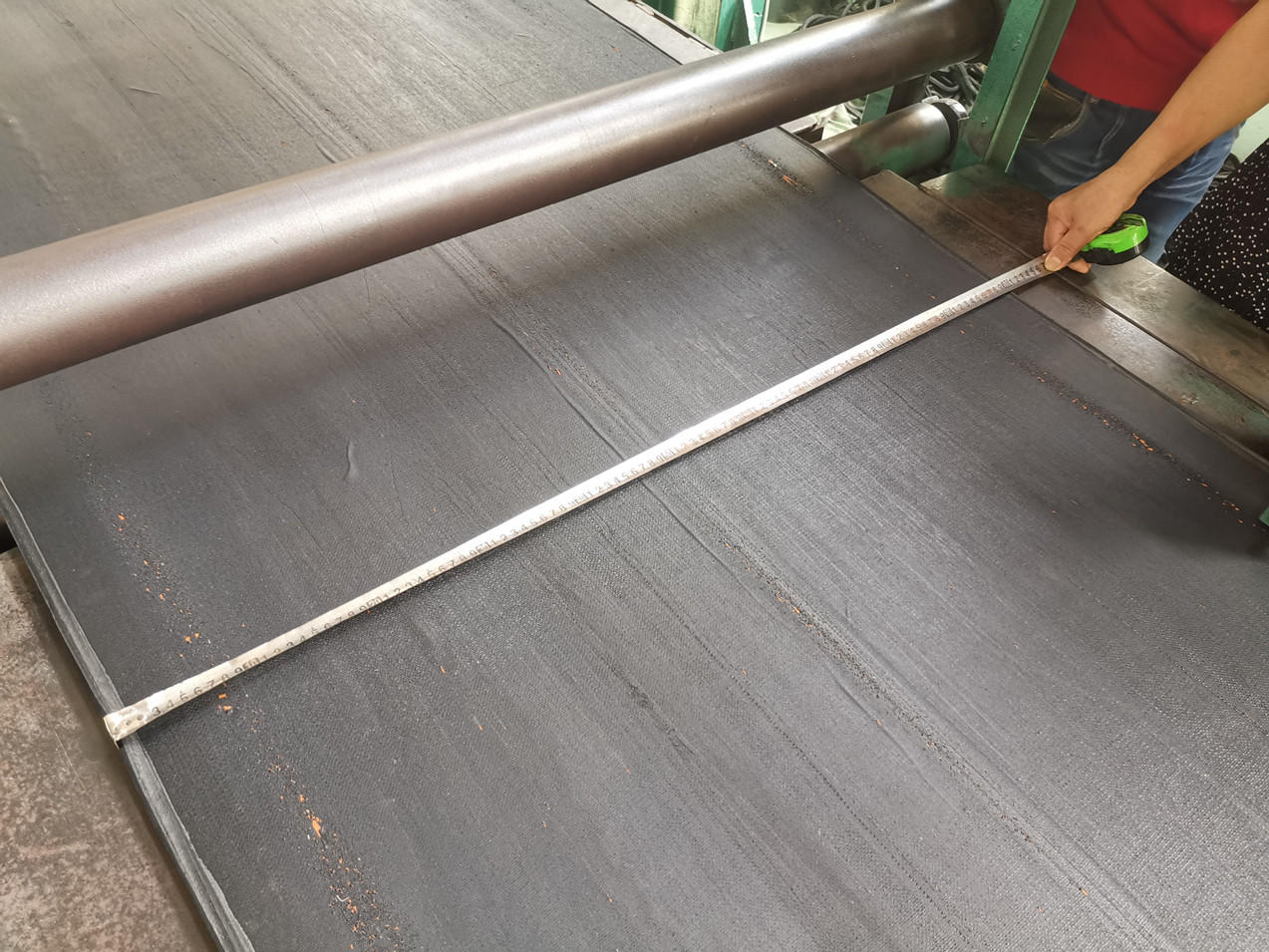

Appearance and length inspection

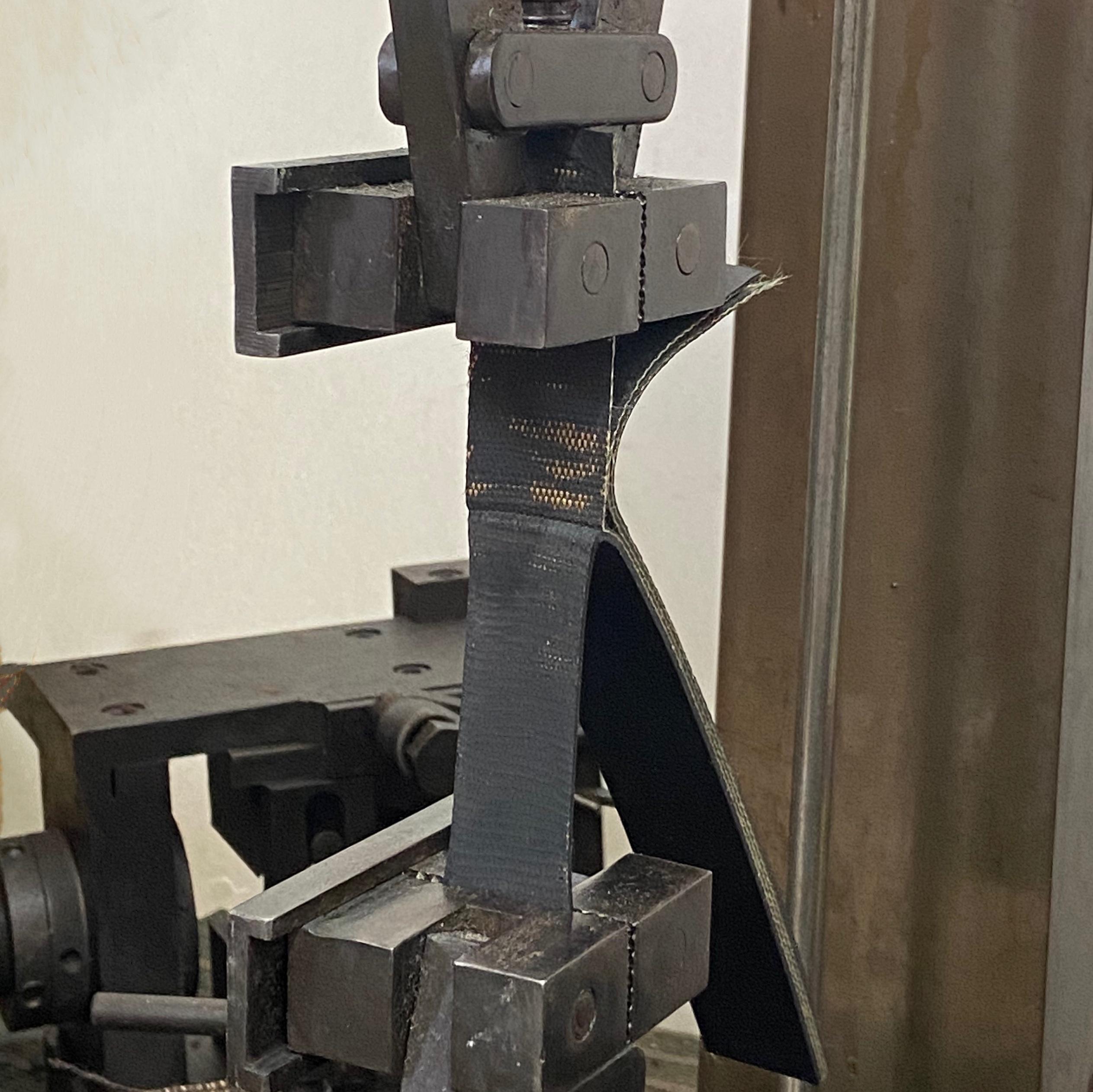

Step 3: Physical performance inspection

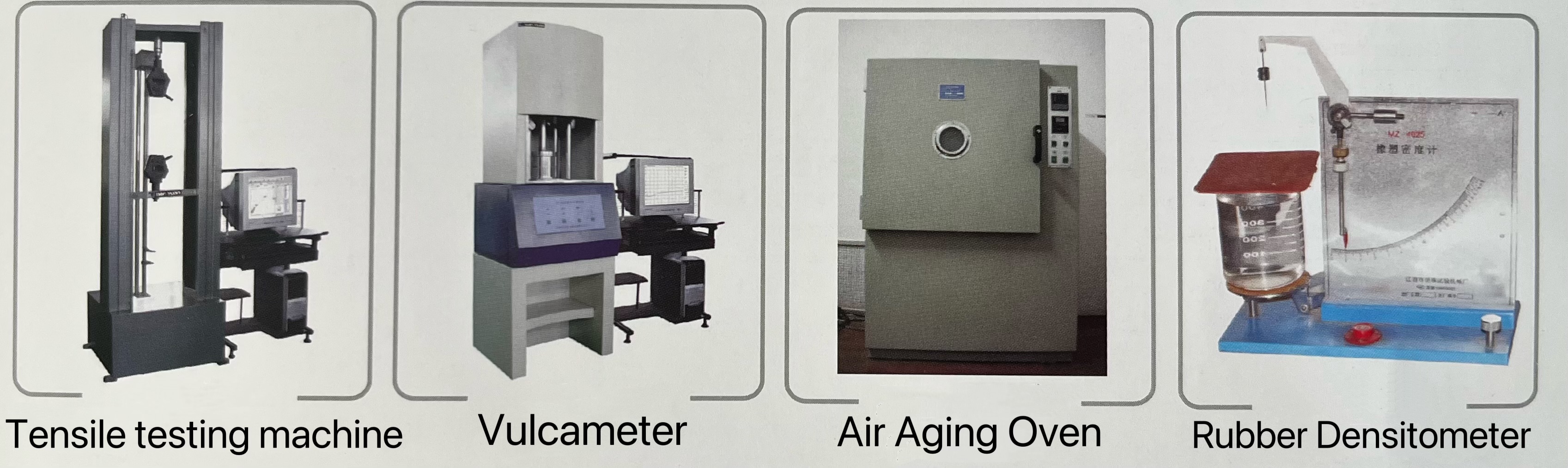

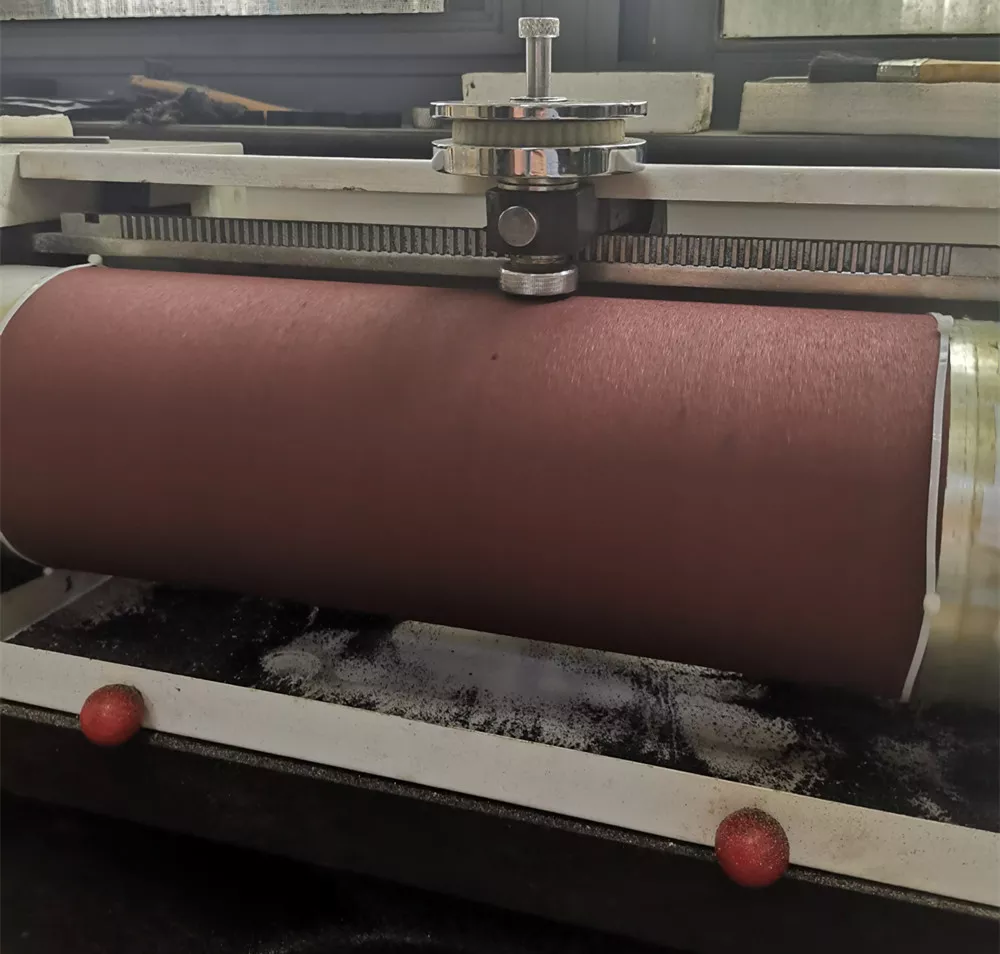

Quality inspection equipment

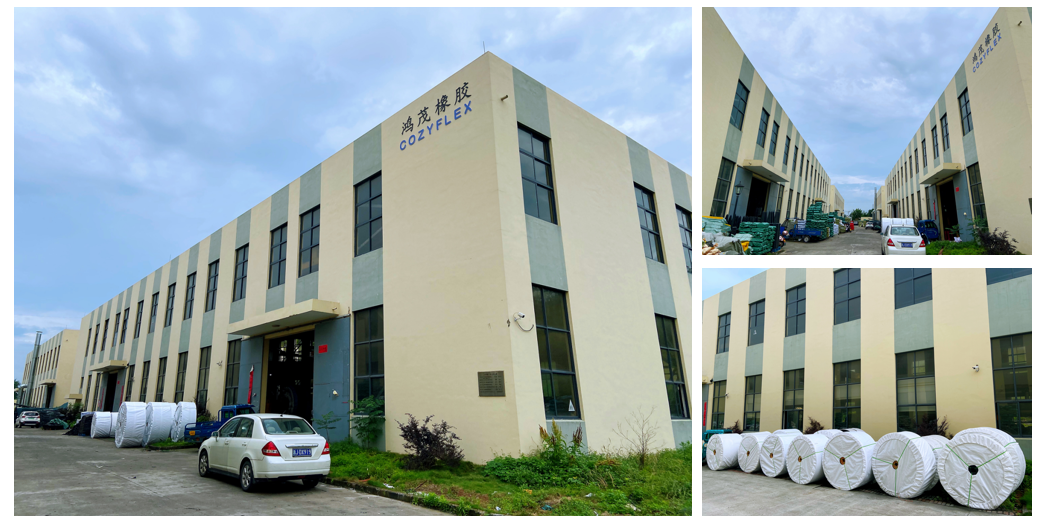

Comfort FlexStarted in 1986, determined to become an advanced supplier in the conveyor belt industry.
We create value by helping our customers improve their market position by supplying conveyor belts.
We have a one-stop service team for conveyor belts and peripheral products from sales to splicing, testing, maintenance, and consulting.
Q1. Are you a manufacturer?
Yes, we have been producing rubber conveyor belts since 1986.
Q2. How about the delivery time?
1) 3 days for samples
2) 15 days for mass production.
Q3. How to pay?
1) By bank account wire transfer or letter of credit
2) Choose Alibaba TradeGuarantee service
Q4. What are the advantages of our company?
1. Competitive price2. Strict quality control3. 15 days delivery time
4.ODM and technical support

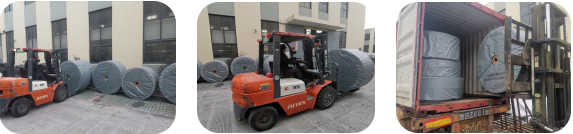

Q5. How about the package?
1) The inner package is on a round rubber core with a diameter of 30cm and a square hole of 12cmx12cm
2) The outer layer is packed with a layer of waterproof PP cloth
