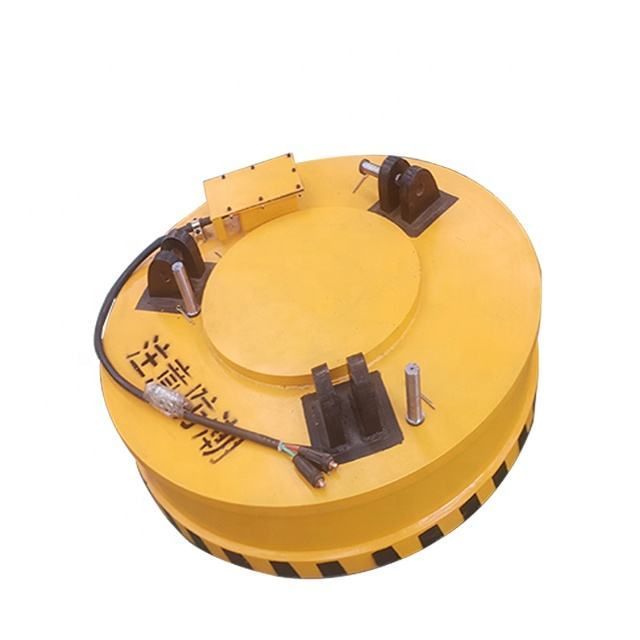

Jinniu factory MW5-130L/1-75 round industrial strong magnetic excavator lifting waste

Supplier: HENAN JINNIU HEAVY CRANE CO.,LTD
Region: Henan, China
Contact: Ms Angelia Gao
Price: $1860.00 / 1 - 4 sets
$1800.00 / 5 - 9 sets
$1750.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Marketing Type:	normal product	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
brand:	Taurus	Core component warranty:	1 year
Operating mode:	Wireless remote or built-in control	Supply capacity:	2000 sets per year
Insulation class:	H (higher grade needs to be customized)	Video outbound inspection:	if
Showroom location:	not any	product name:	lifting electromagnet
Warranty:	6 months	Operating Voltage:	220VAC
Origin:	Henan, China	Core components:	engine
Weight (kg):	520 kg	Dipping:	Vacuum/Pressure (VPI)
Winding Coil Material:	Aluminum coil (copper coil is optional)	Mechanical test report:	if
Health status:	new	Package preview:
spare battery:	Good for 15 to 20 minutes (additional charge)	Duty cycle:	75% within 10 minutes/60% within 10 minutes

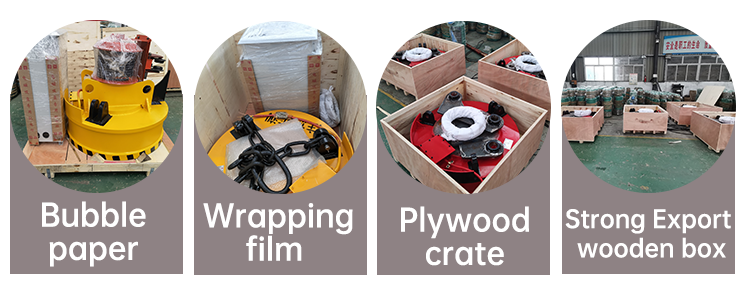

Packaging Details:	Lifting electromagnet with plastic protective film or fumigation-free wooden box for cranes	Continuous working time:	4 hours/8 hours/15 hours
put up:	Fabricated	port:	Qingdao Port, Tianjin Port, Yinwu Port, Shanghai Port

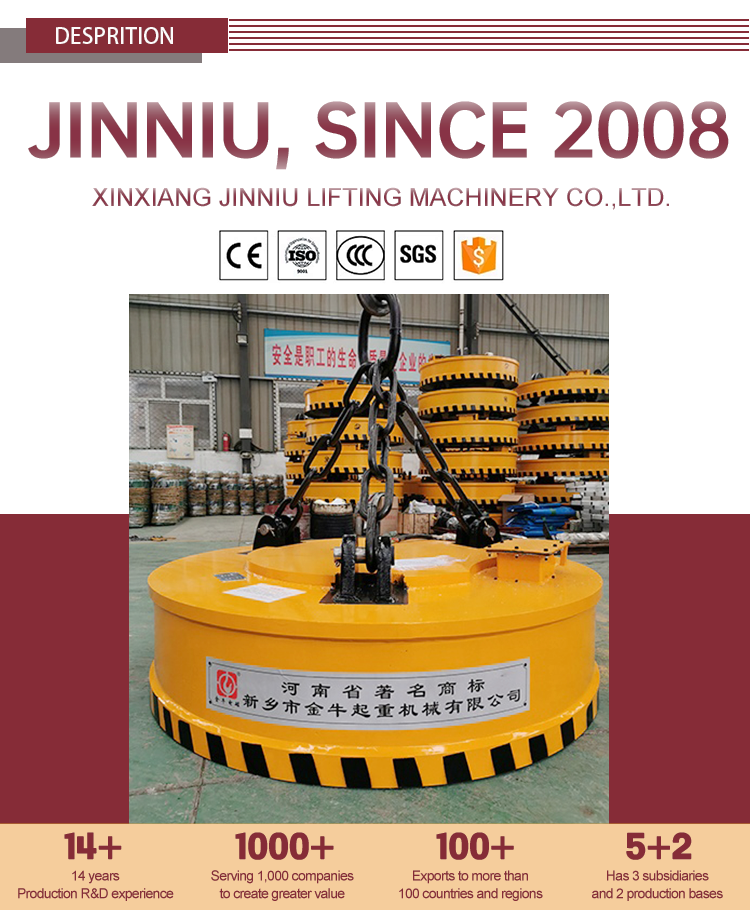

Jinniu factory MW5-130L/1-75 round industrial strong magnetic excavator lifting waste

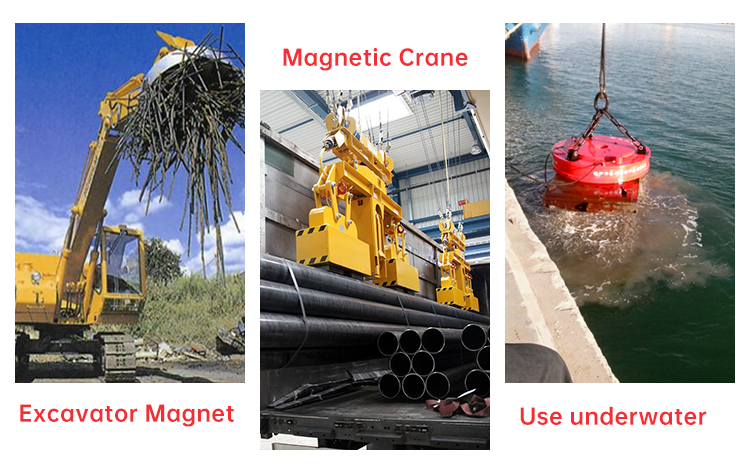

it Generally used for industrial purposes. Lifting solenoids are easy to operate and can be used in factory situations involving the handling of steel and magnetic metals. Lifting magnets are of solid cast and bolted or fabricated construction and are designed to handle solid slabs, ingots, blooms. Pig iron, lightweight finished parts, scrap for maximum reliable, efficient and economical performance under the toughest conditions of use.

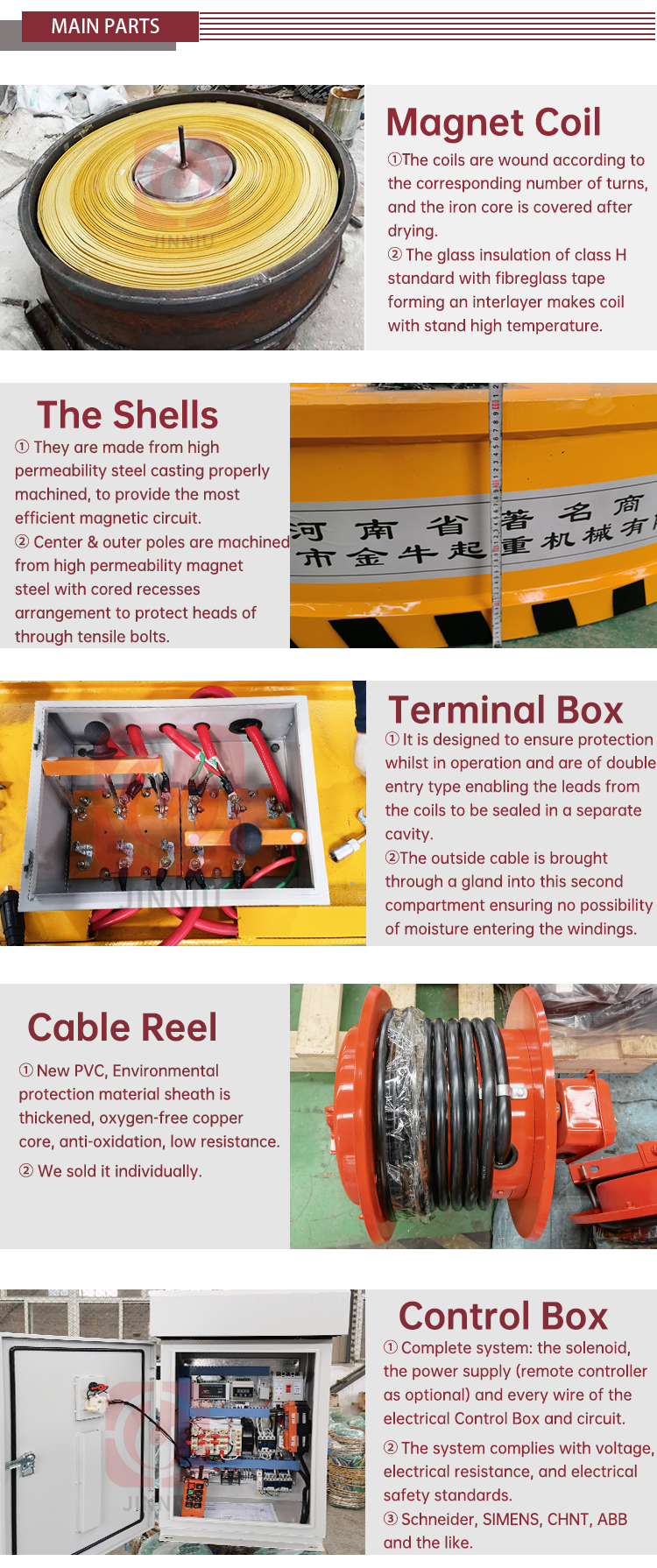

Main features of crane lifting magnet:
☑Fully sealed structure, good moisture-proof performance
☑Computer professional design, reasonable structure, light weight, strong attraction, low energy consumption
☑The excitation coil is processed by a special process to improve the electrical and mechanical properties
☑The heat-resistant grade of the insulating material reaches Class C, and the service life is long
☑The high-temperature electromagnet adopts a unique thermal protection method to increase the temperature of the attached material from 600°C to 700°C, expanding the application range of the electromagnet
☑The rated energization duration of ordinary electromagnets is increased from 50% to 60%, which improves the efficiency of electromagnets
☑Easy to install, operate and maintain
→If you want to know moreAbout Crane Lifting Magnets, click here←

Main technical data of crane lifting magnet:

Voltage: DC-220V Normal temperature: Below 100°C Duty cycle: TD-60%/75%

type

Current (A) (cold/hot) status

Cold power (KW)

Lifting capacity (kg)

Weight (kg)

steel ball

Ingot

Turning

MW5-50L/1

11.8/7.7

2.6

1200

220/130

80/65

220

MW5-60L/1

13.6/8.9

3.0

2000

290/170

95/80

340

MW5-70L/1

15/9.8

3.3

2500

380/200

120/100

Chapter 490

MW5-80L/1

18/12

4.0

3000

480/250

150/130

620

MWW5-90L/1

26.8/17.5

5.9

4500

600/400

250/200

800

MW5-110L/1

35/22.8

7.7

6500

100/800

450/400

1350

MW5-120L/1

45.5/29.5

7500

1300/1000

650/500

1700

MW5-130L/1

54.5/35.5

8500

1400/1100

700/500

year 2010

MW5-150L/1

70.9/46.1

15.6

11000

1900/1500

1100/900

2830

MW5-165L/1

75/48.8

16.5

12500

2300/1800

1300/1100

3200

MW5-180L/1-75

10.2/36.5

22.5

14500

2750/1100

1600/1350

4230

MW5-210L/1-75

129/84

28.4

21000

3500/2800

2200/1850

7000

MW5-240L/1-75

154/100

33.9

26000

4800/3800

2850/2250

9000

MW5-260L/1

152/105

35.6

30000

6100/4900

3600/3850

10100

MW5-280L/1

178/116

34000

7100/5700

4450/3400

12450

MW5-300L/1

198/123

41.5

39000

9350/6700

5250/4100

14980

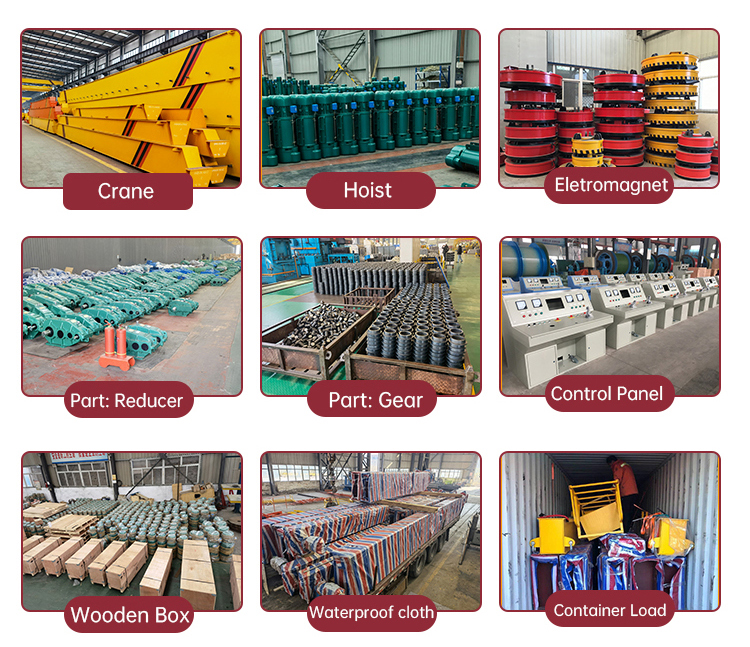

Professional crane manufacturing since 2008

Established in 2008, Xinxiang Jinniu Lifting Machinery Co., Ltd. is one of the leading manufacturers, suppliers, retailers and wholesalers of high-quality material lifting equipment. The company mainly produces cranes, electric hoists, electromagnetic suckers, cantilever cranes, hydraulic lifting platforms, hydraulic freight elevators and other lifting equipment. A new type of lifting enterprise integrating manufacturing, export trade and online sales. The annual sales volume exceeds 12,000 units. The Republic of China special equipment manufacturing license issued by the State Bureau of Quality Supervision. The company has also established a complete quality assurance system and a TQC total quality management system to ensure the greatest quality and customer benefits......

Q: What information do I need to provide in order to get a quotation for Crane Lift Magnetic Slab Lift?

A: First, what is it used for? (crane/forklift/excavator/separator/or others)

Second, what shape do you want? (circle/cuboid/ellipse/cube/or others)

Third, what size do you want to set? (diameter/length/width/height/or others)

4. Special attention? (high temperature use/salvage use/or others)

5. What are the installation details? (input voltage/cable length)

Q: How long is the service life of the crane electromagnet?

A: Our warranty period is one year. Normally, the client stays in the normal state
The maintenance is reasonable, and the service life can reach more than six or seven years.

Q: Why choose our industrial solenoids?

A: We are the real magnetic chuck manufacturer. Buy from us, you will get better product quality
The same price, or the same product quality our price is lower. At the same time, we support the wholesale of product accessories.
