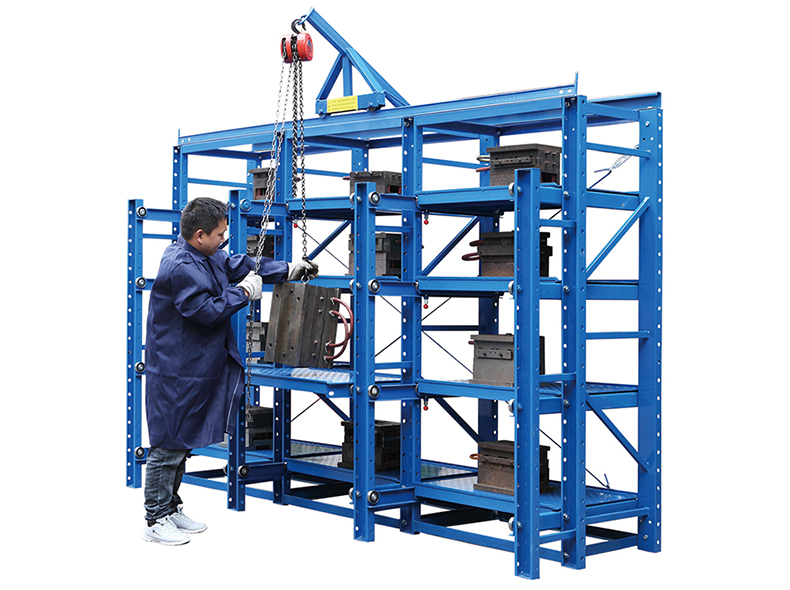

Supplier Warehouse Metal Shelves Industrial Stacking Steel Shelves Storage Racks Factory Warehouse Stacking Racks And Racks

Supplier: Shanghai Fenghui Logistics Equipment Co., Ltd.
Region: Shanghai, China
Contact: Ms Vivier An
Price: $36.00 / 1 - 49 pieces
$12.00 / >=50 pieces
Min. Order: 1 piece

Click here to contact

Product details

Packaging Details:	plywood tray	width:	custom made
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Package preview:
Supply capacity:	2000 pieces per month	feature:	Corrosion protection
port:	China Shanghai	use:	Tool holder
Load capacity:	2000 lb shelf capacity	Material:	steel
Origin:	China Shanghai	brand:	stratified stone
product name:	Heavy Duty Industrial Rolling Rack Injection Mold Storage Rack	type:	Multilevel
depth:	custom made	model:	FHSI3
high:	custom made

Product parameters

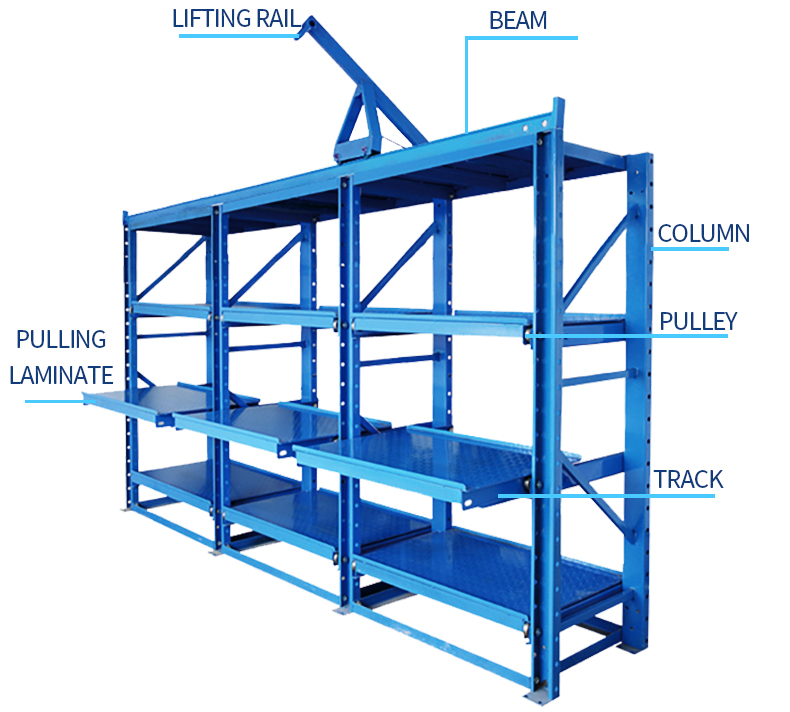

structure diagram

Single structure mold shelf

Model	Specifications (WxDxH)	Laminate Quantity	Laminate Quantity
MD201	1000x600x2000	4	1200
MD202	1200x600x2000	4	1200

Equipped with drawer-type laminates, which can be pushed and pulled smoothly, which is convenient for the storage and retrieval of mold goods, and can be drawn out by 60%, suitable for medium-load mold storage.
Note: Due to the particularity of the mold shelf, non-standard customization is acceptable

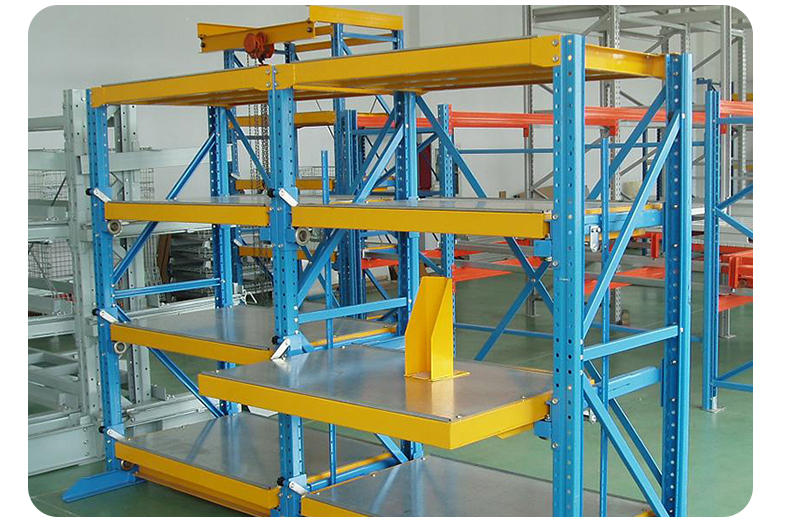

Double structure mold base

Model	Specifications (WxDxH)	Laminate Quantity	Load capacity per layer (kg)
MD401	1000×(600+300)×2000	4	2000
MD402	1200×(600+300)×2000	4	2000

It adopts a double-row column structure, and the drawer-type laminate can be opened by 90%. It has a large carrying capacity and is suitable for large, medium and small-sized storage and retrieval of heavy mold goods.
Note: Due to the particularity of the mold shelf, non-standard customization is acceptable

Structural features

1. Combination assembly, mainly including column pieces, guide grooves, drawer layers, pull rods, positioning pins, etc., are connected by bolts, and the structure is stable, safe and reliable. Generally used in rows;

2. The drawer board is mainly composed of slide rails and drawer boards. The drawer board is composed of a frame and steel plates welded by rectangular tubes and bent parts. Each slide rail is fixed by two front and rear bearings, which can roll freely in the guide groove with low resistance and can be pulled out easily. one hand;

3. For safety, we have designed positioning pins and limit pins on the drawer tray to ensure the safety when the drawer is pulled out;

4. The load-bearing capacity of the light drawer is 200-1200kg, and the load-bearing capacity of the heavy-duty drawer is 800kg-2000kg; the semi-open drawer design, combined with the crane or trolley to access the mold, can increase the utilization of the factory corridor space; a crane can be installed to facilitate the lifting and lowering of heavy objects , mobile, load 500kg;

4. The drawer-type shelves occupy less land, have thick layers, meticulous classification, and easy operation. Unlimited combinations and expansions can be performed according to operational requirements.

Product Details

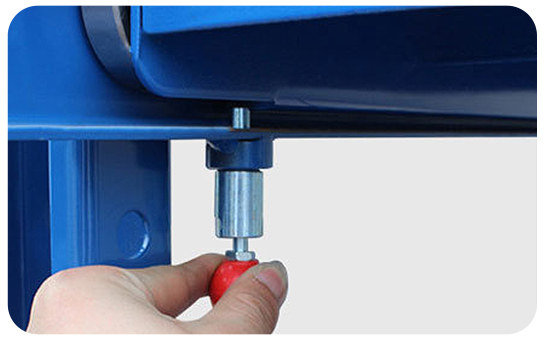

safety plug

To prevent drawers from sliding out and items from falling out, there are safety anti-slip bolts under each tier. when. . . when
When mold or items are needed, open the non-slip bolts and pull out the drawer.

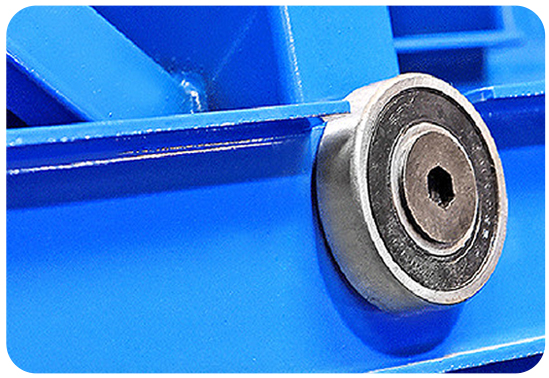

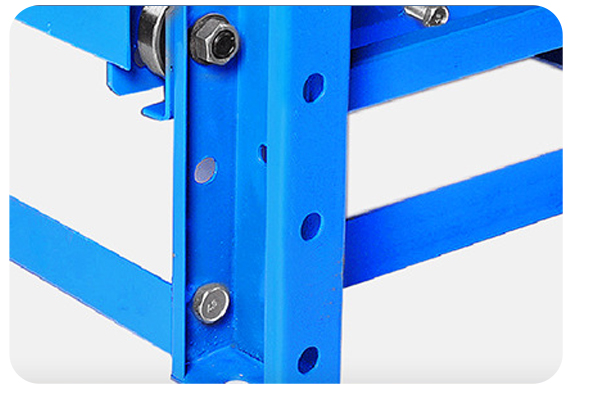

rolling bearing

Equipped with rolling high-speed bearings, even the high-quality bearings can ensure that the drawer slides out easily
Mold and products

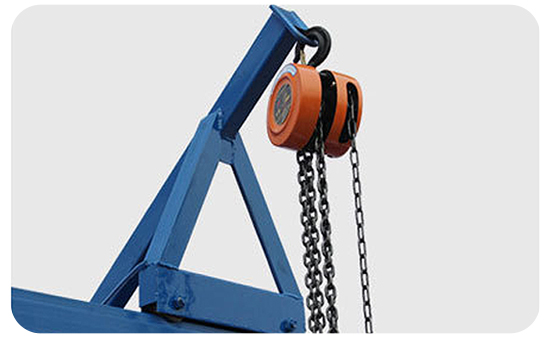

Sliding crane

The top is equipped with a sliding crane, which can easily lift 500 kg of goods, making storage or removal more convenient

Strengthen the plinth

Solid as a rock, warm as Mount Tai, thickened material strengthens force, safer

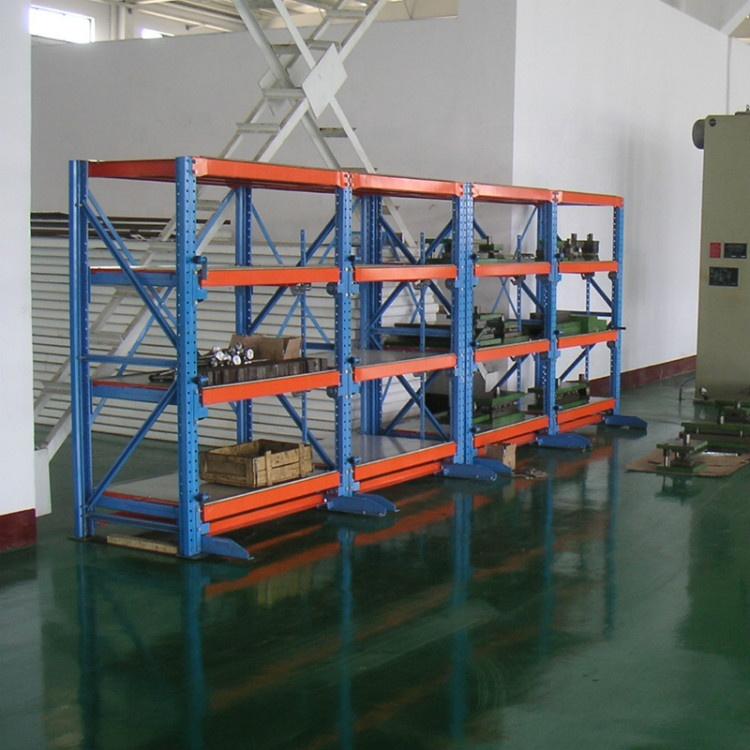

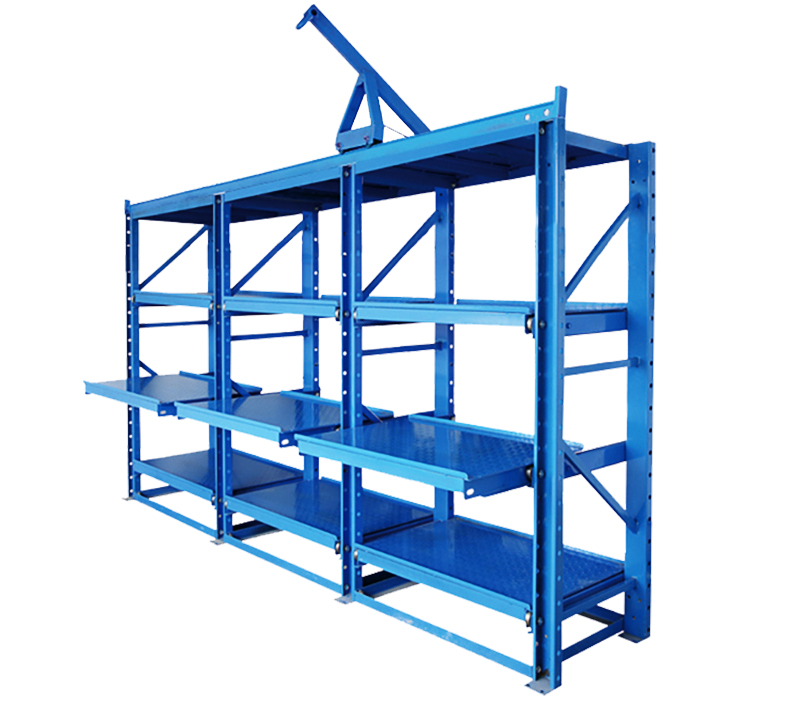

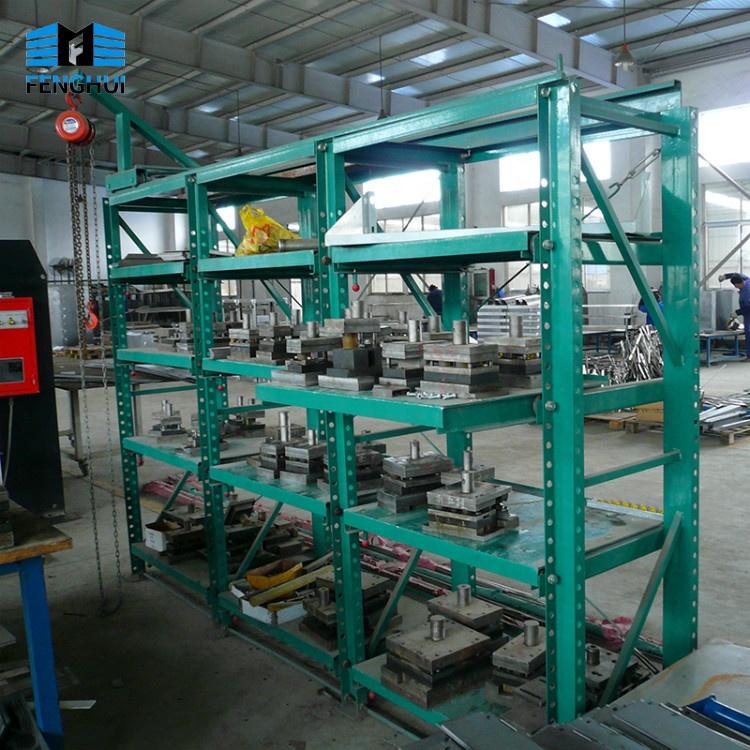

product photo

FAQ

1. What is your packing terms?Usually, we pack our goods in neutral white boxes and brown cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letter.2. What is your payment terms?T/T 30% as deposit, 70% before delivery. We will show you the photos of the products and packages before you pay the balance.3. What is your terms of delivery?EXW, FOB, CFR, CIF, etc.4. How about your delivery time?The specific delivery time depends on the items and quantity of your order.
