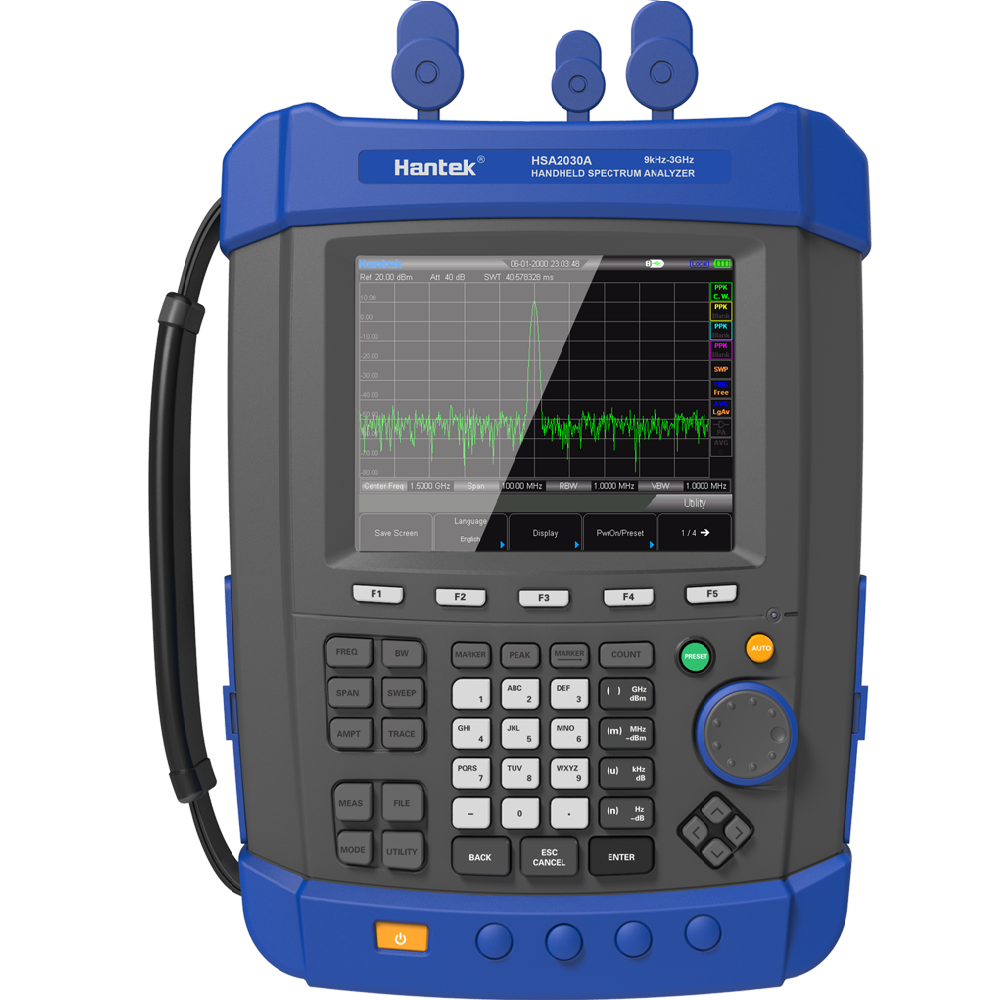

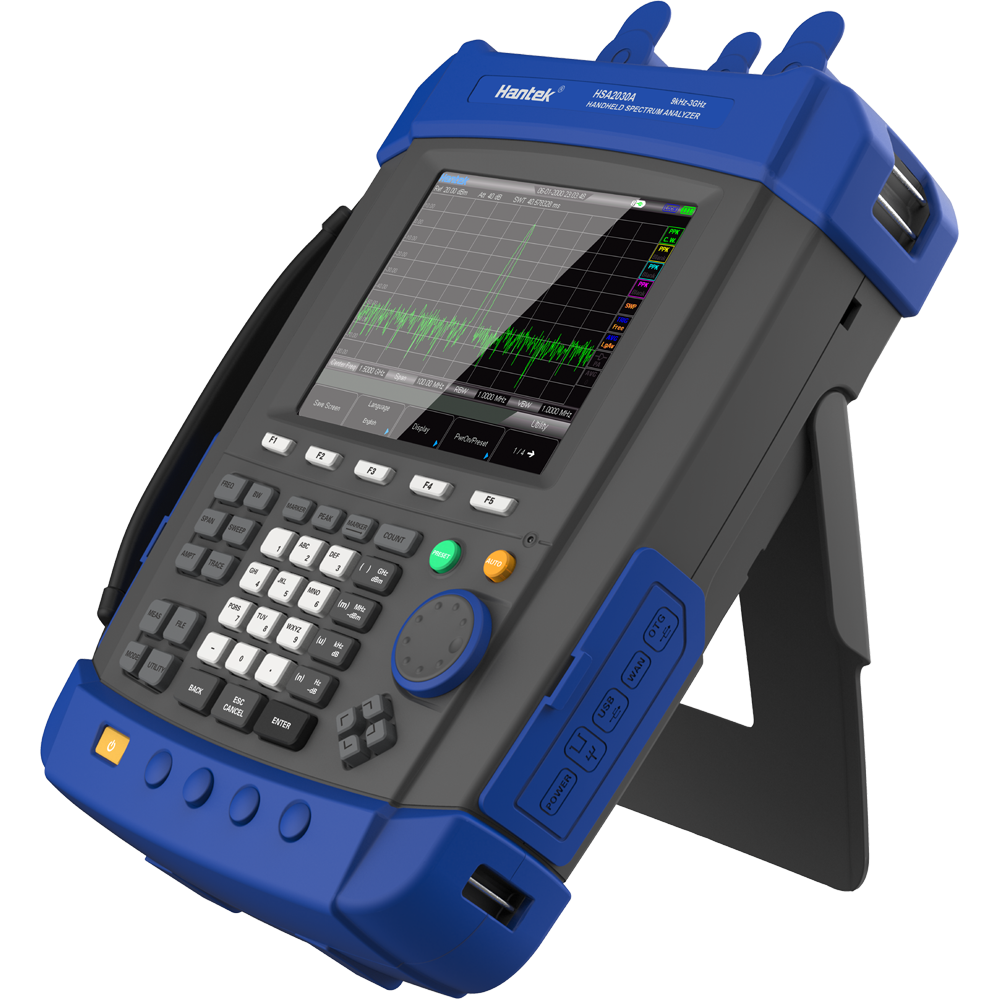

Hantek HSA2030A Handheld Digital Spectrum Analyzer Portable Field Strength Meter 9kHZ 3.2GHZ AC Coupled USB Interface

HSA2030 series

Frequency range: 9KHz~3.2GHz; best sensitivity: -161dBm; RBW: 10Hz to 1MHz. High-protection portable design, sturdy and durable, can be used in the laboratory, more suitable for field mobile use Built-in large-capacity lithium battery, can work for more than 4 hours. 18650 rechargeable battery. USB/LAN communication, convenient for remote control. 5.6-inch bright color display, 640*480 resolution, clear waveform display.

feature

· Frequency range: 9KHz-3.2GHz (adjustable to 9KHz) AC coupling

Best Sensitivity: -161dBm RBW: 10Hz to 1MHz

· IP-51 high protection portable design, sturdy and durable, can be used in the laboratory, more suitable for mobile use in the field.

·Built-in large-capacity lithium battery, can work continuously for more than 4 hours. 18650 rechargeable battery.

· 5.6-inch bright color display, 640*480 resolution, clear waveform display.

· HSA2000 series spectrum analyzer has the lowest DANL and SSB phase noise and the narrowest RBW. Greatly enhanced the ability to identify stray signals and noise signals.

· Optional FM/AM modulation analysis including carrier power, modulation rate, AM depth/FM deviation, SINAD and carrier frequency offset.

• Standard spectral characteristics. It can analyze the signal time stability and accurately find out the cavity signal in the communication system.

· Powerful field strength test function, suitable for testing transmitters, base stations, and antenna coverage sites. It can display field strength or power density. Users can also use the amplitude offset function to calibrate gain or loss.

· HAS2000 series has the least RBW among analyzers of the same level, and can easily confirm, distinguish and measure two similar signals.

· 5.7-inch high-brightness color display, accurate, bright and clear internal and external tracks, no need to move to a shading place for work.

· Short scanning time. It quickly captures data and helps locate and identify irregular transient disturbance signals, optimizing test time and accuracy.

· Adopt advanced built-in battery management system. The standard configuration is a large-capacity 7800mAh lithium battery, supporting 6 18650 battery packs, which can ensure more than 4 hours of on-site measurement work.

· Sturdy and compact mechanical structure, tightly sealed with rubber sleeves, suitable for harsh on-site working environments.

· Integrated USB Host & Device, support U disk storage, optional WIFI/LAN, convenient for networking and remote control.

· The upper computer software can realize the management and storage of test data.

· HSA2000 series field measurement application.
