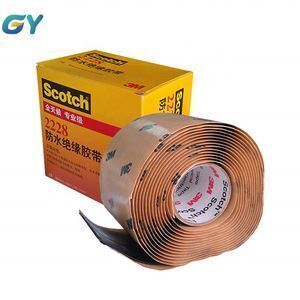

3M Brand Original 2228 Professional PVC Adhesive Electric Insulation Seal Tape Wholesale Waterproof Indoor and Outdoor

Product details
Material:PVC;Supply Ability:1000 Roll/Rolls per Week;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Adhesive Type:Pressure Sensitive;
Feature:Heat-Resistant;Model Number:2228;
Color:Black;Usage:Masking;
Brand Name:3M;Certification:SGS;
Packaging Detail:Standard Packing;Place of Origin:Guangdong China (Mainland);
Port:shenzhen;Adhesive:Silicone;

3M Brand Original 2228 Professional  PVC Adhesive Electric Insulation Seal Tape Wholesale Waterproof  Indoor and Outdoor





Waterproof  Rubber Tape 3M 2228 with good  performance  3M 2228



Color

 black

 Thickness

 1.65mm

 Tensile strength

 1.03N/mm

 Elonggation at break

 1000%

 Dielectric temperature

 Dry 19.7KV/mm



 Wet 19.7KV/mm

 Permittivity

 3.5

 Stickiness

To copper sheet 26.2N/10mm



To polyethylene 17.5N/10mm

 Melting point

Class 1 through

 Dieletric loss

1.0%

 Tempreture

90°C

 Hygroscopicity

 0.15%

 Hydrosphere searches rate

 0.1g/100in2/24hr

 Ozone resistance performance

 Pass

 Heat resistance

 Pass 130°C

 UV resistance

 Pass





3M 2228# waterproof electrical tape  - Product presentation:

3M 2228# waterproof insulation tape is self-melting, good form electrical insulation and waterproofing sealant tape. Its belt base is ethylene-propylene rubber. Surface coated with sticky relay strong, good thermal stability good adhesive.

It can be used in electrical insulation, waterproof and sealed and so on. Rated temperature 90°C, emergency overload temperature 130°C. Scotch 2228# tape provide waterproof sealed and fine ultraviolet protection to electrical circuits.



3M 2228# waterproof electrical tape - Product specification:

50.8mm (W)*3m (L)*1.65mm (D)/378.5g/roll;  50 rolls/0.042m³/carton

3M 2228# waterproof electrical tape - Product feature:

1, Good form to irregular surface

2, Good consistency with several of cable

3, Self-melting tape

4, Wide temperature scope

5, excellent resistance to climatic and sealing performance

6, excellent adhesive ability to copper, aluminum and cable sheath material

3M 2228# waterproof electrical tape - Applicable scope:

1, Used for waterproof for communication equipment such as base station, antenna, feeder double-quick

2, Aerial insulation wire connector waterproof seal protection

3, outside sheath of repair to cable connector and cable

4, Suitable for 1000 volts and the following main insulation recovery

5, Suitable for 1000 volts and below the insulation of the motor lead

6, below 35KV Lord Insulation of busbar row connection

7, Landlines waterproof seals
