usage: | ground cocoa beans | capacity: | 8 pounds |
brand: | catty | Mechanical test report: | if |
type: | cocoa bean grinder | Output product name: | chocolate |

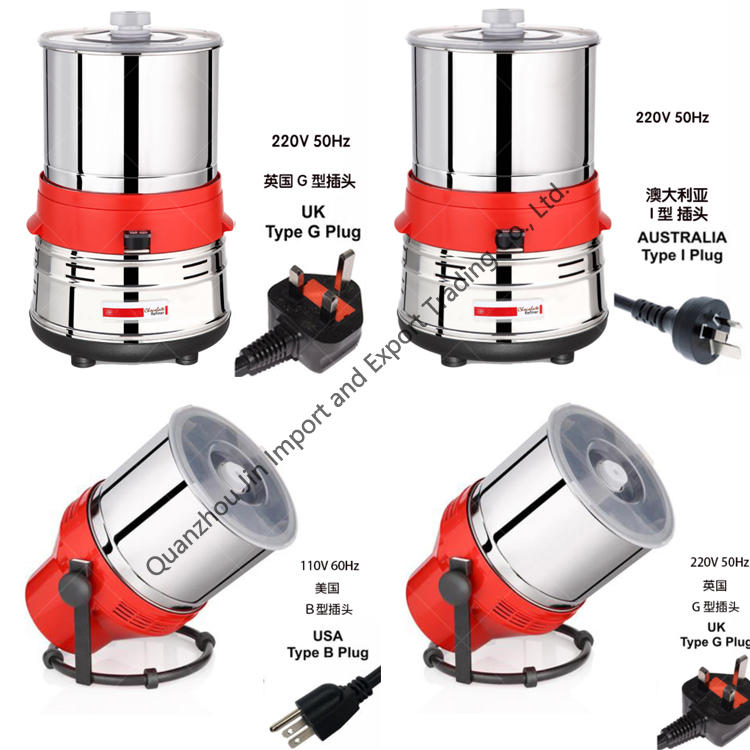

Voltage: | 220/110 | Applicable industries: | Hotels, manufacturing plants, food and beverage factories, farms, restaurants, households, food stores, food and beverage stores |
Dimensions (L*W*H): | 32*32*43 | Name: | Cocoa Bean Processing Machinery |
raw material: | cocoa beans cocoa beans | product name: | cocoa bean grinder |
Sales unit: | single product | Packaging Details: | safe |
application: | Nut processing machine | Core components: | engine |
Marketing Type: | normal product | Application fields: | Snack food factory, dairy factory, commercial catering, frozen food factory, fruit processing factory, vegetable processing factory, winery, edible oil factory, bakery, flour factory, beverage factory, canning factory, condiment factory |
strength: | 200 | Function: | abrasive material |
Warranty: | 1 year | weight: | 12 kg |
Local service locations: | France | Showroom location: | not any |
Core component warranty: | 1 year | Origin: | Alabama, USA |
Material: | stainless steel 304 | Video outbound inspection: | if |
Single pack size: | 33X33X48 cm | Gross weight per piece: | 15.000 kg |
Mechanical function: | chocolate | Health status: | new |
Product Description
country of origin: | us |
strength | 200W 110V, 60Hz or 220V, 50Hz |
size | ** |
weight | ** |
Material | 304SUS |
output | ** |
type | Grader |
suitable for | Fram |
color | custom made |
machine introduction

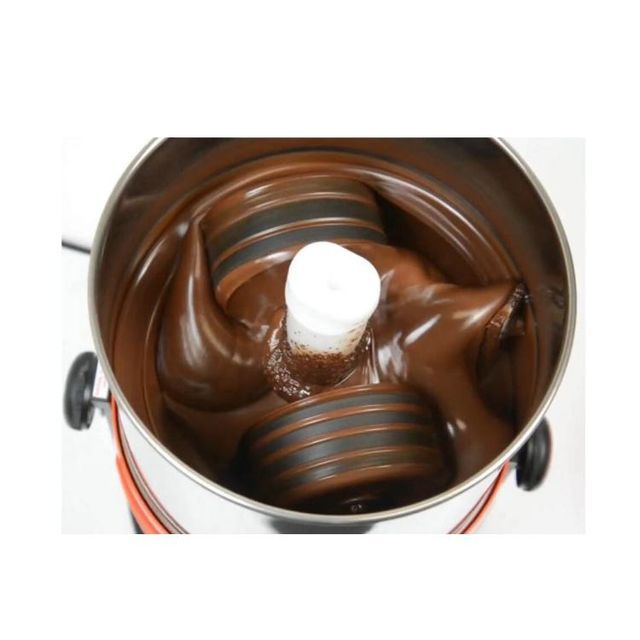

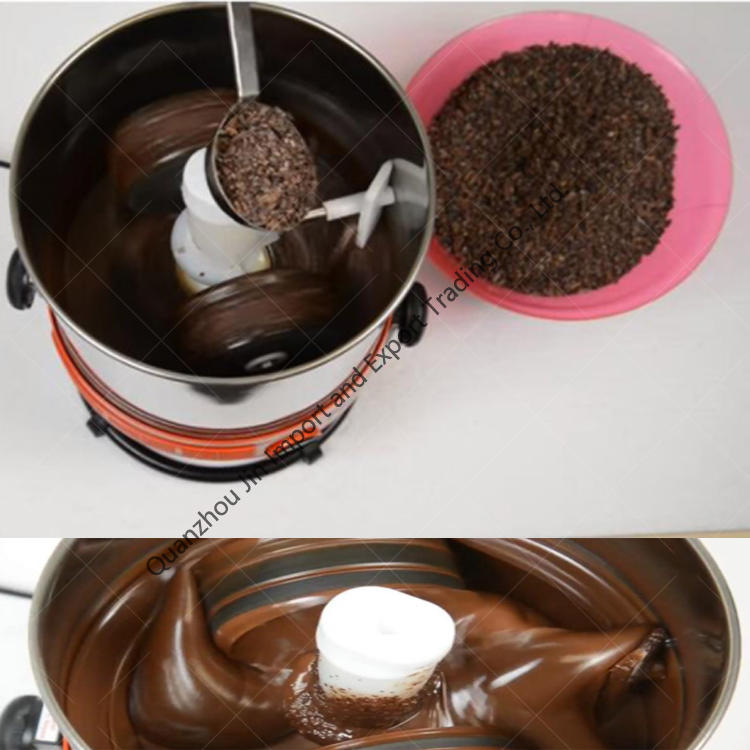

This conch is a low-impact countertop model designed for starting chocolate from cocoa beans and is preferred by chocolatiers. Low-impact fine grinding maximizes nutritional value while maintaining product shelf life. The machine uses two tumbled stones made from natural stone granite and has two deflectors instead of one. The dual deflector system allows for more efficient processing as it directs the mixture evenly below the stone wheel, reducing production time. The double deflection system also results in better aeration/conching, especially for chocolate making. The rugged motor is designed to withstand the stress of running chocolate 24/7/365.
Only all-natural, high-quality granite refines particle size to under 20 microns Superior cooling system prevents overheating Refined and elegant design Motor designed and tested for up to 72 hours of continuous operation Fully sealed and strong bearings - no sticking or Jamming thermal trigger and cut-off switch prevents overheating Easy to transport due to manageable size and weight. It can be checked on the flight as excess baggage. UL Listed and CE Listed Specifications: Capacity: 10 lbs max Drum Diameter: 9.5 inches (241 mm) Drum Height: 6.25 inches (159 mm) Stone Diameter: 4.125 inches (105 mm) Stone Width: 1.75 inches (45 mm) Available Voltage: 110V or 220V, 50 / 60 Hz Power: 200W Revolutions Per Minute (RPM): 120-140 Shipping Specifications: Box Dimensions: 13x13x19in/33x33x48cm Box Weight: 32lbs/15kg
