60A-2500A single pole conductor bus rail system direct from factory

Product details
model:KA125ASupply capacity:5000 meters per month
length:4.5m per piece or customizedapplication:Bridge crane, electric hoist
Rated current:60A-2500AMaterial:Aluminum, copper, galvanized steel
Packaging Details:Carton/wooden boxPackage preview:
Origin:Hebei chinaInsulation Materials:pvc
type:Power Buswayport:Tianjin
brand:cliftingConductor material:aluminum and steel
payment terms:Western Union, L/C, T/T
Product Description

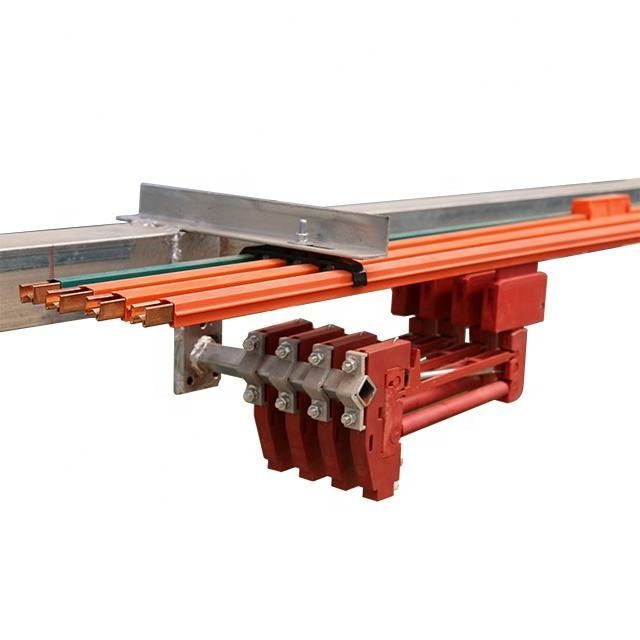

Overhead power aluminum busbar busbar system

Application field
1. Powering all kinds of cranes and electric hoists used in various industries: power plants, steel, industry, petroleum and chemical industries, automobile industry, ports, electroplating plants, shipbuilding, paper mills, textile mills, transportation systems, sugar and wine factories, cement plants, warehouses and material handling systems. 2. Provide power for some special equipment in robots, amusement parks, airports, bridges, studios, sewage treatment plants and other places.
advantage
1. Safe and reliable, waterproof and anti-fouling, in line with IP 23 requirements.
2. Save electricity, reduce waste, use international common conductive materials, and reduce voltage loss as much as possible. 3. Unique formula, longer service life. 4. The curved guide rod system can be selected according to specific working conditions. 5. Easy installation and daily maintenance, especially suitable for high-altitude operations. 6. It can be used in coastal, acidic and alkaline environments. 7. Deicing system in frozen area. 8. PVC and PPO guide strip sheaths can be adapted to different working conditions.

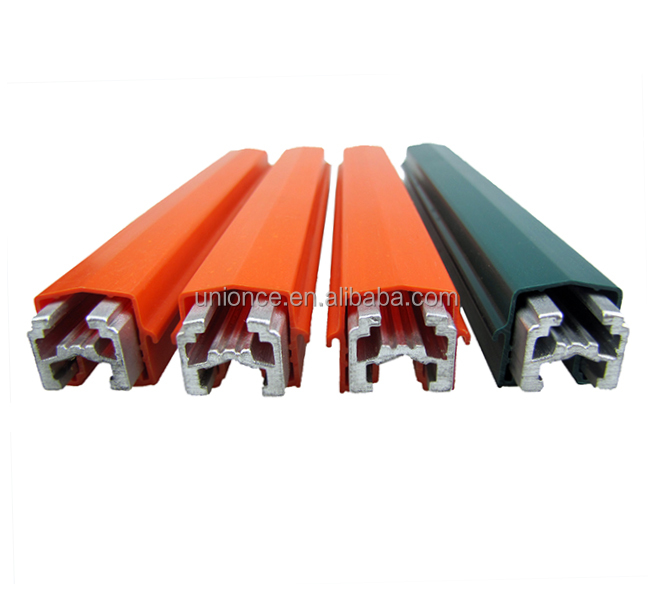

Aluminum Conductor Busbar
Conductor material
Rated current (A)
Cross-sectional area (mm2)
maximum voltage
exchange (v)
Maximum DC voltage (v)
Allowable temperature at full load (degrees)
Weight (kg)
model.
aluminum
200
104
550
700
25°C
15.2
1020001
KS 35/85-6
315
120
550
700
25°C
15.5
1031501
KS 35/90-6
400
157
550
700
25°C
15.8
1040001

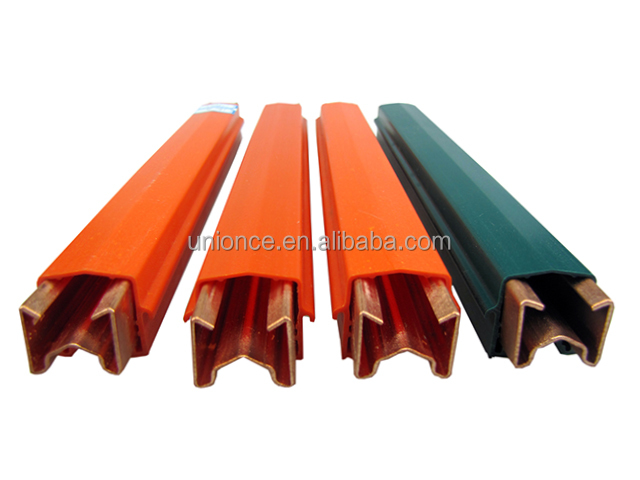

copper
160
50
550
700
25°C
2.76
3016001
KS 35/130-6
250
63
550
700
25°C
3.04
3025001
KS 35/170-6
400
93
550
700
25°C
4.40
3040001

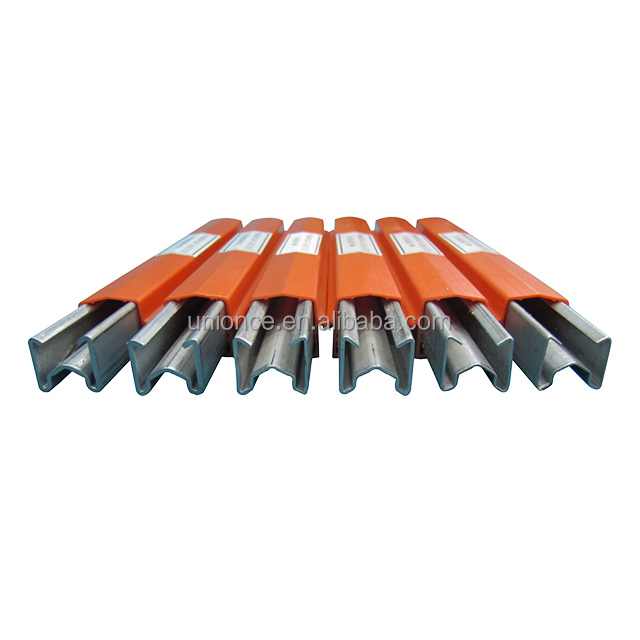

Galvanized steel
60
50
550
700
25°C
2.34
2006001
100
63
550
700
25°C
3.76
2010001
125
93
550
700
25°C
4.76
2012501
There are also unipolar aluminum conductors 630A 800 1250A 1600A 2000A 2500A to choose from.
For more details, welcome to contact us for catalog and price list.

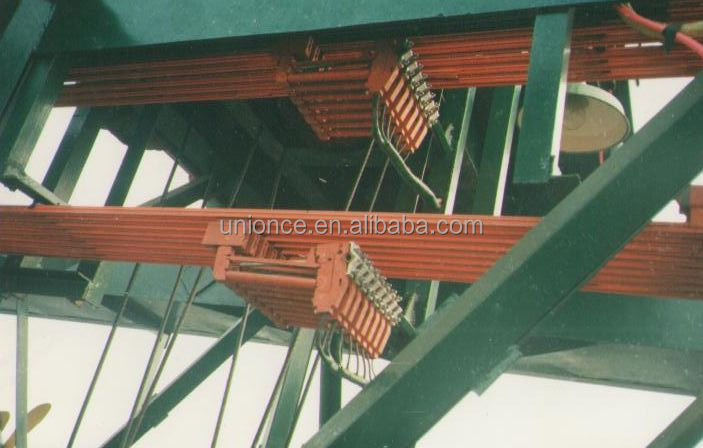

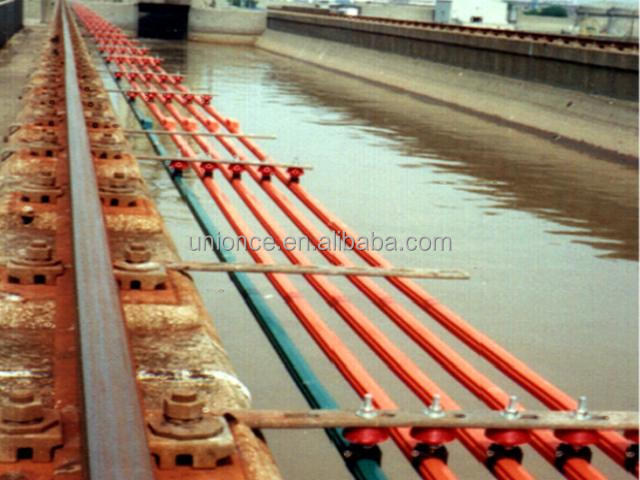

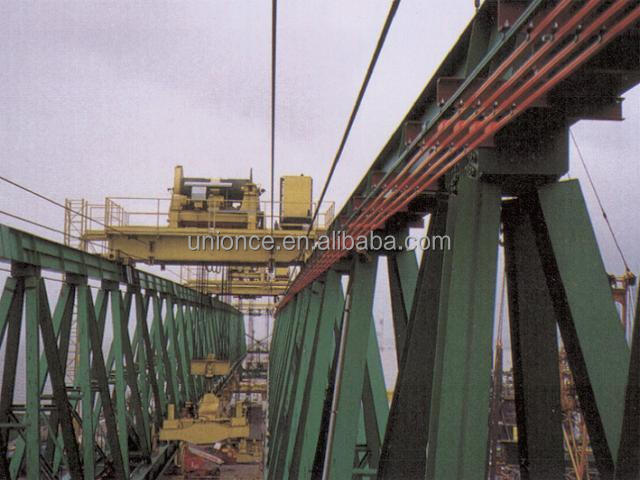

successful project
