CTO carbon block filter pre-water filter pre-carbon filter

Supplier: Shanghai Joann Water Tech Co., Ltd.
Region: Shanghai, China
Contact: Ms yue han
Price: $1.70 / >=15 pieces
Min. Order: 15 pieces

Click here to contact

Product details

Name:	filter	Origin:	China Shanghai
Package preview:		usage:	liquid filtration
Marketing Type:	Hot Products of 2022	Core components:	PP filter element
Weight (kg):	1	size:	accept customization
Video outbound inspection:	if	Function:	clean water
Warranty:	6 months	brand:	joan
application:	water filtration	Material:	Polypropylene
Core component warranty:	1 year	Supply capacity:	1000 pieces per day
payment terms:	Delivery, telegraphic transfer	Mechanical test report:	if
color:	white	Showroom location:	not any
Applicable industries:	Pretreatment of various pure water systems	type:	filter element
filter material:	polypropylene polypropylene	product name:	filter
Health status:	new	Packaging Details:	export carton

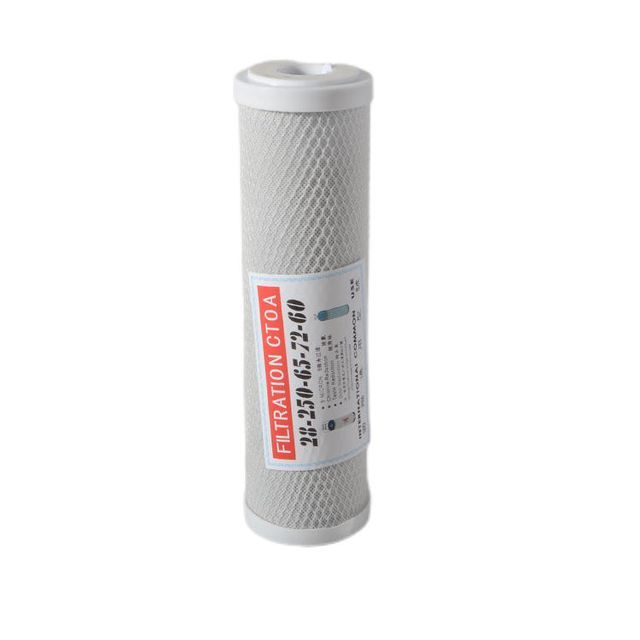

Compressed activated carbon filter

The core body adopts coal-based activated carbon with high adsorption value and coconut shell activated carbon as the filter material, and is sintered and molded with food-grade adhesive. The compressed activated carbon filter element is wrapped with a layer of non-woven fabric with filtering effect to ensure that the filter element itself will not drop carbon powder. The two ends of the carbon element are equipped with soft butadiene rubber gaskets, so that the filter element enters the filter cartridge with good sealing. . According to the needs of customers, the shell end cover can be made into different connection ports,

widely used:

Pure water, power wastewater, printed circuit boards, solvents, paints, detergents. Medical water, oral liquid, beverage, alcohol
Liquid filtration in other industries.

product name	Carbon Rod (CTO) Compressed Activated Carbon
Model	CTO-10T	CTO-20T
size	10" Outer Diameter: Φ65mm Inner Diameter: Φ30mm	20" Outer Diameter: Φ65mm Inner Diameter: Φ30mm
Package	380380270 including 25	380380520 with 15

Structural materials	Carbon materials: shell carbon (CB), GRADE A shell carbon (MAX), coconut shell carbon (CBC)
		Outer mesh material: polypropylene
		Internal frame and mesh material: polypropylene
		End Cap Material: Polypropylene
		Gasket Material: Polypropylene
size	Outer diameter: Φ65-114mm
		Inner diameter: Φ28, 30, 33mm
		Length: 2.5 to 50 inches
Filtration accuracy	10.00, 5.00, 1.00μm
at both ends of the connector	openings at both ends
Conditions of Use	PH value: 1-13
		Regular flow 1.32GPM
		Maximum working temperature≤80℃, ΔP≤0.10Mpa
		Maximum pressure difference 25°C, positive direction 110PSI
