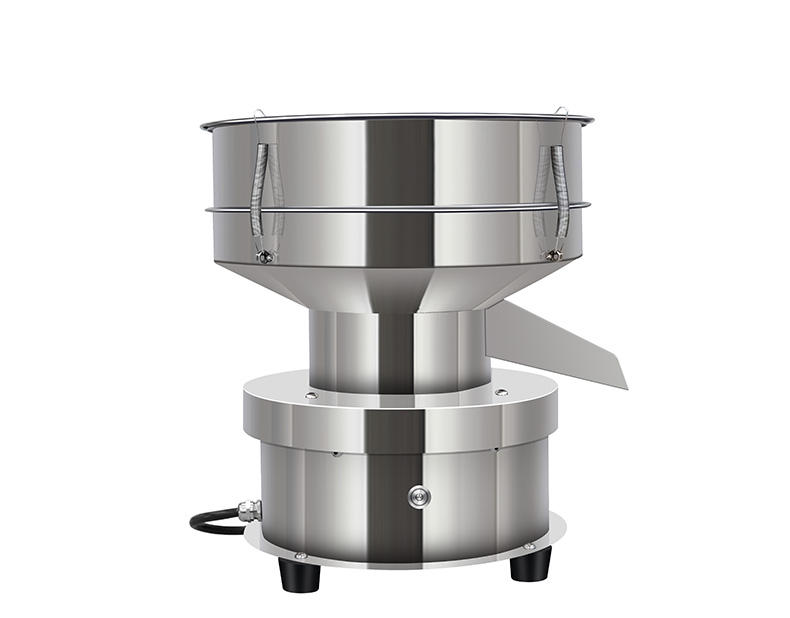

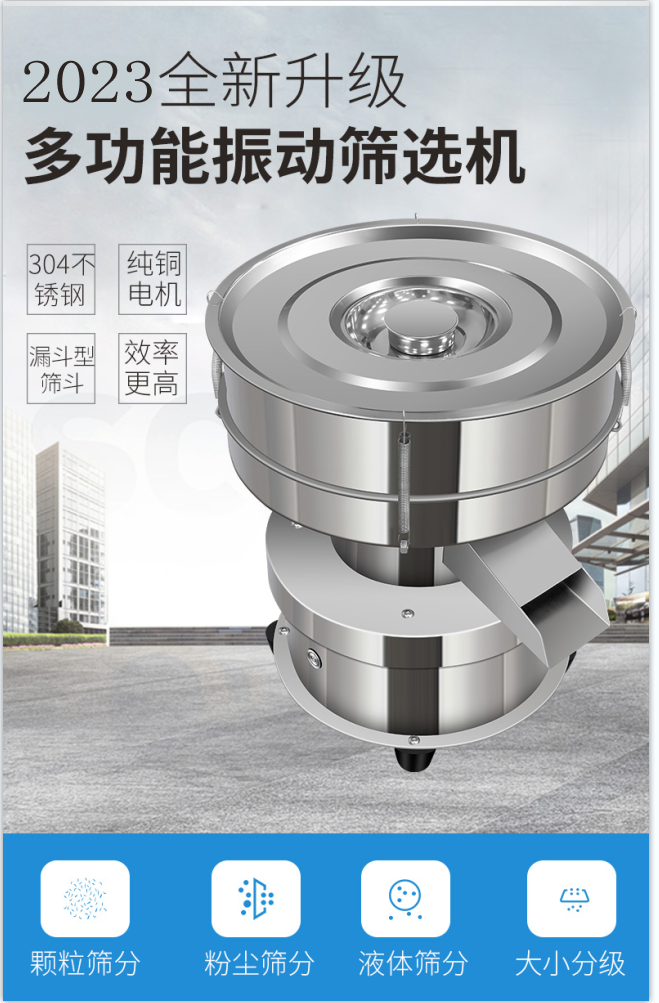

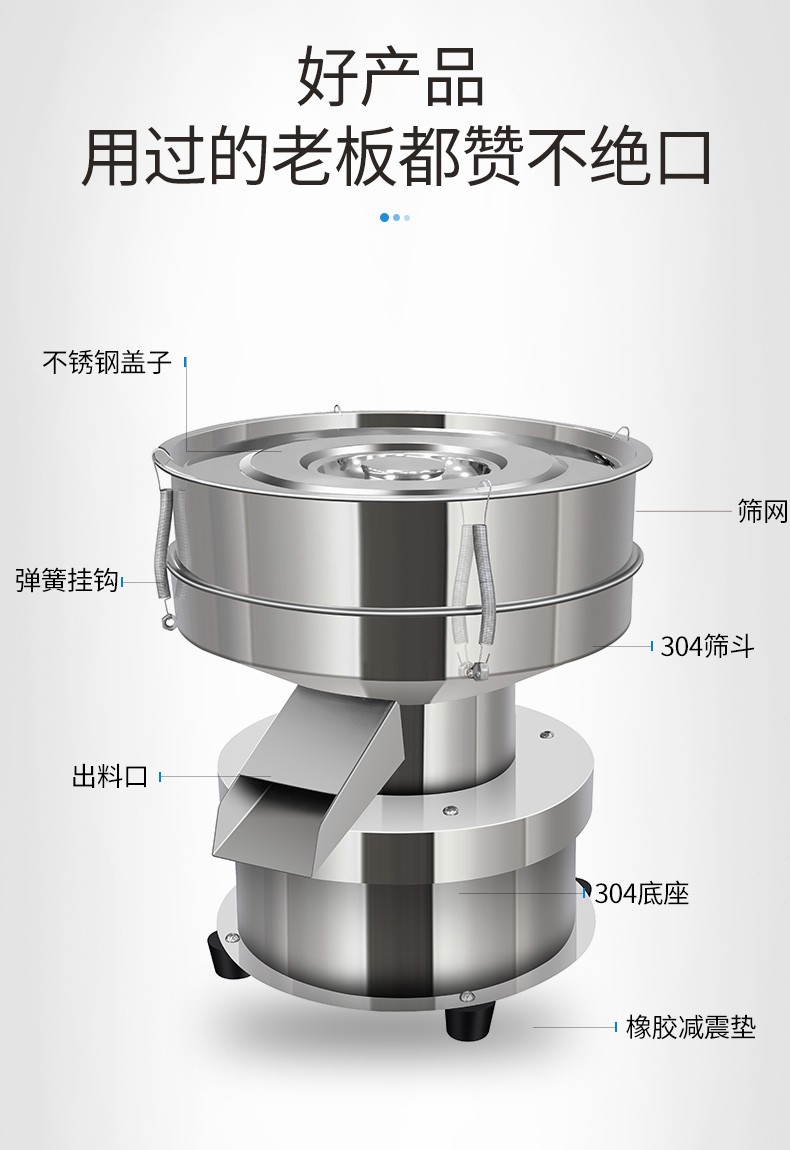

Factory powder vibrating sieve small stainless steel vibrating sieve electrostatic spraying powder flour sieving machine

Supplier: Xi'an Professional Electromechanical Technology Co., Ltd.
Region: Shaanxi, China
Contact: Mr Max Ma
Price: $119.00 / 1 - 9 sets
$99.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Core component warranty:	6 months	Marketing Type:	New products in 2023
Core components:	Engines, bearings, motors, gears, pumps	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Applicable industries:	Manufacturing plants, food and beverage factories, restaurants, household, food and beverage stores	Showroom location:	not any
Packaging Details:	wooden box	Video outbound inspection:	if
Package preview:		Mechanical test report:	if
Supply capacity:	500 sets per week	Dimensions (LWH):	300 140 390
Health status:	new	port:	Shanghai
Voltage:	220V/110V	Weight (kg):	15
Origin:	Fujian Province, China	product name:	Vibrating sieve powder
Production capacity:	200 kg/h	Warranty:	6 months
strength:	0.05 kW	brand:	PFSN
application:	screen	type:	Grain Processing Equipment
feature:	Stainless steel

Product Description

product information
Power 50W Voltage 220V/50HZ Screen bucket material 304 stainless steel Dimensions 300MM*320MM*390MM Vibration frequency
1350N/MIN screen size diameter 300MM discharge opening size 70*30MM discharge opening clearance from the ground 140MM substrate 304
Stainless steel

Applied to industry

Applicable industry chemical industry: closed oil, paint, industry, medicine, cosmetics, paint, food industry, such as: powdered sugar, starch, salt, rice flour, milk powder, soybean milk, egg powder, soy sauce, fruit juice and other metal aluminum powder, lead powder, Copper powder, ore smelting, alloy powder, electrode powder, manganese dioxide, gold, mining: electrolytic copper powder, magnetic material, polishing powder, refractory material, kaolin, lime, alumina heavy calcium carbonate, quartz sand and other industries: Degree of water, oil, printing and dyeing wastewater, papermaking, additives, active hair, etc.

Shopping NotesThe smaller the mesh, the larger the displayed material; the smaller the mesh, the larger the particle size of the material. The sieving particle size refers to the size of the particles passing through the sieve box, which is expressed by the mesh number in the sieve with a width of 1 inch (2.54CM), so it is called the mesh number.

net	Aperture (MM)	net	Aperture (MM)	net	Aperture (MM)
2 mesh	12.5	45 mesh	0.4	220 mesh	0.065
3 mesh	8	50 mesh	0.355	240 mesh	0.063
4 mesh	6	55 mesh	0.315	250 mesh	0.061
5 mesh	5	60 mesh	0.28	280 mesh	0.055
6 mesh	4	65 mesh	0.25	300 mesh	0.050
8 mesh	3	70 mesh	0.224	320 mesh	0.045
10 mesh	2	75 mesh	0.2	325 mesh	0.043
12 mesh	1.6	80 mesh	0.18	340 mesh	0.041
14 mesh	1.43	80 mesh	0.16	360 mesh	0.04
16 mesh	1.25	100 mesh	0.154	400 mesh	0.0385
18 mesh	1	110 mesh	0.15	500 mesh	0.0308
20 mesh	0.9	120 mesh	0.125	600 mesh	0.026
24 mesh	0.8	130 mesh	0.112	800 mesh	0.022
26 mesh	0.71	140 mesh	0.105	900 mesh	0.02
28 mesh	0.68	150 mesh	0.1	1000 mesh	0.015
30 mesh	0.6	160 mesh	0.096	1800 mesh	0.01
32 mesh	0.58	180 mesh	0.09	Year 2000	0.008
35 mesh	0.50	190 mesh	0.08	2300 mesh	0.005
40 mesh	0.45	200 mesh	0.074	2800 mesh	0.003
