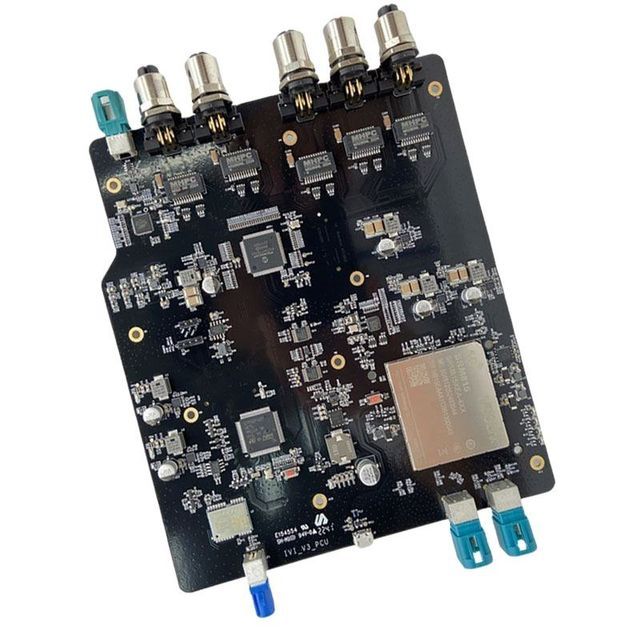

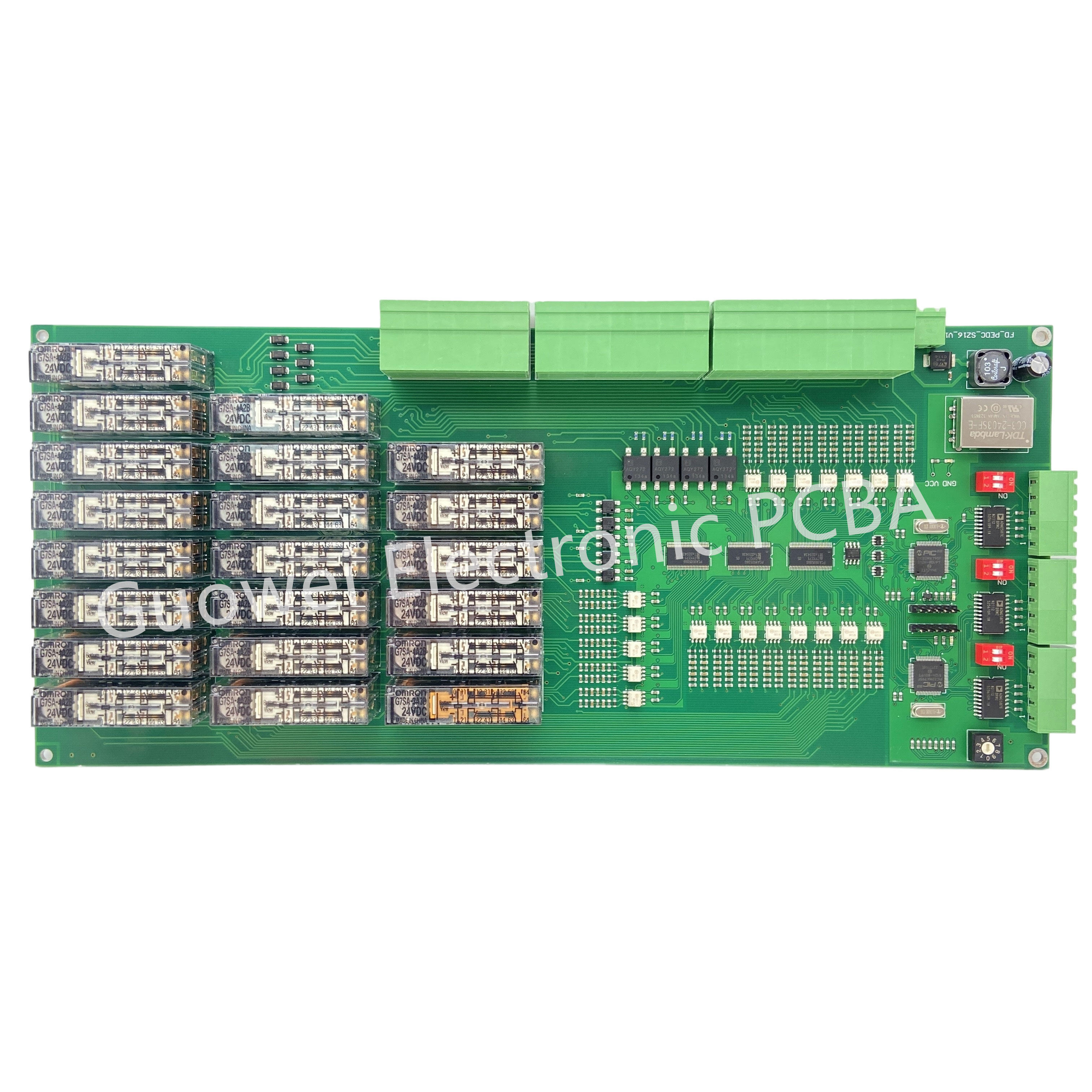

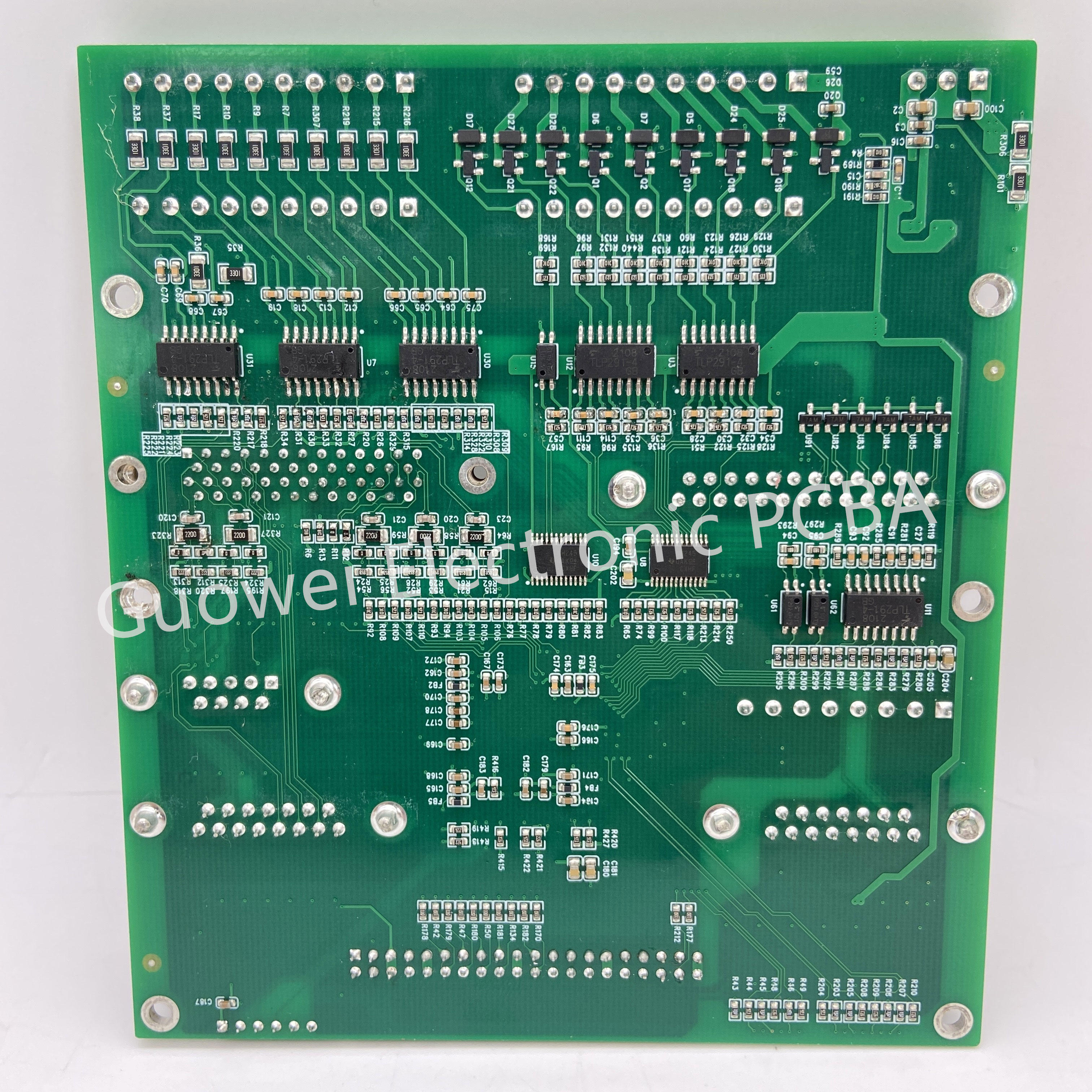

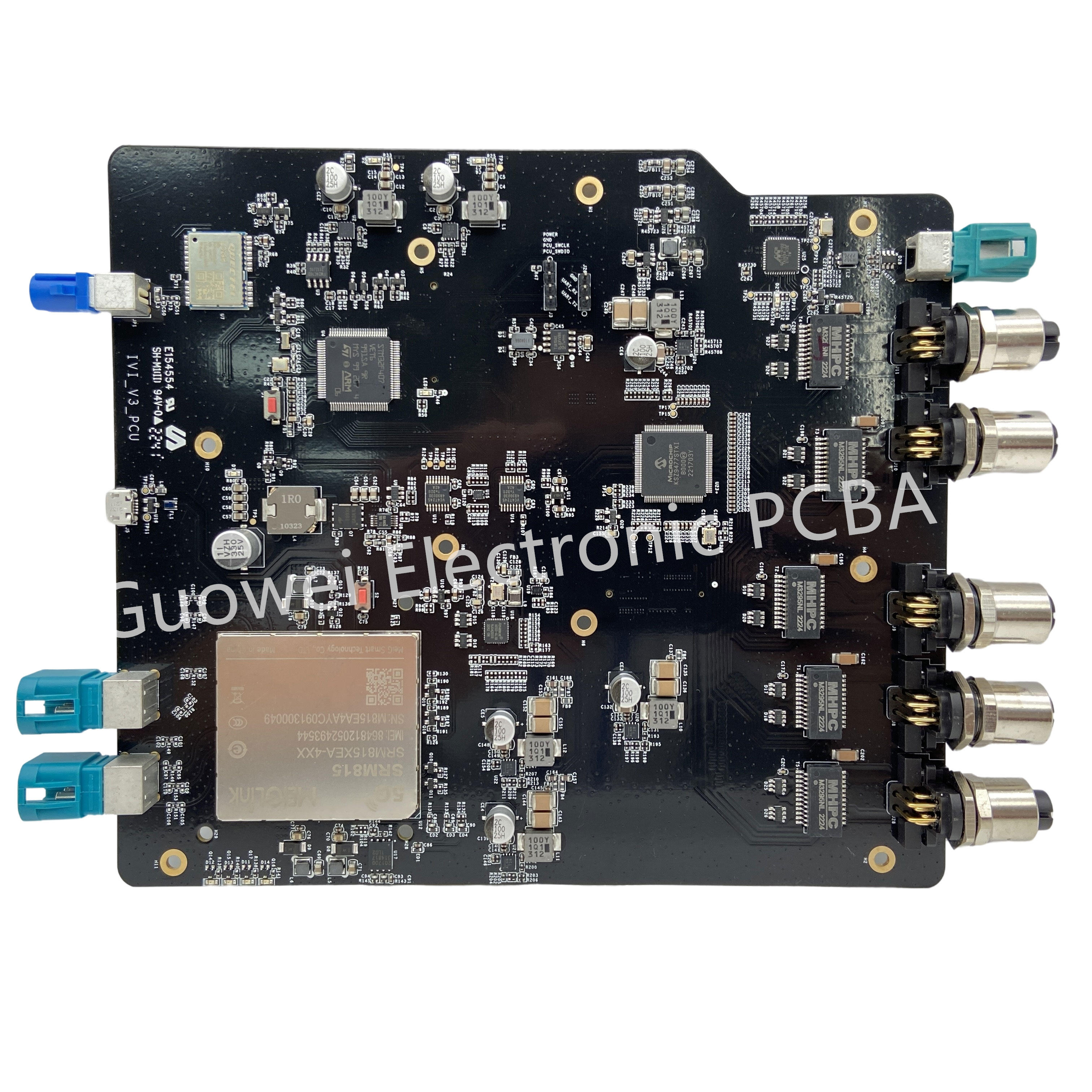

Free Shipping 6Sample OK Pcb Product New Energy One Stop Pcba Manufacturer
-
Supplier: Shenzhen Guowei Electronic Technology Development Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Sunny Yang -
Price: $3.00 / 1 - 99 pieces
$1.00 / 100 - 999 pieces
$0.50 / 1000 - 9999 pieces
$0.30 / >=10000 pieces -
Min. Order: 1 piece
Product details
| Package preview: | port: | Shenzhen | |
| application: | Telecommunications, medical, industrial, automotive, etc. | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| brand: | customizable | type: | Artificial Intelligence PCBA, Prototype Board-PCBA |
| model: | 2221206-customized | special requirements: | Blind vias + controllable impedance + BGA can be made |
| PCBA service: | One-stop turnkey PCBA service | pack: | Plastic anti-static bag |
| Installation type: | chip | Material: | FR4, TG170, FR4 TG180 |
| Packaging Details: | 1. First pack them piece by piece with anti-static bags. 2. Wrapped with air bubbles; 3. Packed into carton boxes or packed according to customer requirements | series: | Customized series |
| Certificate: | ISO/UL/RoHS | describe: | A printed circuit board |
| PCB assembly process: | dip. SMT PCB assembly | SMT efficiency: | BGA.QFP.SOP.QFN.PLCC.CHIP |
| Origin: | Guangdong, China | Dimensions/dimensions: | customizable |
| Solder mask color: | Black, red, yellow, white, blue, green | Test service: | AOI+100% electrical test |
| feature: | Fire protection class 4, highly customizable |
Product Description
Our PCBA service: Turnkey PCBA: PCB+components+SMT and through-hole assembly+housing molding and housing Our advantages: 1. Free programming and free functional testing, free packaging. 2. High quality: IPC-A-610E standard, E-test, X-ray, AOI test, QC, 100% functional test. 3. Professional services. ISO SMT and through-hole assembly, more than 10 years experience. 4. Electronic certification: UL, 94v-0, CE, SGS, FCC, RoHS, ISO9001:2008, ISO14001 5. PCBA warranty period: 2 years. PCB assembly manufacturing process: * program management PCB file → DCC → program organization → optimization → inspection * SMT management PCB loader → screen printing machine → inspection → SMD placement → inspection → air reflow → visual inspection → AOI → save *PCBA Management THT→soldering wave soldering (manual soldering)→visual inspection→ICT→flash→FCT→inspection→packaging→shipping
product name | Professional customized PCBA service, original price, 100% test quality |
surface mount line | 4 lines |
capacity | 8 million impressions per day |
board size | 680*550mm minimum 0.25*0.25 |
Minimum component size | 0201 - 54 mm² (0.84 in²), long connector, CSP, BGA, QFP |
speed | 0.15 seconds/chip, 0.7 seconds/QFP |
wave soldering | Maximum PCB width 450mm, minimum PCB width unlimited, component height top 120mm/bottom 15mm |
reflow soldering | Metal material copper aluminum, surface treatment gold-plated, silver-plated, tin-plated, air bag rate is less than 20% |
Crimp type | Pressure range 0-50KN, maximum PCB size 800*600mm |
Assembly type | Assembly Type, SMT and Through Hole |
Solder type | Water Soluble Solder Pastes, Leaded and Lead-Free |
file format | Bill of Materials, Gerber Files, Pick & Place Files |
Service type | Turnkey, Partial Turnkey or Consignment |
Component packaging | Tape cut, tube roll loosened, parts turnaround time: 1-15 days |
test | X-RAY inspection, AOI test, ICT, flying probe, burn-in, functional test |
Click here to tell us your FAQ requirements so we can provide solutions to save your budget and meet your needs!
