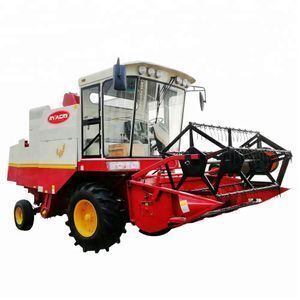

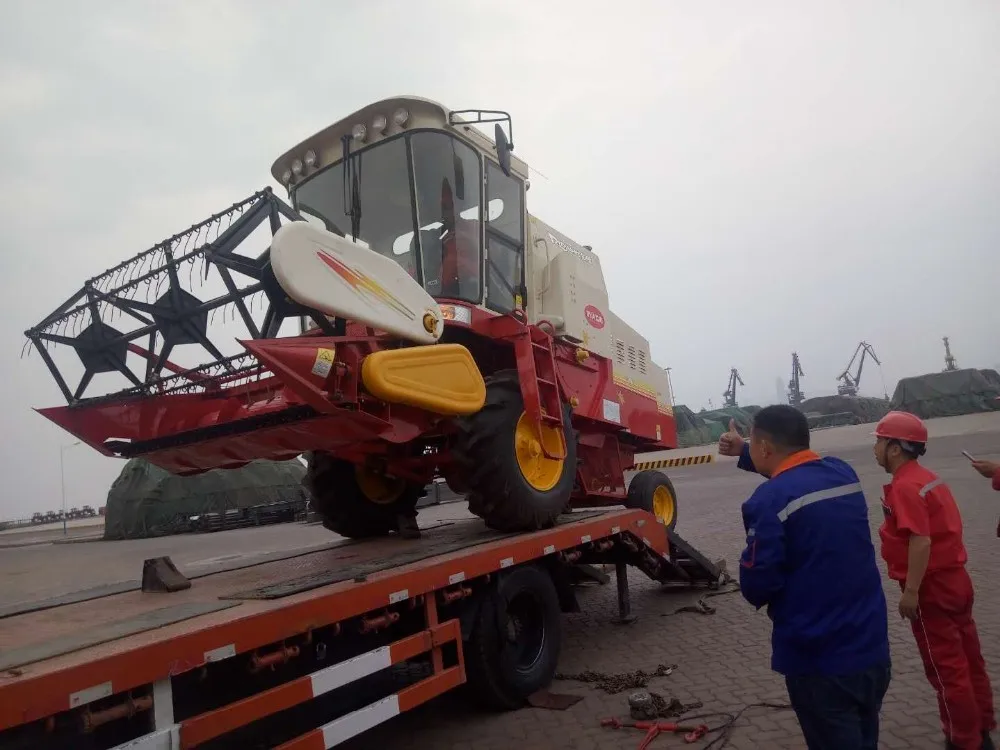

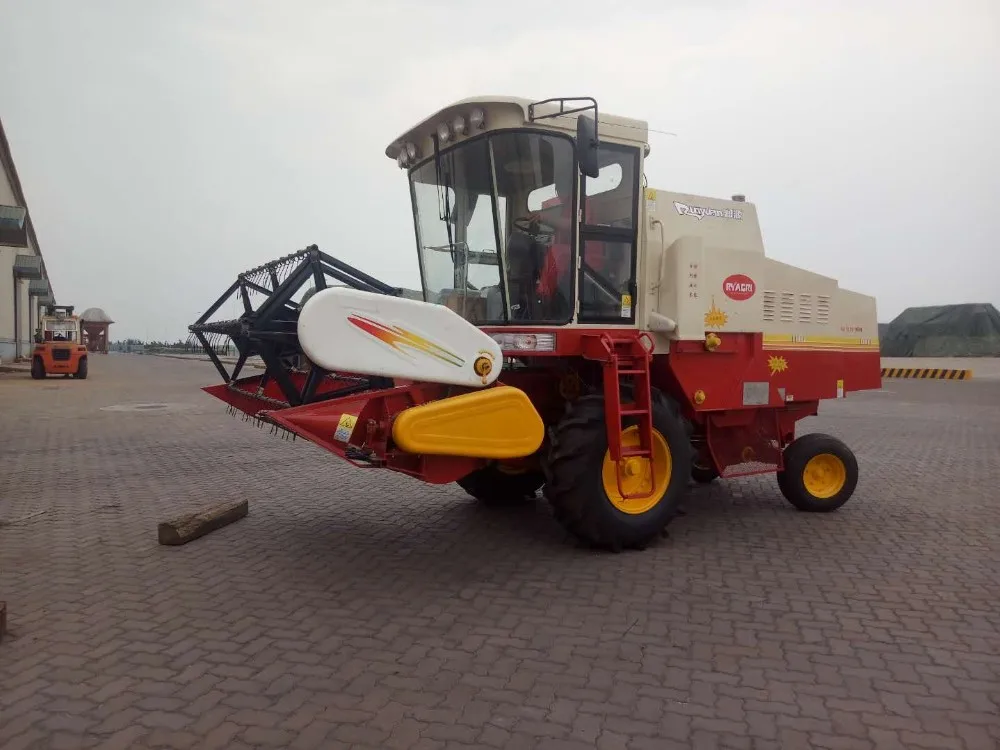

Self-Propelled small rice / wheat grain harvester for sale

Product details
Single package size:6840X3210X3260 cm;Package Preview:https://sc02.alicdn.com/kf/HTB1P5GhHhSYBuNjSspjq6x73VXaf.jpg_640x640.jpg;
Usage:Grain Harvester;Color:Red;
Certificate:ISO;Condition:New;
Dimension(L*W*H):6840*3210*3260;Package Type:container or bulk carrier;
Power:100hp;Drive Type:Gear Drive;
Selling Units:Single item;Cutting width (mm):2360;
Feeding amount:2.5kg/s;Type:Combine Harvester;
Warranty:One Year;Single gross weight:4,520 KG;
Brand Name:RUNYUAN;Place of Origin:China (Mainland);
Application:Grain Harvester;Weight:4520kg;
After-sales Service Provided:Engineers available to service machinery overseas;
Related Products

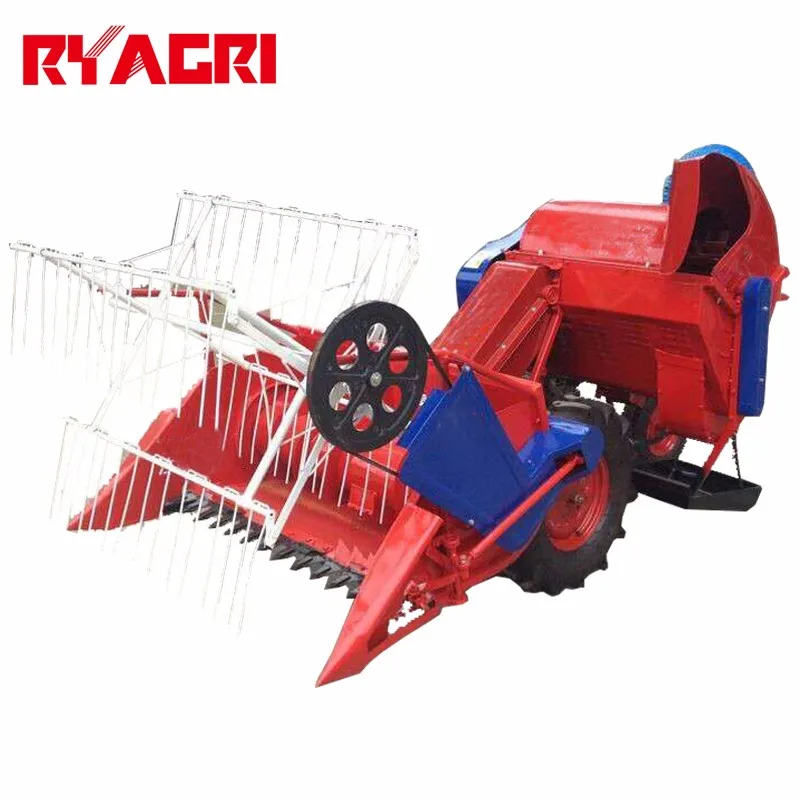

Factory prices mini rice combine harvester/wheat combine harvester

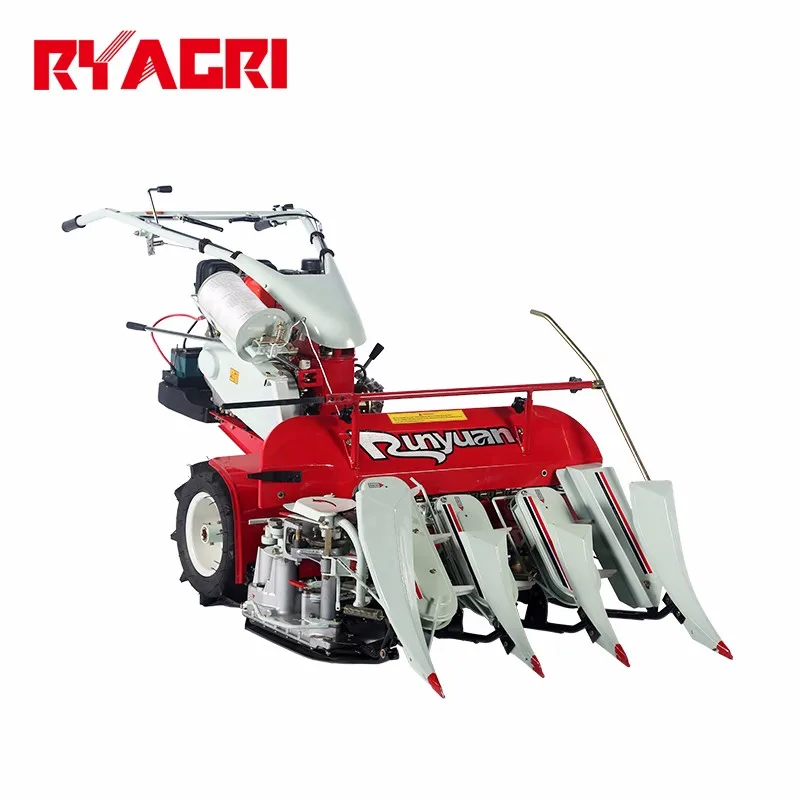

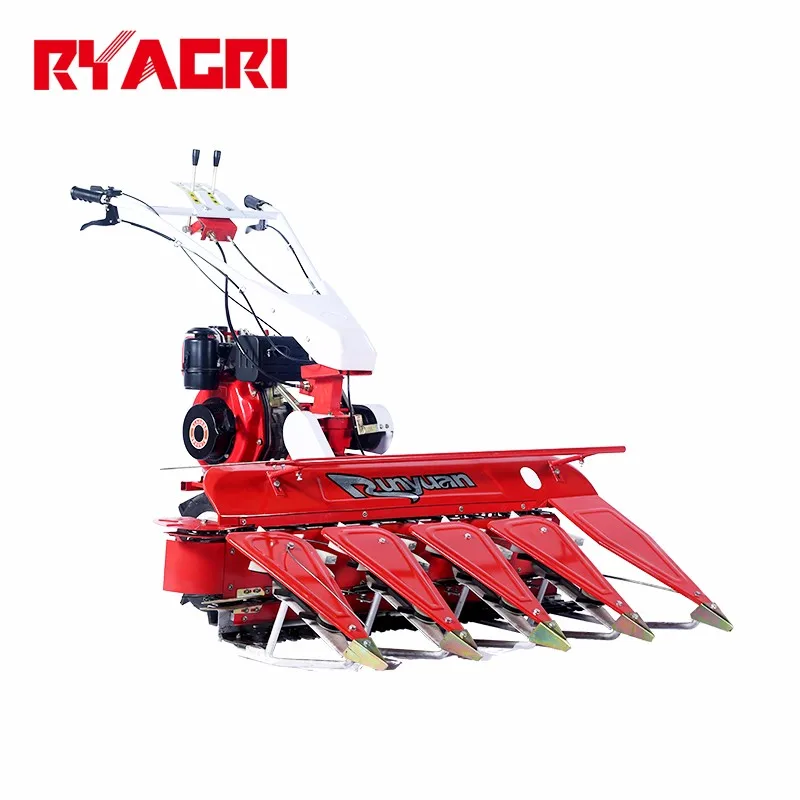

Wheat / rice / grass / sesame reaper binder machine for sale

Gear drive sesame / grass / soybean reaper binder machine price in China

Product Description

  Latest cab, the layout in the cab is more reasonable and the operation is more convenient

  Latest seat, comfortable and breathable

  Latest streamlined arc cover, beautiful shape of the vehicle, easy to open

  Optimize the cleaning system, adjust the structure of the jig plate, reduce the movement resistance, and make the performance more reliable; adjust the lifting speed and improve the grain lifting capacity

  The fan uses a multi-blade fan to adjust the fan drive structure, the wind speed is uniform, and the cleaning effect is good

New vertical hydraulic unloading structure, high unloading grain, reliable performance.
  Optimize the threshing system, adopt a new type of reinforced roller shaft, reduce the failure rate, and strengthen a type of agitation shaft to reduce the failure rate.
★  Configuration of a new centralized refueling device makes it more convenient to add fuel to each part of the bearing.
  Optimize the electrical system, equipped with electronic throttle, more flexible and convenient to operate; using new combination meter, features more abundant.
  The use of State III emission superior engines has strong power and reliable performance.
  The use of a new type of left and right arrangement of tanks, cooling effect.
★  Configuration of new brakes, with rear brake, better braking effect.
  Optional 2.5 or 2.36 meters header, more efficient harvesting.
  The new type of hooking header bridge, easy to install and remove.
  After swapping special headers, corn and grains can be harvested.
  Latest patented commutator.

Item
Unit
4LZ-2[2058]
Structure
/
wheeled self-propelled full feeding
Engine
Model No.
/
YC4A80T
Matched power
hp
100hp
Rated speed
r/min
2200
Overall Dimension(L*W*H)
mm
6740*2940*3260
Total weight
kg
4520
Cutting width
mm
2500
Feeding amount
kg/s
2.5
Min ground clearance
mm
250
Advancing speed during work
km/h
3.43-7.61
Working efficiency
hm²/h
0.5-0.9
Fuel consumption per unit area
kg/hm2
≦25
Reel
type
/
Eccentric Spring Toothed
diameter
mm
Φ1000
Quantity
pc
1
Dimension of the threshing cylinder
diameter*length
mm
550*1445
Fan type
type
/
centrifugal
diameter
mm
Φ442
Quantity
pc
1
Tyre Size
guide wheel
/
10-15
drive wheel
/
15-24
Min. Turning radius
mm
6100
6100
6200
6200
Gearbox type
/
gear (3+1)
Brake type
/
hydraulic
Grain tank volume
1.8
Loss ratio
%
wheat≤ 1.5 rice≤ 3.5
Crash ratio
%
≤ 2.0
Impurity rate
%
≤ 2.0
Unloading method
/
Screw mechanical self-unloading

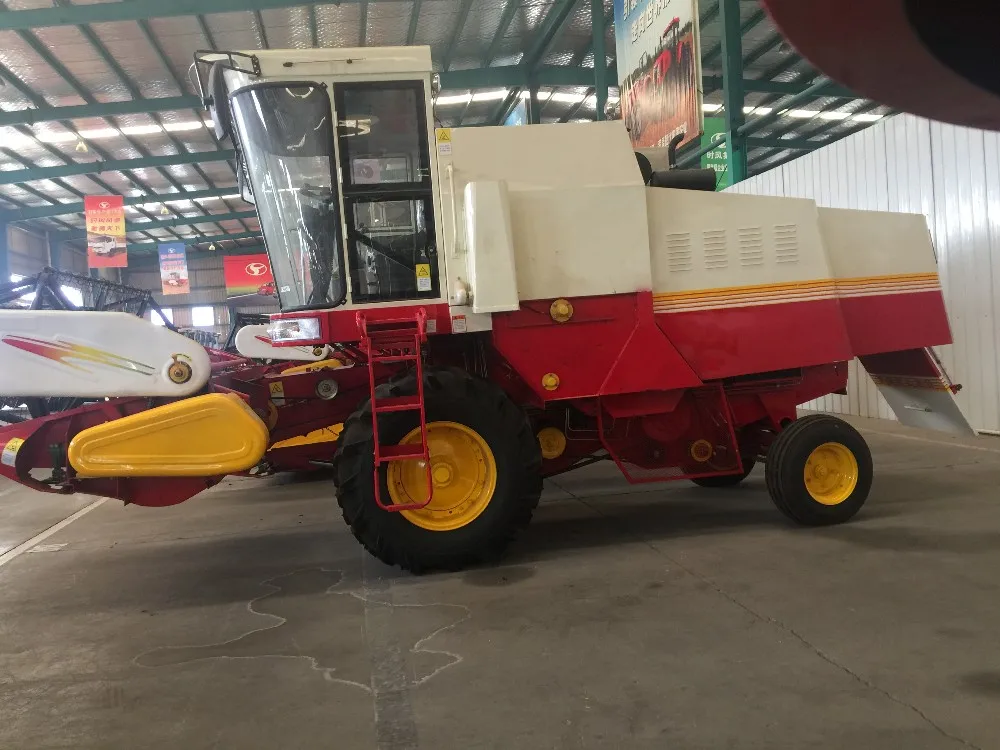

Detailed Images
New upgrade configuration

Upgrade synchronizer gearbox.


Widen the base frame, widen the screen box, widen the bottom case, and increase the cleaning system to make the selection more thorough

High position unloading grain



New vertical hydraulic unloading structure, high


unloading grain, reliable performance

Latest engine


Adopting national III emission engines with


powerful power and reliable performance

Water tank, brake, upgrade

Using a new type of left and right layout tanks, good cooling effect

New brake configuration, rear brake, better braking effect

Configure a new centralized refueling device, which is more convenient for oil filling in all parts

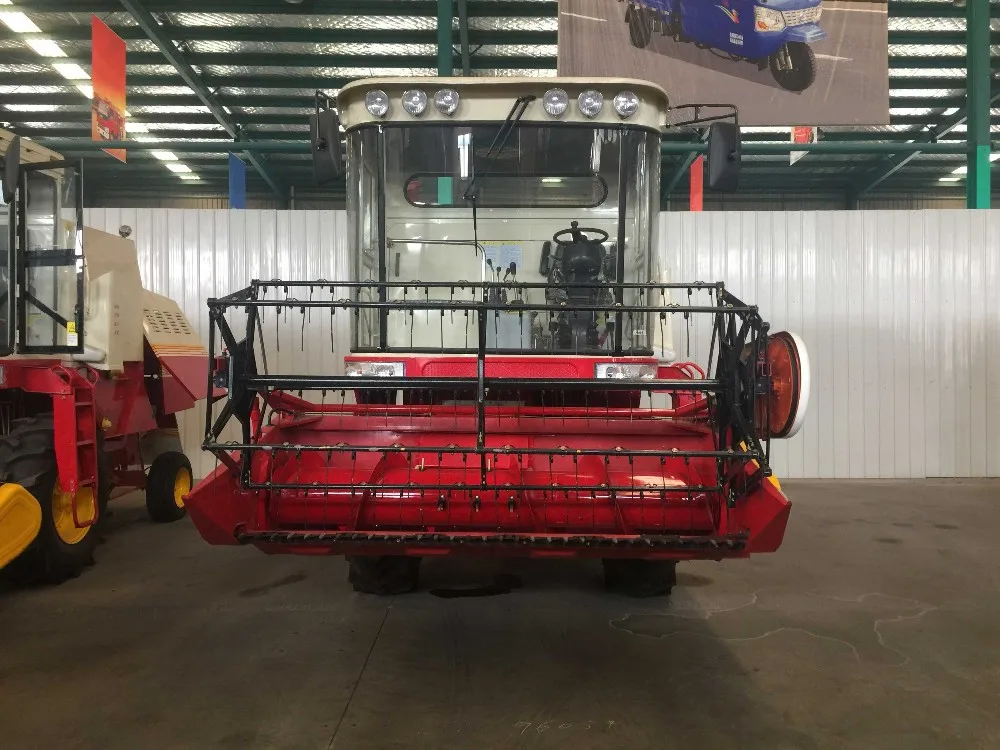

Optional Header

Optional 2.36 or 2.5 meter header.


With new shields, circular cabs and new luxury lamps, the models are modern, smooth and stylish.

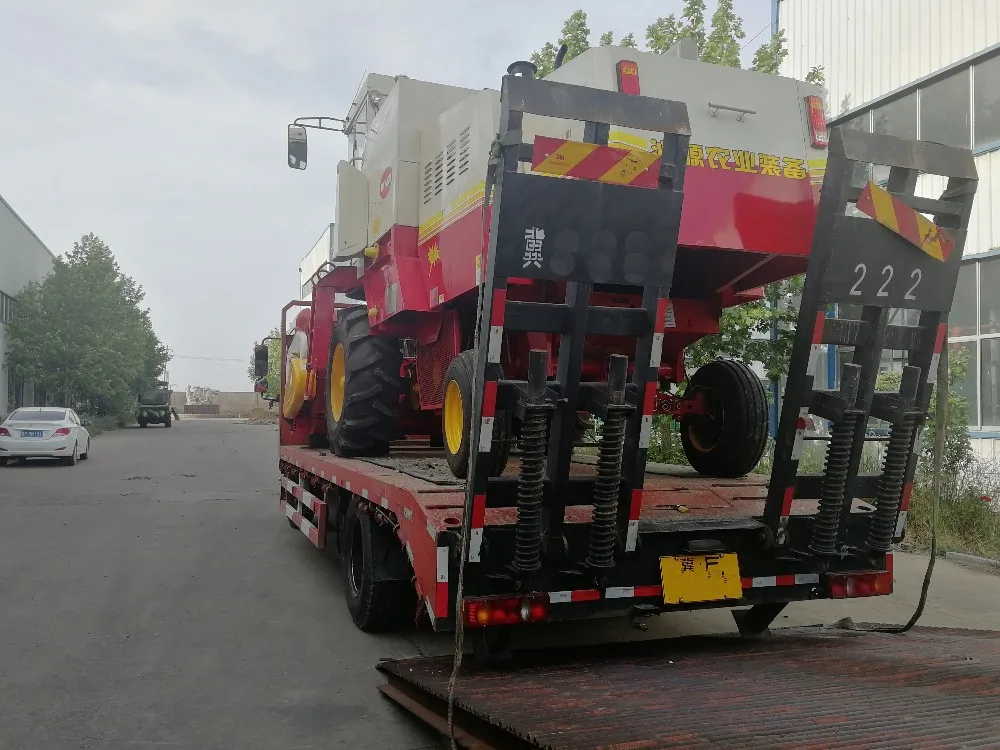

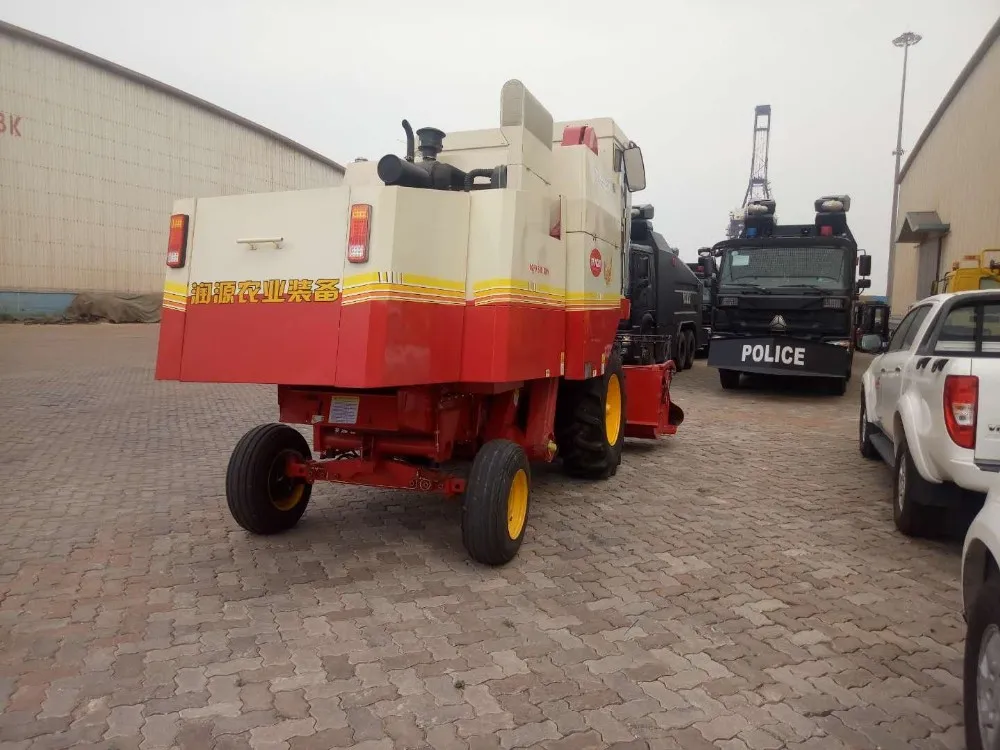

Packing & Delivery

Normal packing or According to your requirement.


Safe, complete and fast delivery of goods to customers

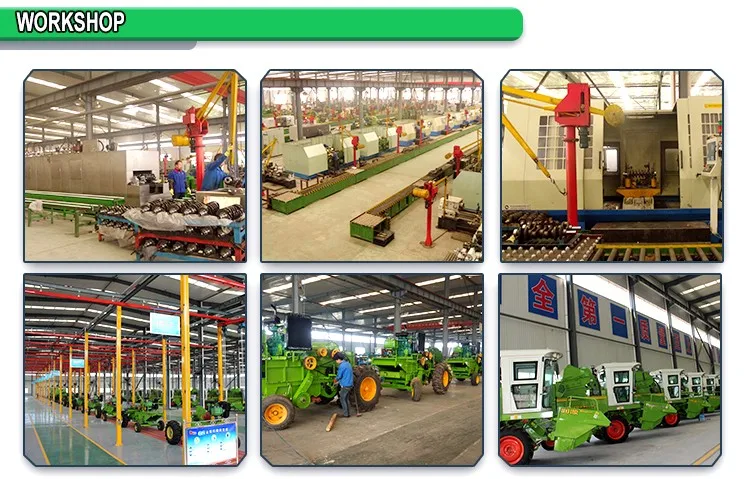

Production workshop

Automated production line

Safe and authoritative quality inspection system

Service team

RYAGRI :Let the agricultural machinery industry have no hard-to-do international trade business.

Our Company

@Established in 1986.
@ Passed ISO9001-2000 & 2008.
@ Supply OEM/ODM Manufacturing.
@ Our products such as Corn/wheat/rice combine harvester ,baler,seeder,tractor ,trailer,chaff cutter,water pump,spreader,sprayer,Mower,thresher.
