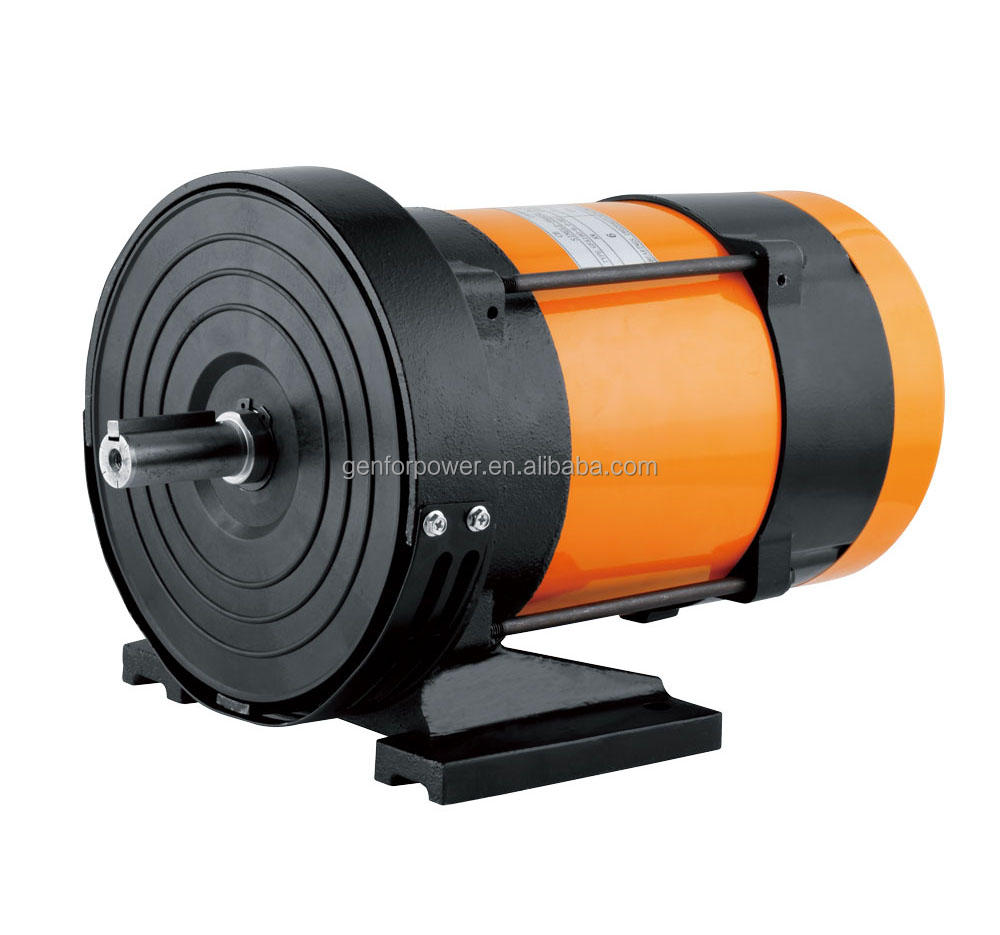

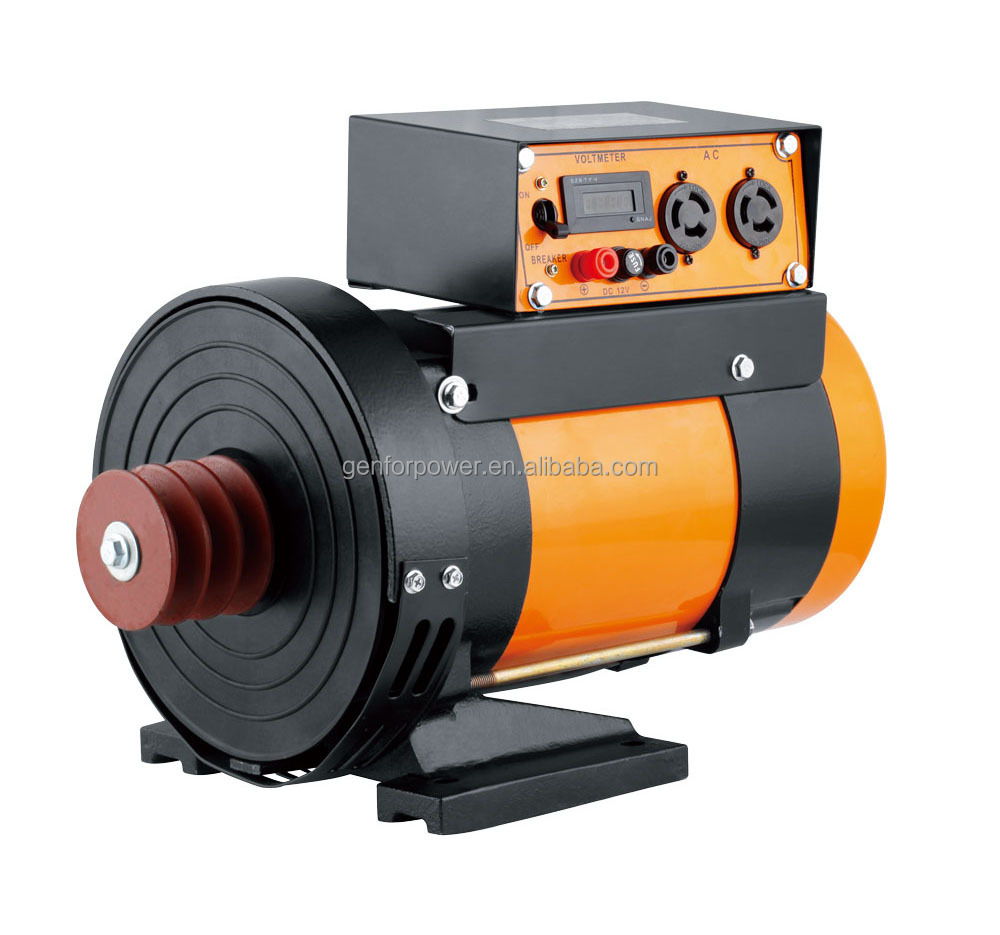

High quality generator 100% copper wire alternator with AVR

Supplier: Fuan Genfor Power Equipment Co., Ltd.
Region: Fujian, China
Contact: Ms GENFOR POWER
Price: $109.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Generator optional:	DC 12V/8.3A	Certification:	CE, ISO, TUV
payment terms:	L/C, T/T	product name:	alternator
MOQ:	50	Supply capacity:	1000 pieces per month
color:	Elective	AC maximum output power:	4.5-7.5KW
frequency:	50/60 Hz	AC rated output power:	4.0-7.0KW
port:	Fuzhou, Fujian, China.	Warranty:	1 year, 3 months-1 year
stage:	1/3 phase	Packaging Details:	Packed in strong carton
brand:	Zhengfu	model:	GFA190 B3 brush series
Origin:	Fujian Province, China	AC voltage:	110-400V

Product Description

thing	GFA190 B3 series
AC rated output power	4.0-7.0KW
Maximum AC output power	4.5-7.5KW
frequency	50/60 Hz
Voltage	110V-400V (on request)
power factor	1.0

Alternator/Generator

Insulation class: CL.F (△T≤130K)
Power factor: CosΦ=1 (single phase);
Rated voltage: 110, 115, 120, 220, 230, 240, 110/220, 115/230, 120/240V
DC output: 12V/8.3A (optional)

Excitation Type: Brushless
Remarks: The above dimensions are based on Honda engine GX160/GX390

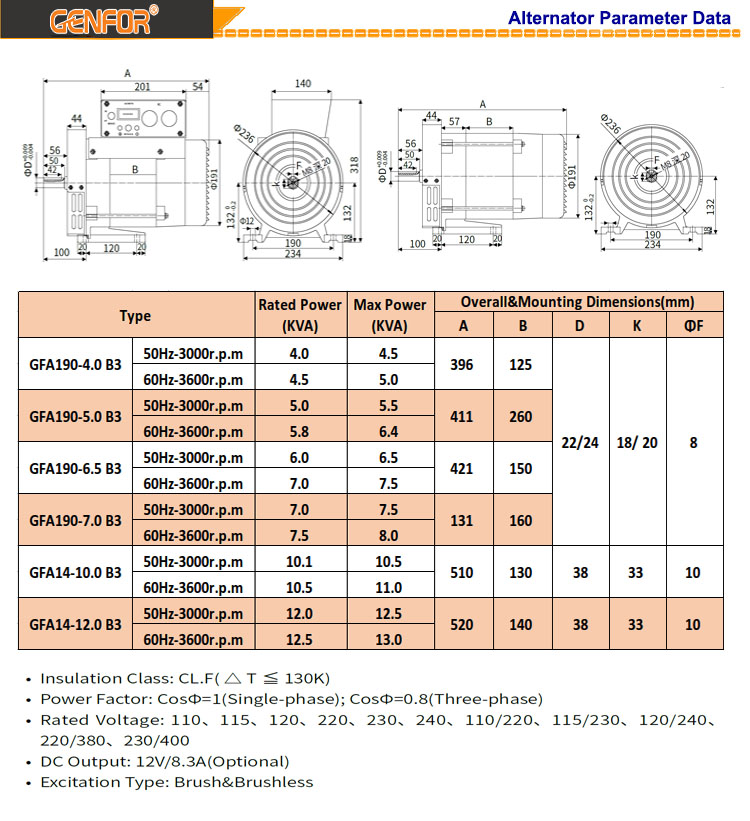

Specification
