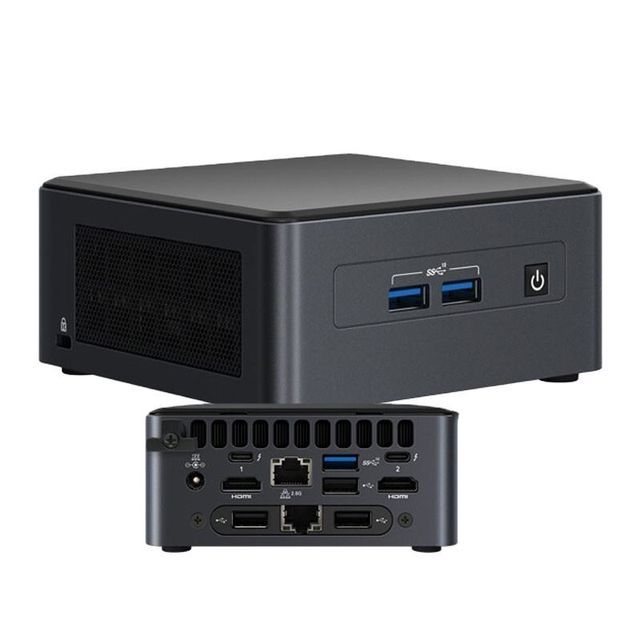

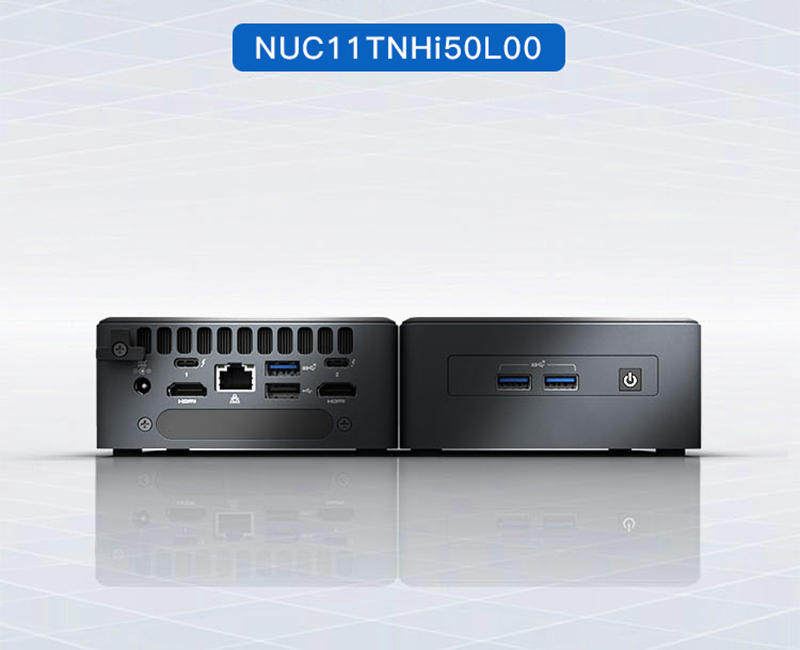

Intel NUC11TNHi50L00 i5-1135G7 4 Core Mini PC Win 10 28W Intel Iris XE Graphics Dual Ethernet Mini Desktop PC

Supplier: Shenzhen Haoxiang Nak Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Eric Jiang
Price: $380.00 / 1 - 49 sets
$365.00 / 50 - 99 sets
$340.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

SSD:	1SATA3 1M.2 2280 1*M.2 2242	Supply capacity:	10000 sets per month
operating system:	Windows 10	Graphics Chipset:	Comprehensive card
Package preview:		After-sales service:	Returns and Exchanges
Video memory:	8MB	product name:	NUC11TNHi50L00
port:	Shenzhen, Hong Kong	Packaging Details:	retail packaging, original packaging
strength:	40	graphics card:	Intel Iris Xe Graphics
Mouse and keyboard:	No	type:	desktop office mini computer
product status:	new	HDD speed:	7200 rpm
Key words:	Win10 Mini PC	use:	business use
Memory:	DDR4 3200MHz slot*2	size:	11711254 mm
brand:	Intel	Video memory type:	GDDR4
model:	NUC11TNHi50L00	Warranty period (years):	3 years
Hard disk type:	SSD	Show ports:	2*HDMI2.0b
CPU:	Core i5 1135G7	operating system:	WIN10 / WIN11
Processor family:	Intel Core i5	Processor Core:	quad core
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Origin:	Guangdong, China
Processor type:	Intel Core i5	Private Mold:	No

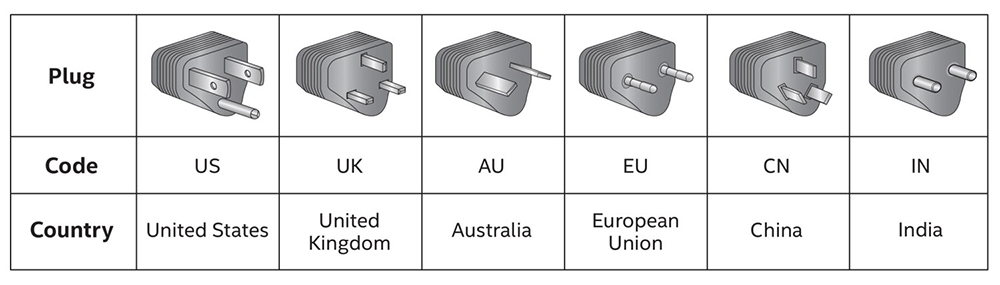

Wifi:	Intel AX201 vPro	Plug type:	US, China, Australia, UK, EU
Memory type:	DDR4

Product Description

Product Series	Intel® NUC Kits with 11th Generation Intel® Core™ Processors
code name	Previous productTiger Canyon
Supported OS	Windows 11 Home, Windows 11 Pro, Windows 10 Home, 64-bit, Windows 10 IoT Enterprise, Windows 10 Pro, 64-bit, Red Hat Linux, Ubuntu 20.04 LTS*
Board Dimensions	UCFF (4" x 4")
Internal Drive Dimensions	M.2 and 2.5" drives
TDP	28 watts
Support DC input voltage	12-20 VDC
contains processor	Intel® Core™ i5-1135G7 Processor (8M Cache, up to 4.20 GHz)
Total number of cores	4
total number of threads	8
Photolithography	10 nm Super Fin
Max turbo frequency	4.20GHz
warranty period	3 years
Maximum memory size (depends on memory type)	64GB
memory type	DDR4-3200 1.2V SO-DIMM
Maximum number of memory channels	2
Maximum Memory Bandwidth	51.2GB/sec
Maximum number of DIMMs	2
Integrated Graphics	Yes
graphic output	Dual HDM 2.0bw/HDM CEC, Dual DP 1.4a (via Type C)
Number of Displays Supported	4
PCI Express Revision	Fourth Generation
PCI Express Revision	Gen 4 (m.2 22x80 socket); Gen 3 (other)
Removable memory card slot	SDXC with UHS-II support

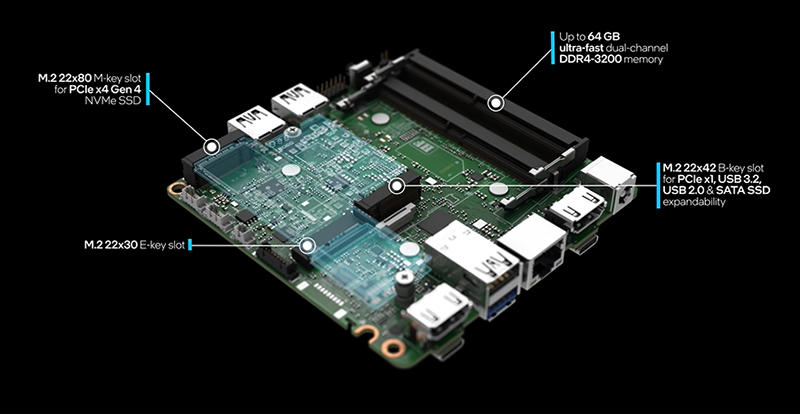

M.2 card slot (storage)	22x80
Number of USB ports	4

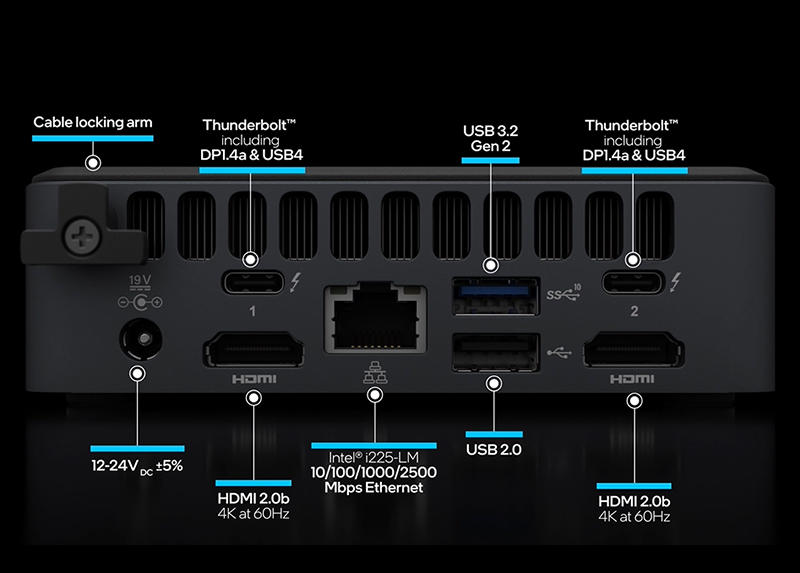

USB configuration	Front: 2 x USB 3.2 Rear: 2x USB 4 (Type-C), 1x USB 3.2, 1x USB 2.0 Internal: 1 x USB 3.2 (pin), 2 x USB 2.0 (header) on m.2 22x42

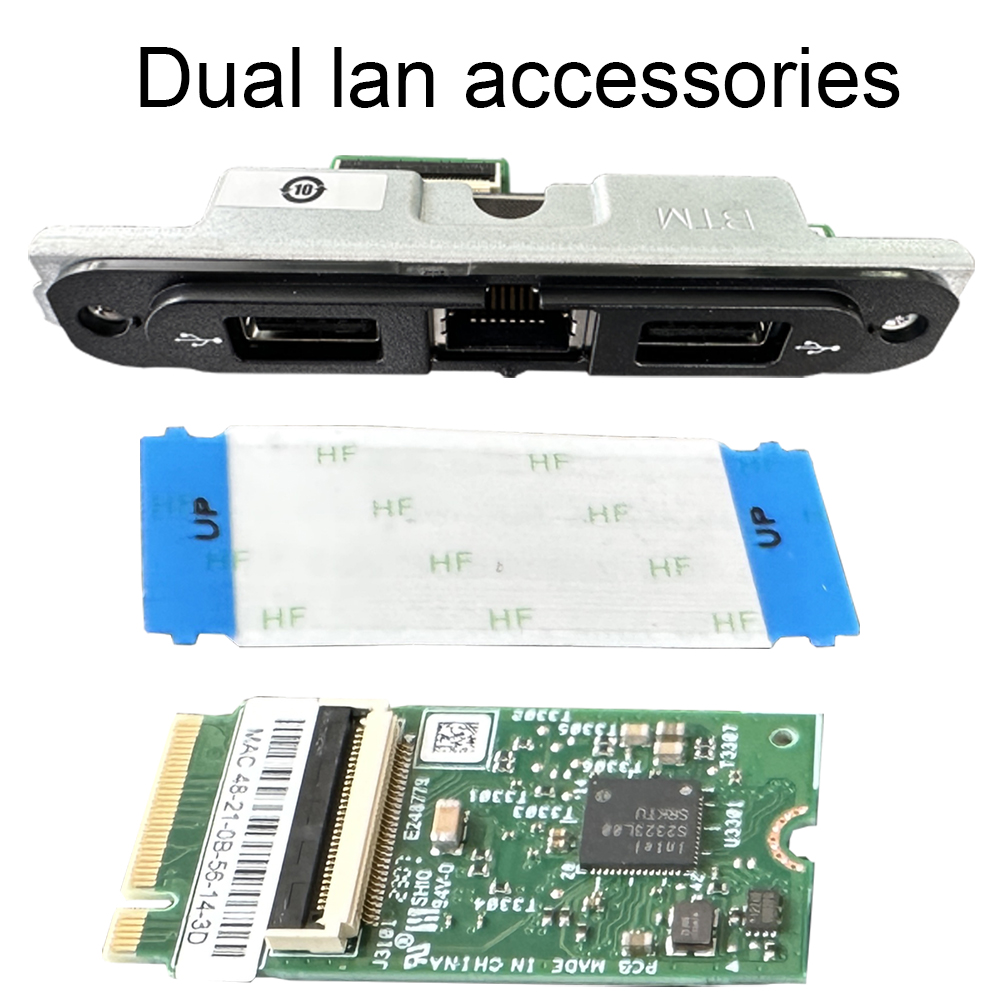

Integrated LAN	Intel® Ethernet Controller i225-V
integrated wireless	Intel® Wi-Fi 6 AX201
integrated bluetooth	Yes
Consumer infrared receiver sensor	Yes
Additional headers	Front panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); internal 2x2 power connector
Number of Thunderbol™ ports	1 Thunderbolt™ 4, 1 Thunderbolt™ 3
Chassis size	117×112×51mm
