High productivity separator New hydraulic rock/stone separator under construction

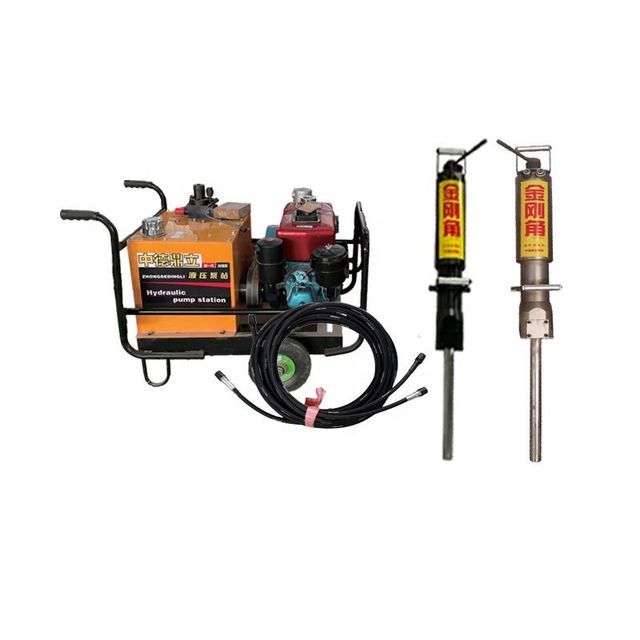

Dingli Handheld Hydraulic Rock Splitter is a device for splitting rock and concrete, replacing blasting and conventional demolition methods. No shock wave, no vibration, no loud noise, no dust. There is also a very broad market in the natural stone mining industry. Over the years, Dingli hand-held hydraulic rock splitters have achieved great success in China due to their high quality, high performance and long service life. At the same time, it has been exported to more than 30 countries. It enjoys a high reputation in the world and has played a huge role in the global rock breaking field.

The outer compressive strength of rock and concrete is high, while the inner and outer tensile strength is small, and the tensile strength is much smaller than the compressive strength. The hand-held hydraulic rock splitter is developed according to this feature. First, drill a hole

with proper depth and diameter. Next, insert and align the wedges of the splitter into it to determine the diverter

direction. Third, start the hydraulic power unit, which will output a pressure of 60Mpa to the diverter. The oil cylinder in the splitter can generate dozens of tons of thrust, pushing the wedge to expand to both sides, and the expansion force can reach hundreds of tons, thereby splitting the rock or concrete from the inside.
