Sales unit: | single product | type: | roller bearings, special |
Package preview: | Gross weight per piece: | 0.010 kg | |
feature: | stable performance | model: | NTC-1427 |
lubricating: | Oil | Certificate: | ISO9001:2000 |
MOQ: | 100 | Model: | NTC-1427 |
Packaging Details: | Original box or tube white box | deliver goods: | 7-10 days |
application: | mechanical | vibration: | V1 V2 V3 V4 |
Single pack size: | 4X4X1 cm | Accuracy class: | P0 |
Applicable industries: | Manufacturing plants, food and beverage plants, household, retail, energy and mining, other | brand: | Koyo |
Material: | Chrome steel |

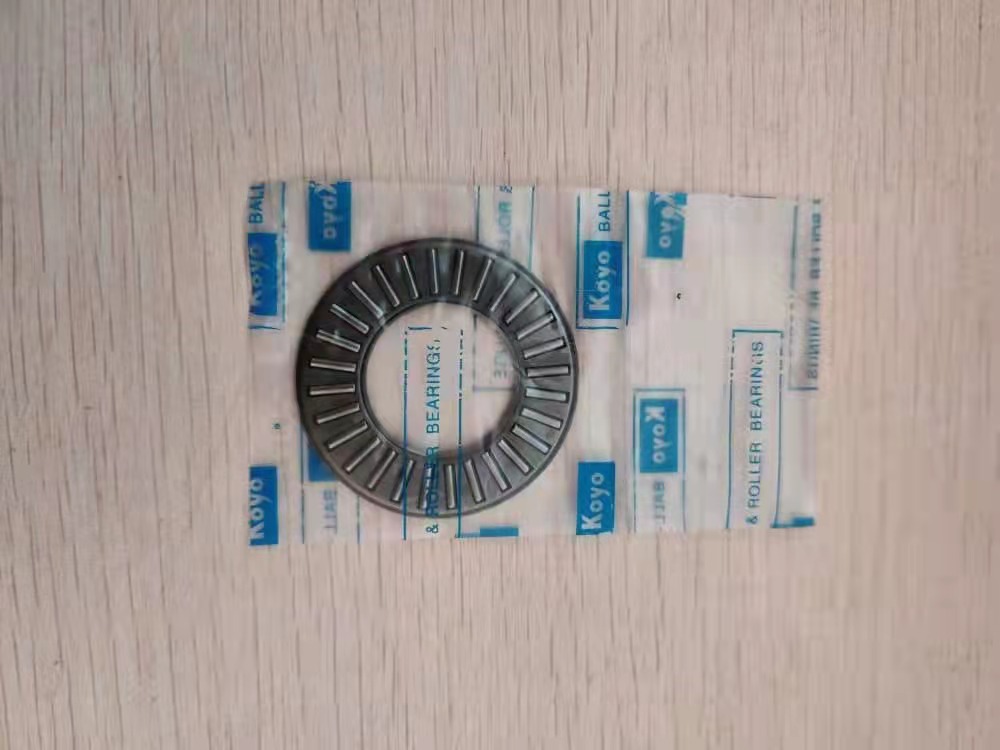

Needle roller thrust bearing NTC-1427
Bearing number: NTC-1427
Dimensions (mm): 22.23x42.85x1.984
Brand: KOYO
Hole diameter (mm): 22,23
Outer diameter (mm): 42,85
Width (mm): 1,984
Bearing dimensions and specifications in the KOYO catalog:
d - 22,23 mm
D - 42,85mm
T - 1,984 mm
Ea - 39,878mm
Eb - 25,91 mm
Weight - 0,008 kg
Basic dynamic load rating (C) - 18,46 kN
Basic static load rating (C0) - 78,29 kN
(Oil) lubrication speed - 9800 rpm
Tags: Koyo, 22.23x42.85x1.984
