size: | 2400*1250*1500 mm | Package preview: | |
curb weight: | 200-300kg | Climbing ability: | 20% |
passenger: | 4 | Controller: | 18 tubes |
brand: | Chowbon | Body type: | closure |
product name: | Passenger electric tricycle | color: | Elective |
Brake system: | Disc brake, front drum + rear disc | Level Ability: | 15-20° |
Battery: | lead acid | Payload Capacity: | 200-300kg |
Voltage: | 48V | Charging time (hours): | 7-9 hours |
Maximum speed: | ≤30km/h | Package: | Iron frame + waterproof bag |

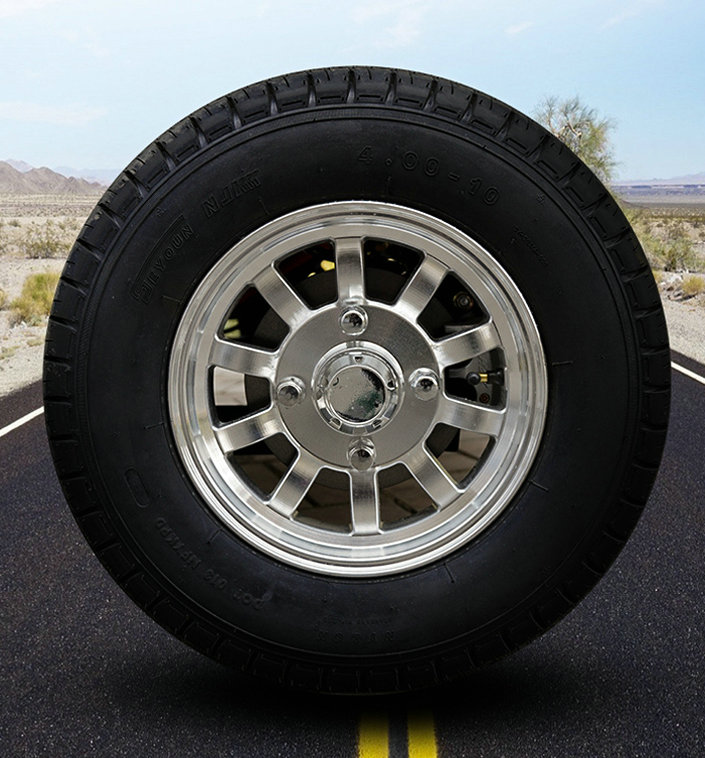

Tire size: | Front 450-10/ Rear 450-10 | payment terms: | L/C, Western Union, T/T, MoneyGram |
Used for: | passenger | Origin: | Xuzhou |
Certification: | CCC | driven distance: | 50-70 kilometers |
Packaging Details: | 1. Packed in wooden case, carton and iron frame 2. CKD or SKD. 3. Bubble glue. | engine: | 1000w brushless |
load capacity: | 200 kg | driving type: | electrical |
Maximum speed (km/h): | 20-40km/h | strength: | > 1000W |
port: | Lianyungang, Qingdao, Shanghai | Supply capacity: | 10000 sets per month |
model | JB-SL01 | weight | 270KG (without battery) |
size | 2400*1250*1500 mm | controller | 18 tubes |

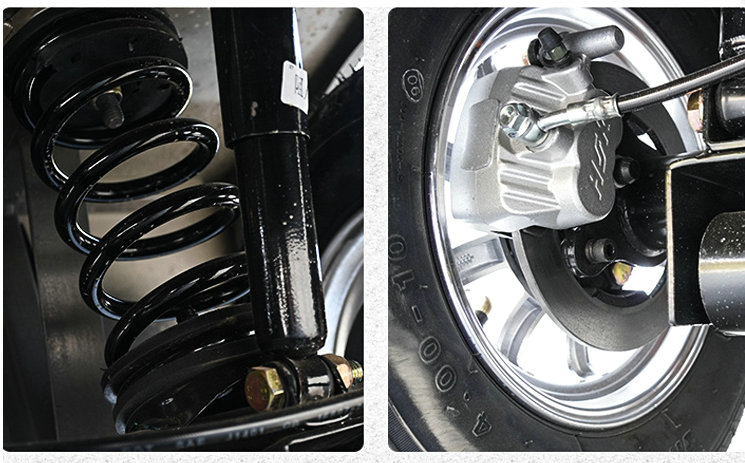

Motor Power | 60V/48V 1000W/800W | brake type | Front/Rear Drum Brakes/Disc Brakes |
tire size | Front/Rear 450-12/450-12 | shock absorber | 24 hydraulic |
Carrying capacity | 300 kg | speed | 25-45km/h |
mileage | 50-70KM (no load) | the climb | 15-20° |
color | Blue, gold, Chinese red | container | 16 pieces |
