Name: | Electric Motor Parts; | Packaging Detail: | Standard wooden case, carbon, or according to customer's requirement.; |
Port: | Any port in China; | Product name: | carbon brush; |
Certification: | ISO9001:2008; | Application: | Wind Power Generator Other Motoers; |
Size: | Customers' Requirement; | Color: | Black; |
Brand Name: | Dongtan; | Packing: | Wooden.box.carton.as Customer Requirment; |
Material: | Electrographite /Resin graphite /Graphite/Metal silver copper graphite; | Quality: | Contract Standard; |
Model Number: | Customized; | Place of Origin: | Sichuan China (Mainland); |
Supply Ability: | 5000 Piece/Pieces per Month; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alipay; |

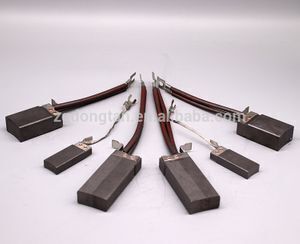

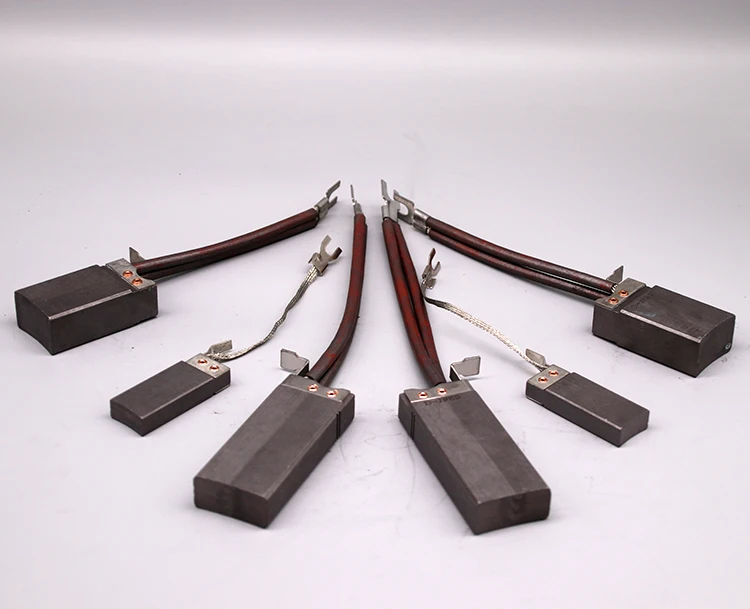

Wind Power Generator Other Electrical Motors Customized Copper And Silver Graphite Carbon Brush

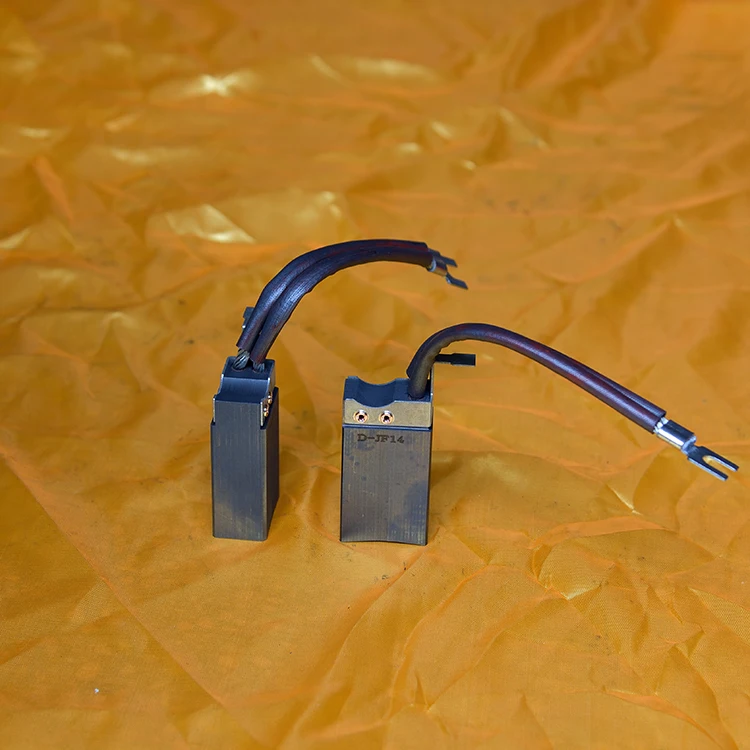

Grade | D-JF51 | D-JF52 | D-JF14 | D-JF65 | D-DF14F | D-DF57F | ||
The resistivity μ.Ω.m | 3.6 | 4.0 | 4.5 | 1.0 | 23 | 17 | ||
Hardness 10/392 | 100 | 100 | 110 | 90 | 110 | 65 | ||
Bulk density g/cm3 | 3.0 | 3.0 | 2.8 | 4.0 | 1.65 | 1.60 | ||
50m/s Test of rectification (50h) | 15m/s 15A/cm2 | Wear | 0.20 | 0.20 | 0.15 | 0.30 | 0.15 | 0.15 |
Voltage drop | 1.2 | 1.2 | 1.4 | 1.0 | 1.7 | 1.7 | ||
40m/s 15A/cm2 | Wear | 0.45 | 0.50 | 0.40 | 0.50 | 0.40 | 0.40 | |
Voltage drop | 1.2 | 1.2 | 1.4 | 1.0 | 1.9 | 1.7 | ||
90m/s Test of rectification (50h) | 40m/s 15A/cm2 | Wear | 0.55 | 0.60 | 0.45 | 0.60 | 0.45 | 0.50 |
Voltage drop | 1.7 | 1.7 | 2.3 | 1.7 | 2.3 | 2.4 | ||
Main uses | Application: motor brush, shaft grounding, changing oar, lightning protection and other electrical devices. | Application: motor brush | Application: Land lightning protection devices. | Application:DC variable pitch devices andOffshore lightning protection devices. |

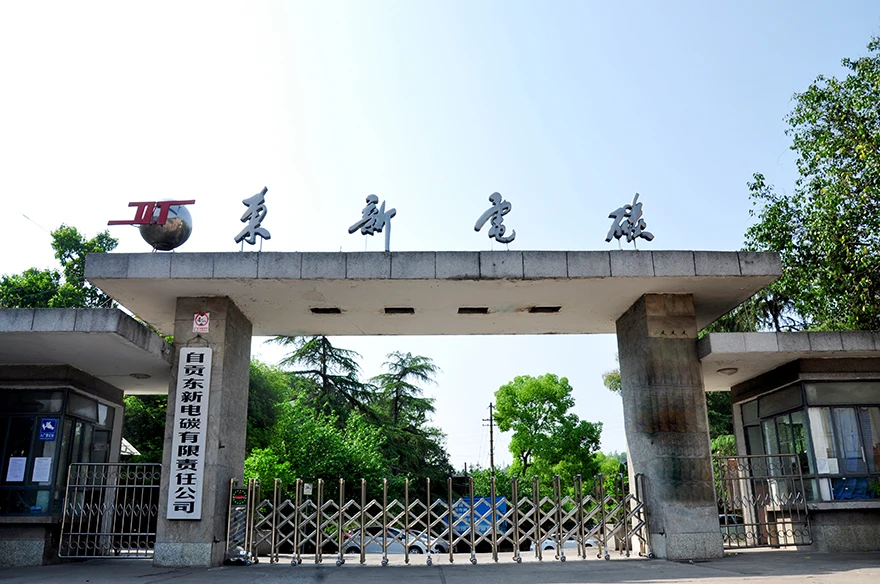

Zigong Dongxin Electrical Carbon Co.,Ltd ,which can be dated from 1966, is one of the largest manufacturing and scientific research bases in China for compressive carbon graphite material and its products, and we can produce different customized specifications and sizes products according to customers' requirements. Our company has awarded civil products(GB/T19001-2008 idt ISO9001:2008) quality management system certificates.
Company: Zigong Dongxin Electrical Carbon Co.,Ltd
Address:No.22, Zhuozishan, Dongguang Road, Ziliujing District, Zigong, Sichuan,China
Postcode: 643000
Tel: (86) 0813 -2606452 (86)0813 -2602537 (86)15281349757
WeChat: wty201311230205
WhatsApp: 8615775692455
QQ: 1136021397
Website: https://zgdongtan.en.alibaba.com/
http://en.zgdongtan.com/
