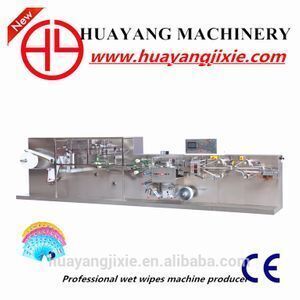

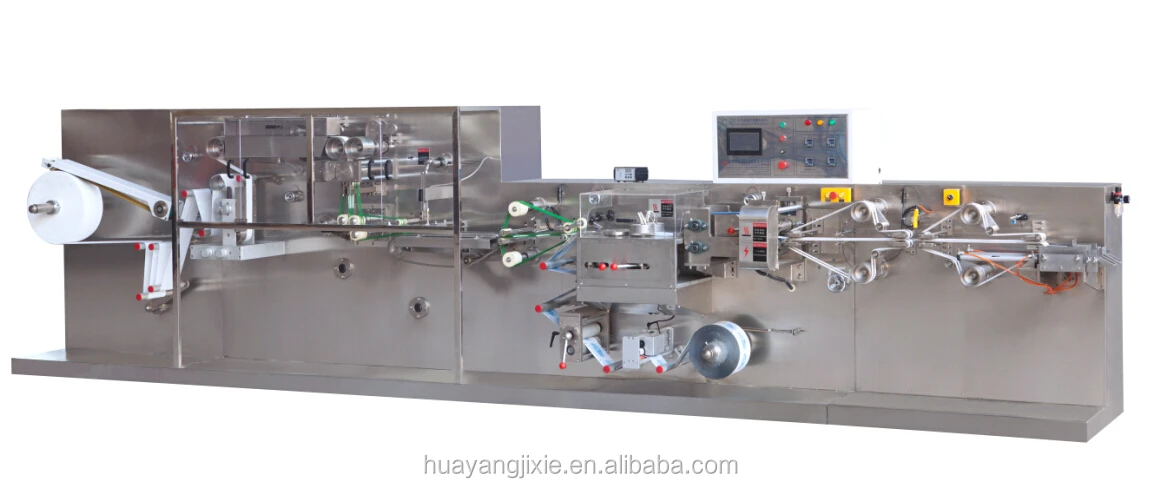

HY-200E Full-auto single piece wet tissue making machine

HY-200 FULL AUTO SINGLE SHEET WET WIPE MACHINE WITH AUTO ELIMINATION

Main Technical Parameter (suitable for 1 or 2 piece /bag

Production flow: unrolling —folding—wetting — cutting —stacking---packing — delivering

•     (1) Main Technical Parameter:
• Power supply: 6KW 380V 50HZ
• Suitable Raw material:air laid paper, spunlace/hot-rolling nonwoven fabric
• Size of raw material :(150-250)×1000 (mm,W*DIA)
• Weight of raw material::40-80gsm
• Wet tissue unfolded size : (140~280)×(150~250)  (mm,L×W)
• Wet tissue folded size : (70~140)×(45-85)  (mm,L×W)
• Packing film:OPP/PE, PET/PE
• Production speed:150-240 pcs/min
• Net Weight :1850 kg
• Size of machine :7200*900*1650 (mm,L×W ×H)
• Wetting system: stainless steel water tank with agitator (continuously stirring&circulating)
• Size of water tank : 800×800(mm,DIA*H)   400L
• Optical fiber for detect position : PANASONIC
• Optical fiber for detect cutting: PANASONIC
• Optical fiber for detect hemming :PANASONIC
• Auto-counting Photoelectricity: OPTEX
• Counting drive: pneumatic actuator
• Detection pattern :Blowing Rejection
• Driving mode: frequency converter
• Packing film drive : steeping motor
• Operation interface: Touch screen
• Count quantity setting: 5-20bag/pack (set by touch screen)
• Counting speed:  60bags/min
• Condition for count setting:

a. Count quantity setting                           (set by touch screen)

b. Detect wet tissue position into packing film ON or OFF (set by touch screen)

c. Detect wet tissue hemming ON or OFF              (set by touch screen)

d. Detect wet tissue connect sachet ON or OFF          (set by touch screen)

Character

HY-200E Full automatic Single (Single & double) piece wet wipe machine is full automatic to put parent roll through putting volumes, and longitudinal fold, adding liquid and cut, horizontal folded in half, and final film package, sealing, positioning and cutting . All process finish on the machine. Without human touching, the production is hygienic, machine in high efficiently production modes with auto rejecting inferior and auto counting finished products.

uses flexible robot to label the sticks,  identifies the lids, paints the lids, and gums 2 lids in turns on the wet

wipe package. It is with high speed to the lids, high precision,continues working for a long time, well-adapted, saves the labor cost.

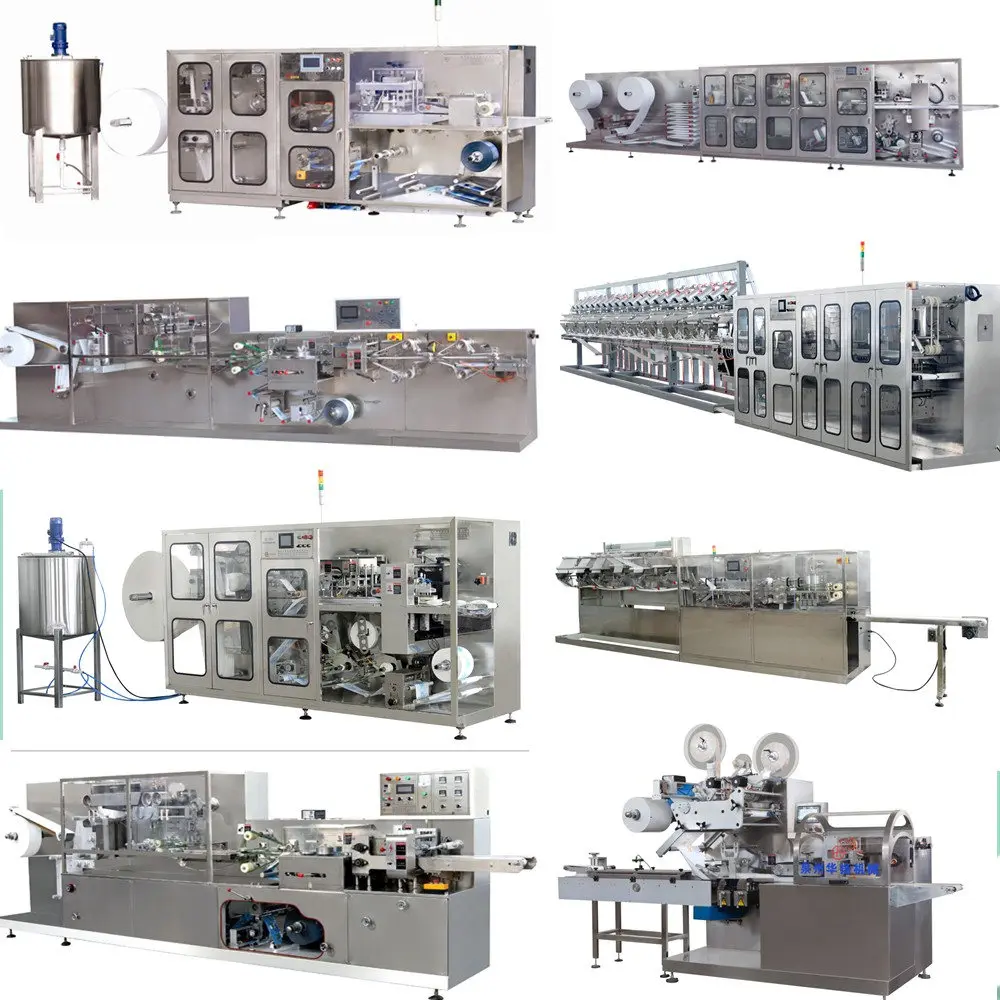

To find more More wet wipe machines

History

2003



WE FIRST STEP INTO WET WIPE MACHINE MANUFACTURING

2004



WE HAVE MACHINE HY-200 SERIES AND HY-2035 SERIES

2005



WE START OUR OWN EXPORT BUSINESS. WET WIPES MACHINE START INSTALLATION IN THE OVERSEAS

2010



We achieved sale qty over 500 USD

2014



We upgrading and developing new baby wet wipes machine, and auto lid machine in roboto system

2017-Future



We are expanding our own factory, a better HUAYANG MACHINERY see you in near future.



Our Advantages

Huayang Machiery leader in the wet wipes industry since 2003. We have been enhancing and developing nonwoven equipment. We were first to market with hygienic machines, high speed folding, cross-folding, quick product changeover, and most recently, multi-servo cutting modules. Our latest machine platforms were designed with our customers’ profitability in mind. Using industry standard components and many uptime focused features, these machines are designed to perform reliably.

Since 2003 in this feild, focus on wet wipes machinery industry more than 13 Years Experience to be Professional.



1

1-2 sheet/packet wet wieps machine.

5-30 sheet/ packet pocket size wet wipes machine.

30-120 sheet/packet wet wipes machine.



2

Reliable low maintenance components incorporated into proven designs.

Safe and ergonomic access, operation, change-over, and adjustment



3

Now Huayang Machinery is leading China wet wipes machine from the perfect beyond, from quality to excellent ,the market from domestic to the global professional users of the trust.
