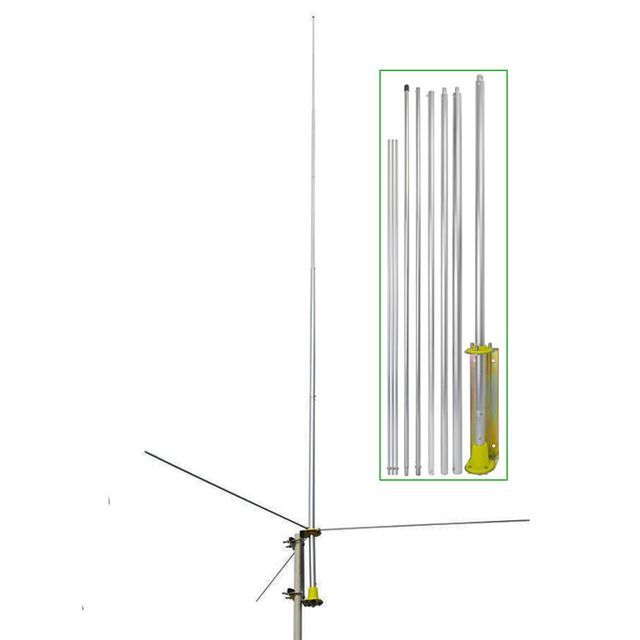

CB antenna base 27mhz CB mobile phone antenna outdoor aluminum alloy 27mhz CB base antenna radio

Click here to contact
Product details
length:6.2m/2.2m CB Base Antennaget:3.5/5.5dBi cb base antenna
VSWR:≤1.5 cb base antennaradiation:omnidirectional cb base antenna
model:BA27Operating temperature:-40~80℃ CB Base Antenna
brand:Processingtype:base station antenna
Origin:Fujian Province, ChinaPackage preview:
Connector:SO239 CB Base AntennaFrequency Range:27/66-88MHz CB Base Antenna

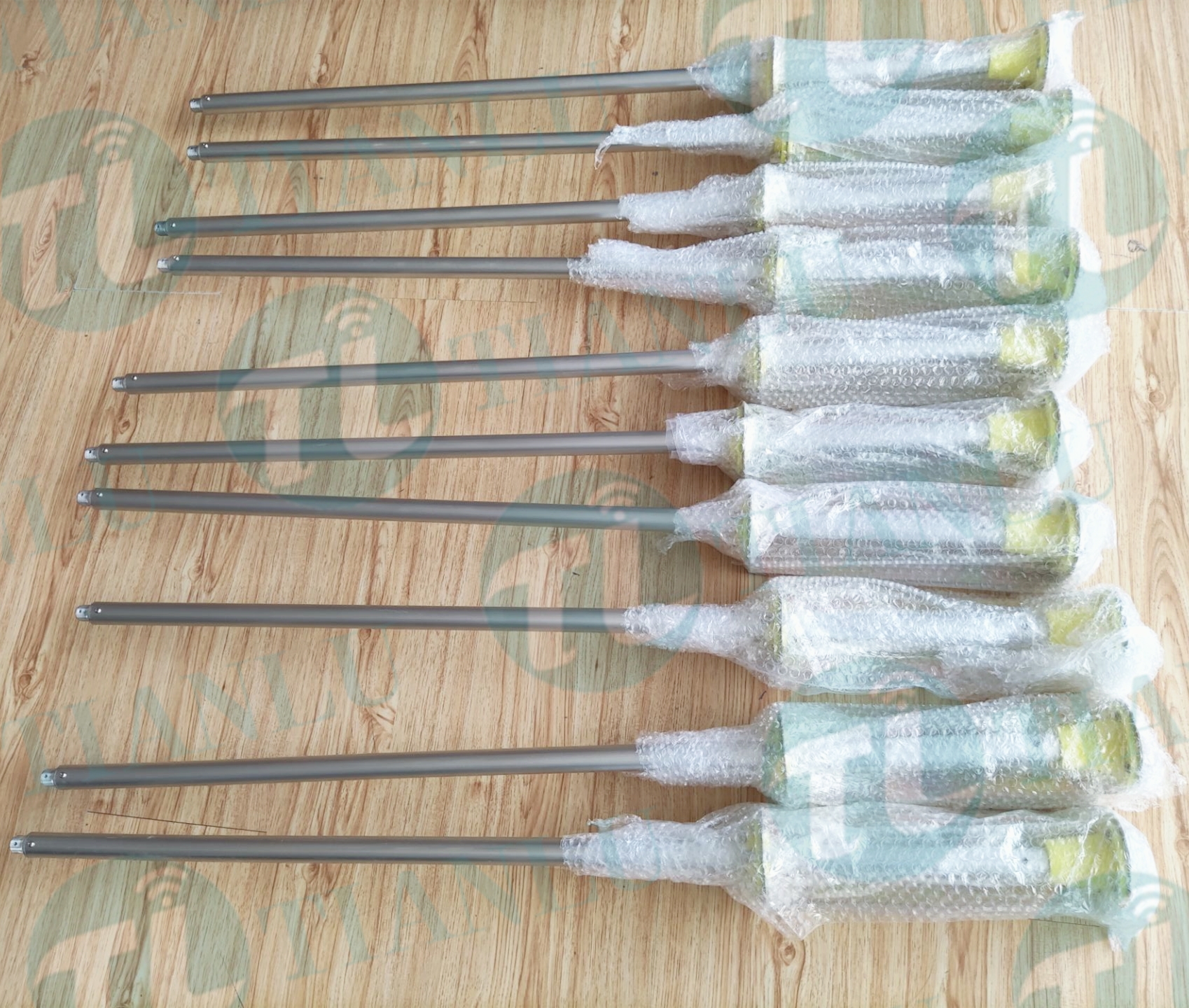

Material:Copper aluminum alloy cb seat antennaPackaging Details:Antennas are packaged in transparent bags/color bags, or in boxes, depending on customer requirements. All items are packed in cartons with shipping marks. Carton size depends on item quantity and size.
impedance:50 Ohm CB Base Antennapolarization:vertical cb base antenna
payment terms:Western Union, T/T, PayPal
Product Description
Electrical Specifications
Frequency Range
26-28(MHz)
VSWR
less than 1.5
impedance
50 ohms
get
3.5dBi
polarization
vertical
Maximum Input Power - Watts
100 watts
Horizontal Beam Width
360 degrees
vertical beam width
58°
lightning protection
direct ground

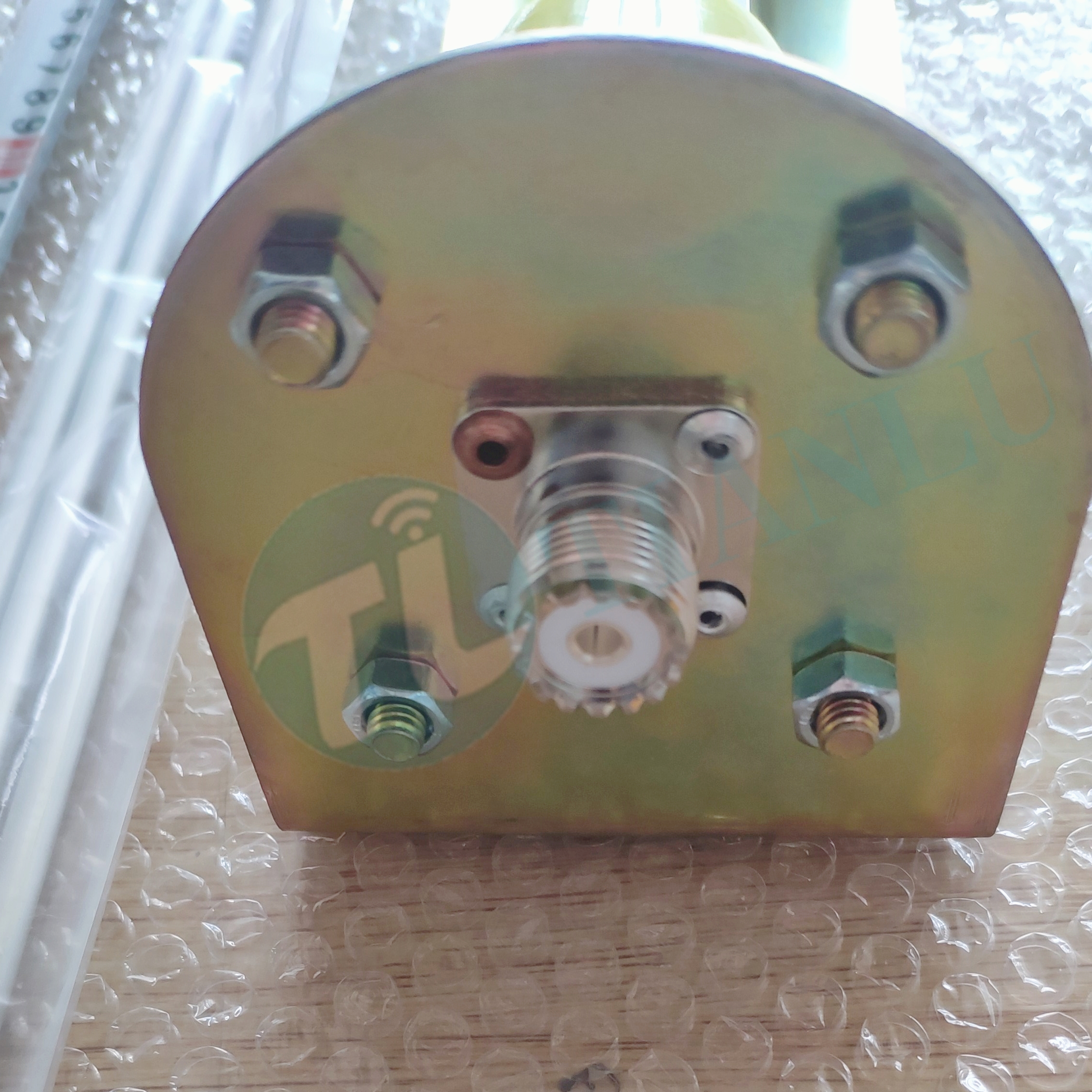

Connector
SL-16 female

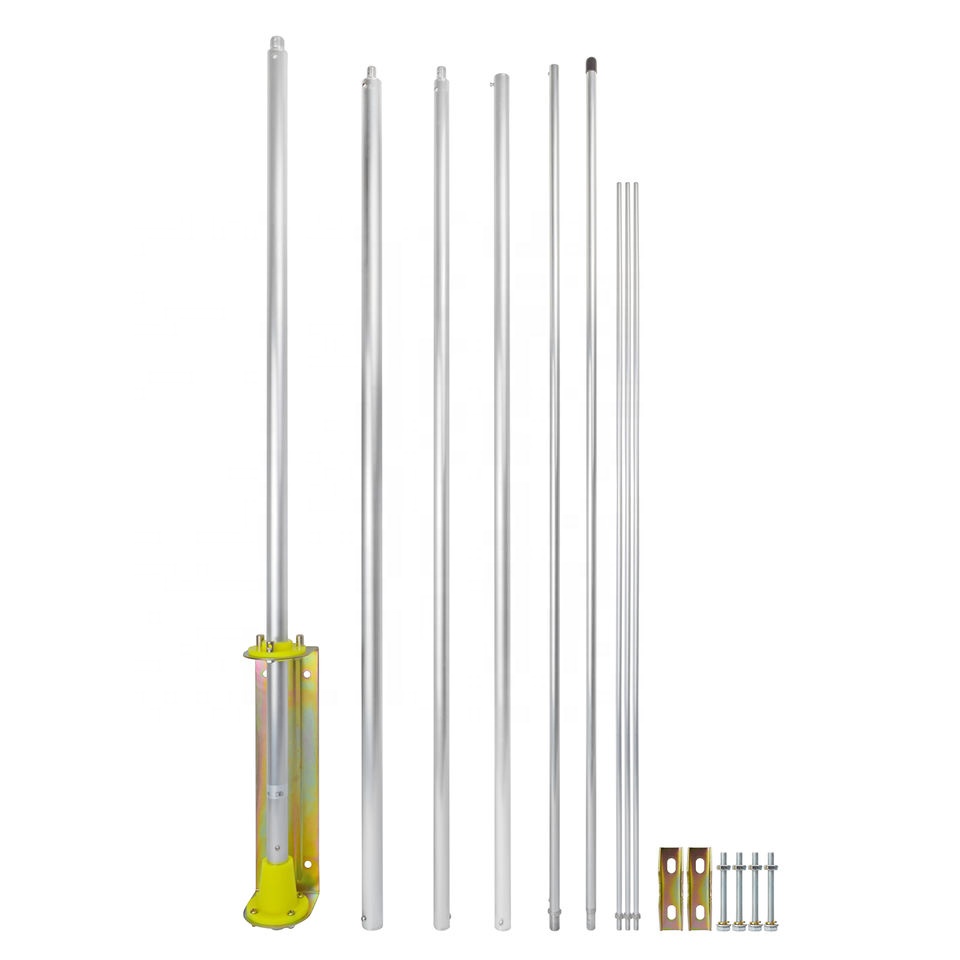

Mechanical Specifications
length
6200mm
weight
2.8 kg
Radiating element material
copper
Radome Material
aluminum alloy
color
white
Hardware supply material
Metal
Hold rod diameter
Φ55-Φ65(mm)
wind speed
200 (km/h)
Package Size
1100*160*120(mm)
