New Arrival Meter Manufacturers Supply Circle Chart Pressure Recorder Machinery

Supplier: Shandong Mingtou Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr xiyong shang
Price: $46.57 /piece
Min. Order: 1 piece

Click here to contact

Product details

brand:	to new	order number:	6508
Whether to specialize in cross-border export:	No	power supply:	twenty four
Supply capacity:	5 pieces per day	Custom processing:	yes
Dimensions:	25x10x3	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Origin:	Shandong Province, China	model:	Circle chart pressure recorder
Measuring range:	0-60	measurement accuracy:	2
Circle chart pressure recorder:	recorder	Item No.:	6508

Features
Item No.	6508
brand	to new
model	Circle chart pressure recorder
measurement accuracy	2
order number	6508
power supply	twenty four
Measuring range	0-60
Custom processing	yes
Dimensions	25x10x3
Whether it is the exclusive source of goods for cross-border export	No
Circle chart pressure recorder	recorder
Whether to import	No
type	Circle chart pressure recorder

New products on the market instrument manufacturers supply circular chart pressure recorder mechanical circular chart pressure recorder

Shandong Mining Group

Home Power Phone: 180-537-99894

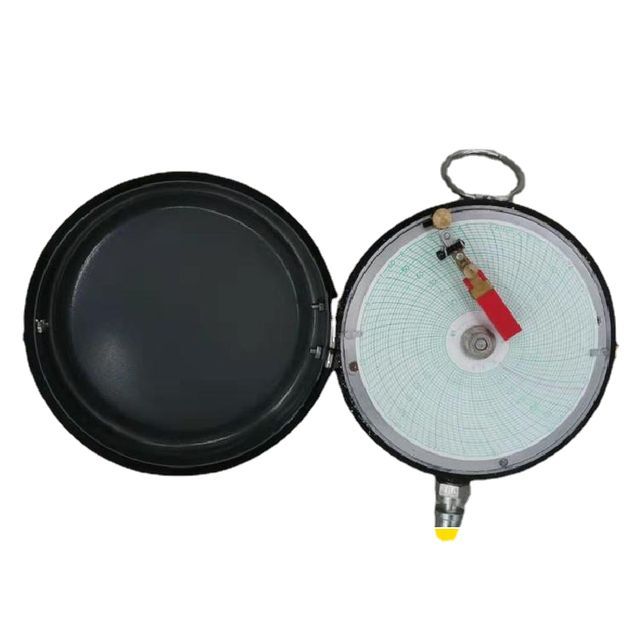

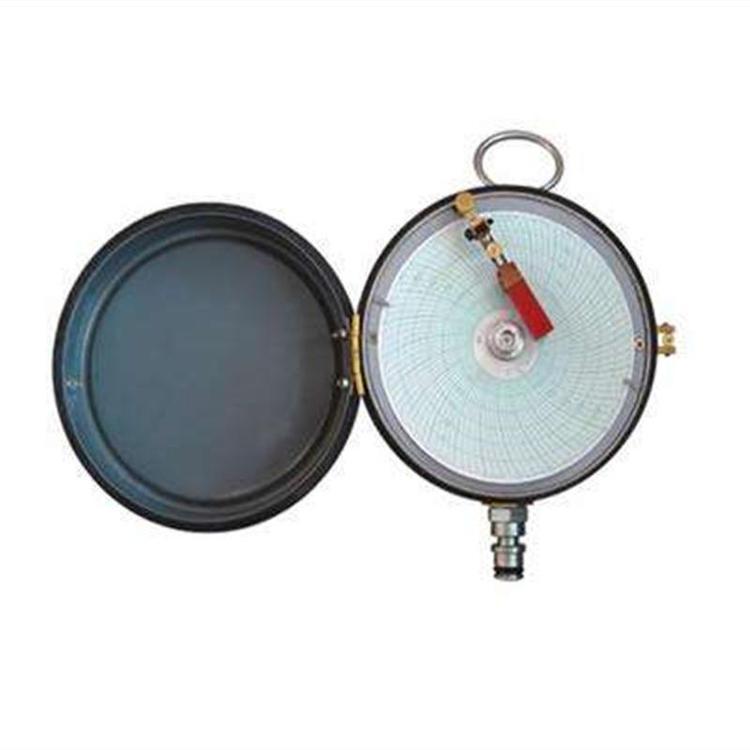

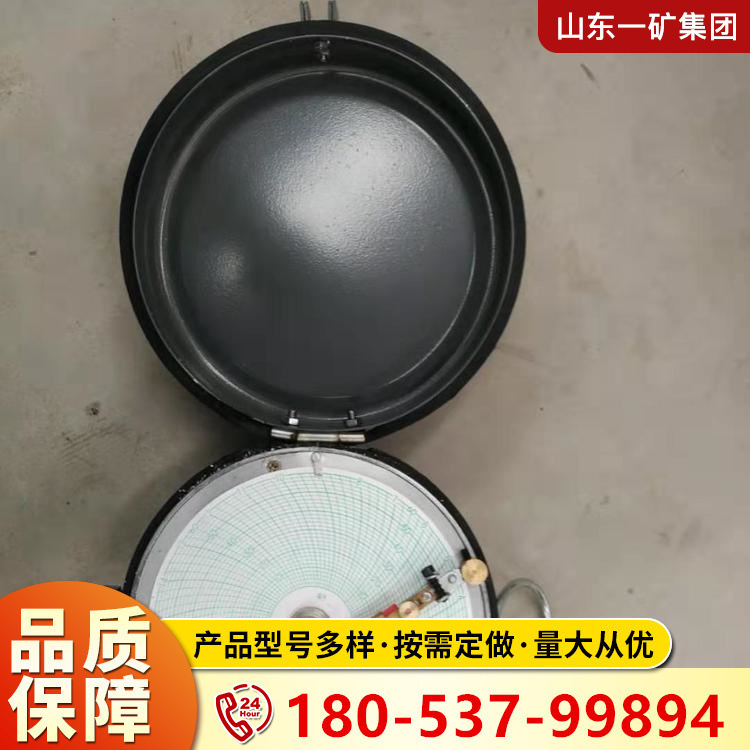

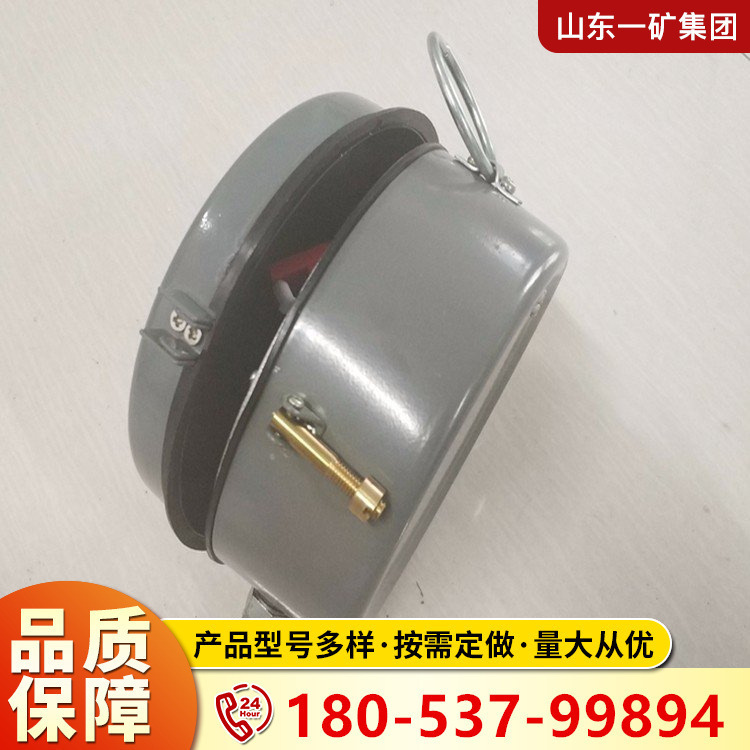

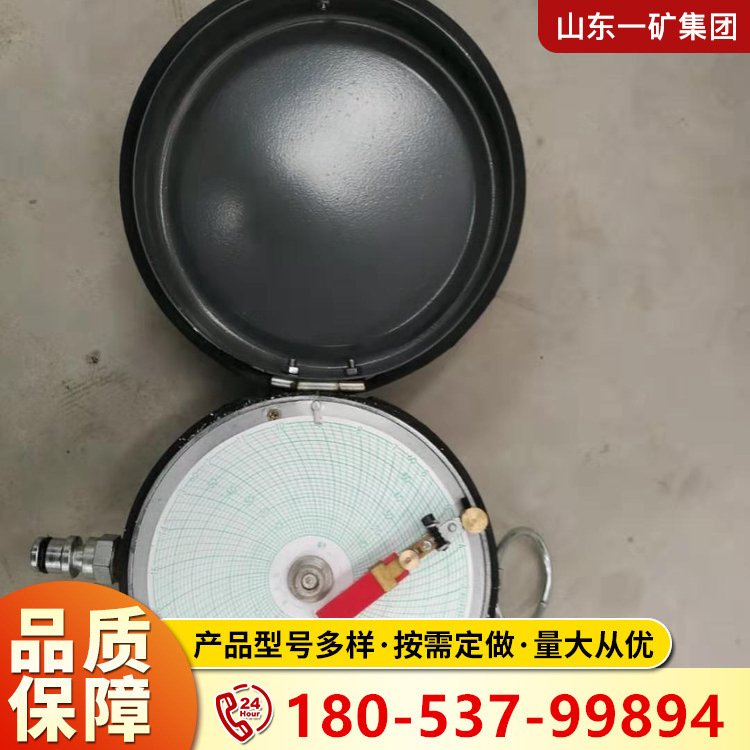

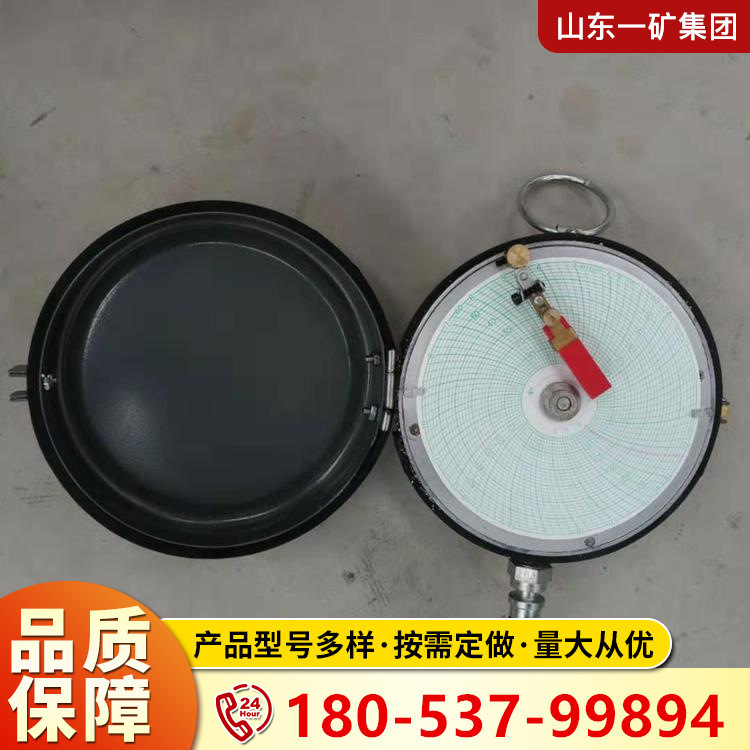

The circular chart pressure recorder is mainly used to measure and record the change curve of the liquid in the mine support or a single liquid pressure cylinder under the roof pressure. It is also suitable for measuring and recording the pressure of non-corrosive fluids in hydraulic systems. The circular chart pressure recorder can also be called the pressure circular chart recorder of fully mechanized mining supports. Grasp the change of roof pressure in time, and correctly guide the support work of the working face. It is also suitable for measuring and recording the pressure of non-corrosive fluids in hydraulic systems.

How to use the circular chart pressure recorder:

1\ The instrument has been debugged before leaving the factory and cannot be disassembled at will

2. Keep the instrument clean

3\Circular drawing and pressing mechanism adopts left thread

4. The drawing pen holder is pressed by the eccentric mechanism, lift the eccentric handle before replacing the circle diagram

5\ Press the recording paper down with a pressure block

6. Gently press the test pen on the recording paper

7\The structure that will record the rotation of the mainspring
