Applicable industries: | Mechanical repair shop, manufacturing plant | Mechanical test report: | if |
After-sales service provided: | Video Technical Support | payment terms: | L/C, T/T |
Chuck: | 1000mm four-jaw chuck | Spindle bore diameter (mm): | 130 |
Spindle speed range (rpm): | 3.15 - 315 rpm | Processing capacity: | burden |
maximum. Turning length (mm): | 2850mm | Bed width (mm): | Chapter 755 |
Showroom location: | Malaysia | Video outbound inspection: | if |
Distance between centers: | 6000mm | Core component warranty: | 2 years |
maximum. Swing diameter (mm): | 1250 | Model: | CW61125B |
Power (kW): | twenty two | Key words: | manual lathe |
Warranty: | 1 year | model: | CW61125B |
Voltage: | 380V, 50Hz, three-phase | Main selling points: | high accuracy |
type: | horizontal | Year: | 2023 |
Weight (kg): | 15000 kg | Spindle motor power (kW): | twenty two |
Marketing Type: | direct lathe manufacturer | Dimensions (L*W*H): | 9100x1560x1600mm |
brand: | Javo | Health status: | new |
Core components: | Bearings, gears, motors, gearboxes | Origin: | Hebei china |
port: | Tianjin; Qingdao; Shanghai | Packaging Details: | prepackaged |
Whether CNC: | normal | Certification: | ISO9001:2008; CE |
Automatic level: | manual | Supply capacity: | 60 sets per month |
maximum. Work piece length (mm): | 3000 |

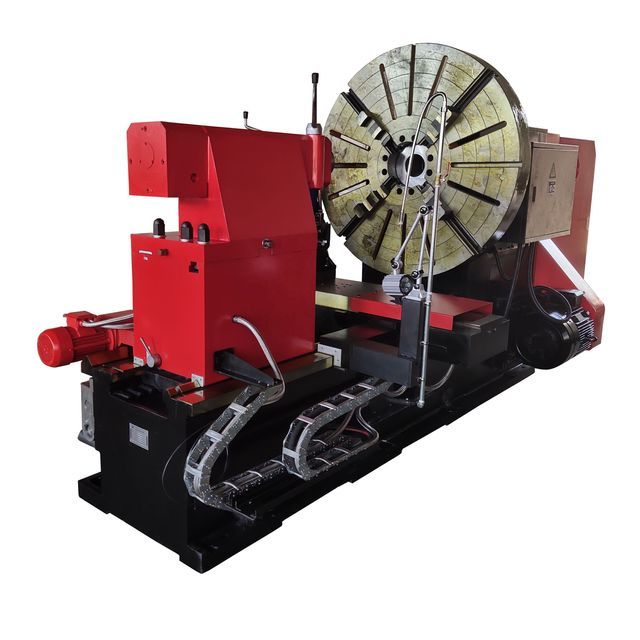

This machine tool is mainly suitable for cutting internal and external circles, cylinders, cones and other rotating parts of workpieces. It can process various commonly used metric, inch, modulus and diametral pitch threads, as well as broaching oil grooves and keyways.
This series of lathes is suitable for turning internal and external circles, tapping and other rotating surfaces, metric, modulus, and inch threads, as well as drilling and pulling oil grooves.
The machine tool can process steel, castings, non-ferrous metals, etc.
The dimensional accuracy of the processed workpiece can reach IT6-IT7, and has good surface roughness.
The machine is equipped with a handle-type crusher, which is easy to operate, safe and reliable.
feature:
1. The side wall of the bed adopts a double-rib structure, and the shape of the inner rib is a combination of box-shaped and diagonal ribs. Rigidity is higher than ordinary lathes. Accuracy is stable. And these lathes can perform heavy cutting.
2. There is a single-lever operating device on the apron, which is used for the rapid movement of the trolley. Spindle braking and rotation direction change are controlled by hydraulic system, or manual operation, which is selected by the user.
3. The saddle guide rail is bonded with "TSF" soft belt wear-resistant material.
4. According to user requirements, the lathe can be equipped with an automatic feeding mechanism, and the upper slide can independently turn short cones. Cooperating with longitudinal feed, it can also turn long tapered surfaces.
project |
unit |
CW61125B |
|
capacity |
rocking on the bed |
mm |
Φ1250 |
swing on the cross slide |
mm |
Φ850 |
|
distance between centers |
mm |
1500-18000 |
|
Bed width |
mm |
Chapter 755 |
|
maximum. Carrying capacity |
time |
5 |
|
Spindle |
Spindle hole |
mm |
Φ130 |
Spindle nose taper |
- |
Metric 140 MT#5 |
|
Spindle speed series |
- |
21 steps |
|
Spindle speed range |
Rotating speed |
3.15-315 |
|
Chuck size |
mm |
Φ1000 |
|
turret |
Turret type |
- |
Manual 4 positions |
Shank size |
mm |
45x45 |
|
Turret travel |
mm |
300 |
|
transportation |
X-axis feed level/range |
mm/rev |
56/0.05-6 |
Z-axis feed level/range |
mm/rev |
56/0.1-12 |
|
X-axis rapid movement speed |
mm/min |
1870 |
|
Z axis rapid movement speed |
mm/min |
3740 |
|
X-axis travel |
mm |
520 |
|
Z axis travel |
mm |
1300-17800 |
|
Tailstock |
Tailstock sleeve diameter |
mm |
Φ140 |
Tailstock sleeve taper |
- |
MT#6 |
|
Tailstock sleeve travel |
mm |
300 |
|
motor |
Spindle motor |
kilowatt |
twenty two |
coolant pump motor |
kilowatt |
0.125 |
|
Wire |
Metric thread grade/range |
mm |
44/1-120 |
Imperial thread class/range |
TPI |
31/ 3/8-28 |
|
Module thread grade/range |
mm |
45/0.5-60 |
|
DP Thread Class/Range |
DP |
30/1-56 |
