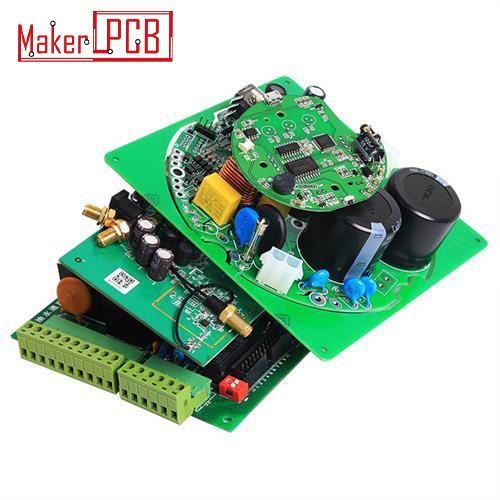

Manufacturer PCB Circuit Board Assembly Professional Customer Printing Prototyping Factory Multilayer PCB and PCBA

Supplier: Shenzhen Ronghuahong Electronic Co., Ltd.
Region: Guangdong, China
Contact: Mr Kevin Chong
Price: $4.98 / 1 - 499 pieces
$0.30 / >=500 pieces
Min. Order: 1 piece

Click here to contact

Product details

layer:	1-24 floors	minute. Line spacing:	0.15 mm
Copper thickness:	0.3-3 oz	minute. Hole size:	0.1mm
model:	Armor(27)	Substrate:	FR4/ROGERS/Aluminum/High TG, FR4, CEM3, PTFE, Aluminum, etc.
Supply capacity:	50000 pieces per week	brand:	Maker PCB
type:	multilayer circuit board	Origin:	Guangdong, China
Package preview:		Surface treatment:	HASL\HASL Lead-Free\Immersion Gold\Gold Finger, HASL\HALT Lead-Free\Immersion Gold\Gold Finger
minute. line width:	0.15 mm	port:	Shenzhen
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	product name:	PCB board + assembly
MOQ:	1	Plate thickness:	1.6 mm
Board size:	custom	Packaging Details:	Vacuum packaging of bare PCB and ESD packaging of PCBA Printed circuit board factory FPC board PCBA company PCBA assembly

MakerPCB provides advanced manufacturing services that benefit customers' product and business success. From the 1 to 100K level, we will support you throughout the entire manufacturing spectrum. We have a flexible production process and can provide fast turnkey solutions for individual manufacturers or small start-up companies with small batch production orders. With standard manufacturing solutions, our customers gain the benefits of supply chain integration, consistent manufacturing efficiencies and lower costs. MakerPCB will be the premier one-stop shop for customers' manufacturing needs.

1. PCB fabrication
We cooperate with mature PCB manufacturers, 100% quality assurance. We have the flexibility to modify the PCB according to your specific requirements, whether it is a single-layer board or a complex multi-layer board. MakerPCB's key PCB capabilities include:
* Number of PCB layers: 1~6 layers or more
* Material: FR-4, Aluminum, Flexible
* PCB thickness: 0.4~2.0mm
* PCB maximum size: 400mm*500mm
* Minimum track/spacing: 3.5 million
* Drilling diameter: 0.2~6.3mm
* Minimum characters: line width 6mil, height 32mil

2. PCB AssemblyWe have great advantages in assembled PCBs for prototyping and mass production, especially for large orders. Our team of engineers can support volume production of NPI prototypes with global facility capabilities. MakerPCB's main PCBA capabilities include:*Board size 40x50 mm *Capable of processing 0.35 pitch Micro BGA, AQFN *QFP, QFN and AQFN (Advanced Quad Flat No-Leads) *RoHS/Non-RoHS compliant assembly *Clean or no-clean process *Machine SMT and pass-through Hole-to-hole assembly*100% material procurement, 100% delegated material management or mixing

3. Injection molding
MakerPCB also offers a complete mold making service. MakerPCB has a complete mold making, mold design, prototype or production mold, which can solve customers' urgent mold needs and bring customers' products to market quickly. Use your 2D or 3D CAD model, or we can generate a model for you. Whether you need 2 parts or 200, MakerPCB has you covered fast.
* 3D printing
* SLA (Stereolithography)
* CNC machining
* injection molding

4. Product Assembly
For product assembly applications, our team works closely with customers to ensure the final product meets their exact needs.
We assemble your project with the utmost attention to detail, backed by skilled technicians and equipment. Our experts will perfect your assembly while ensuring low costs and fast lead times. Some of our most popular assembly services include:
* Product assembly
* Packaging and assembly
* Quality inspection
* product testing

PCB layers	1-24 floors	Minimum Solder Bridge	0.076 mm
Maximum panel size	600 mm x 600 mm	Insulation resistance	1E+12Ω (common)
Minimum plate thickness	4 layers 0.40mm, 6 layers 0.80mm, 8 layers 1.00mm, 10 layers 1.20mm	Plate Thickness: Hole Size	0.209027778
Minimum Trace Width	0.075mm	shock heating	(3 times/10 seconds)
Minimum tracking space	0.075mm	winding and twisting	≤0.7%
minimum aperture	0.20 mm	Electric strength	＞1.3KV/mm
Hole wall thickness	0.025mm	Peel strength	1.4 N/mm
PTH Hole Tolerance	±0.076mm	Solder Mask Hardness	≥6H
NPTH Hole Tolerance	±0.05mm	flammable	94V-0
Hole tolerance	±0.05mm	Impedance control	±5%
Profile Tolerance	±0.15mm	surface treatment	OSP, HASL, ENIG, immersion tin, immersion silver

Board size	Board machine SMT size 40*50mm
SMD + DIP	Machine SMT and Through Hole Assembly
BGA part	Capable of processing 0.35 pitch micro BGA, AQFN, QFP, QFN and AQFN (Advanced Quad Flat No-leads)
quantity	Fast SMT machine up to 100,000 pieces per day
quality inspection	AIO and X-RAY automatic inspection
cleaning requirements	cleaning or non-cleaning process
ROHS requirements	RoHS/Non-RoHS Compliant Assembly
Element	100% material procurement, 100% entrusted material management or mixing
test	100% flying probe test, voltage test, test fixture, function test, software test, etc.
delivery time	Sample order ~2wks, small batch production ~3wks, mass production ~4wks

Q1. What manufacturing services do you provide?A1: We provide one-stop full turnkey manufacturing solutions, including PCB manufacturing, component sourcing, SMT, injection molding and metal, final assembly, testing, certification support and other manufacturing services. Q2. Can we sign a non-disclosure agreement before sending the documents? A2: Of course, we would like to sign an NDA (Non-Disclosure Agreement) with our customers and keep production documents confidential. Q3. What documents are required for PCB&PCBA quotation? A3: We need to know Quantity Inquiry, BOM, PCB Gerber, PCB Specification Requirement, Pick & Place File, Test Plan (if you need). Then we will check and quote to you within 24 hours, we will try our best to offer you the best price.

Q4. What is the MOQ for PCBA order? A4: Our PCBA MOQ is 1 piece, we can support you from design sample verification to mass production run. We are professional and willing to help you through all the manufacturing process quickly and easily.

Q5. What is the production lead time for PCBA order? A5: Our PCBA production lead time is 1~2 weeks for sample order (1~20pcs); 3~4 weeks for trial production (100~1000pcs), 4~5 weeks for mass production (>1000pcs). If you need it urgently, we can also provide you with express service. Headquartered in Shenzhen, it is a technological paradise for global hardware startups. We hope to be your one-stop production factory. Let us work together, come on! contact us!
