Robotic solar panel cleaning roller brush for cleaning photovoltaic solar panels

Supplier: Henan Yugong Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Cludy Liu
Price: $19999.00 / 1 - 1 sets
$19000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Cleaning method:	brush	feature:	cleaning robot
payment terms:	Western Union, T/T, MoneyGram	Supply capacity:	50 sets per month
Packaging Details:	in the container. Robot solar panel cleaning solar photovoltaic panel cleaning roller brush	model:	YG-2500
Origin:	Henan, China	brand:	Yu Gong
Cleaning width:	3600-4200 mm	port:	China's main ports
application:	Cleaning Solar PV Panels	thing:	Robot solar photovoltaic panel cleaning roller brush
weight:	2500 kg	Wireless control distance:	300m
aspect:	2550x1500x2200 mm	Function:	efficient cleaning
maximum. Cleaning height:	4800mm	Package preview:

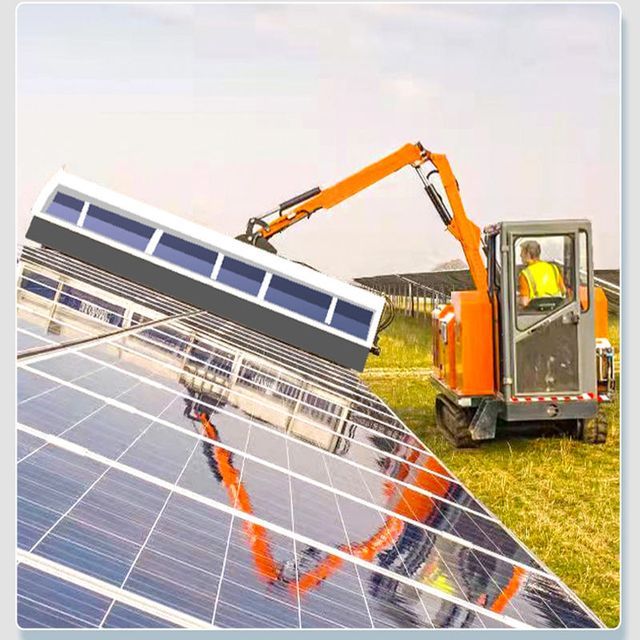

Robot solar panel cleaning solar photovoltaic panel cleaning roller brush

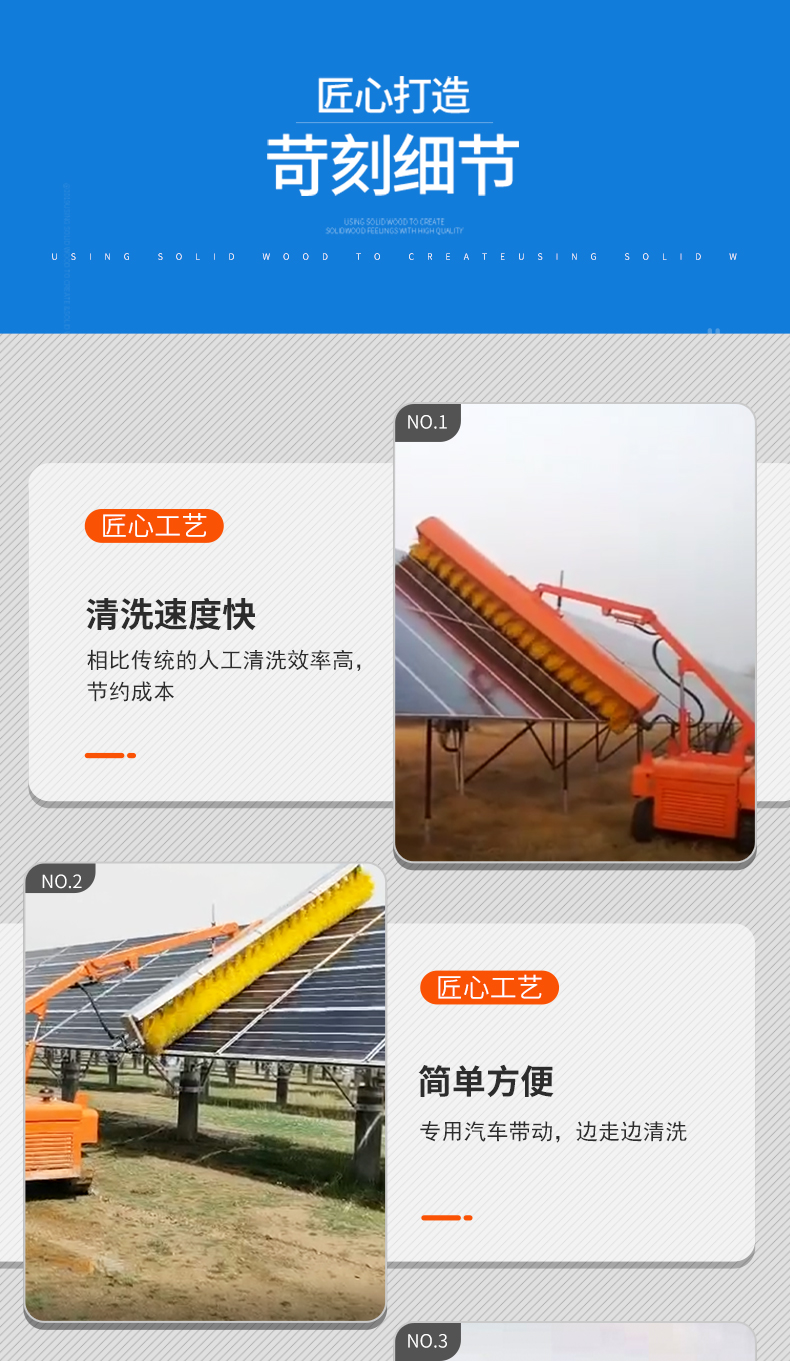

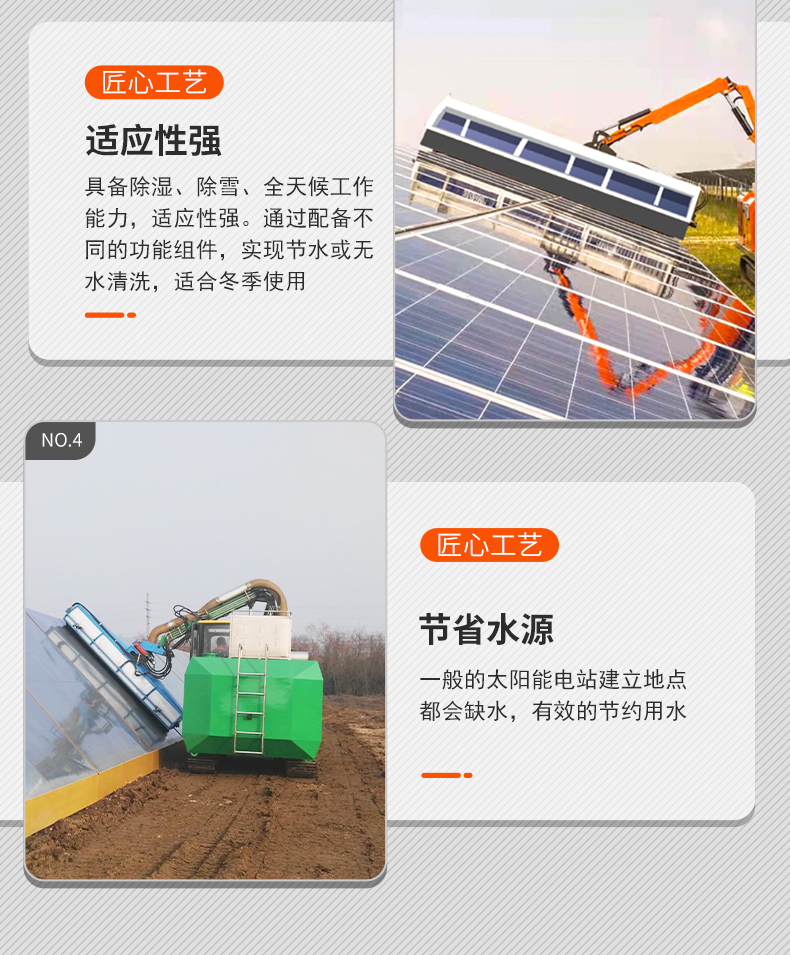

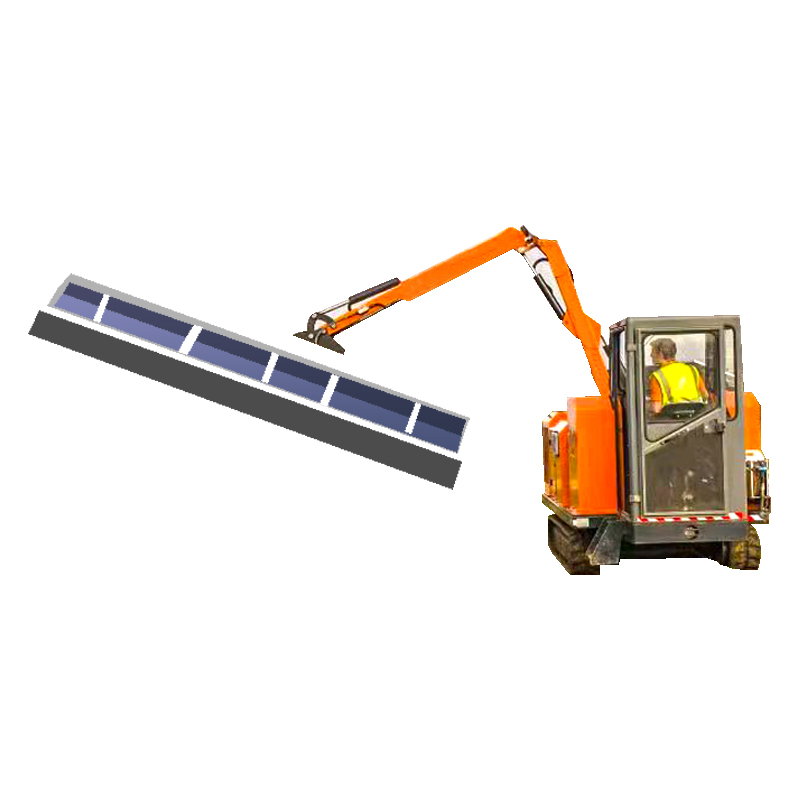

Photovoltaic panel cleaning equipment is a professional cleaning equipment designed, developed and manufactured by our company according to the special environment of desert photovoltaic power plants in my country. The main equipment consists of six systems: crawler walking system, power system, hydraulic system, remote control system, cleaning arm system, and cleaning roller brush.

Features

1. Track walking system: It adopts small rubber track and floating load-bearing wheel structure to adapt to various terrains and landforms, so that the cleaning platform is stable and balanced to the greatest extent.
2. Power system: Diesel engine power is used to make the walking system and cleaning roller brush system have enough power to work.
3. Hydraulic system: Adopt advanced oil pump, valve body and valve block to transmit the power generated by the diesel engine to ensure the normal operation of the walking system and the roller brush system.
4. Remote control system: Adopting advanced remote control products, the cleaning equipment can be operated and controlled in a single-person, long-distance "fool style".
5. Cleaning arm system: The cleaning arm has functions such as rotation, folding, angle secondary adjustment, roller brush distance control, and roller brush lifting control.
6. Cleaning roller brush function: high-strength aluminum alloy frame structure is adopted, driven by hydraulic power, and PVC nylon bristles are effectively attached to the surface of the component to ensure the safety and cleanliness of the component.

Technical data

thing	unit	Specification
Diesel engines	kilowatt	40
maximum. torque	Nano	≥152
drive unit	hydraulic
hydraulic working temperature	℃	50~70
work pressure	MPa	13~15 days
Operating Voltage	V	12
battery capacity	ah	105
The best speed of diesel engine	Rotating speed	1300~1600
Diesel volume	L	100
fuel consumption	L/h	4.2
Walking speed	km/h	2.5~3.5
Speed of work	km/h	1.5~2.5
climbing slope	°	>45
Daily capacity	molecular weight	3~5 pieces
maximum. cleaning height	mm	4800
minute. cleaning height	mm	200
cleaning angle range	°	0~80
Boom telescopic range	mm	80~1300
Boom swing range	°	180
Brush speed	rpm	400~500
Brush diameter	mm	700
Brush length	mm	3600~4200
Wireless control distance	rice	300
weight	Kilogram	2500
aspect	mm	2550x1500x2200

Our advantage

1. We have more than 15 years of manufacturing and exporting experience.
2. Export all over the world and win a high reputation among customers.
3. CE, ISO 9001 and strict production guidelines, guarantee the high quality of our products.
4. Close to Qingdao Port, easy to export.
5. Customer service personnel are online 24 hours a day, providing free technical support.
6. We provide factory and competitive price.
7. Strong R&D technical team.
8. All kinds of machinery in our factory can meet all your needs.
9. Engineers guide installation and solve other problems.
10. We provide OEM and ODM services to meet all your requirements.

FAQ

1. Are you a manufacturer?
yes we are. We also provide OEM, ODM, customization and labeling services.
2. Do you have the same price for every customer?
Yes, it just takes a lot.
3. How about the quality of Yugong Machinery?
We have more than 20 years of manufacturing and sales experience, and our products are mature in the market. We have exported to more than 20 countries. Our equipment will be tested before leaving the factory. So the quality is very stable.
4. How about your after-sales service?
We can send technicians to the site or provide technical support online, and provide spare parts at the lowest cost.
5. Is there an English version?
Yes, we have English, Spanish, etc. versions.
6. Can you deliver in time?
Yes, our factory warehouse has a lot of stock in case customers need goods urgently, but the equipment needs to be customized (usually 10 days).
