Cylinder smart meter for smart mini vertical LPG meter with GPRS cylinder,

  • Supplier: Wuxi Zhongyi Smart Technology Co., Ltd.
  • Region: Jiangsu, China
  • Contact: Mr jeff zou
  • Price: $200.00 / 3 - 999 pieces
    $180.00 / 1000 - 9999 pieces
    $120.00 / >=10000 pieces
  • Min. Order: 3 pieces
Click here to contact
Product details
brand:Loyaltyport:Shanghai
Use environment:-20℃~40℃Certification:CE
Origin:Jiangsu, Chinatype:Intelligent liquefied gas meter
Customization support:OBMSupply capacity:100000 pieces per month
model:ZYPRO-Gsize:115x84x70 mm
Warranty:1 yearPressure measurement range:0~3MPa
Package preview:payment terms:L/C, T/T
communicate:GPRS/IC/LORAWAN
product description
The liquefied gas tank is a common household gas appliance, which is very convenient to use. But when the gas is about to run out, we often cannot know the remaining capacity of the gas storage tank, and cannot predict whether the gas is safe to use. In view of this, Wuxi Zhongyi Intelligent Technology Co., Ltd. has launched a smart liquefied gas meter, which can safely calculate the remaining capacity of liquefied gas tanks and monitor gas leakage in real time. This product is different from the traditional mechanical barometer test instrument. It is equipped with an LED display and can transmit measurement data to a remote cloud server through wireless communication (WiFi or LoRaWAN) to realize real-time monitoring at the headquarters. The meter has its own electronic valve. When the cost is insufficient or the gas pressure exceeds the standard, the valve will automatically lock and alarm. This table is suitable for household roof gas tanks.

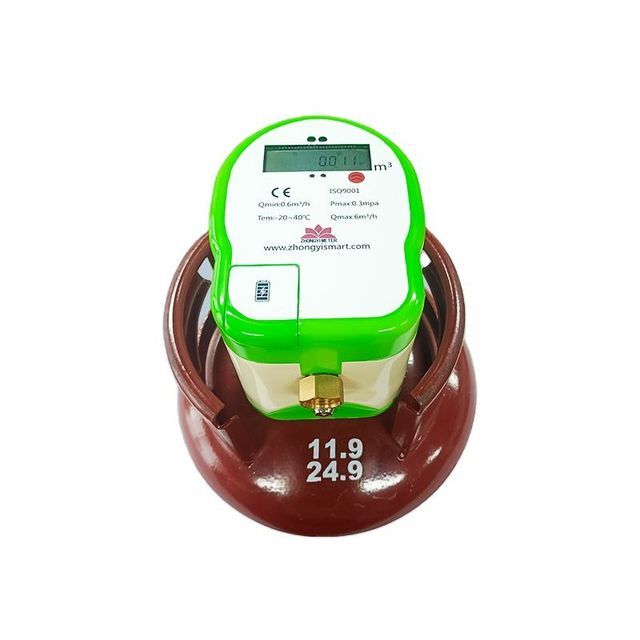

product picture
horizontal
vertical
main features
* High sensitivity, long life, can be exposed to outdoor high temperature environment all day.
* Dual power supply mode. The built-in rechargeable battery will be activated when wired power is not available.
* Long-distance wireless data transmission (WiFi&LoRaWAN).
* Using electronic valve, safe and reliable.
Product Features
Name
describe
Function
Liquefaction tank residual pressure capacity monitoring and usage monitoring, monitoring data reporting
Management system through the network.
alarm
Liquefied petroleum gas leakage monitoring and alarm
valve control
The arrears lock the valve and open the valve automatically after recharging. In the event of a liquefied gas leak, the valve
Automatically locks, manually opens the valve after disposal.
data storage
The usage and remaining capacity of the intelligent liquefied gas meter are automatically stored in the meter, and each time it is saved for 90 days
Hours, 180 days per day, 360 days per month. The instrument data can be obtained through the M-bus connection, the instrument
The data is synchronized to the remote management system through the network every day.
battery management
There are two explosion-proof rechargeable batteries in the instrument memory, about 5600ma, equipped with M-Bus external power supply
Power Systems. When the external power supply is cut off, the battery starts to work.
communicate
Lorawan+WiFi communication. The data in the table is synchronized with the management system and connected to the network through WiFi
or Lorawan, and connect to the HQ server. The headquarters can monitor the status of the electricity meter in real time.
use environment
Due to the need of liquefied gas leak monitoring, the bottom of the case is not waterproof and can work normally
Temperature range -20℃~65℃.
display on screen
Residual capacity, cumulative flow, battery capacity, time, valve status, signal status
diameter
DN15, DN20
Pressure measurement range
0~3MPa

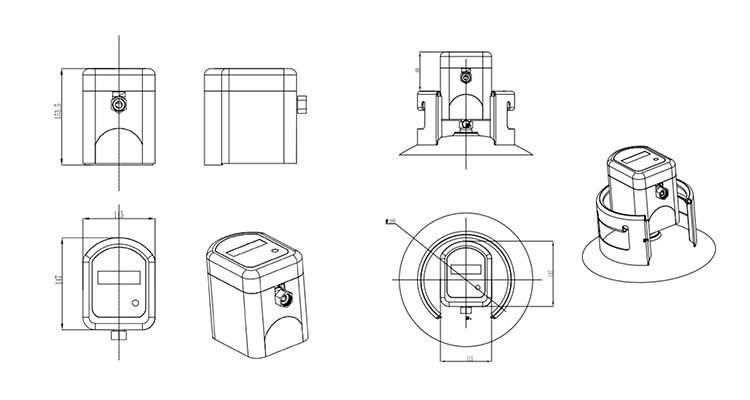

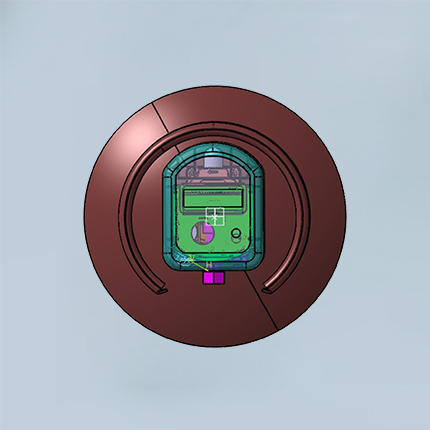

Internal structure map
Installation Precautions
1) Do not install in places directly affected by the heat, steam, and oily smoke generated by gas appliances (such as directly above the gas stove)
2) Do not install where something isolates the detector from gas equipment.
3) Do not install in places with large air flow, such as air outlets, ventilation fans, doorways, etc.
4) Do not install in places where the power is cut off at night.
5) For newly decorated houses, the detector should be installed after painting and welding, and the air should be kept in circulation to avoid false alarms.
